Midland - 98E

Product code: 100098

Factory code: 100098

Barcode: 8011869127113

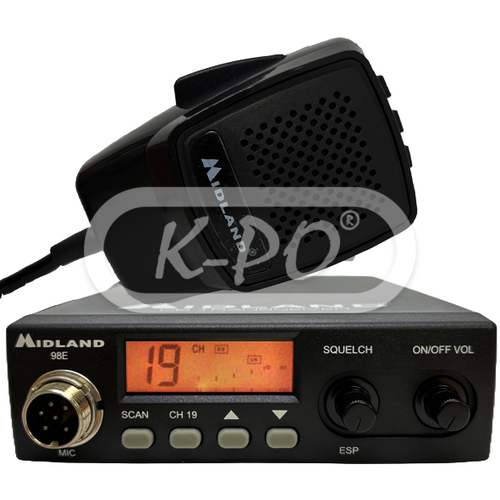

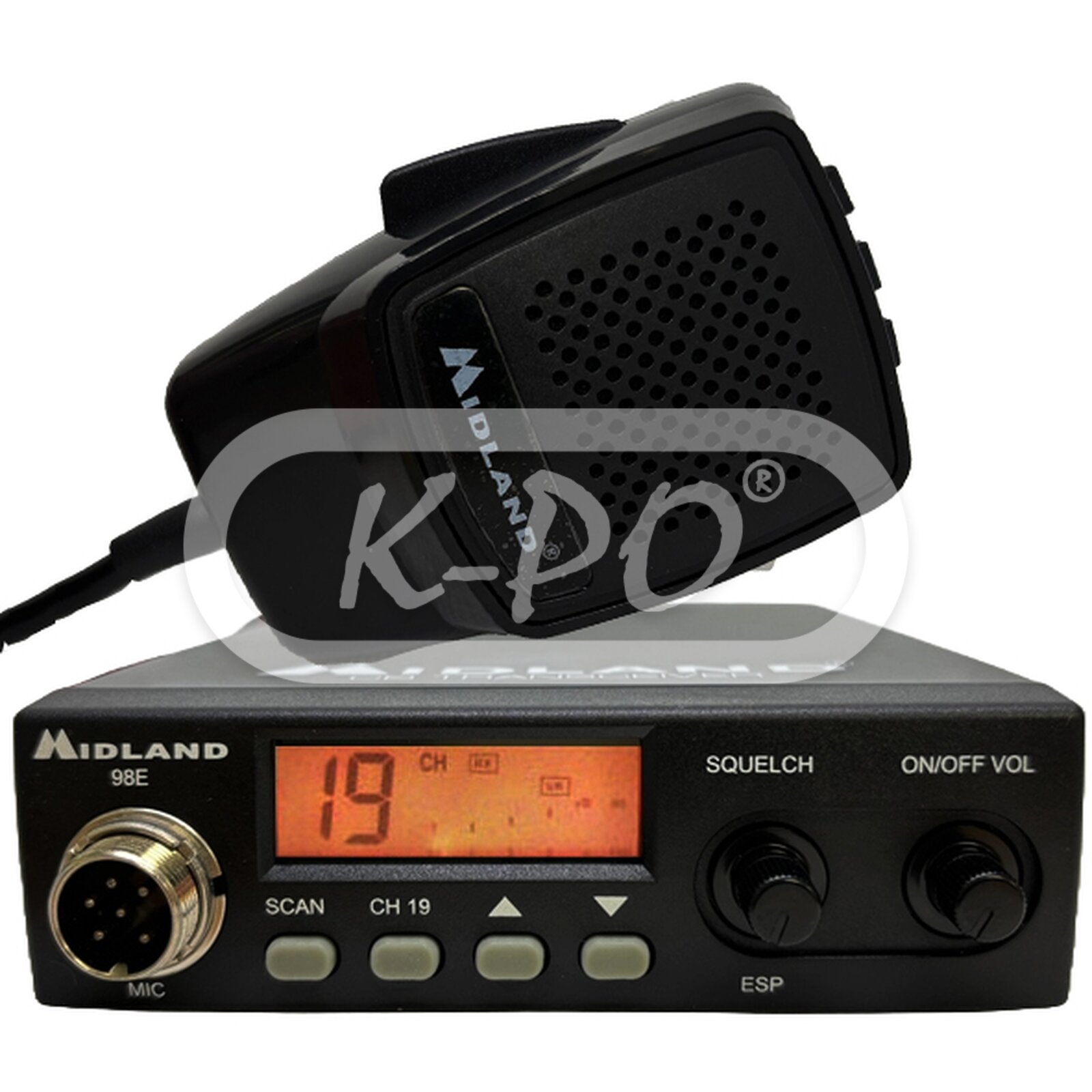

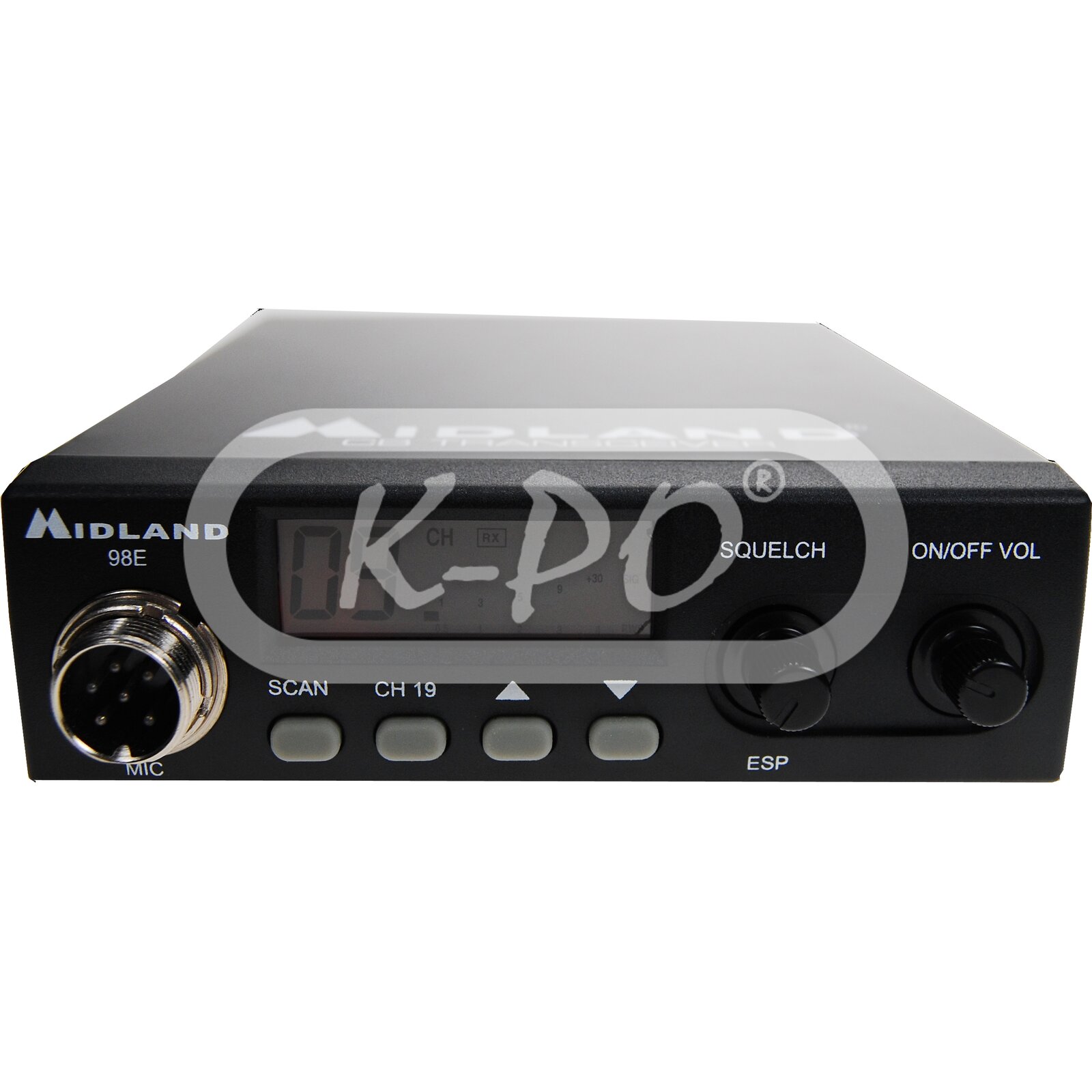

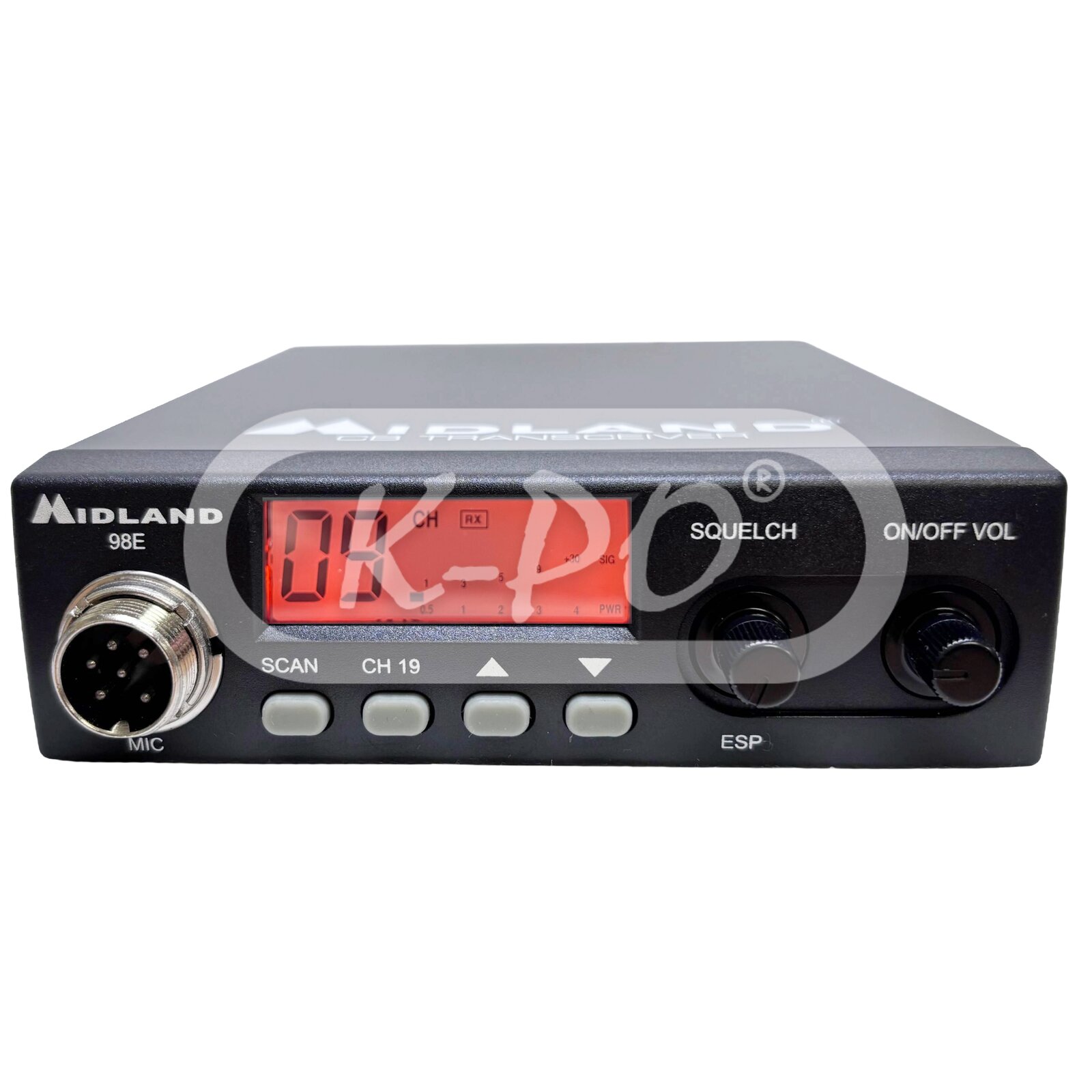

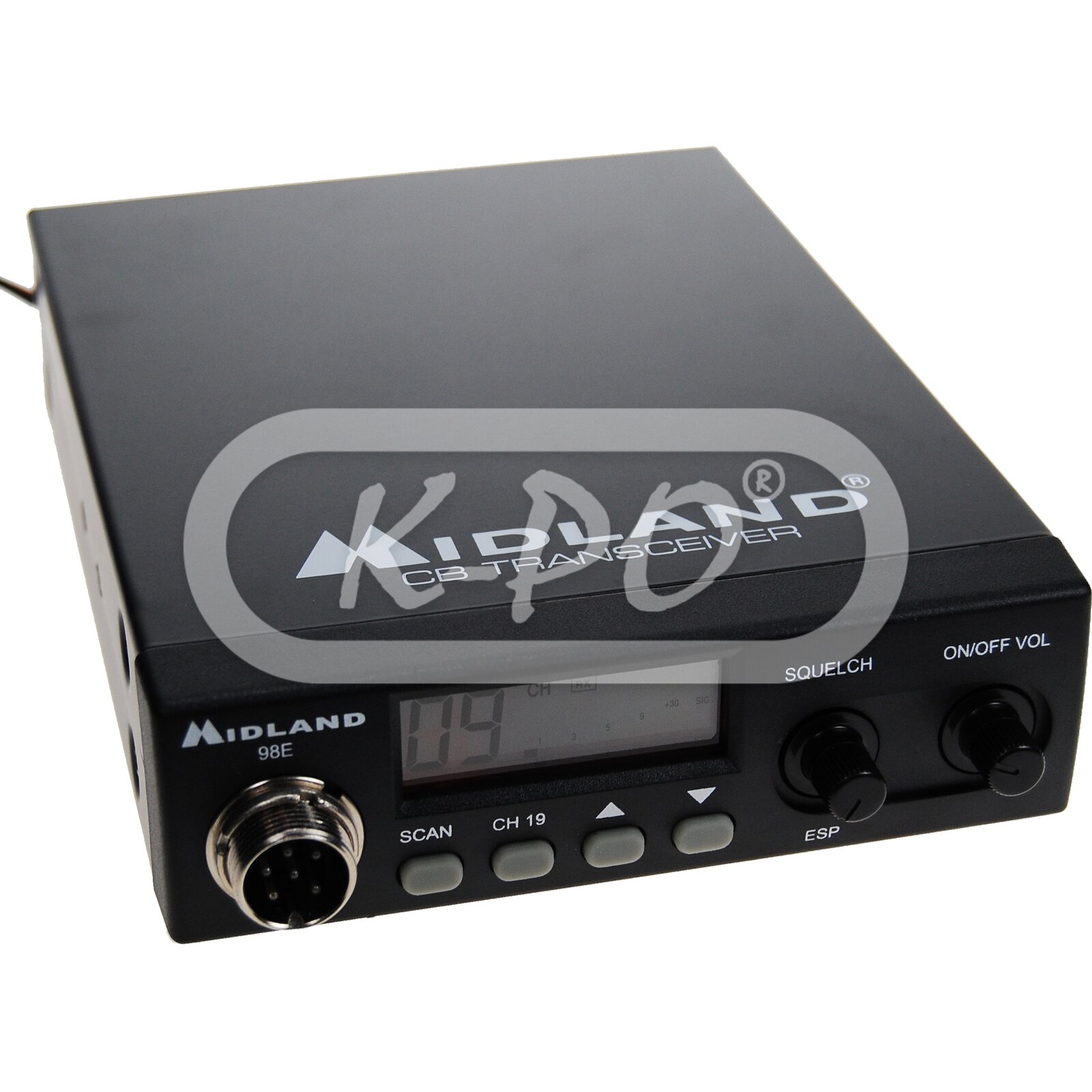

The Midland 98E is a compact and user-friendly CB radio with 40 FM channels, EC standard. It's clear orange LCD display and multifunction buttons ensure easy operation. Ideal for transport and recreational use, it offers reliable communication.

Frequency range: 26.965 - 27.405 MHz

Shipped today

€74.95 (61.94 excl. 21% VAT)

Features

• Modulation: FM
• Output power: 4 Watt
• Channels: 40 FM
• Display type: Backlight
• Display colors: Orange
• Squelch: Manual squelch
• Emergency channel: Yes
• External speaker socket: Yes
• External S-meter socket: Yes
• S-meter: Yes

Electrical data

• Voltage: 13,8 Volt
• Frequency control: Precision PLL synthesizer

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation FM: 1.8 kHz to ± 0.2 kHz

Receiver

• Frequency response: 300 Hz - 3.0 kHz
• Adjacent channel selectivity: 65 dB
• Sensitivity with ESP: 0.3 μV for 20 dB SINAD
• Sensitivity without ESP: 0.7 μV for 20 dB SINAD
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: Less than 8% @ 1 kHz

Mechanical data

• Length: 120 mm
• Height: 40 mm
• Width: 190 mm
• Weight: 737 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 6 pin connector

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• User Manual: English
