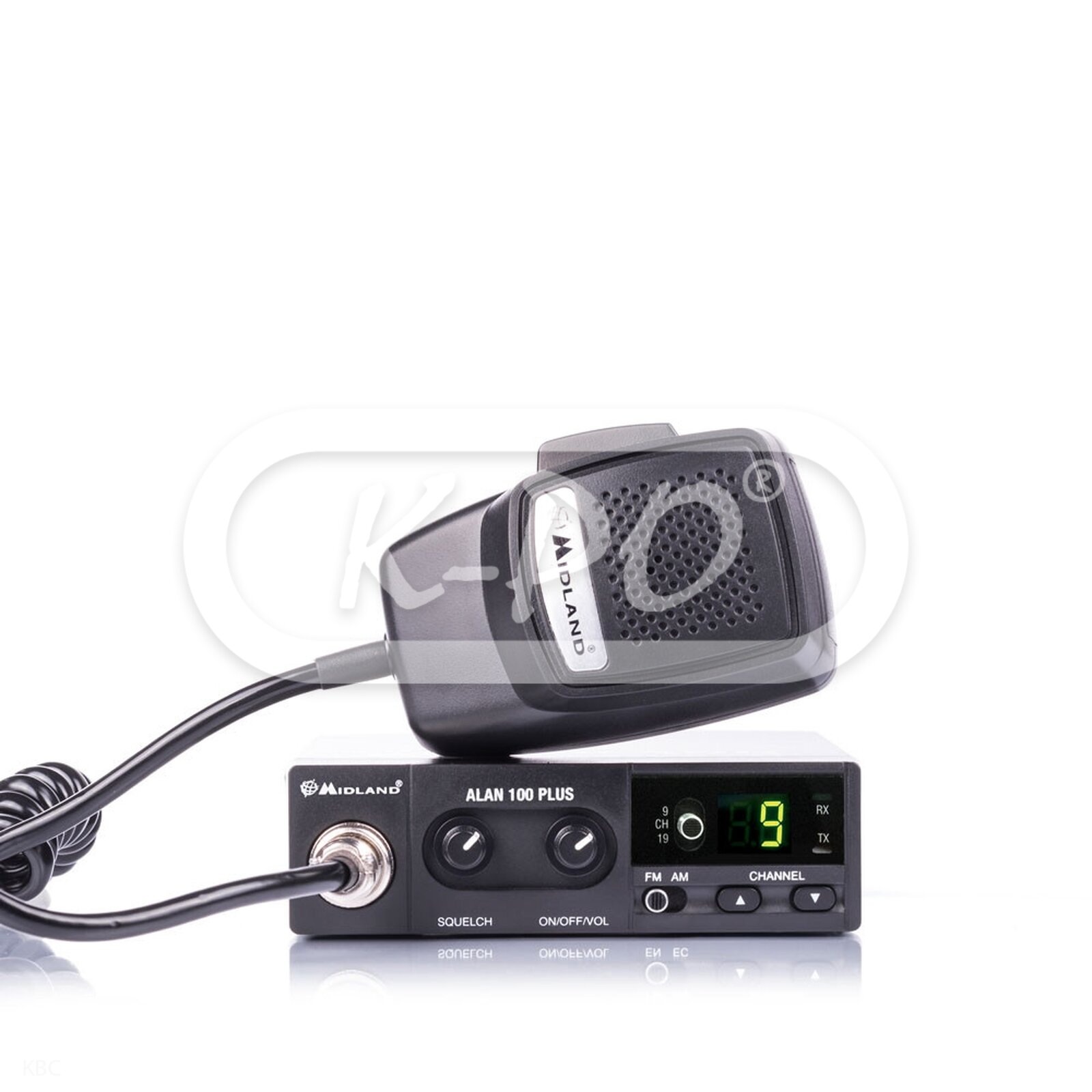

Midland - Alan 100 Plus B

Product code: 44209

Factory code: C442.12

Barcode: 8011869172274

The Midland Alan 100 Plus B is a compact CB radio for car, caravan and trucks. The radio has the most essential functions and is easy to use on 12 Volt.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€89.95 (74.34 excl. 21% VAT)

Features

• Modulation: AM / FM
• Output power: 4 Watt
• Channels: 40 AM / FM
• Display type: LED display
• Noise blanker: Yes
• Squelch: Manual squelch
• Hi/Lo power: Yes
• External speaker socket: Yes

Electrical data

• Voltage: 13,8 Volt
• Frequency tolerance: 0.002%

Transmitter

• Modulation AM: 80%
• Modulation FM: 2.5 kHz
• Drain: AM: 1.8 A / FM: 1.3 A max.

Receiver

• AM sensitivity: 1.0 μV for 20 dB SINAD
• FM sensitivity: 1.0 μV for 20 dB SINAD
• Frequency response: 450 Hz - 2.5 kHz
• Adjacent channel selectivity: 60 dB at 10 kHz / 70 dB at 20 kHz
• Squelch sensitivity: Adjustable from 1.2 μV to 1mV
• IF frequencies: Double conversion 1st 10.7 MHz / 2nd 455 kHz

Mechanical data

• Length: 190 mm
• Height: 38 mm
• Width: 124 mm
• Weight: 1200 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 4 pin connector

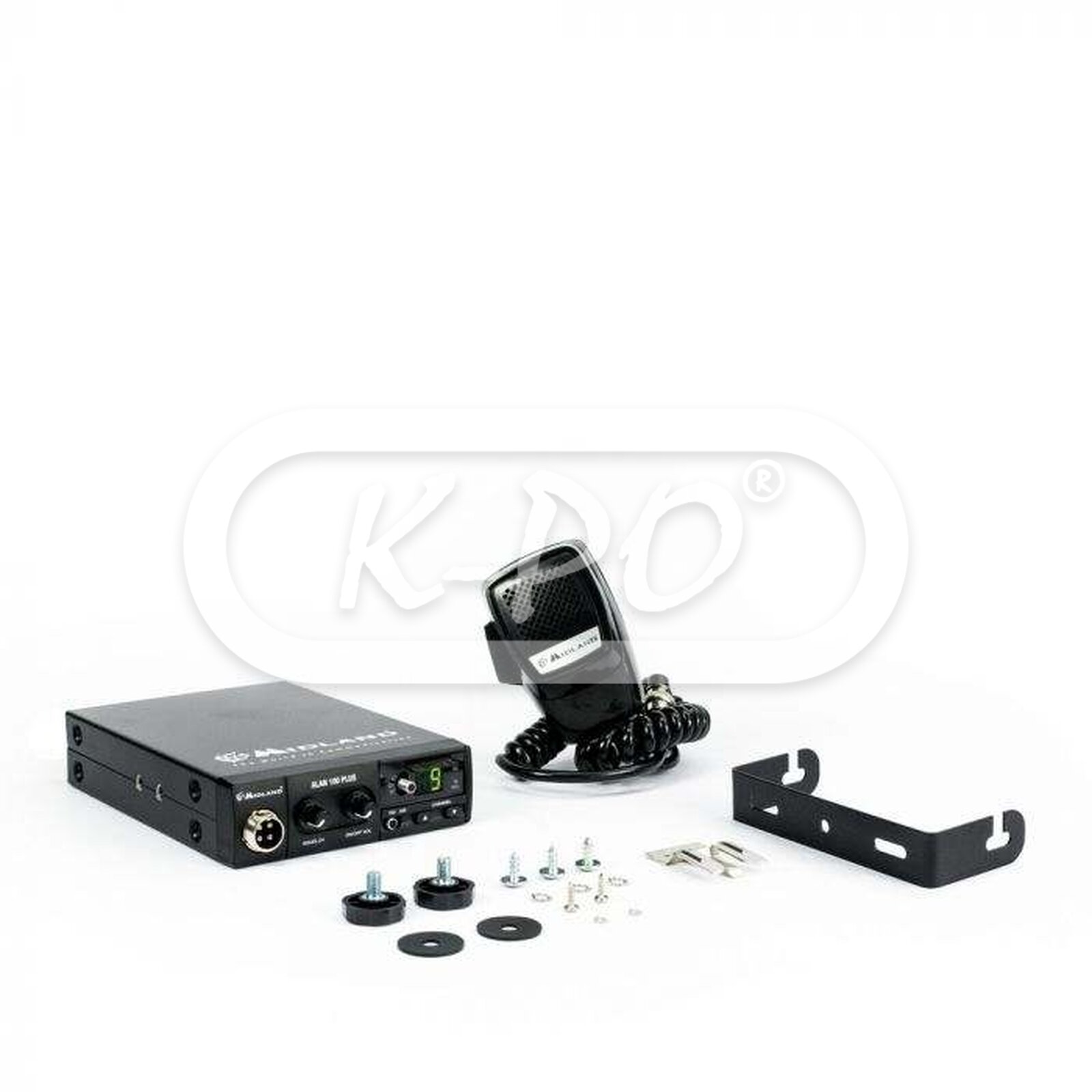

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 12 Volt cigarette lighter plug
• User Manual: English, Italiano, Deutsch, Espanol, Francais, Polski, Romana
• Microphone holder: 1 pcs

Downloads

• Datasheet: Manual ALAN 100 PLUS B
