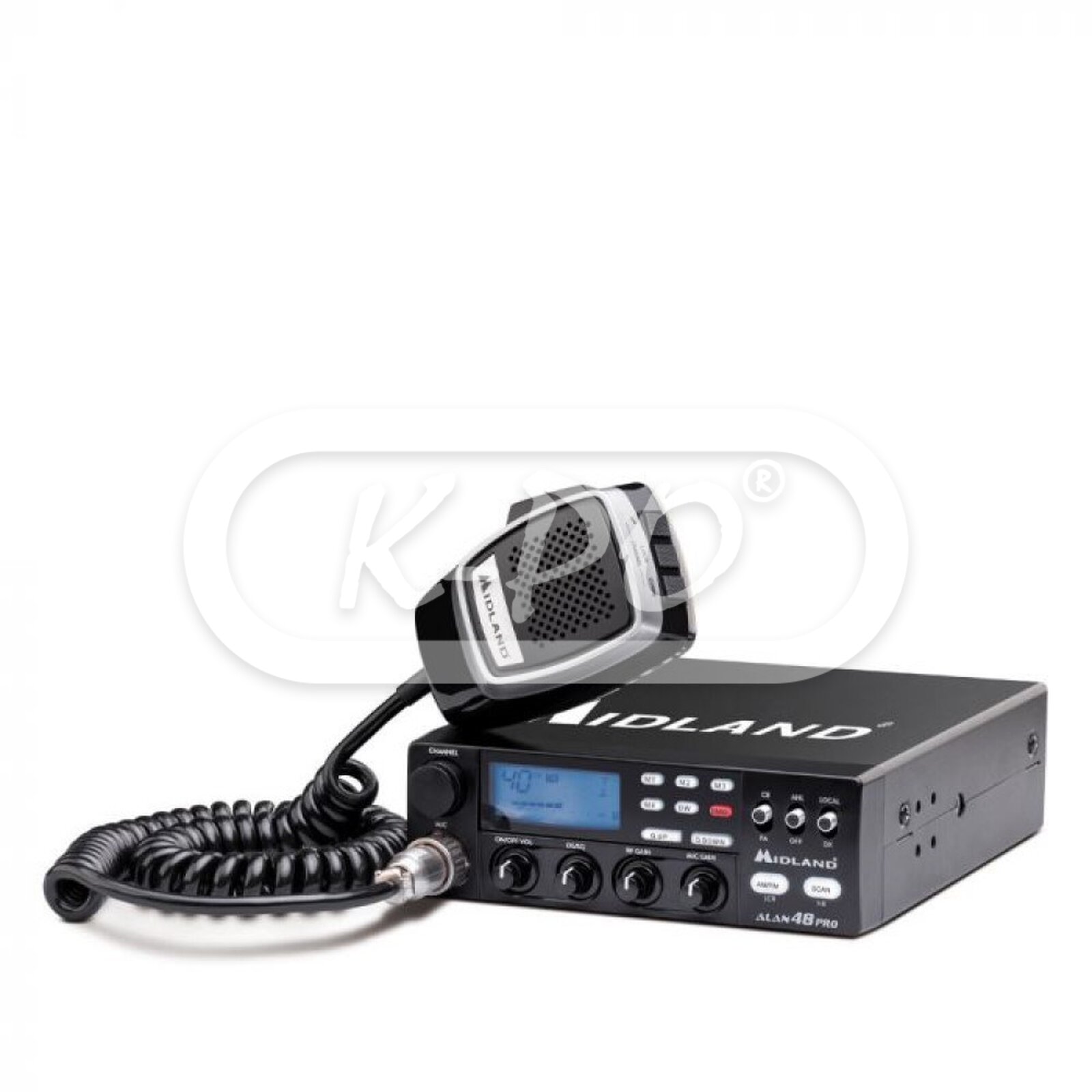

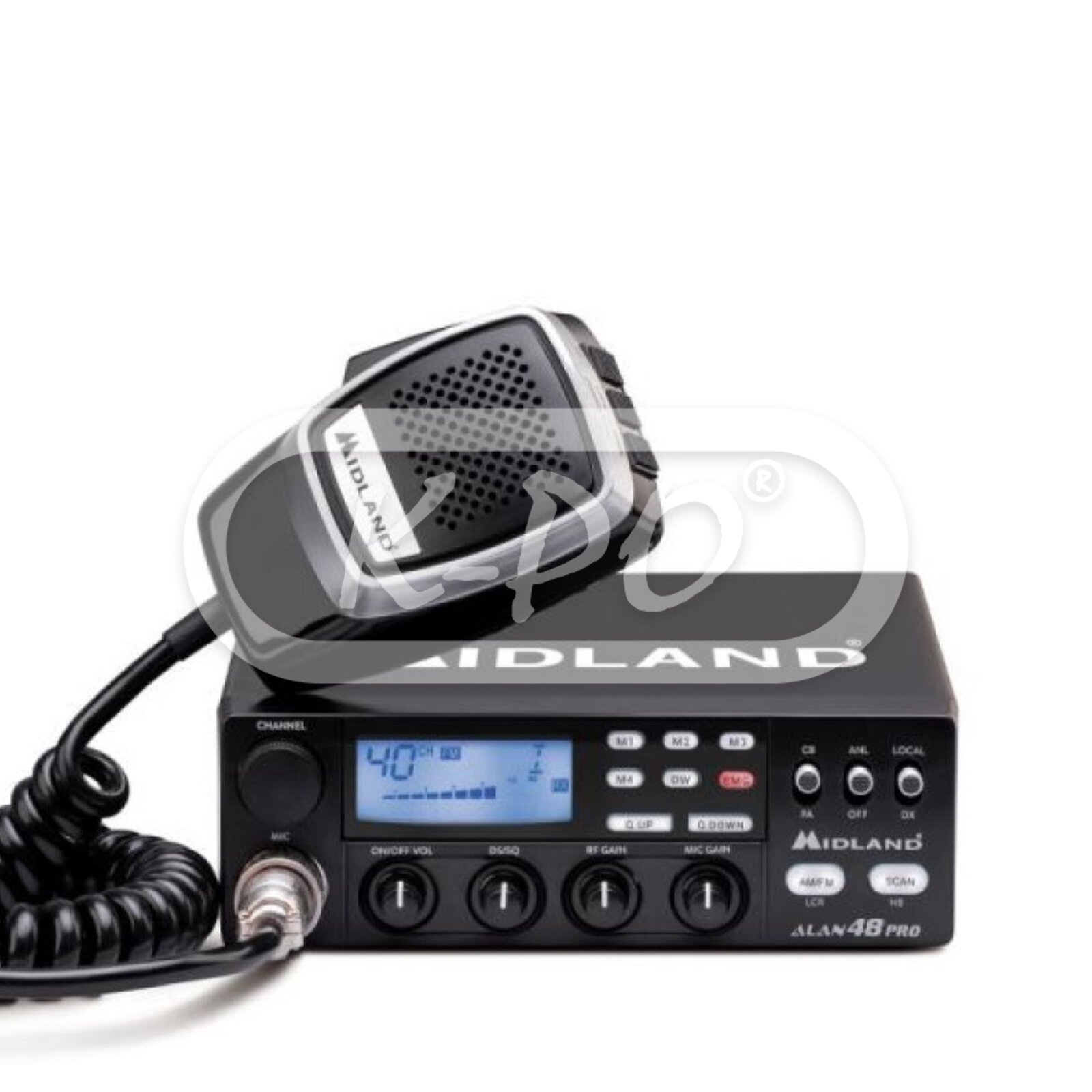

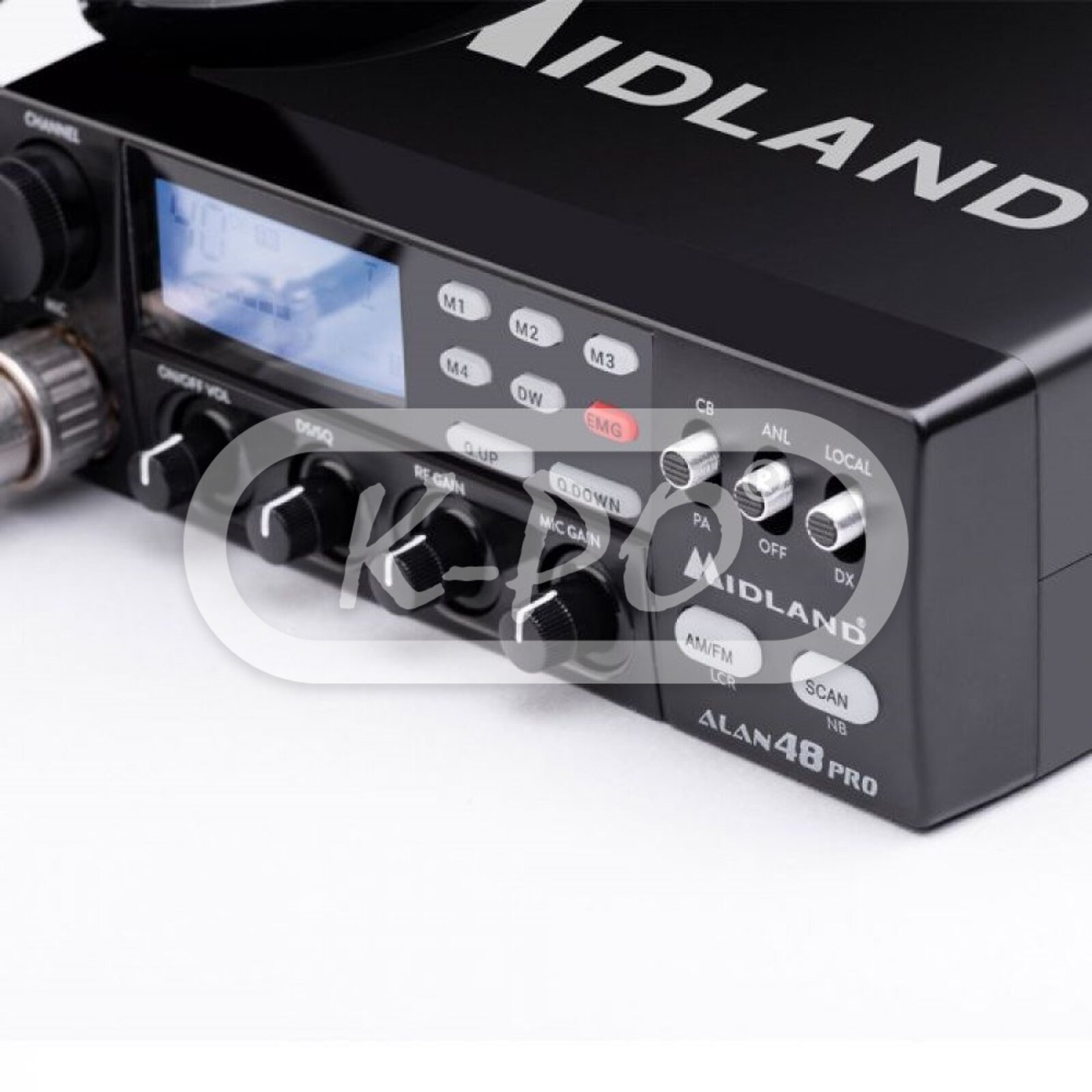

Midland - Alan 48 Pro

Product code: 42216
Factory code: C422.16
Barcode: 8011869202476

The new Alan 48 Pro is the top of the range multiband, the CB line expressly conceived for trips and routes in different European countries.What does this mean?It means that Alan 48 Pro has an adjustable power – 1W/4W – to be adjusted to the frequencies and regulations of the country in which it is used. With a power supply voltage of 12/24 V, Alan 48 Pro does not need reducers and it is of easy installation in the dashboard compartment, thanks to the DIN bracket (optional). Alan 48 Pro is high tech and complete in facing all sorts of noises: it is equipped with the Digital Squelch, that eliminates the background swish and the Noise Blanker, to cancel the environmental noises.

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€132.19 (132.19 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 1 - 4 Watt / Duty cycle 10% @ 13.8V DC
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Blue
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / DSS (Dynamic Squelch System) /
  • Emergency channel: Yes
  • Keypad lock: Yes
  • Scan function: Yes
  • Quick channel selection: Yes
  • External speaker socket: Yes
  • External S-meter socket: Yes
  • External PA socket: Yes
  • S-meter: Yes
  • MIC gain: Yes
  • RF gain: Yes
  • Dual watch: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /
  • Operating temperature: -10° to +55° C
  • Operating mode: F3E (FM) / A3E (AM)
  • Frequency control: PLL synthesizer
  • Frequency tolerance: 0.002%

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Modulation AM: from 85% to 95%
  • Modulation FM: 1.8 kHz to ± 0.2 kHz
  • Drain: 13.8 Volt: 1100 mA

Receiver

  • AM sensitivity: 0.5 µV for 20 dB SINAD
  • FM sensitivity: 0.5 µV for 20 dB SINAD
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 65 dB
  • Signal to noise ratio: 45 dB
  • Maximum audio power: 2 Watt
  • Internal speaker: 8 Ohm
  • Receiving system: Dual conversion superheterodyne
  • IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
  • Audio distortion: Less than 8% @ 1 kHz
  • Image rejection: 65 dB

Mechanical data

  • Length: 180 mm
  • Height: 50 mm
  • Width: 150 mm
  • Weight: 1000 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

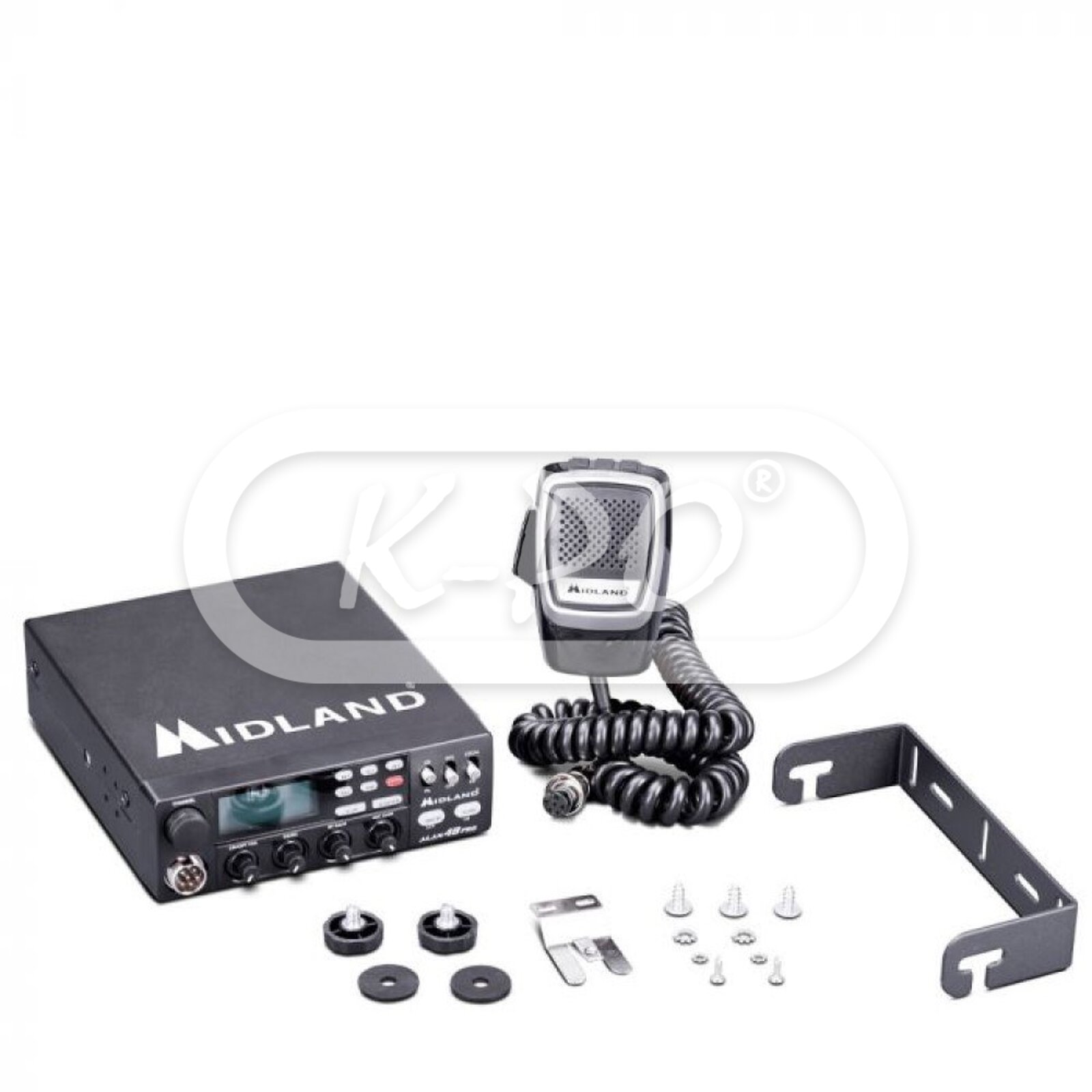

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • Microphone holder: 1 pcs
