Midland - M-Mini USB starter pack

Product code: 7200022

Factory code: 7200022

Barcode: 8718375102992

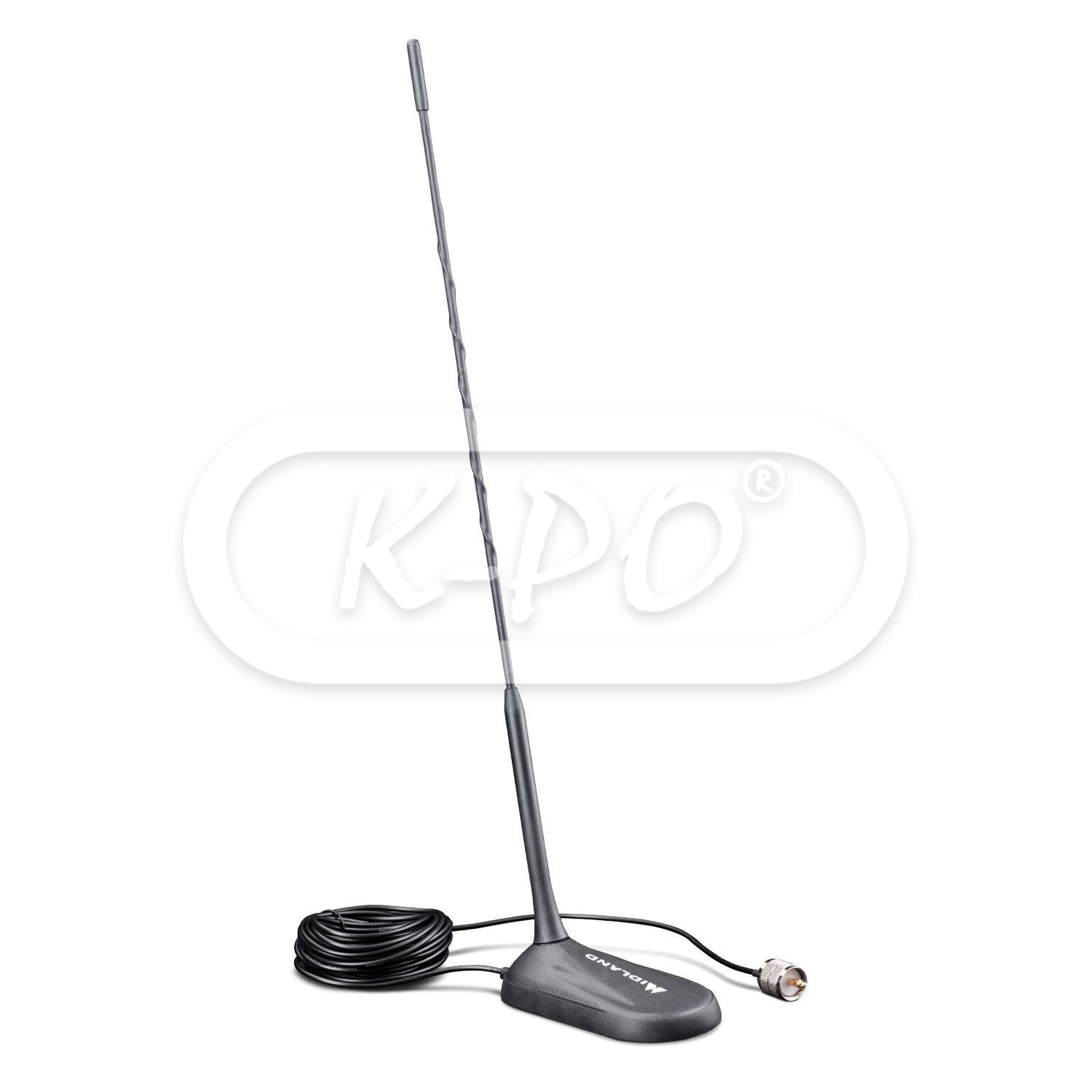

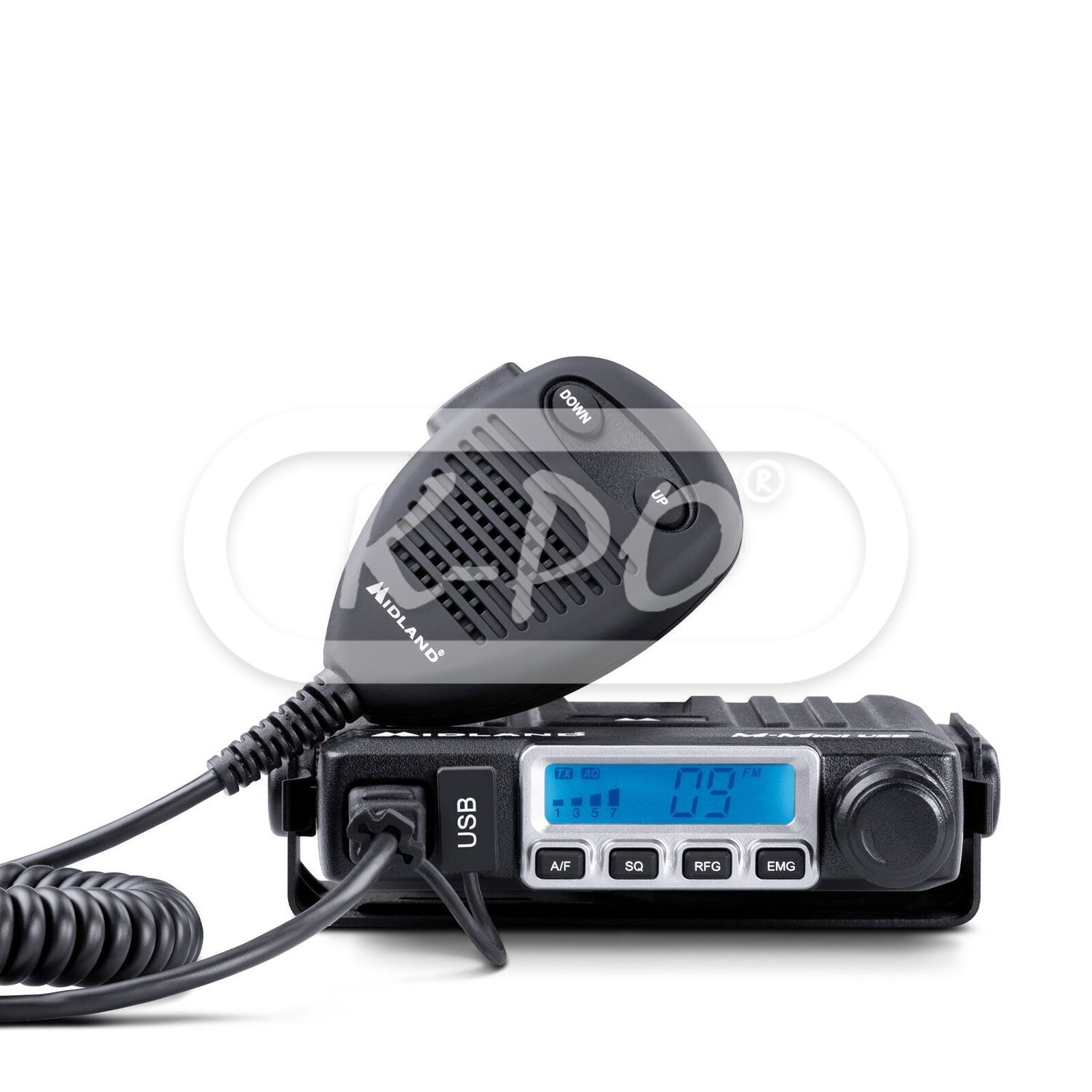

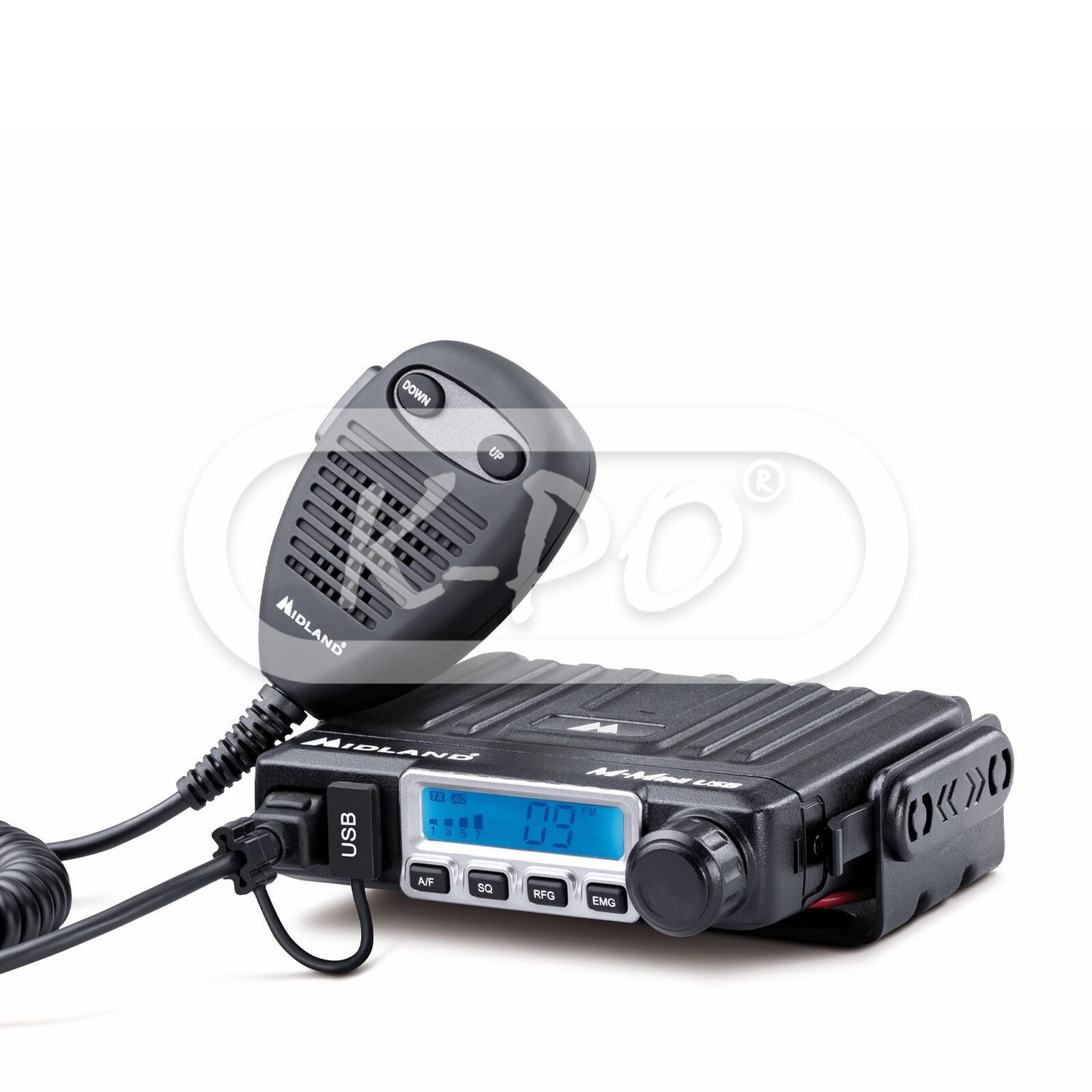

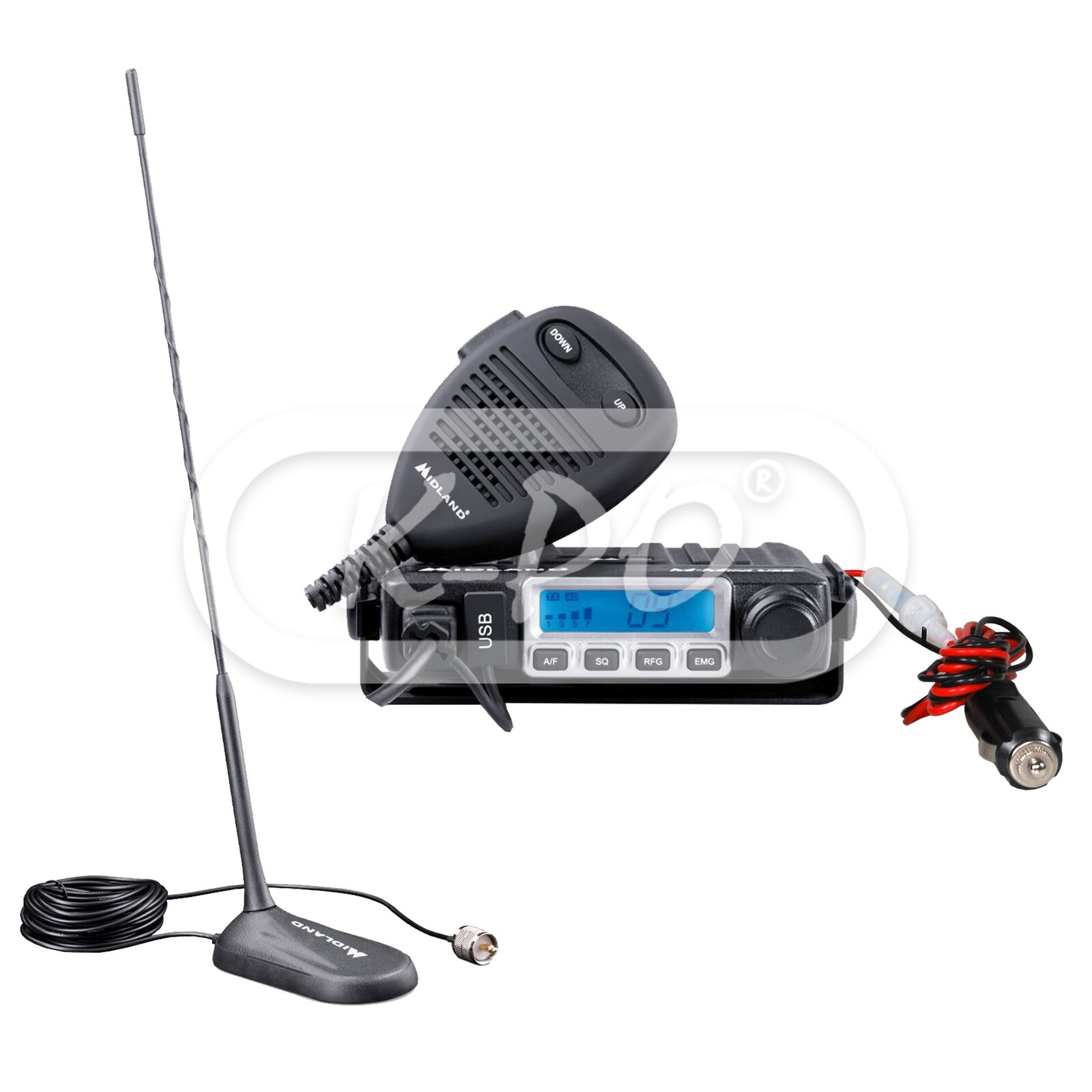

The Midland M-Mini USB starter and holiday pack is the perfect companion for those who demand simplicity, reliability, and connectivity on the road. The package contains the Midland Mini USB radio with cigarette lighter plug and the Midland MC45 streamlined magnet antenna.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€71.95 (59.46 excl. 21% VAT)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 1 - 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Blue
USB: Yes
Squelch: Digital squelch
Emergency channel: Yes
Keypad lock: Yes
External speaker socket: Yes
S-meter: Yes
RF gain: Yes
Car socket connector: Yes

Electrical data (radio)

Voltage: 13,8 Volt
Operating temperature: -20° to +55° C
Frequency tolerance: 0.002%

Transmitter

Modulation AM: from 85% to 90%
Modulation FM: 1.9 kHz
Drain: 13.8 Volt: 2 A
Frequency allowance: ± 300 Hz
Spurious transmission: < 4 nW (-54 dBm)

Receiver

Frequency response: 300 - 3000 Hz
Adjacent channel selectivity: 60 dB
Maximum audio power: 1 Watt
Internal speaker: 8 Ohm
Image rejection: 70 dB

Mechanical data (radio)

Length: 100 mm
Height: 25 mm
Width: 102 mm
Weight: 450 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: RJ45 connector

Electrical data (antenna)

Electrical type: Base loaded
Gain: 2-3 dBi
VSWR: ≤ 1.2:1
Power peak: 180 Watts (CW) short time
Impedance: 50 Ohm
Polarization: Linear vertical
Cable: Yes
Cable length: 4 meter / RG 174

Mechanical data (antenna)

Materials: Stainless steel
Max wind resistance: 140 km/h
Height: 450 mm
Weight: 235 gram

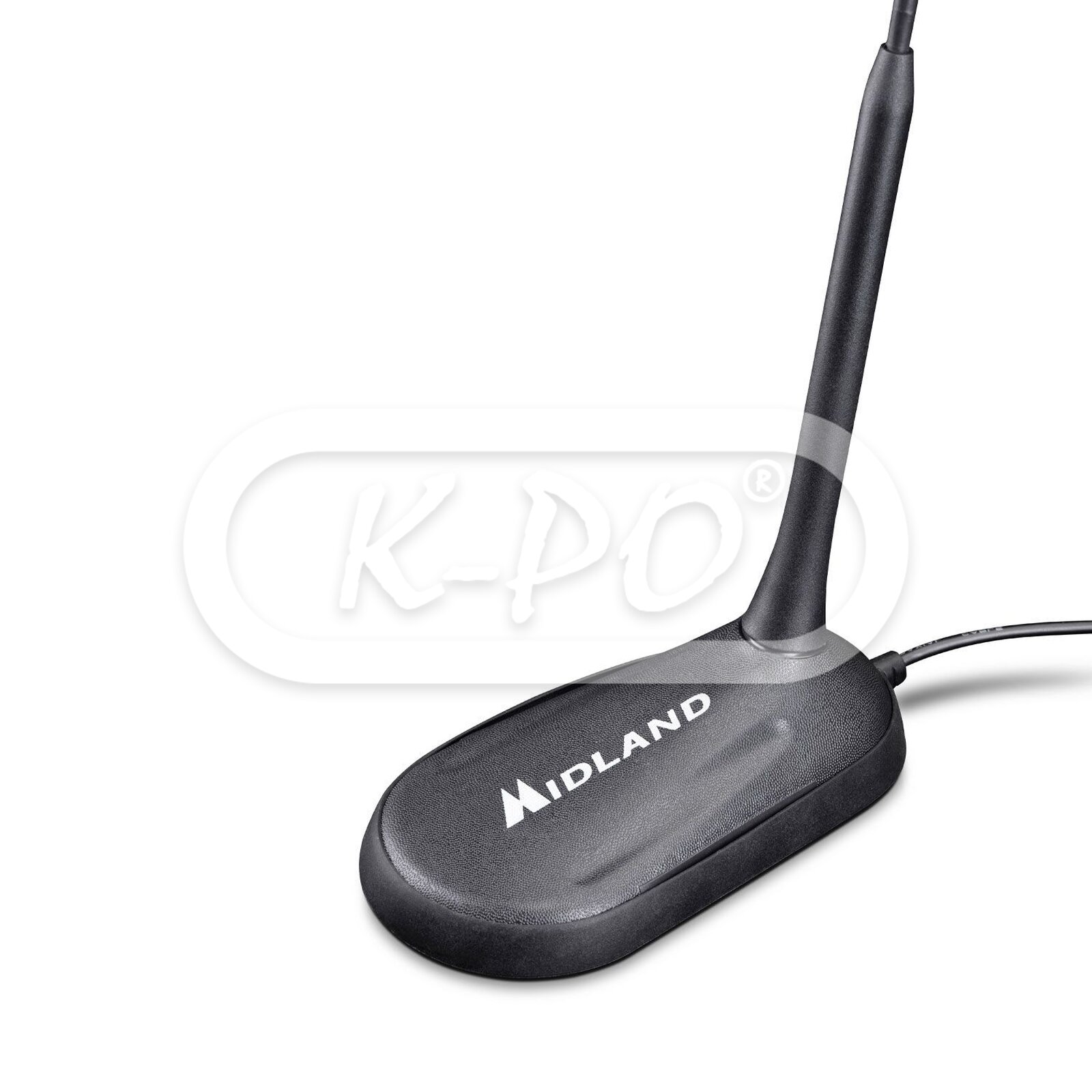

Mounting type: Magnet

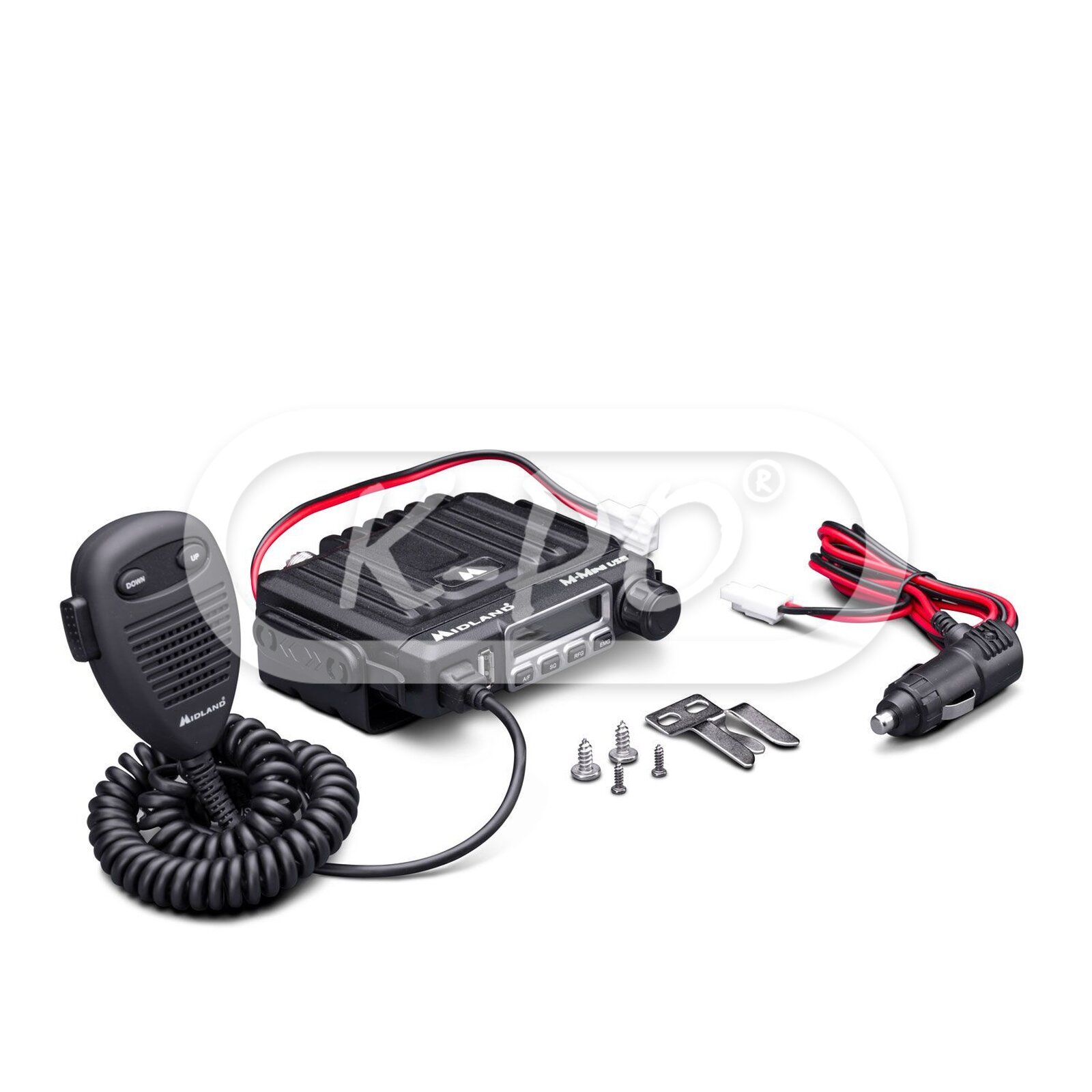

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English
Antenna: 1 pcs
