Midland - M-Zero Plus starter pack

Product code: 7100025
Factory code: 7100025
Barcode: 8718375101773

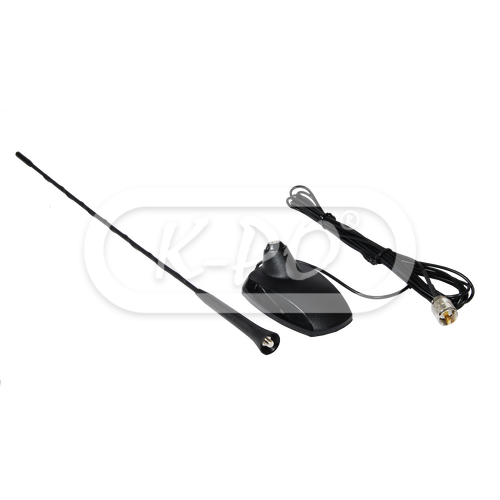

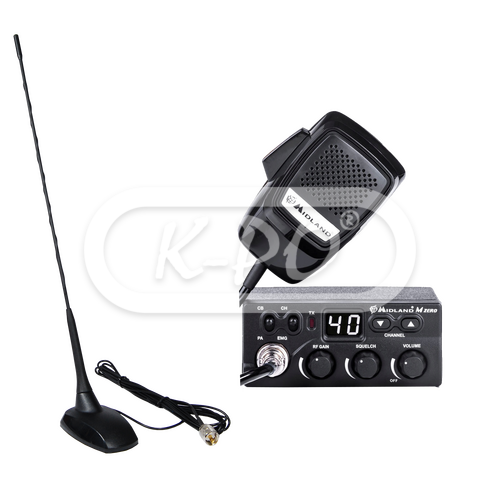

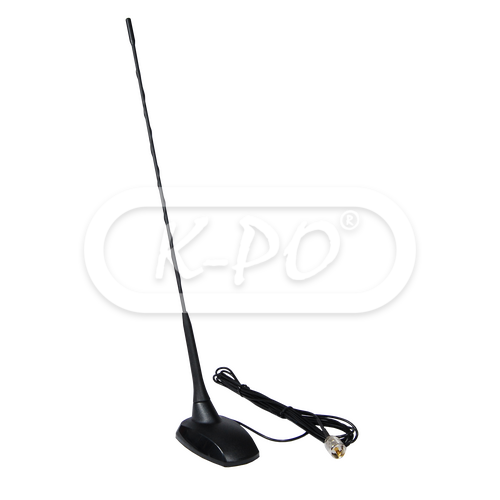

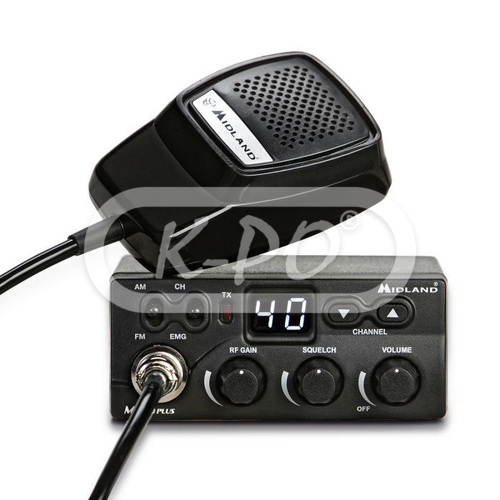

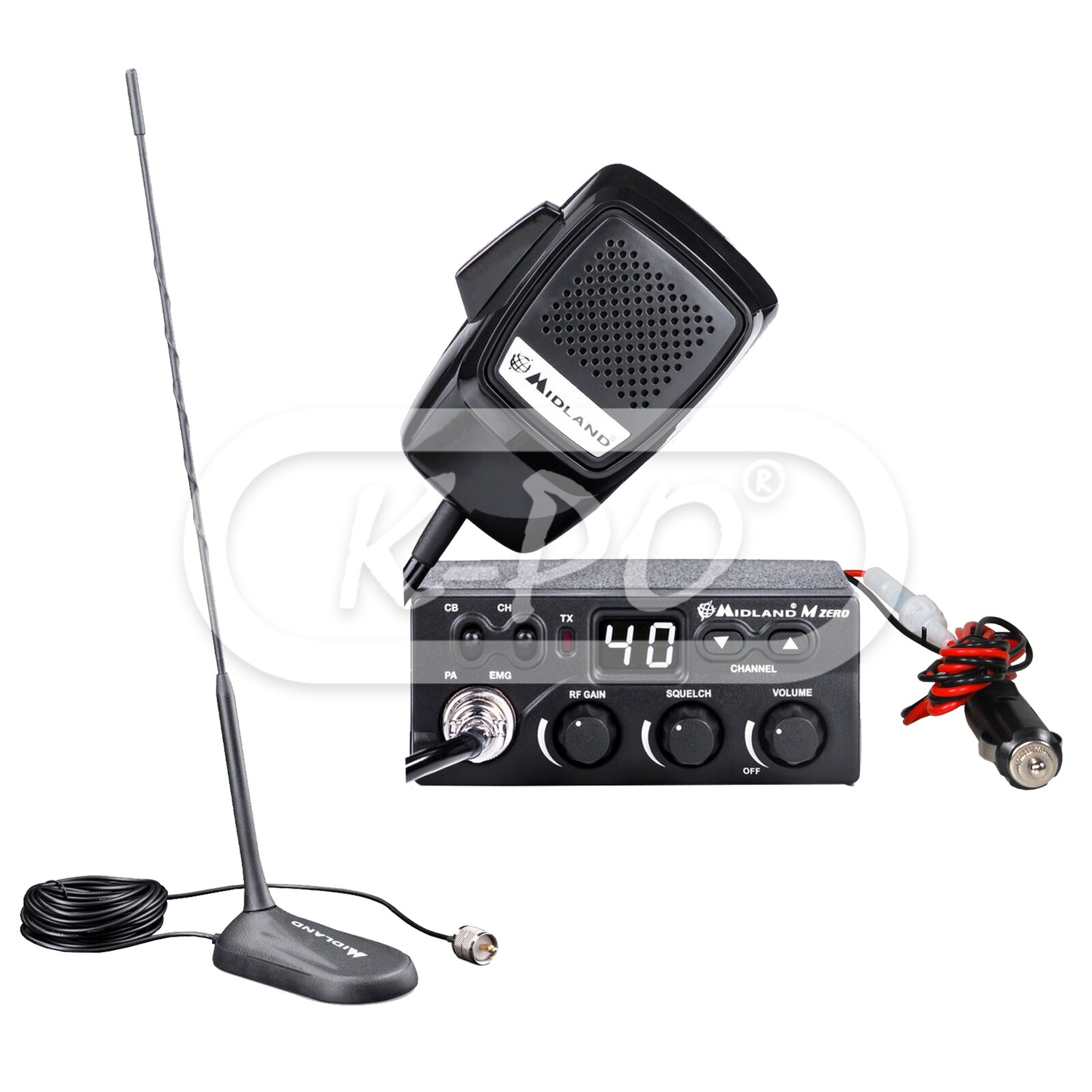

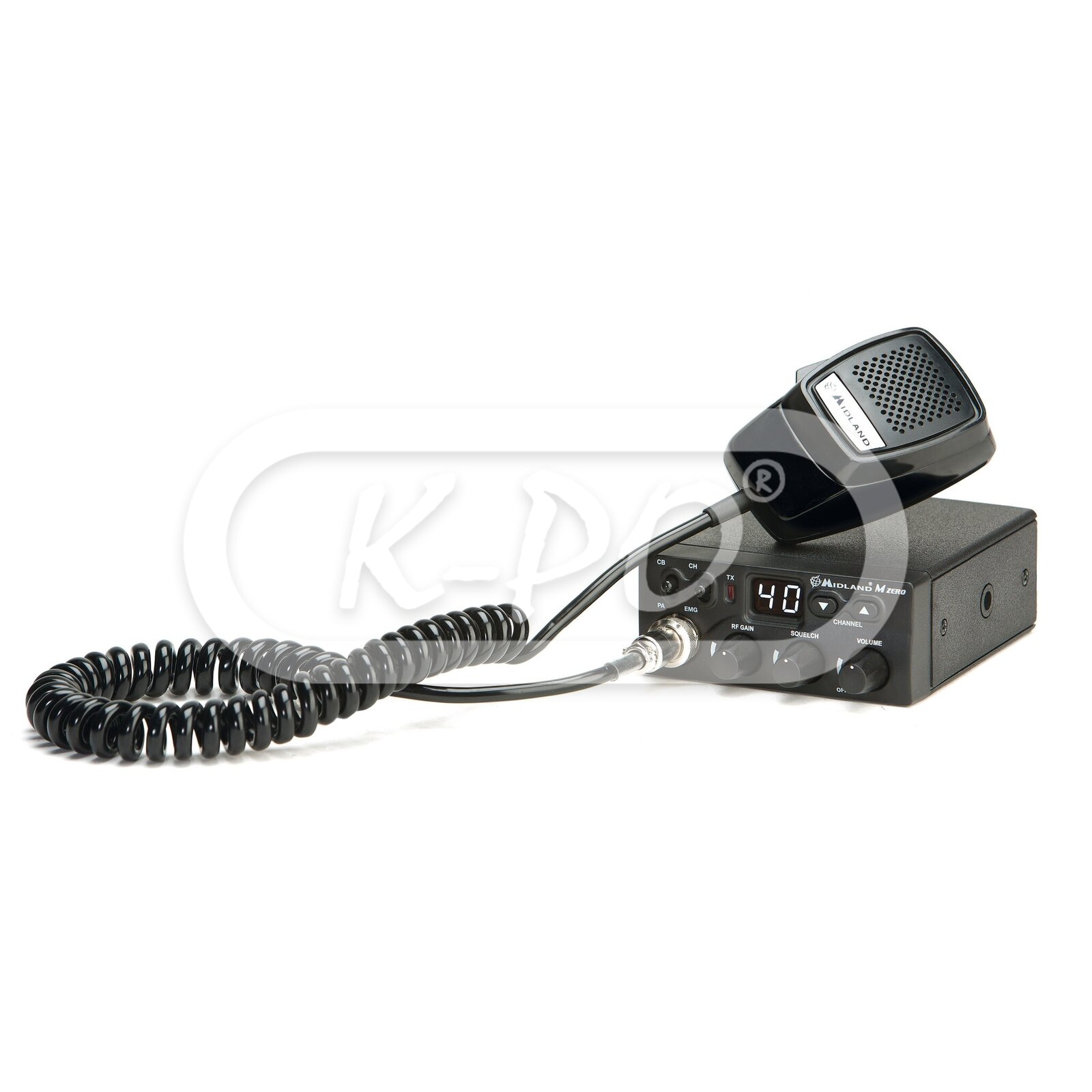

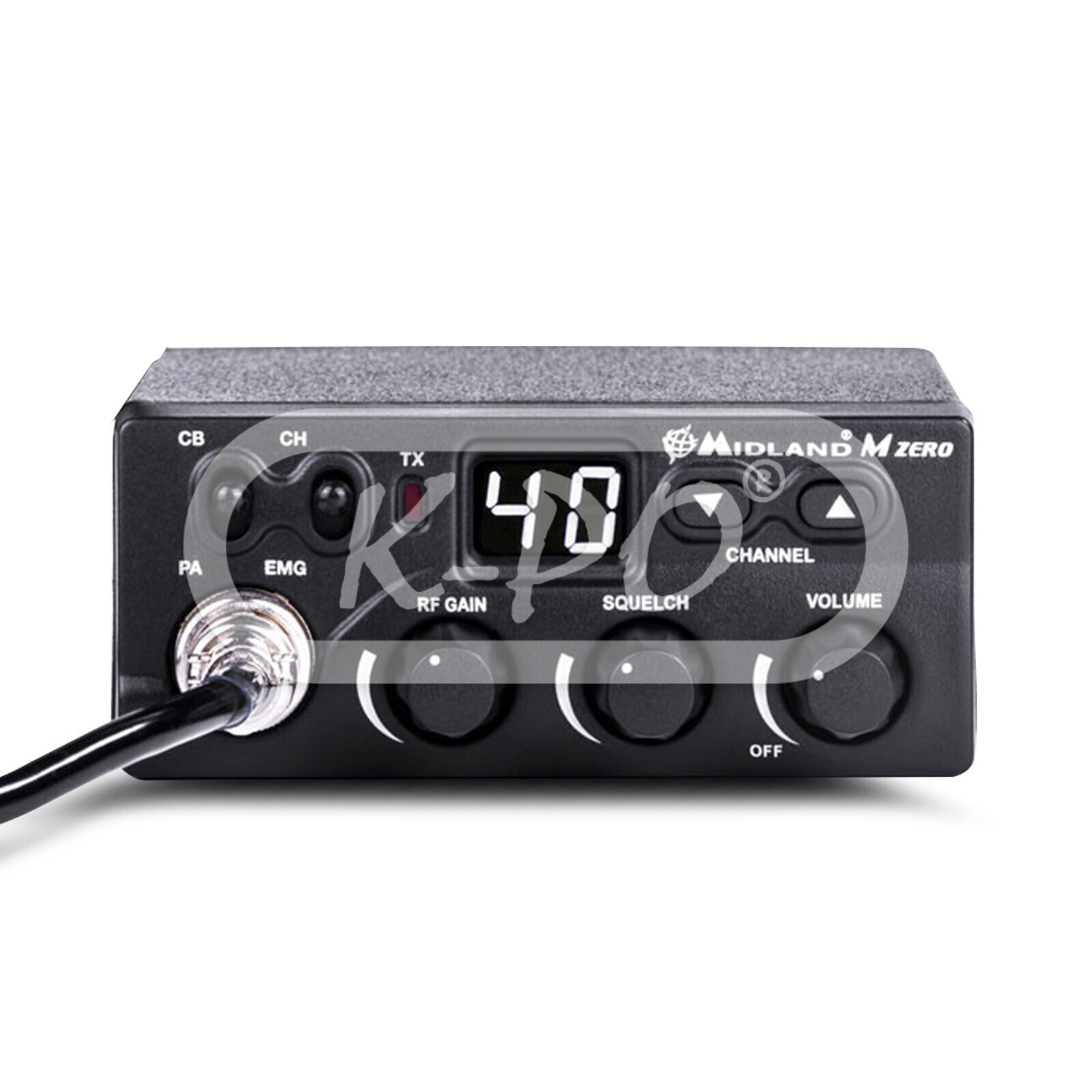

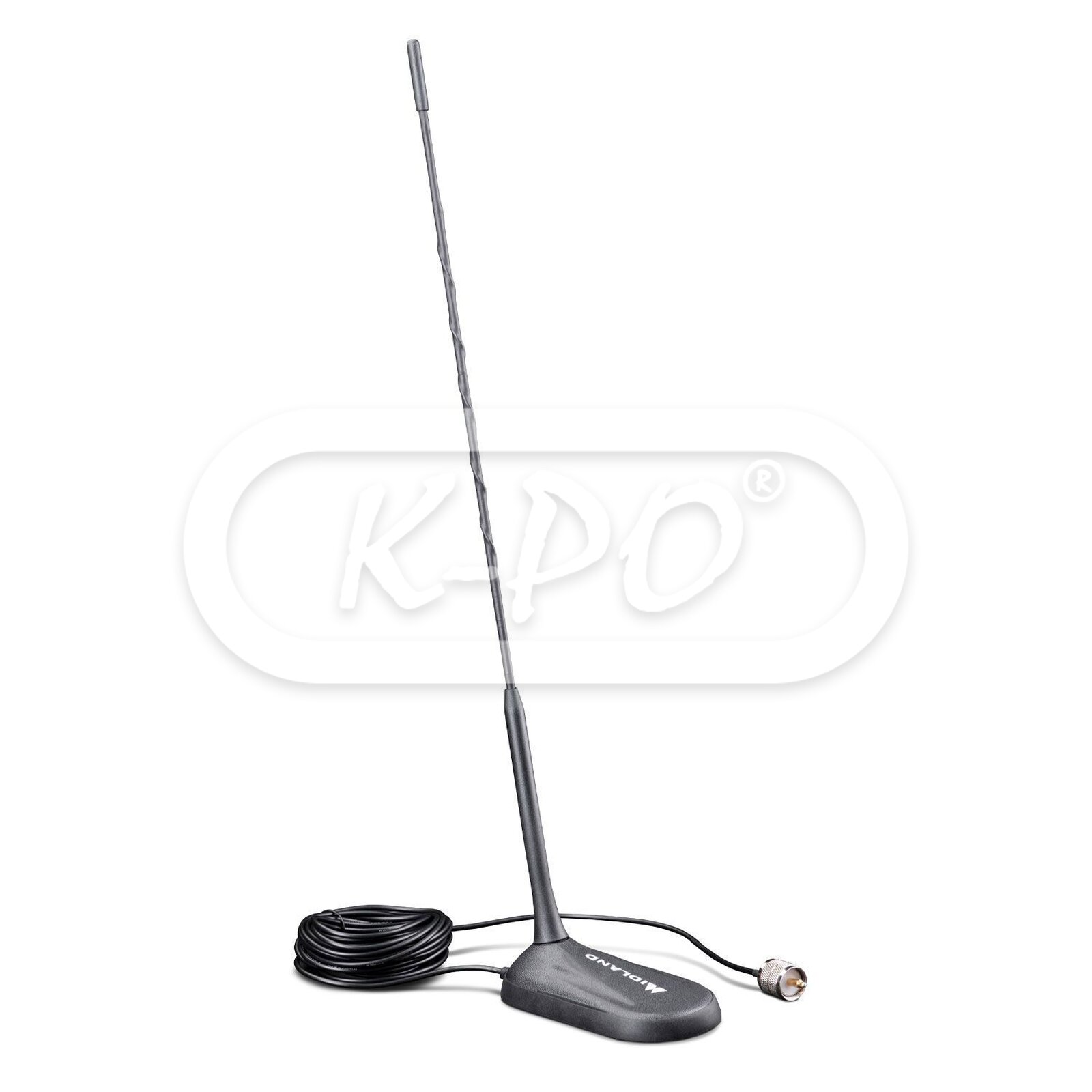

The Midland M-Zero Plus starter pack is a plug and play CB set and very easy to use. The package contains the Midland M-Zero Plus radio with cigarette lighter plug and the Albrecht CBM-516 streamlined magnet antenna.

Frequency range: 26.965 - 27.405 MHz
Out of stock - Longer delivery time
€82.60 (82.6 excl. 0% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt / Duty cycle 10% @ 12.6V
  • Channels: 40 AM / FM
  • Display type: LED display
  • Display colors: Green
  • Squelch: Digital squelch
  • External speaker socket: Yes
  • RF gain: Yes
  • Car socket connector: Yes

Electrical data (radio)

  • Voltage: 13,8 Volt
  • Frequency tolerance: 0.002 %

Transmitter

  • Modulation AM: 90%
  • Modulation FM: 1.9 kHz
  • Drain: 13.8 Volt: 2 A
  • Spurious radiation: 62 dB

Receiver

  • AM sensitivity: 1.0 μV for 20 dB SINAD
  • FM sensitivity: 1.0 μV for 20 dB SINAD
  • Frequency response: 450 Hz - 2.5 kHz
  • Adjacent channel selectivity: 60 dB at 10 kHz / 70 dB at 20 kHz
  • Maximum audio power: 2 Watt
  • Squelch sensitivity: Adjustable from 1.2 μV to 1mV
  • IF frequencies: Double conversion 1st 10.7 MHz / 2nd 455 kHz
  • Cross modulation: 45 dB

Mechanical data (radio)

  • Length: 140 mm
  • Height: 54 mm
  • Width: 110 mm
  • Weight: 665 gram

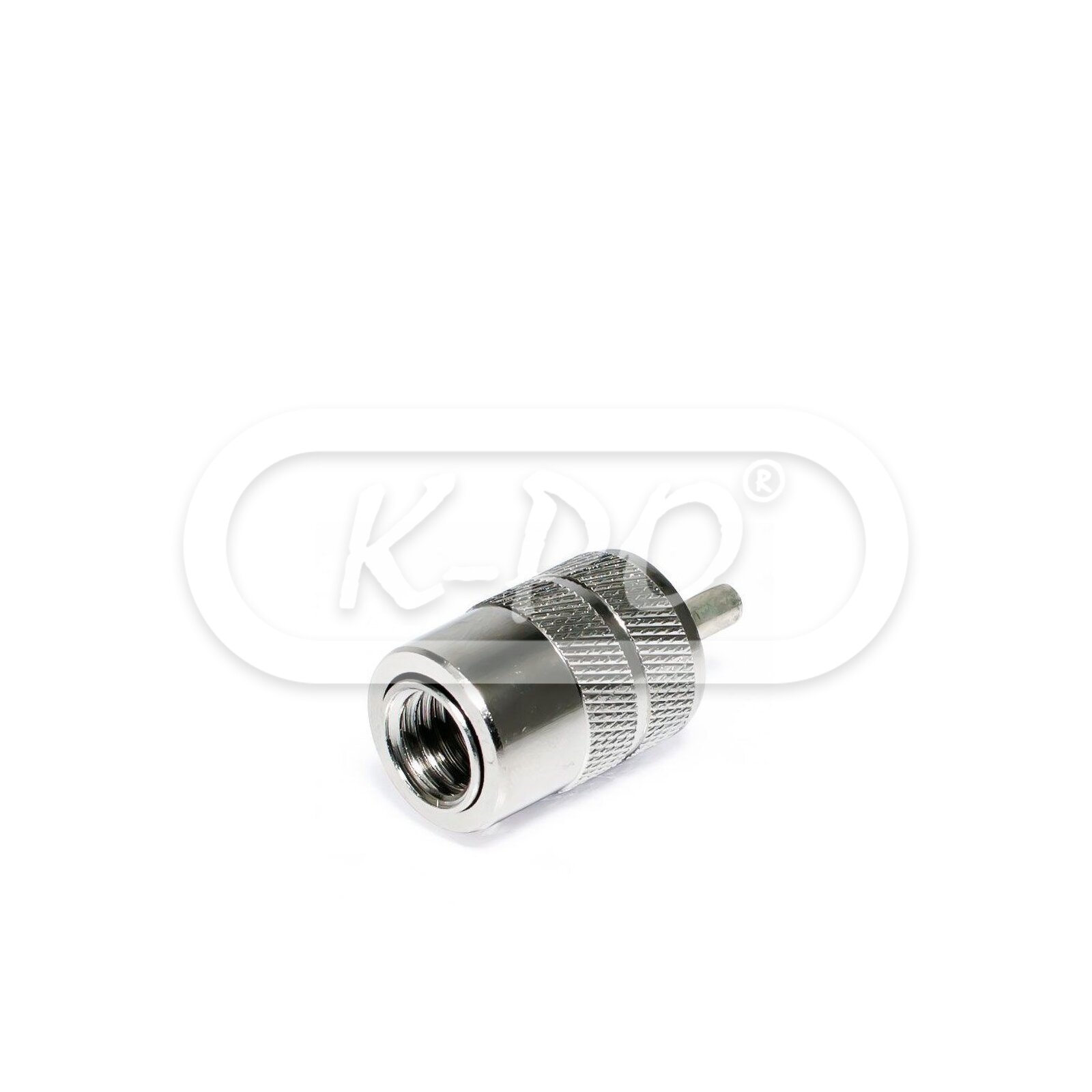

  • Antenna connector: UHF (PL)
  • Mike connector: 4 pin connector

Electrical data (antenna)

  • Electrical type: Base loaded
  • VSWR: ≤ 1.2:1
  • Power peak: 150 Watts (CW) short time
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 4 meter / RG 58

Mechanical data (antenna)

  • Height: 440 mm
  • Weight: 205 gram
  • Mounting type: Magnet

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 12 Volt cigarette lighter plug
  • User Manual: English, German, Spanish, Italian, French, Polish, Romania
  • Antenna: 1 pcs
