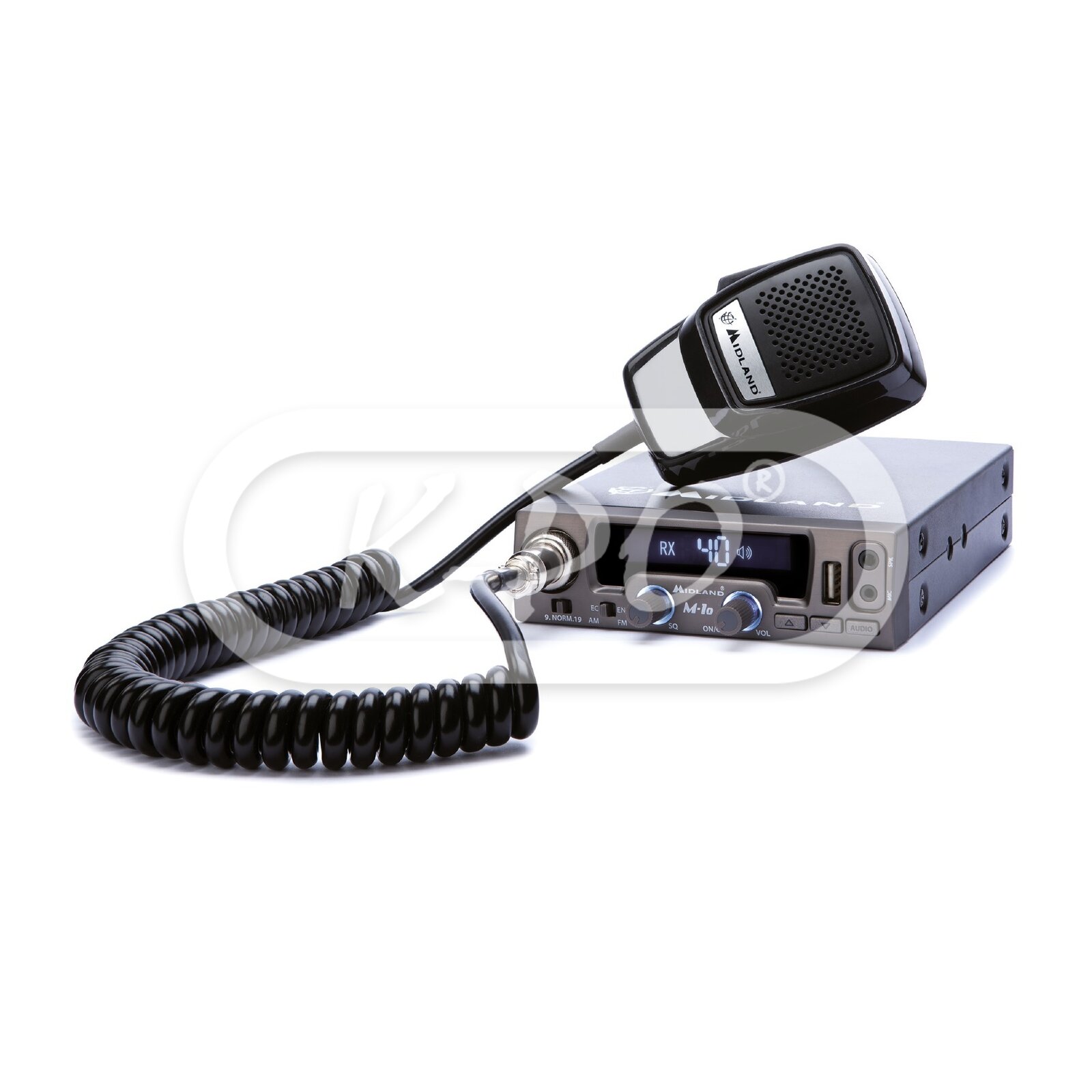

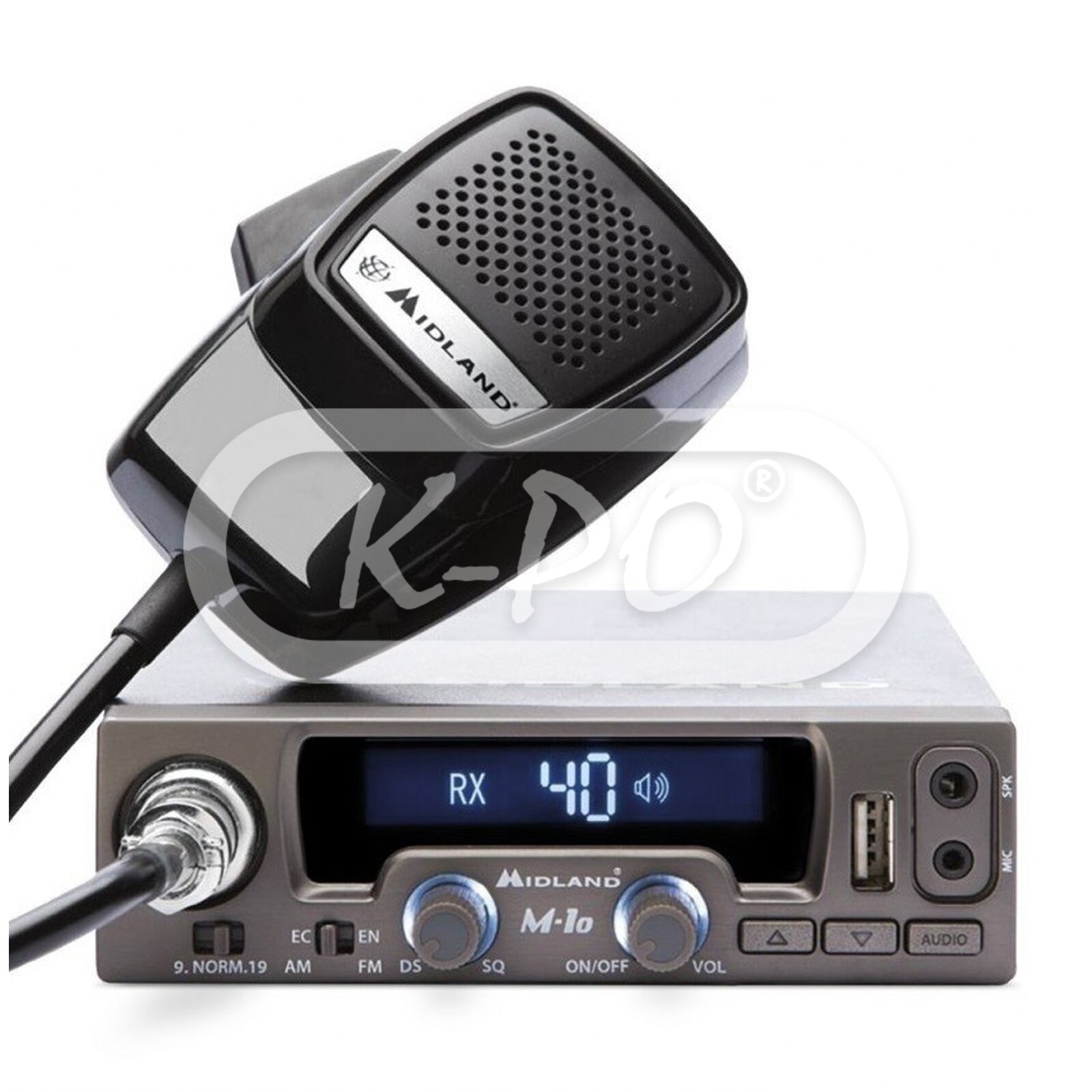

Midland - M10

Product code: 1185

Factory code: C1185

Barcode: 8011869197482

The first multimedia CB launched on the market in 2016, allows hands-free Bluetooth communication (with optional adapter). Full compatibility with traditional Midland accessories and a USB socket to charge any device. Find below the features of the Midland M-10, the first multimedia CB produced by the people who have made CB history, Midland.

Frequency range: 26.965 - 27.405 MHz

Note - Discontinued

€ -- (Discontinued)

Features

• Modulation: AM / FM
• Multi-bands: Yes
• Output power: 4 Watt / Duty cycle 10% @ 13.2V DC
• Channels: 40 AM / FM
• Display type: LCD display
• Display colors: White
• USB: Yes
• Noise blanker: Yes
• Squelch: DSS (Dynamic Squelch System)
• Emergency channel: Yes
• Memory channels: Yes
• External speaker socket: Yes

Electrical data

• Voltage: 13,8 Volt
• Operating temperature: -10° to +55° C
• Frequency control: PLL synthesizer
• Frequency tolerance: 0.002%

Transmitter

• Audio frequency response: 300 Hz - 3 kHz
• Modulation AM: >90%
• Modulation FM: 1.8 kHz to ± 0.2 kHz
• Drain: 13.2 Volt: 1100 mA

Receiver

• AM sensitivity: 1.0 µV for 20 dB SINAD
• FM sensitivity: 1.0 µV for 20 dB SINAD
• Adjacent channel selectivity: 65 dB
• Signal to noise ratio: 45 dB
• Maximum audio power: 4 Watt
• Internal speaker: 8 Ohm
• Receiving system: Dual conversion superheterodyne
• IF frequencies: Double conversion 1st 10.695 MHz / 2nd 455 kHz
• Audio distortion: 1.0 µV for 20 dB SINAD
• Image rejection: 65 dB
• Drain: 13.2 Volt: <250 mA

Mechanical data

• Length: 195 mm
• Height: 35 mm
• Width: 122 mm
• Weight: 820 gram
• Antenna connector: UHF (PL) female (SO-239)
• Mike connector: 4 pin connector

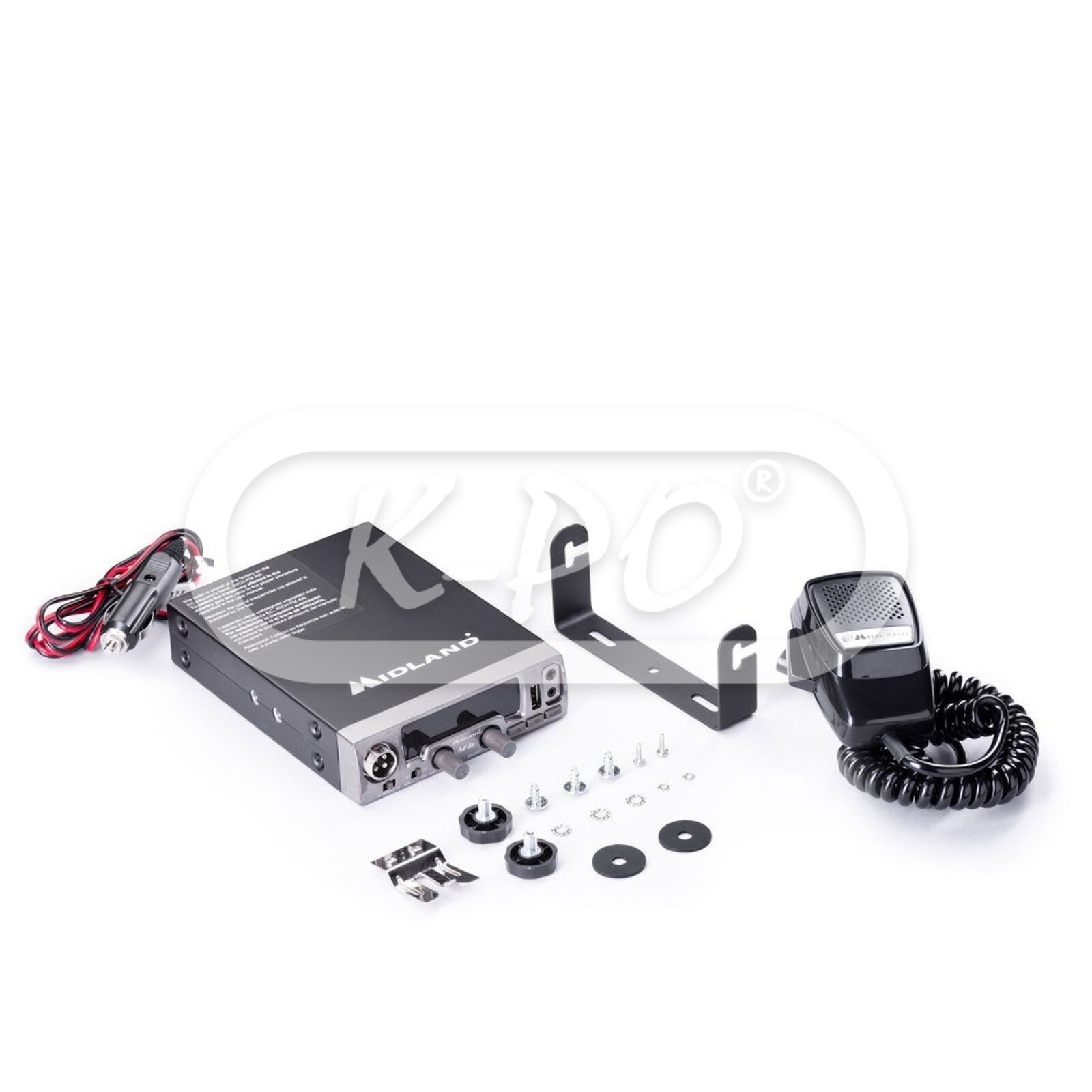

Inside the box

• Transceiver: 1 pcs
• Microphone: 1 pcs
• Fixing screws: 1 set
• Mounting bracket: 1 pcs
• Power lead: 12 Volt cigarette lighter plug
• User Manual: English, German, Spanish, Italian, French, Polish, Romania

Downloads

• Datasheet: User manual m10 UK SP ITA RO FR DE PL
