Nagara - DO-2B3

Product code: 810001

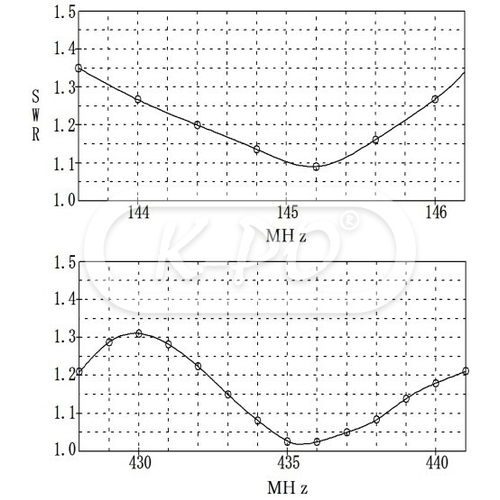

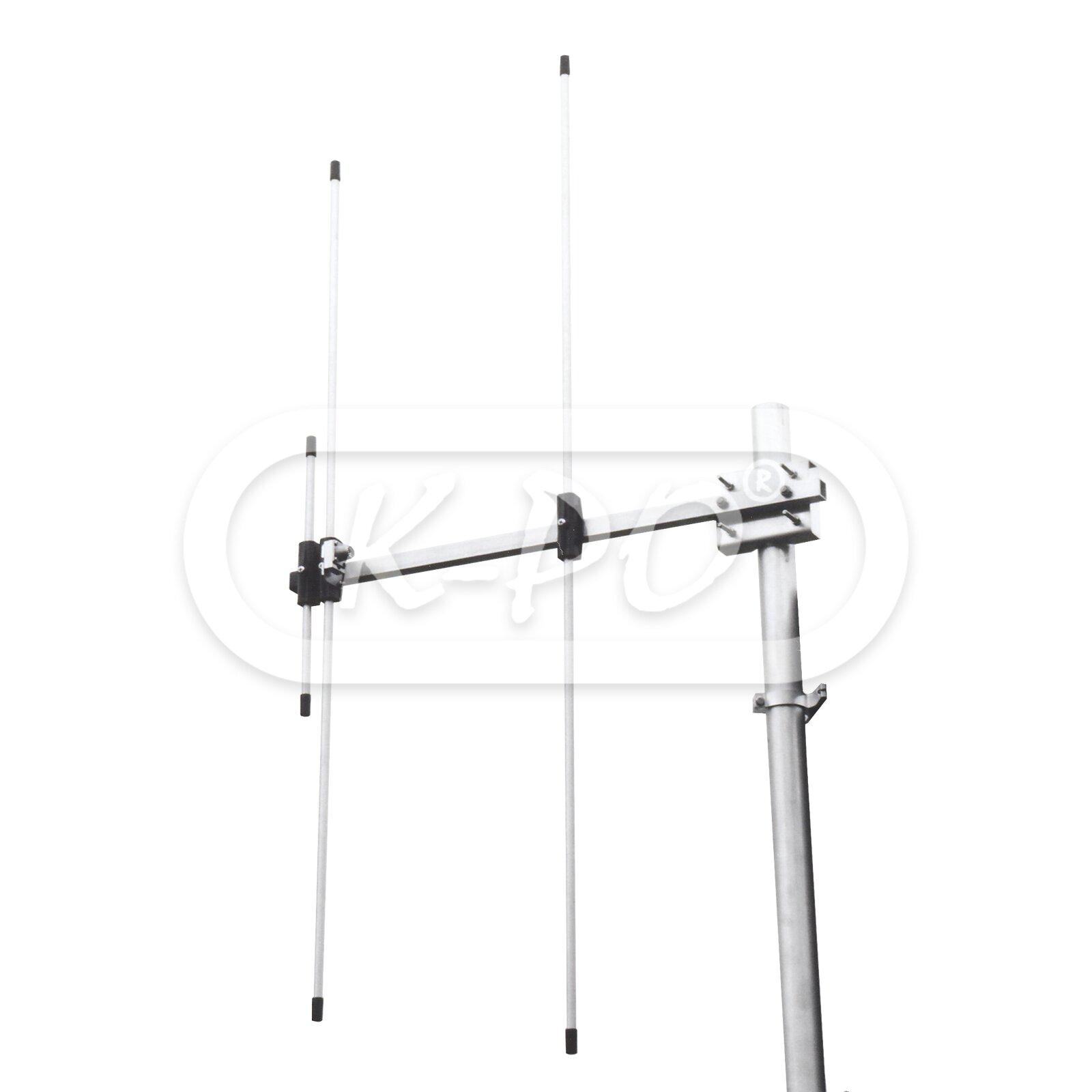

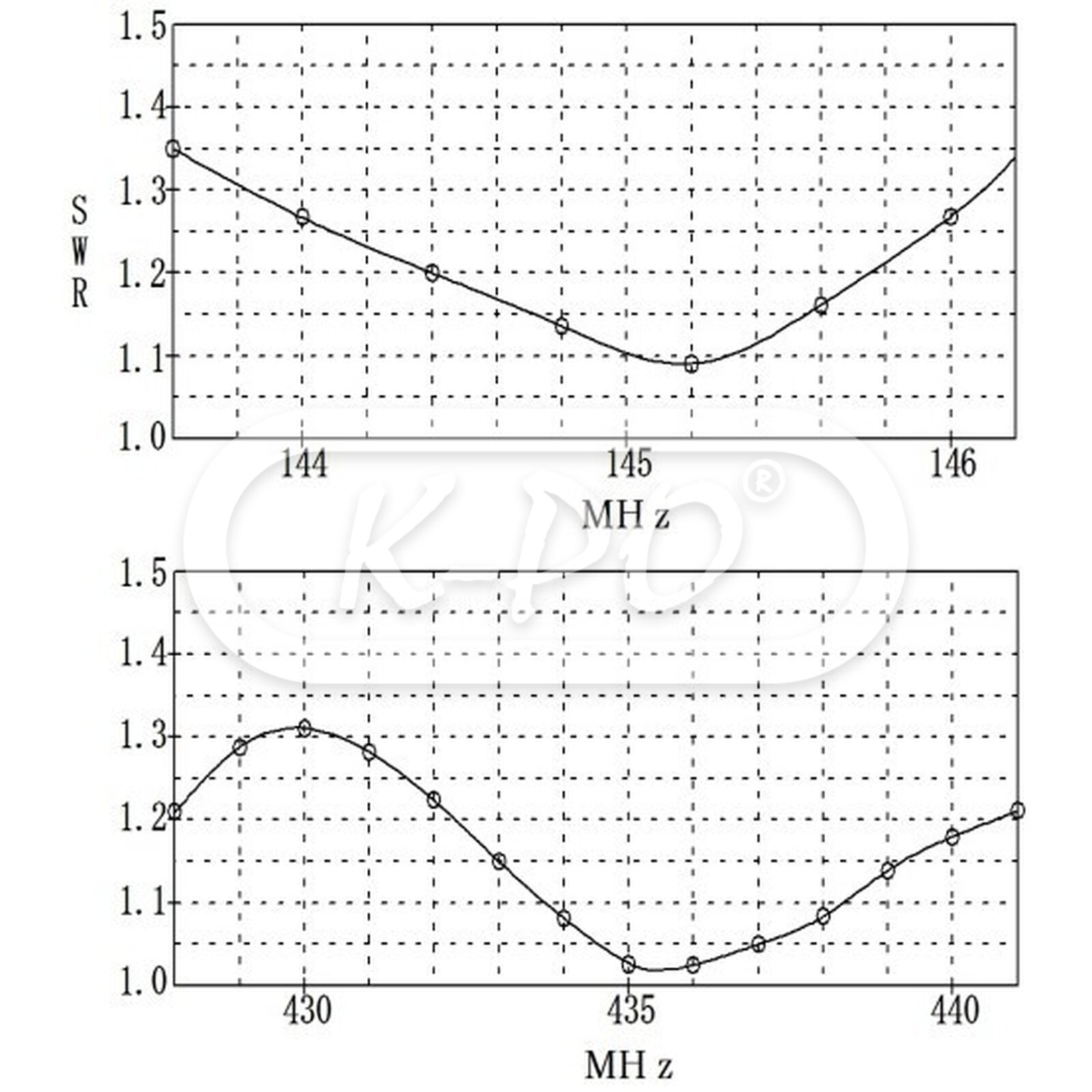

The Nagara DO-2B3 is a compact directional 3-element dual-band Yagi for use on 144-146 / 430-440 MHz. With a gain of 6.08 dBi gain on 144 MHz and 6.86 dBi gain on 430 MHz. Very low-VSWR on both bands, see the VSWR chart in the user manual (under downloads).

Nagara antennas are fully made in Japan and well-known for their high quality in the Japanese market.

Frequency range: 144 / 430 MHz
Shipped today - Stock: 2
€119.95 (99.13 excl. 21% VAT)

Electrical data

  • Electrical type: 3 elements Yagi
  • Gain: 144 MHz: 6.08 dBi / 430 MHz: 6.86 dBi
  • Power peak: 500 Watts
  • Polarization: Linear horizontal

Mechanical data

  • Mast Ø: 38 - 60 mm

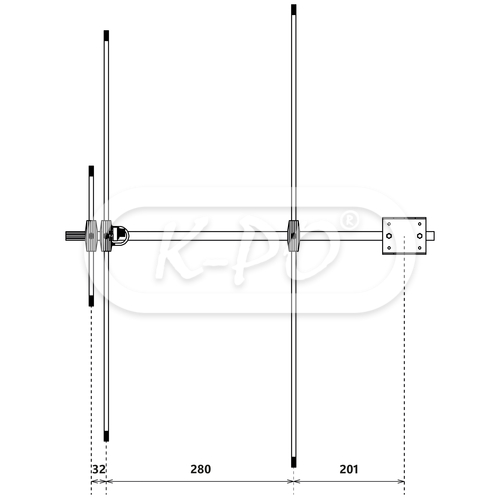

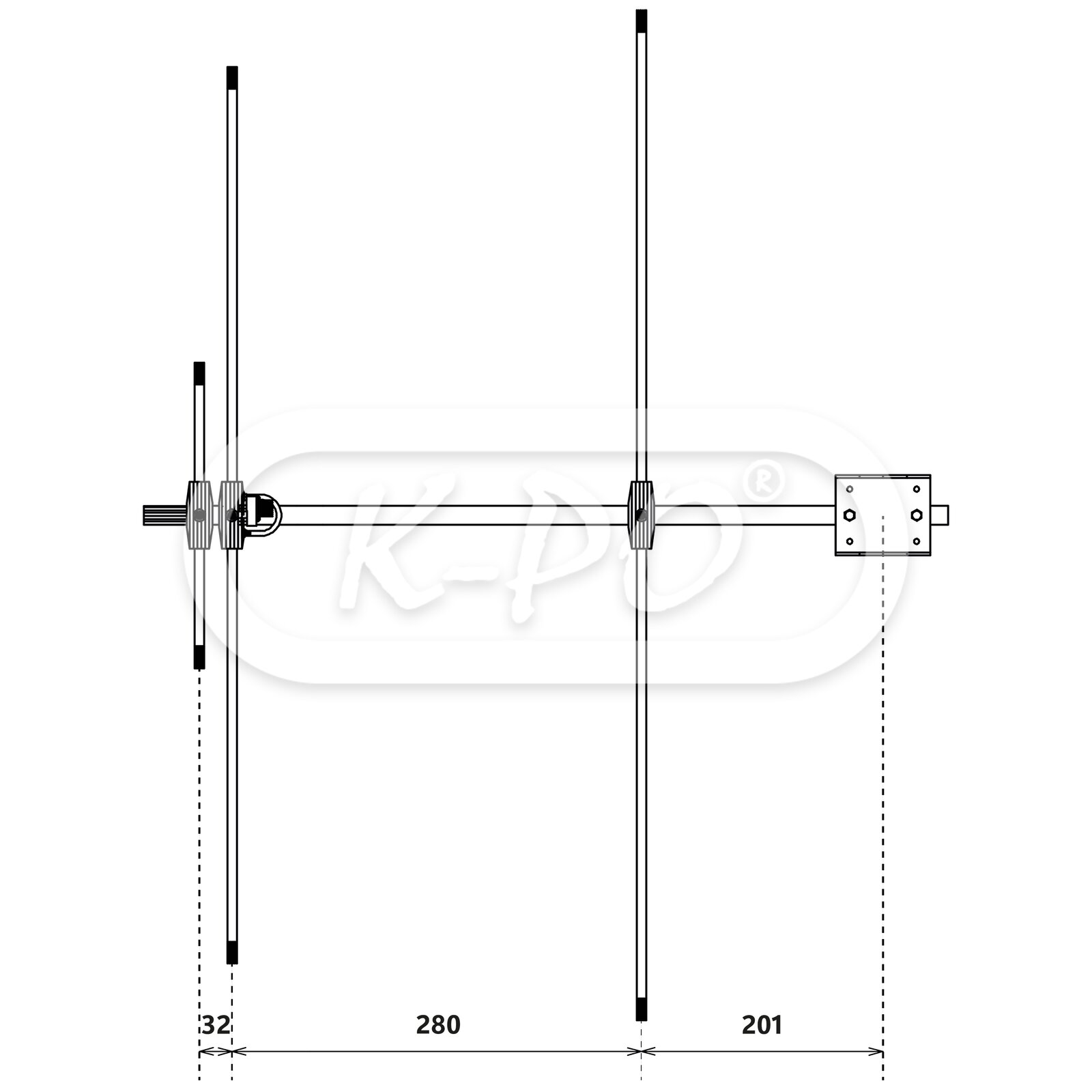

  • Length: 600 mm
  • Height: 1070 mm
  • Weight: 700 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: Japanese
