Nagara - DO-2B8

Product code: 810002

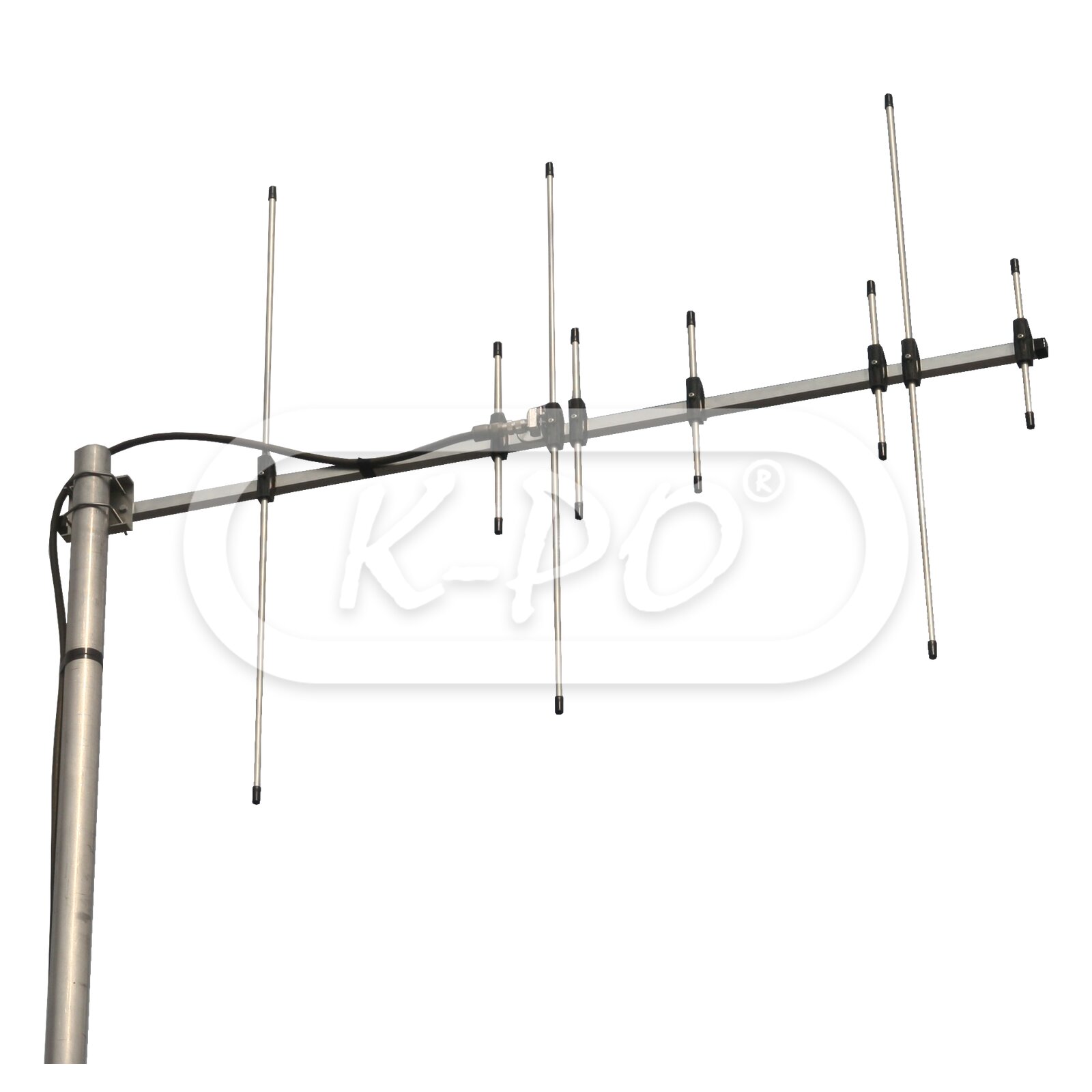

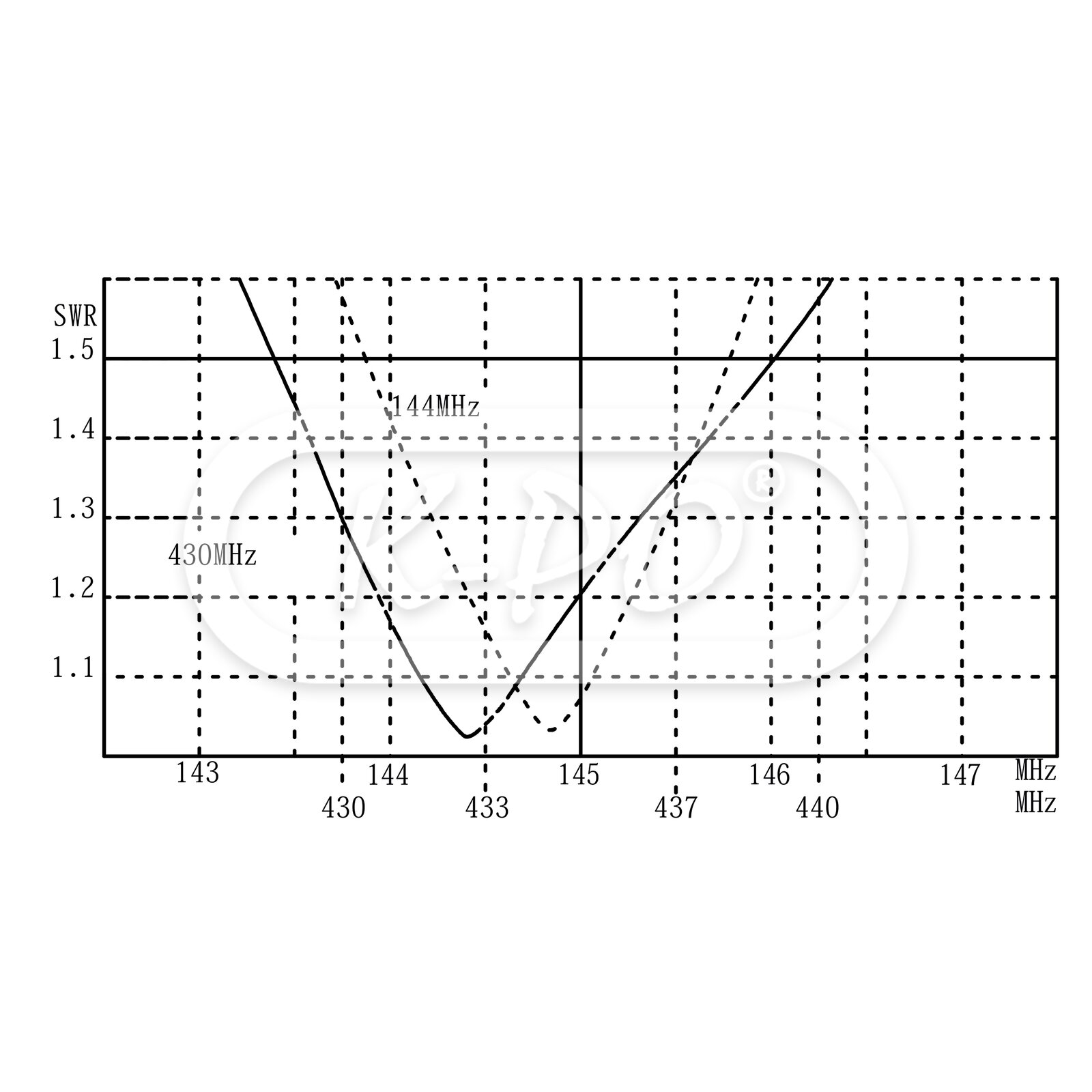

The Nagara DO-2B8 is a directional 8-element high-gain dual-band Yagi for use on 144-146 / 430-440 MHz. With a gain of 9.0 dBi gain on 144 MHz and 10.0 dBi gain on 430 MHz. Low-VSWR on both bands, see the VSWR chart in the user manual (under downloads).

Nagara antennas are fully made in Japan and well-known for their high quality in the Japanese market.

Frequency range: 144 / 430 MHz
Shipped today
€198.30 (198.3 excl. 0% VAT)

Electrical data

  • Electrical type: 8 elements Yagi
  • Gain: 144 MHz: 9.0 dBi / 430 MHz: 10.0 dBi
  • Power peak: 500 Watts SSB
  • Polarization: Linear horizontal

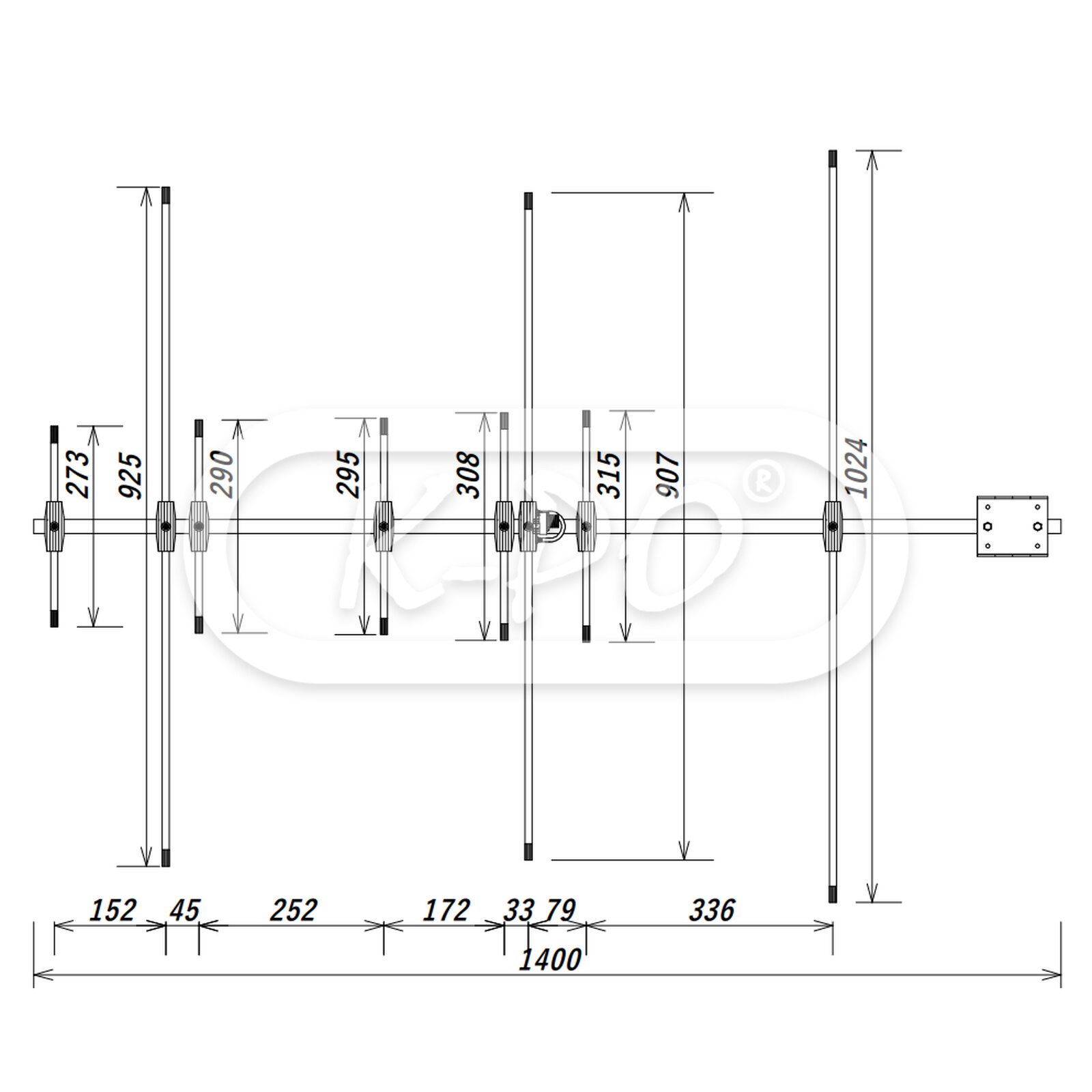

Mechanical data

  • Mast Ø: 38 - 60 mm
  • Length: 1400 mm
  • Height: 1300 mm
  • Weight: 1200 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: Japanese
