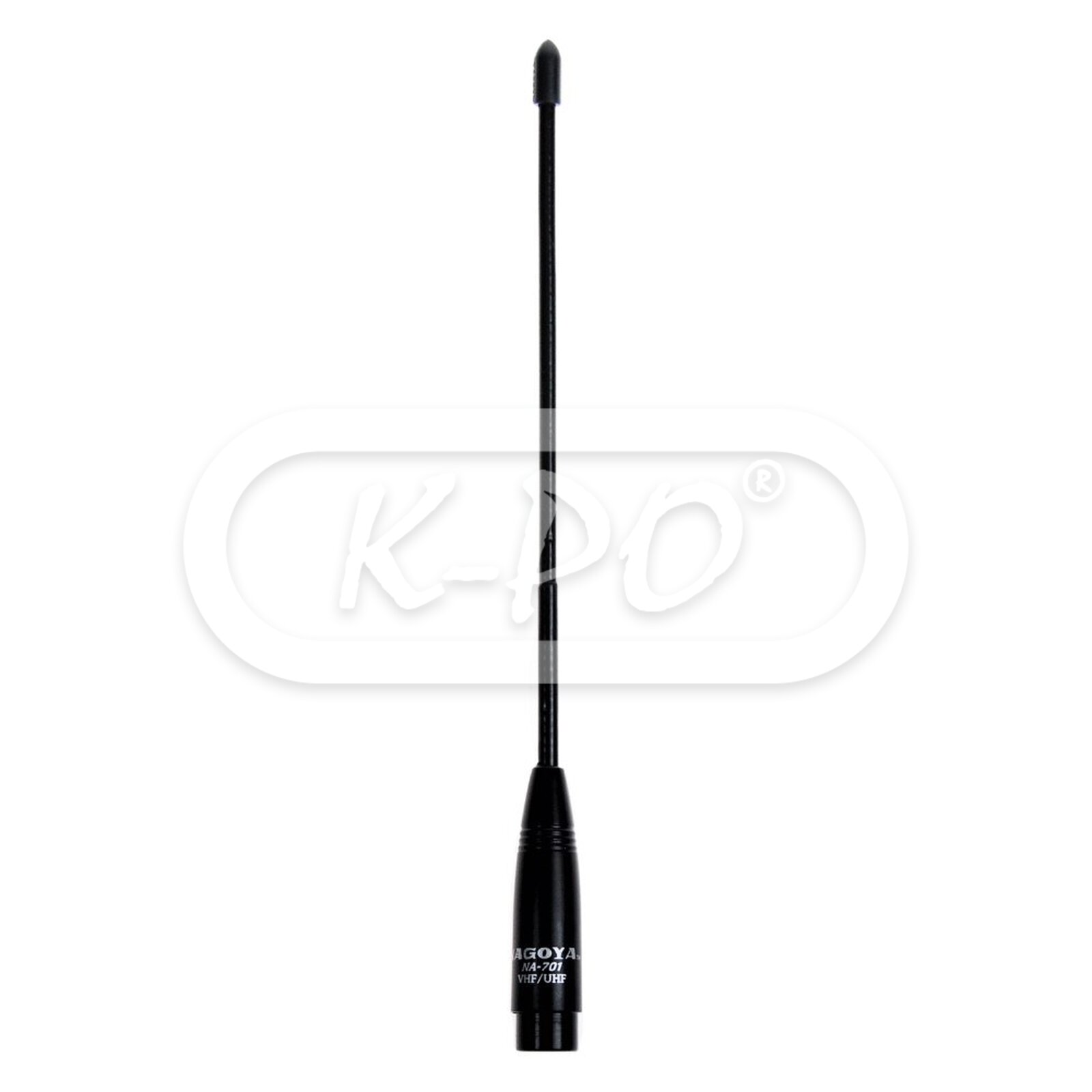

Nagoya - NA-701 SMA male

Product code: 701701

22 cm long handheld antenna with a flexible rubber whip for 144 / 430 MHz. RX on 120 / 150 / 300 / 450 / 900 MHz.

Original Nagoya, made in Taiwan.

Frequency range: TX: 144 / 430 MHz, RX: 120 / 150 / 300 / 450 / 900 MHz

Shipped today

€15.95 (13.18 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ
• Gain: 2.15 dBi
• VSWR: ≤ 1.5
• Maximum continuous power: 10 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Height: 220 mm
• Weight: 38 gram

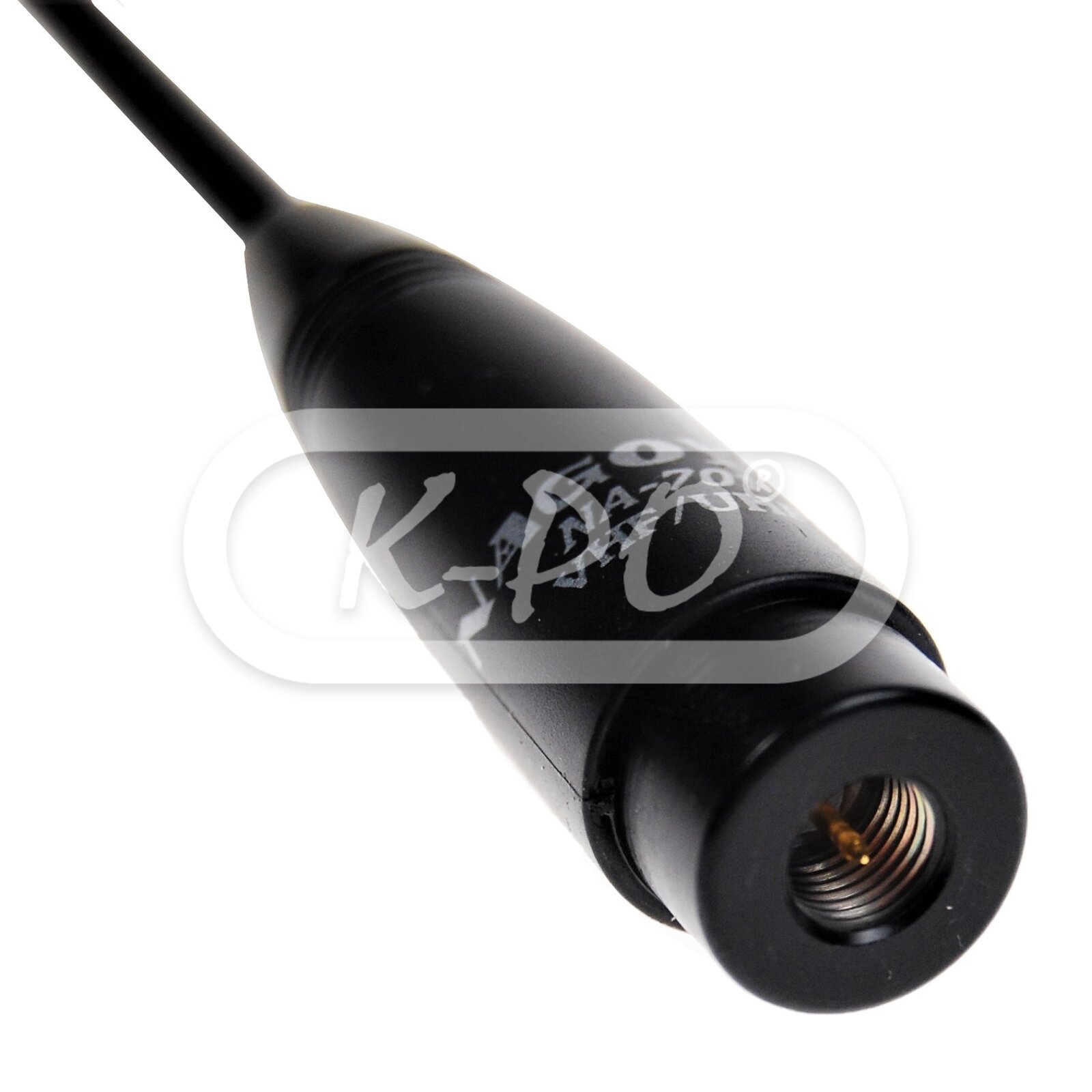

• Antenna connector: SMA male

Inside the box

• Antenna: Yes
