Nagoya - UT-106UV SMA female

Product code: 663

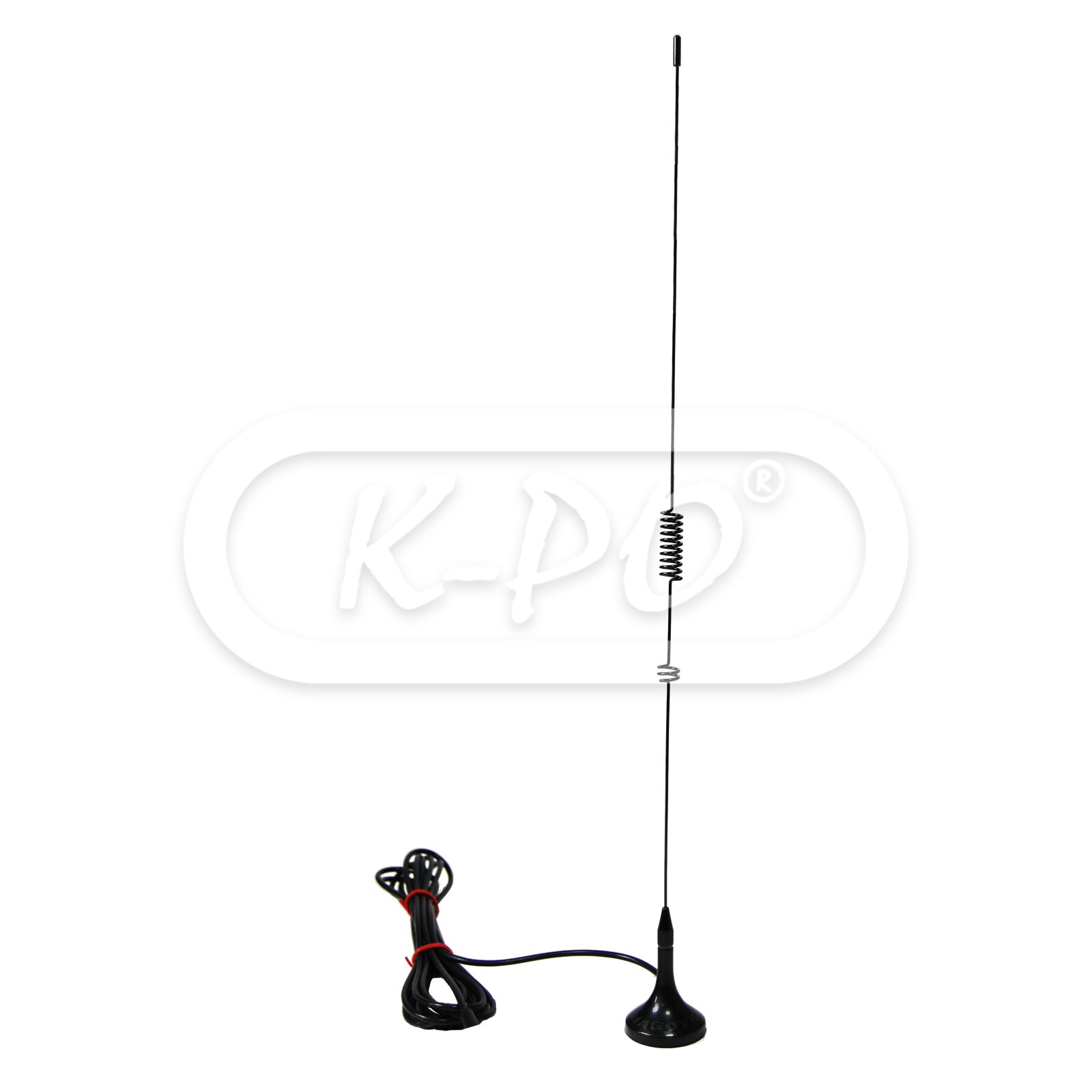

Plug and play mobile antenna with magnet mount. TX on 144 / 430 MHz, 2.15 dBi gain. RX on 136 - 174 / 400 - 520 MHz.

Original Nagoya, made in Taiwan.

Frequency range: 144 / 430 MHz (RX 136-174 MHz / 400-520 MHz)

Shipped next business day

€18.95 (15.66 excl. 21% VAT)

Electrical data

• Gain: 3.0 dBi
• Power peak: 25 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 3 meter / RG 174

Mechanical data

• Height: 390 mm
• Weight: ± 250 gram

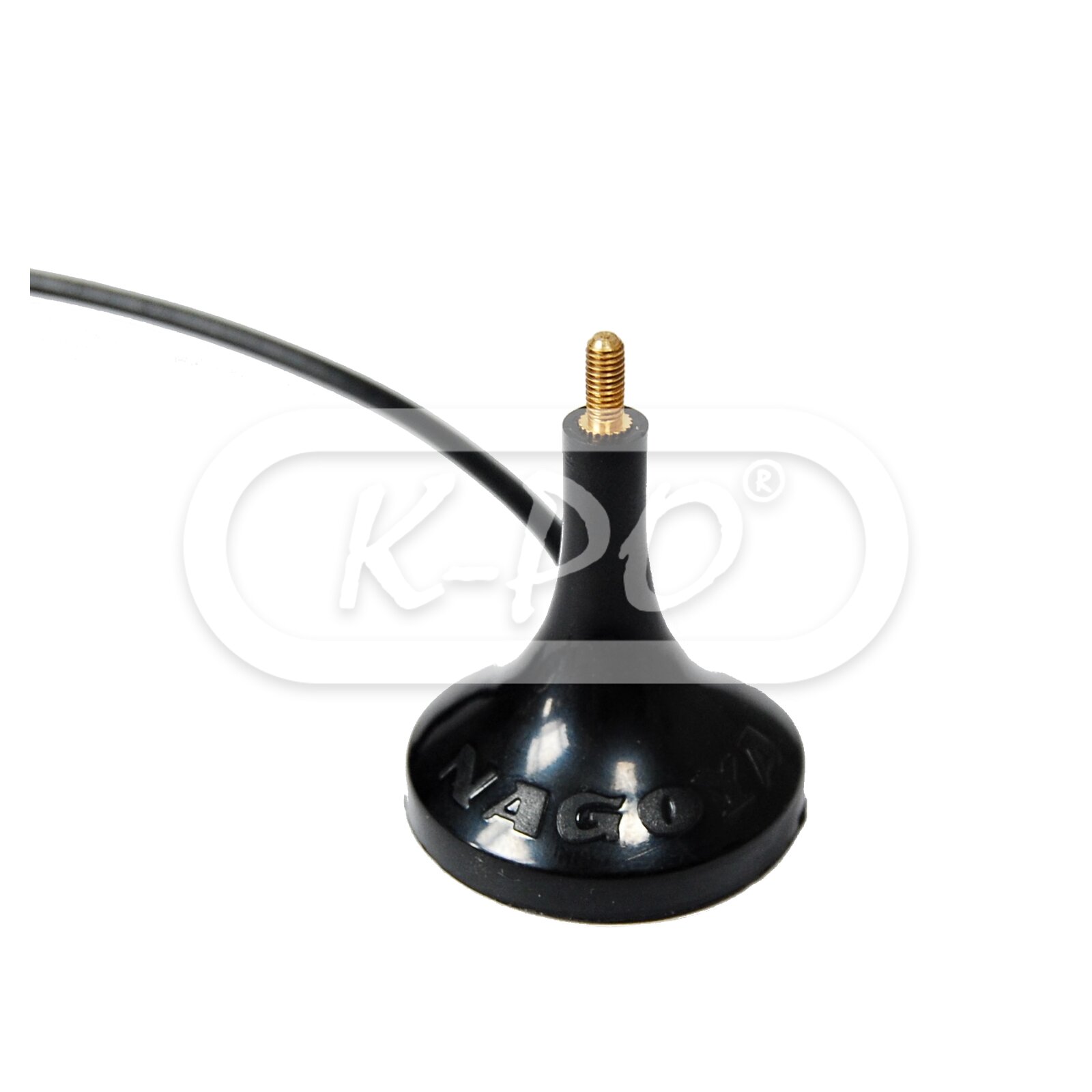

• Mounting type: 31 mm magnet

Inside the box

• Antenna: Yes

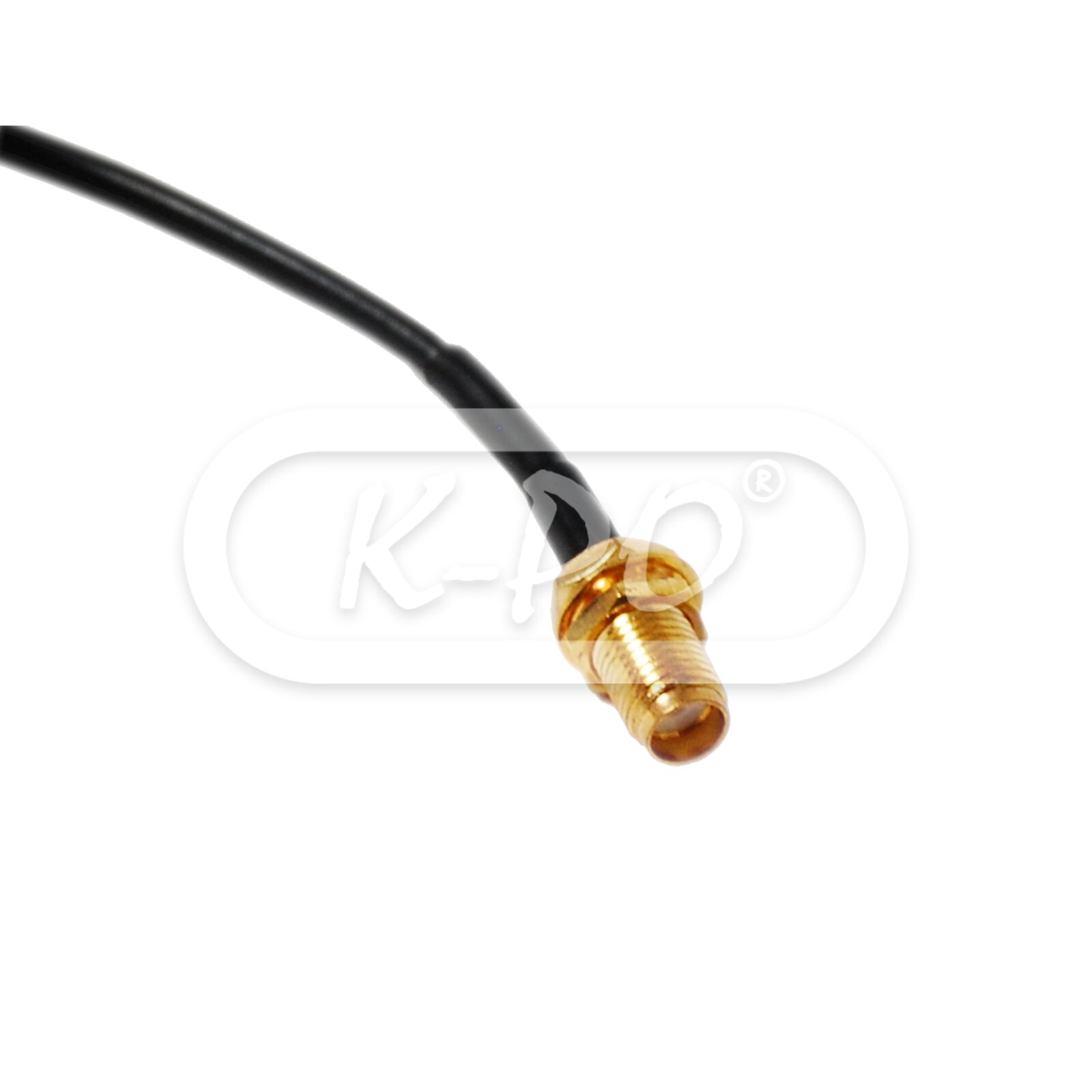

• Radio connector: SMA female
• Antenna cable: Yes
