Nagoya - UT-108UV BNC male Nagoya - UT-108UV BNC male Nagoya - UT-108UV BNC male

Nagoya - UT-108UV BNC male

Product code: 147

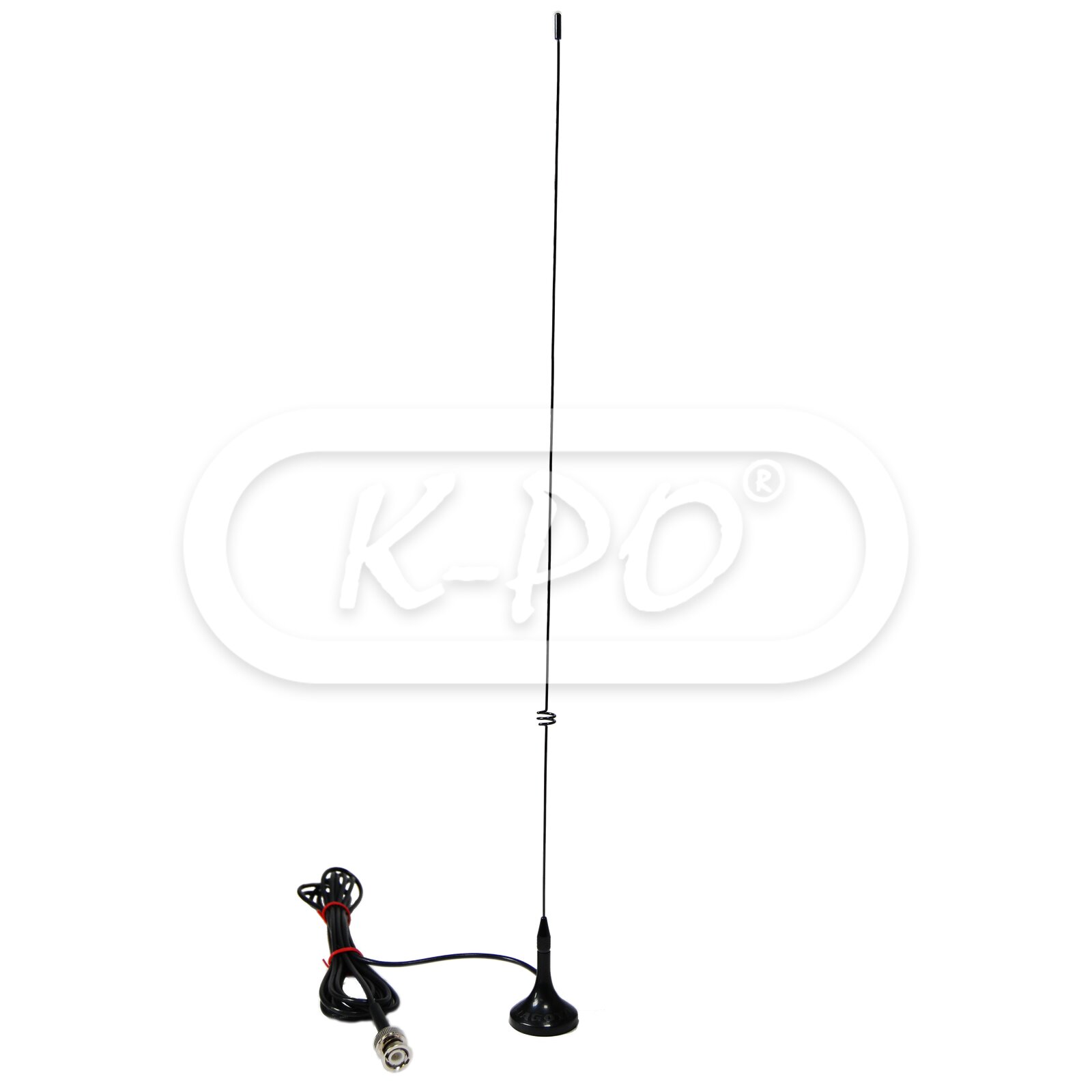

51 cm long mobile antenna with magnet mount. TX on 144 / 430 MHz, 3.0 dBi gain. RX on 136 - 174 / 400 - 520 MHz.

Original Nagoya, made in Taiwan.

Frequency range: 144 / 430 MHz
Out of stock - Longer delivery time
€16.49 (16.49 excl. 0% VAT)

Electrical data

  • Gain: 3.0 dBi
  • VSWR: ≤ 1.5
  • Power continues: 20 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 3 meter / RG 174

Mechanical data

  • Height: 510 mm

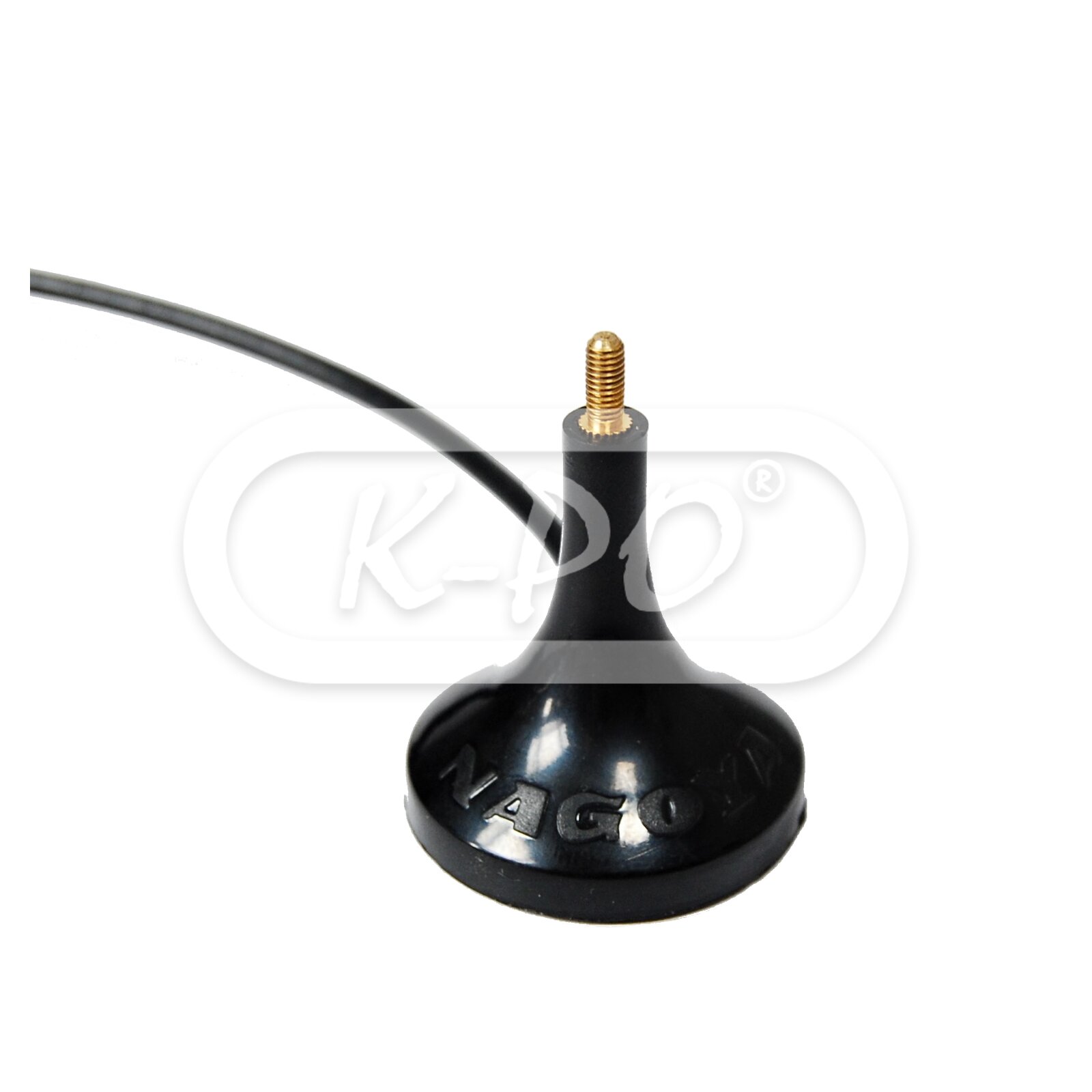

  • Mounting type: Magnet

Inside the box

  • Antenna: Yes

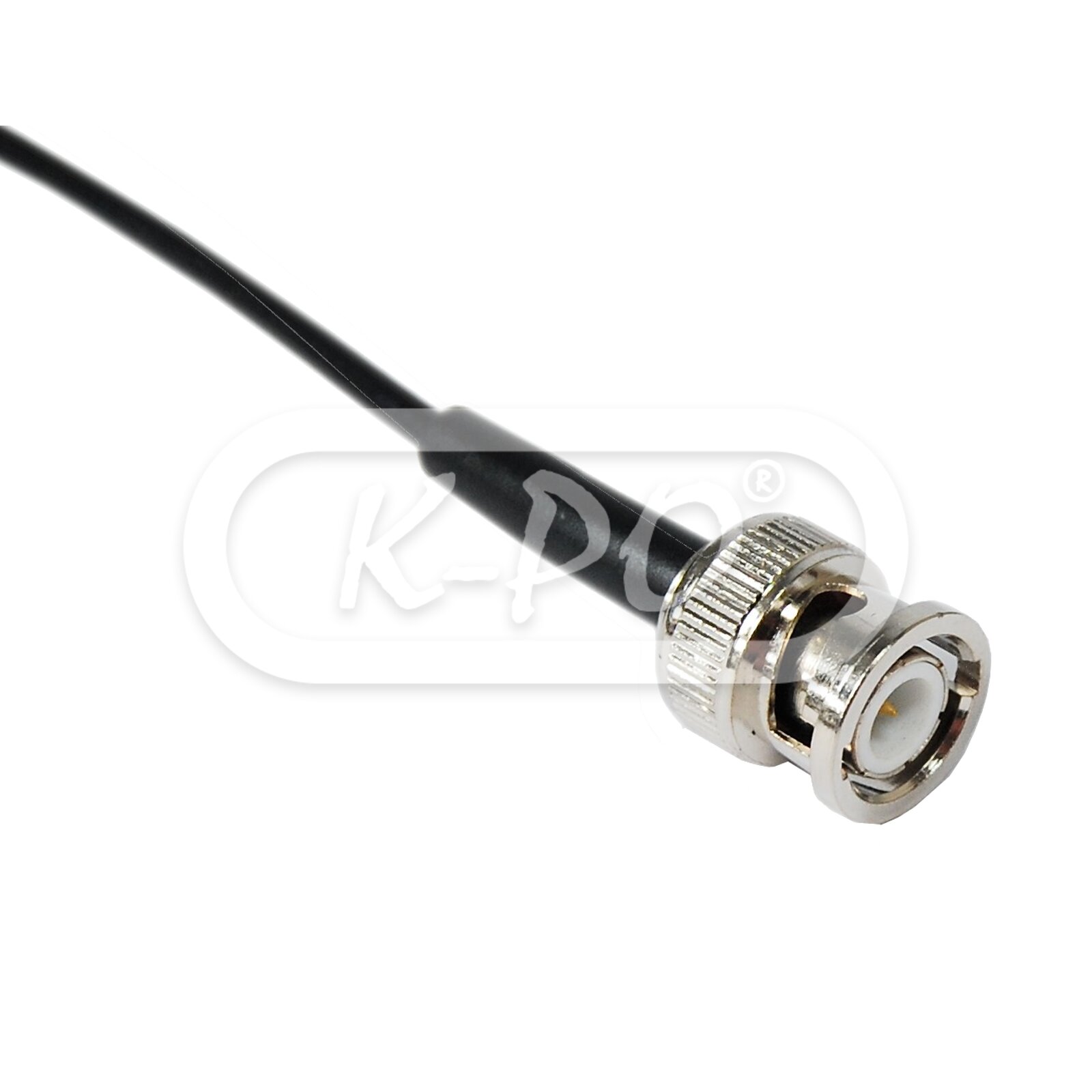

  • Radio connector: BNC-male
  • Antenna cable: Yes
