Nissei - NS-2230D

Product code: 2154
Barcode: 8718375103562

The Nissei NS-2230D is a compact switching power supply with adjustable 9–15 VDC (fixed 13.8 VDC option) output, up to 28A continuous and 30A peak.

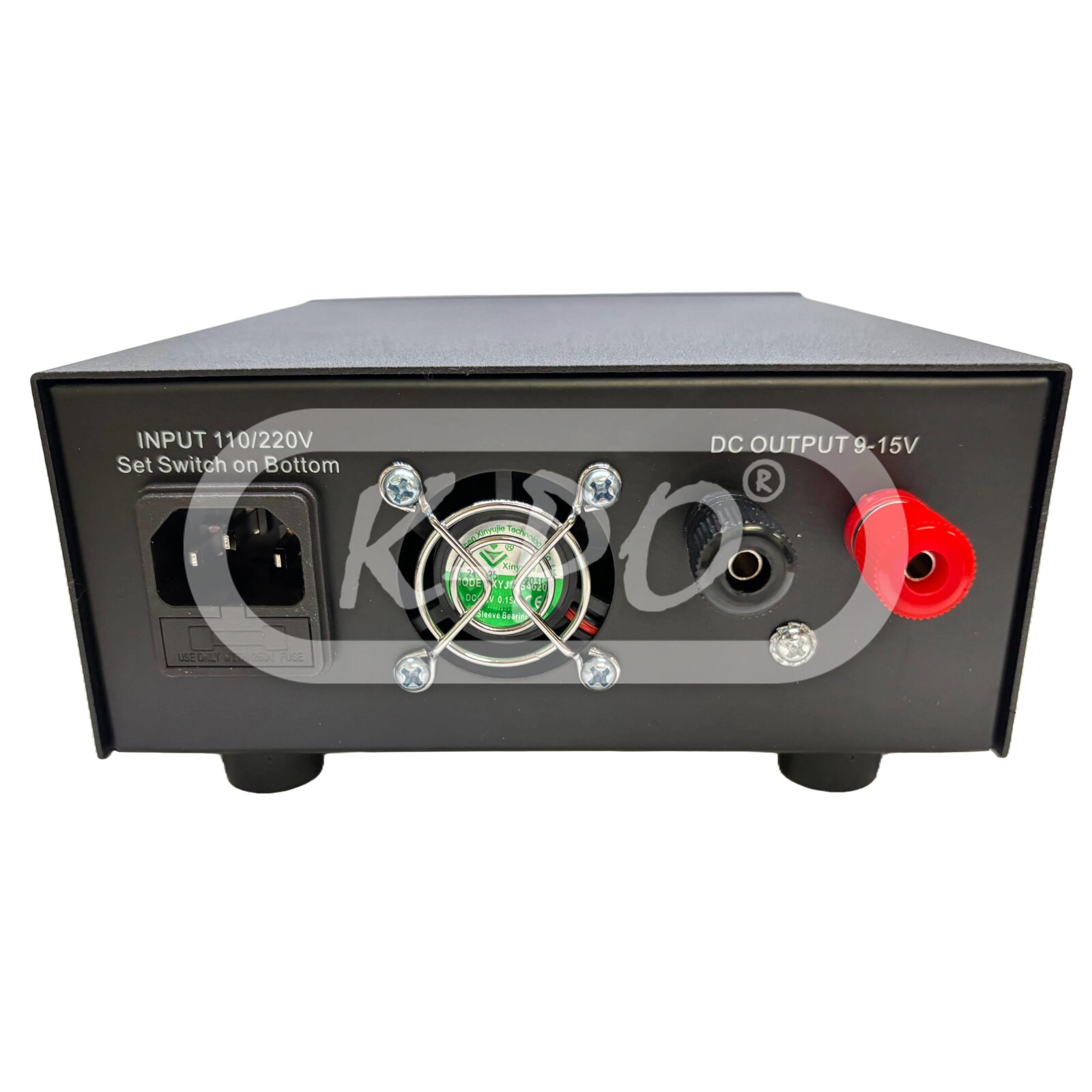

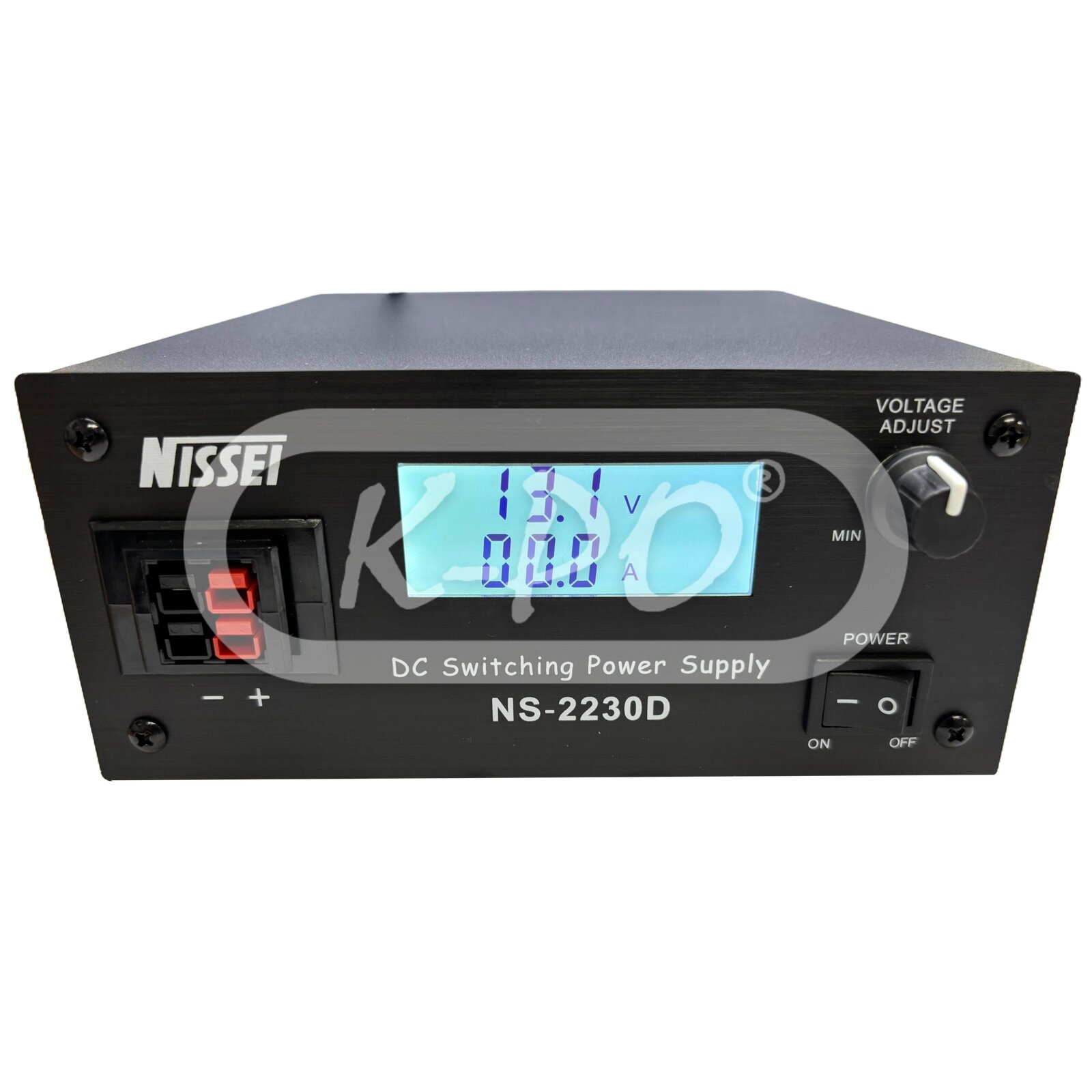

It features a large digital backlit LCD showing voltage and current (A) simultaneously, with front Anderson connectors and rear binding-post terminals for flexible connections.

Built-in protections include constant current, over temperature, and output over voltage protection for both the power supply and its connected load.

Shipped today
€119.95 (99.13 excl. 21% VAT)

Electrical data

  • Input voltage: 230 Volt
  • Output voltage: 13.8 Volt
  • Adjustable output voltage: 9-15V adjustable
  • Continuous load: 28A
  • Peak load: 30A
  • Ripple voltage: Less than 80mVp-p at rated load
  • Fuse: 4A
  • Background light: Yes
  • Fan: Yes
  • Short circuit protection: Yes
  • Overload protection: Yes

Mechanical data

  • Length: 165 mm
  • Height: 80 mm
  • Width: 200 mm
  • Weight: 1540 gram

Inside the box

  • Power supply: Yes
  • AC cord: Yes
  • User manual: English
