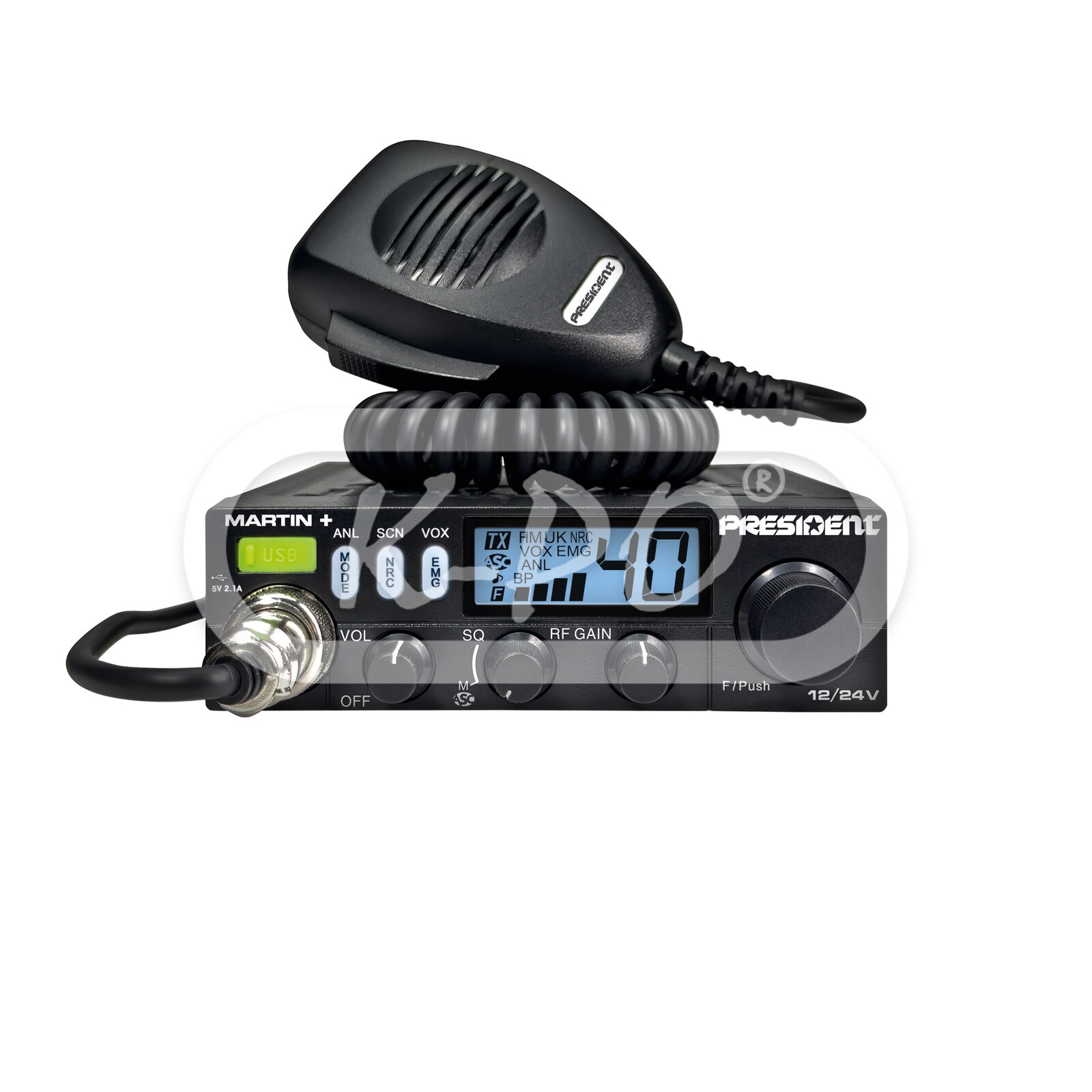

President - Martin+

Product code: 80096

Factory code: TXPR218

Barcode: 3435991128056

The President Martin+ is a compact sized CB radio from President with USB input and a VOX function. This compact mobile CB radio is easy to install and operate, with all the controls you need. The President Martin+ can be used on 12 and 24 Volt, clear display with 7 colors to choose from and many other features. Including the five extra President channels.

Frequency range: 26.965 - 27.405 MHz

Shipped next business day

€159.95 (132.19 excl. 21% VAT)

Features

Modulation: AM / FM
Multi-bands: Yes
Output power: 4 Watt
Channels: 40 AM / FM
Display type: LCD display
Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
VOX Function: Yes
USB: Yes
Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
Emergency channel: Yes
Scan function: Yes
External speaker socket: Yes
S-meter: Yes
RF gain: Yes
Roger Beep: Yes
External VOX socket: Yes
Filter ANL: Yes

Electrical data

Voltage: 13,8 Volt / 24 Volt /

Transmitter

Audio frequency response: 300 Hz - 3 kHz
Microphone sensitivity: 3.0 mV
Frequency allowance: ± 200 Hz
Transmission interference: inferior to 4 nW (- 54 dBm)
Emitted power in the adjacent channel: inferior a 20 μW
Modulated signal distortion: 2 %
Drain: 13.2 Volt: 2.0 A / 26.4 Volt: 1.0 A

Receiver

AM sensitivity: 0,5 µV - 113 dBm
FM sensitivity: 0,35 µV - 116 dBm
Frequency response: 300 Hz - 3 kHz
Adjacent channel selectivity: 60 dB
Maximum audio power: 3 Watt
Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate: 60 dB
Intermediate image rejection rate: 70 dB
Drain: 13.2 Volt: 180 - 500 mA / 26.4 Volt: 90 - 250 mA

Mechanical data

Length: 165 mm
Height: 35 mm
Width: 115 mm
Weight: 572 gram
Antenna connector: UHF (PL) female (SO-239)
Mike connector: 6 pin connector

Inside the box

Transceiver: 1 pcs
Microphone: 1 pcs
Fixing screws: 1 set
Mounting bracket: 1 pcs
Power lead: 1 pcs
User Manual: English, Spanish, French, Polish
