Certified European Distributor

President - Teddy II+

Product code: 80092
Factory code: TXPR376
Barcode: 3435991104180

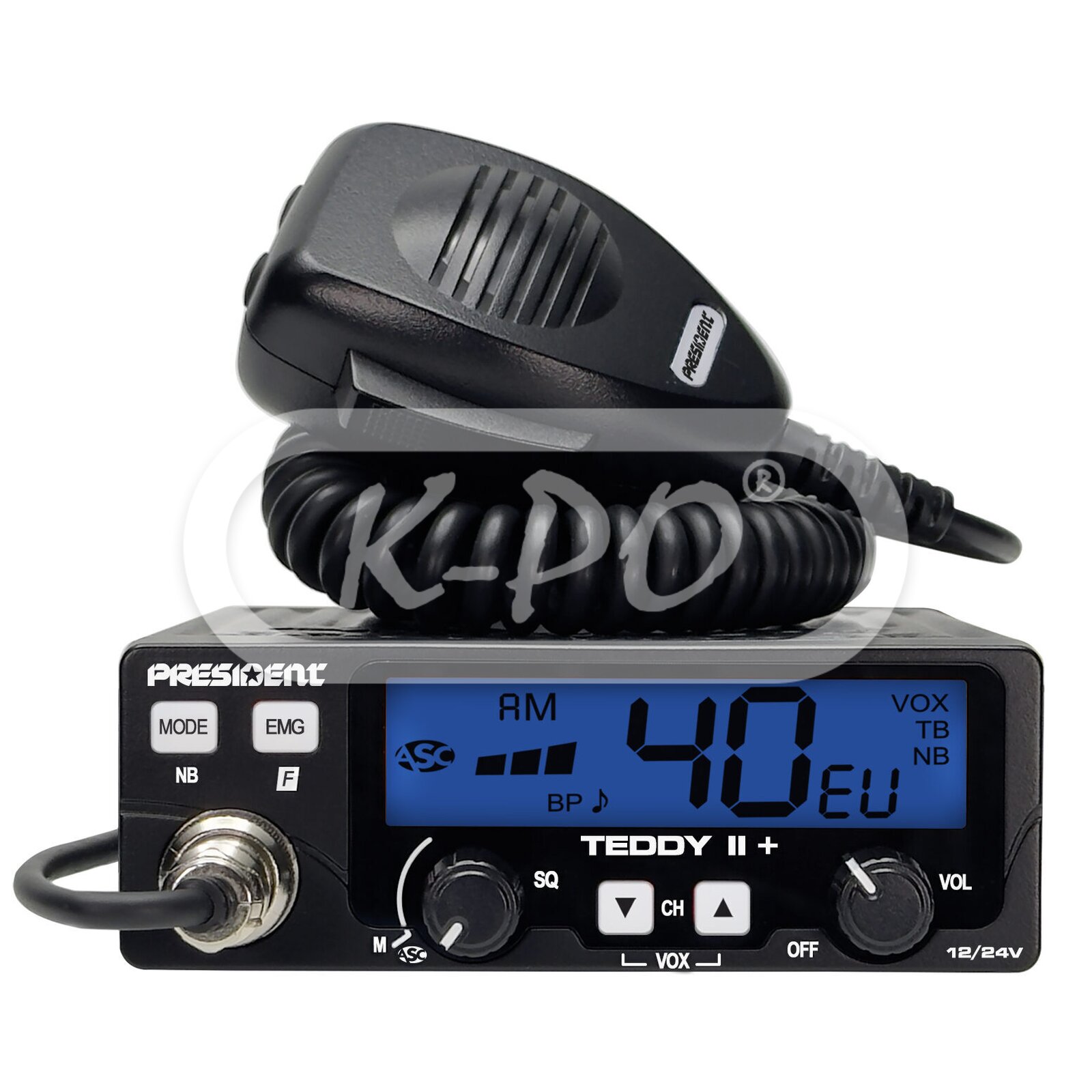

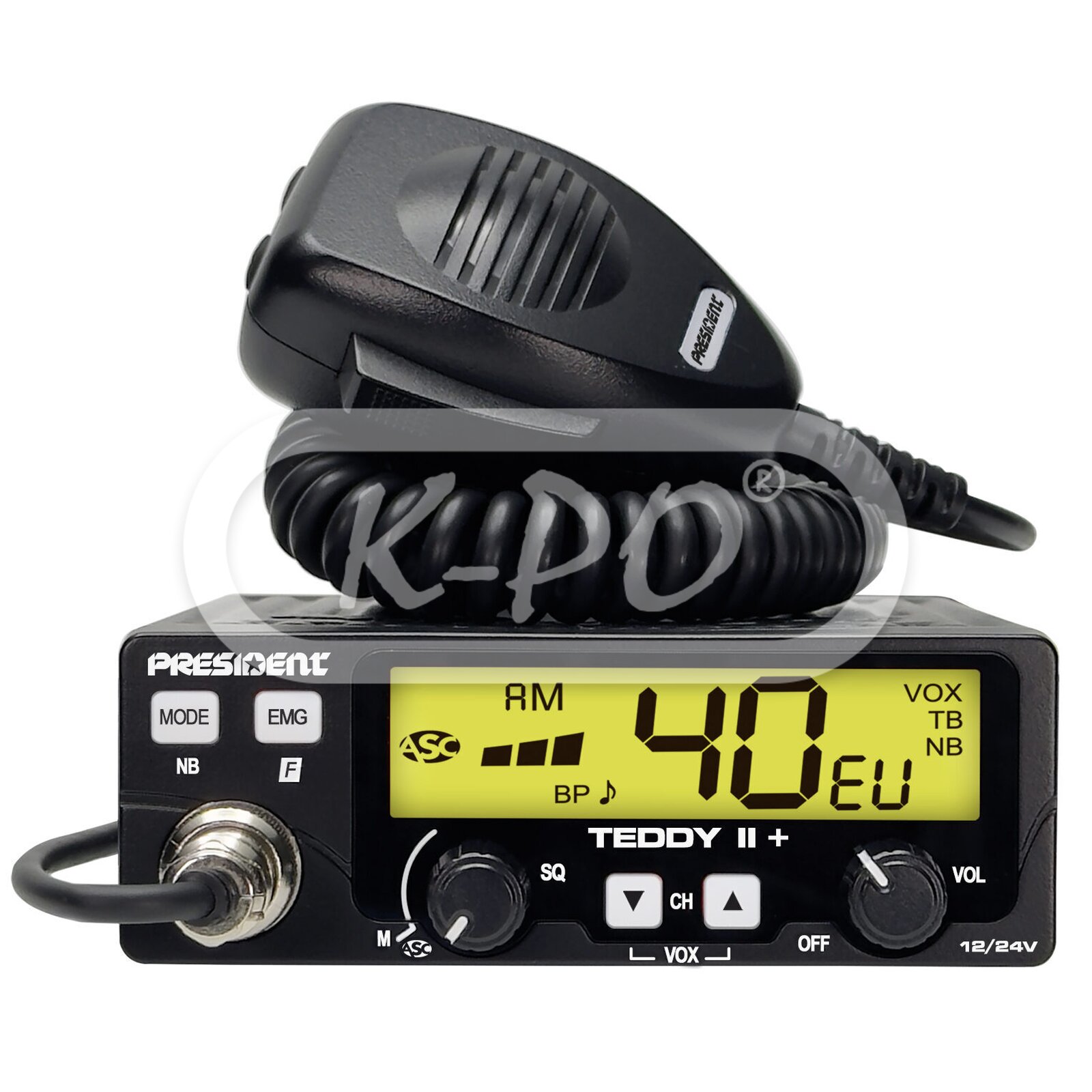

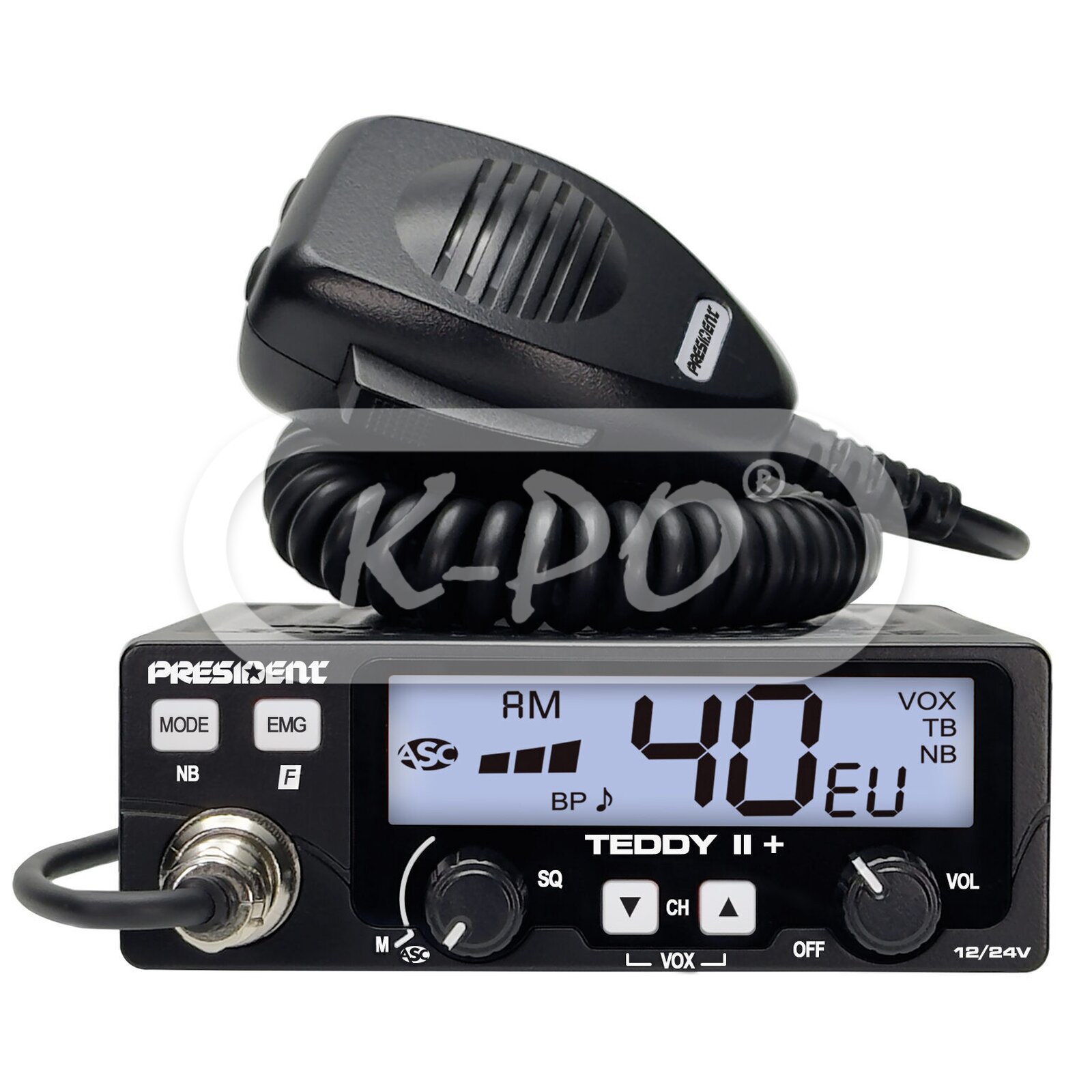

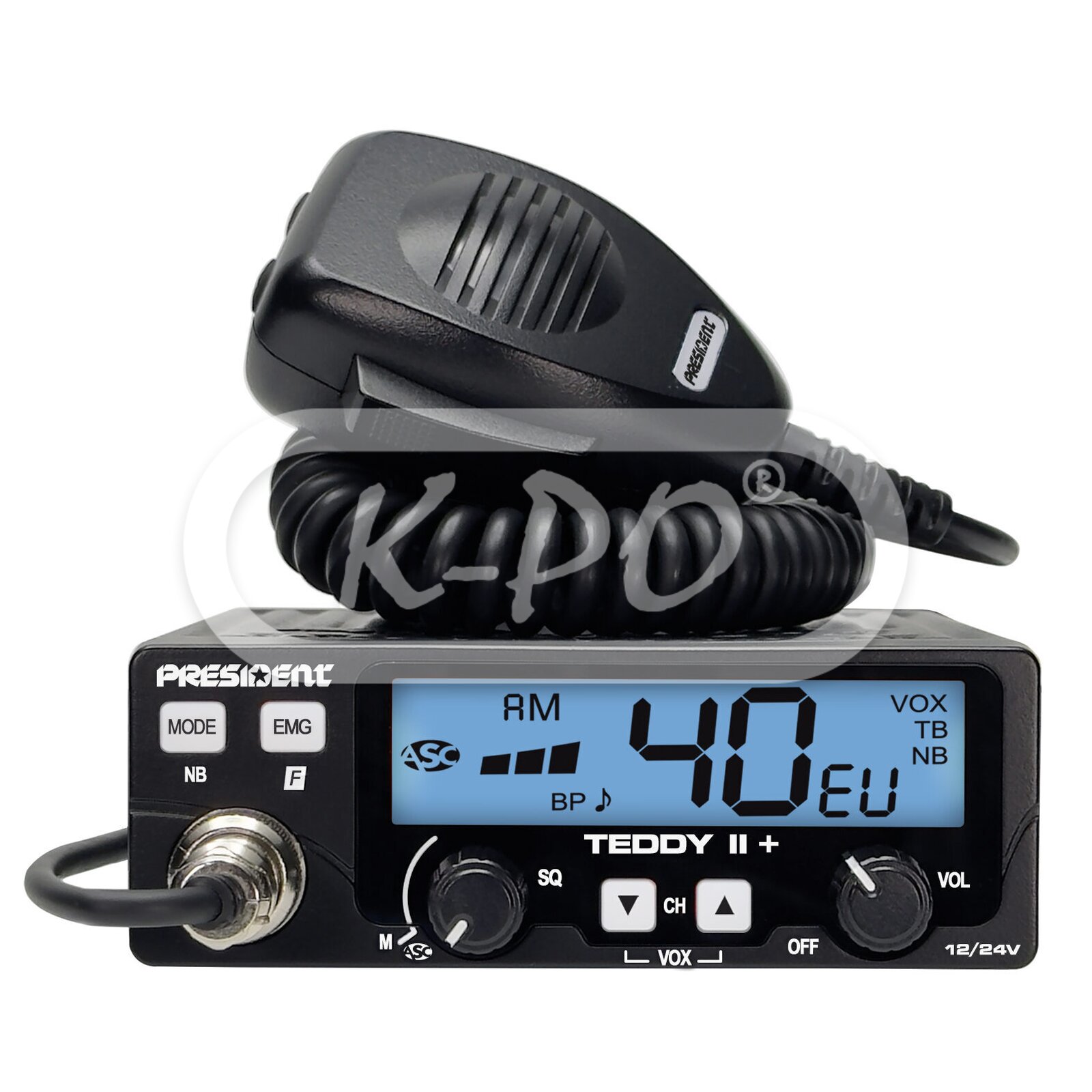

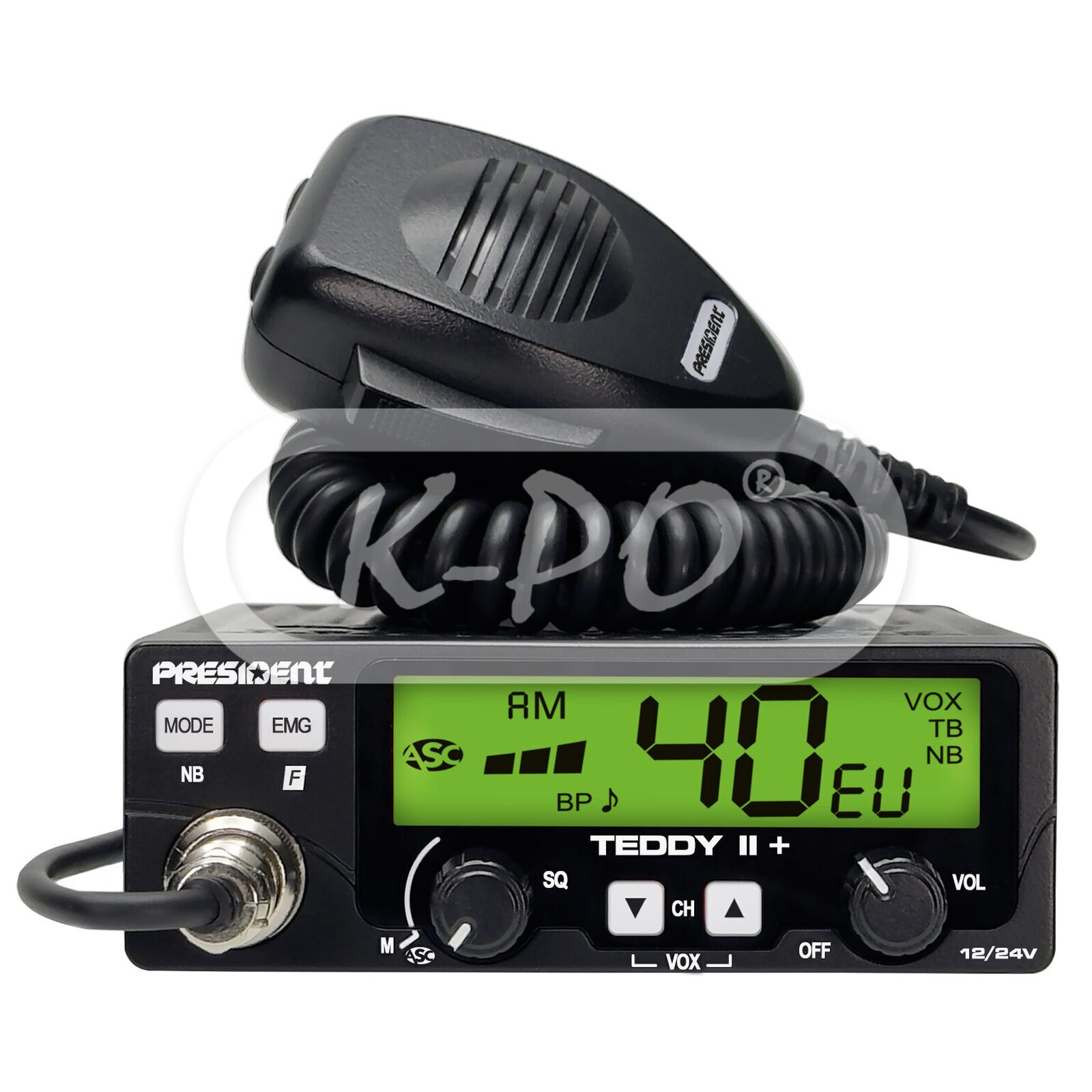

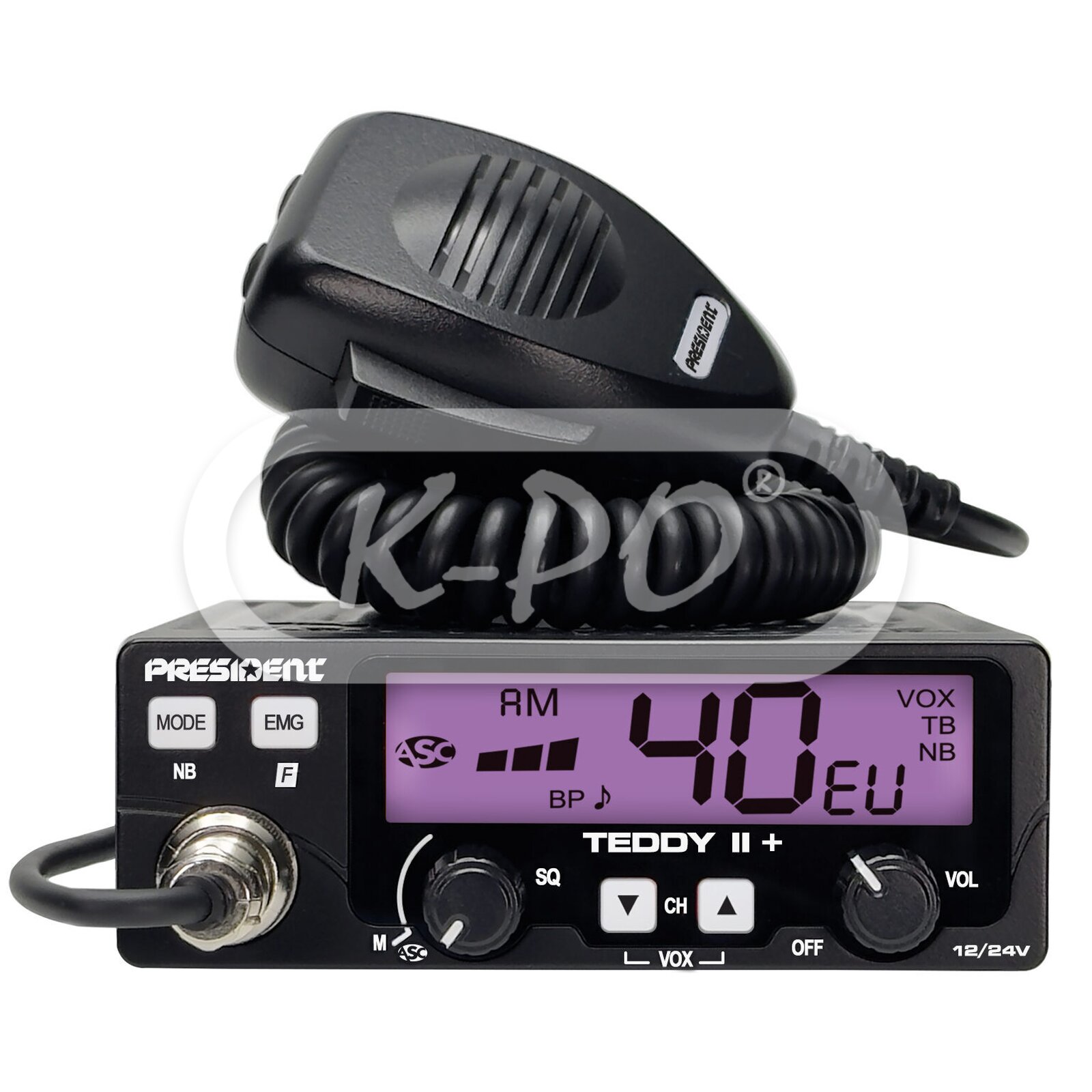

The Teddy II+ is the successor to the Teddy II ASC, now featuring multi-voltage capability (12V/24V) and a 7-color display. This ultra-compact mobile CB radio is easy to install and operate, equipped with only the essential controls needed to get on the air, and proudly carries the President name and guaranteeing quality. It is fully programmable for use in most European countries.

Frequency range: 26.965 - 27.405 MHz
Shipped today - Stock: 9
€98.95 (81.78 excl. 21% VAT)

Features

  • Modulation: AM / FM
  • Multi-bands: Yes
  • Output power: 4 Watt
  • Channels: 40 AM / FM
  • Display type: LCD display
  • Display colors: Green / Orange / Purple / Blue / Cyaan / Yellow / Clear Blue
  • VOX Function: Yes
  • Noise blanker: Yes
  • Squelch: ASQ (Automatiq Squelch Systeem) / Manual squelch /
  • Emergency channel: Yes
  • External speaker socket: Yes
  • S-meter: Yes
  • TOT (time out timer): Yes
  • External VOX socket: Yes
  • Roger Beep: Yes

Electrical data

  • Voltage: 13,8 Volt / 24 Volt /

Transmitter

  • Audio frequency response: 300 Hz - 3 kHz
  • Microphone sensitivity: 7 mV
  • Frequency allowance: ± 200 Hz
  • Transmission interference: inferior to 4 nW (- 54 dBm)
  • Emitted power in the adjacent channel: inferior a 20 μW
  • Modulated signal distortion: 2 %

Receiver

  • AM sensitivity: 0.5 µV - 113 dBm
  • FM sensitivity: 0.35 µV - 116 dBm
  • Frequency response: 300 Hz - 3 kHz
  • Adjacent channel selectivity: 60 dB
  • Maximum audio power: 2.5 Watt
  • Squelch sensitivity: min. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
  • Frequency image rejection rate: 60 dB
  • Intermediate image rejection rate: 70 dB

Mechanical data

  • Length: 151 mm
  • Height: 45 mm
  • Width: 125 mm
  • Weight: 900 gram
  • Antenna connector: UHF (PL) female (SO-239)
  • Mike connector: 6 pin connector

Inside the box

  • Transceiver: 1 pcs
  • Microphone: 1 pcs
  • Fixing screws: 1 set
  • Mounting bracket: 1 pcs
  • Power lead: 1 pcs
  • User Manual: English, Spanish, French, Polish
