RF Systems - DX-500/3 Indoor unit

Product code: 700013

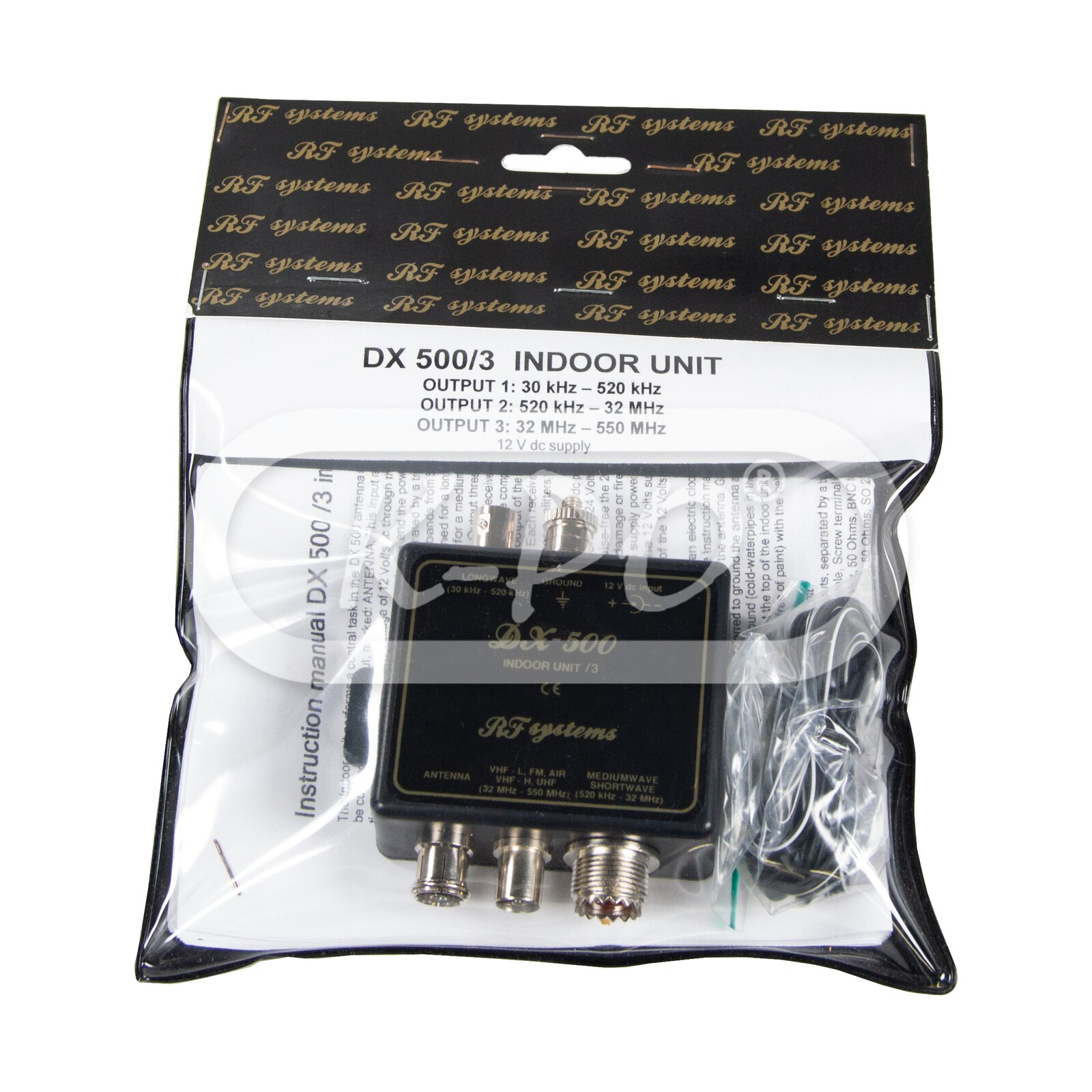

The RF Systems DX 500/3 control has three outputs: output one for long-wave (and NAVTEX) from 30 kHz - 520 kHz, output two for medium- and short-wave from 520 kHz to 32 MHz and a third output from 32 MHz to 550 MHz. The built-in triplexer ensures that every receiver works as if it is connected to its own antenna. There is no need to connect all three receivers: the unit works also with one or two receivers. Output for longwave is BNC, output for MW and SW is SO239 and output for VHF/UHF is IEC.

Original RF Systems product.

Shipped today
€121.45 (121.45 excl. 0% VAT)

    Electrical data

  • Voltage: 13,8 Volt
  • BNC Output: 30 - 520 kHz
  • UHF (PL) Output: 520 kHz - 32 MHz
  • IEC M Output: 32 - 550 MHz
