RigExpert - AA-3000 ZOOM

Product code: 13011
Barcode: 4820185420372

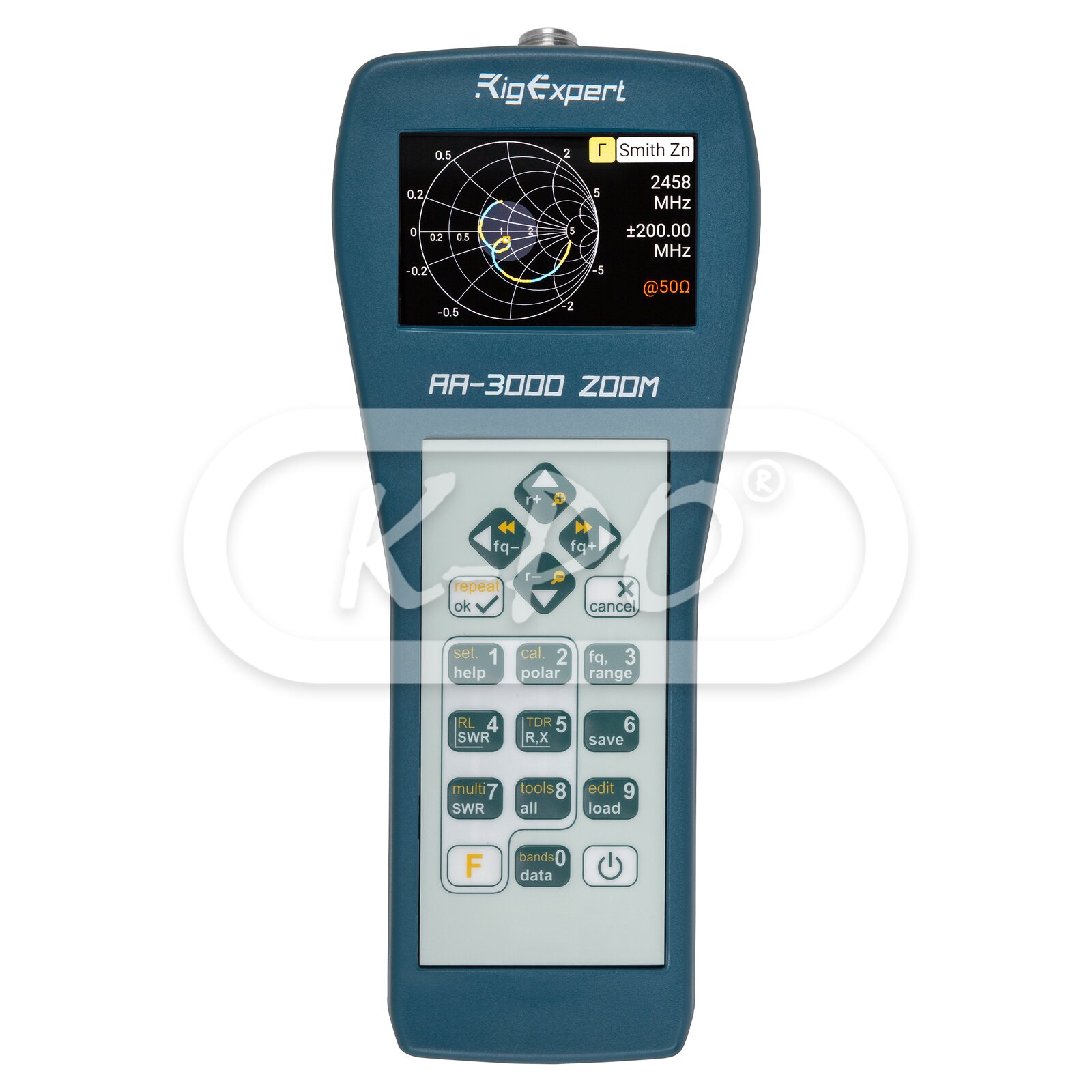

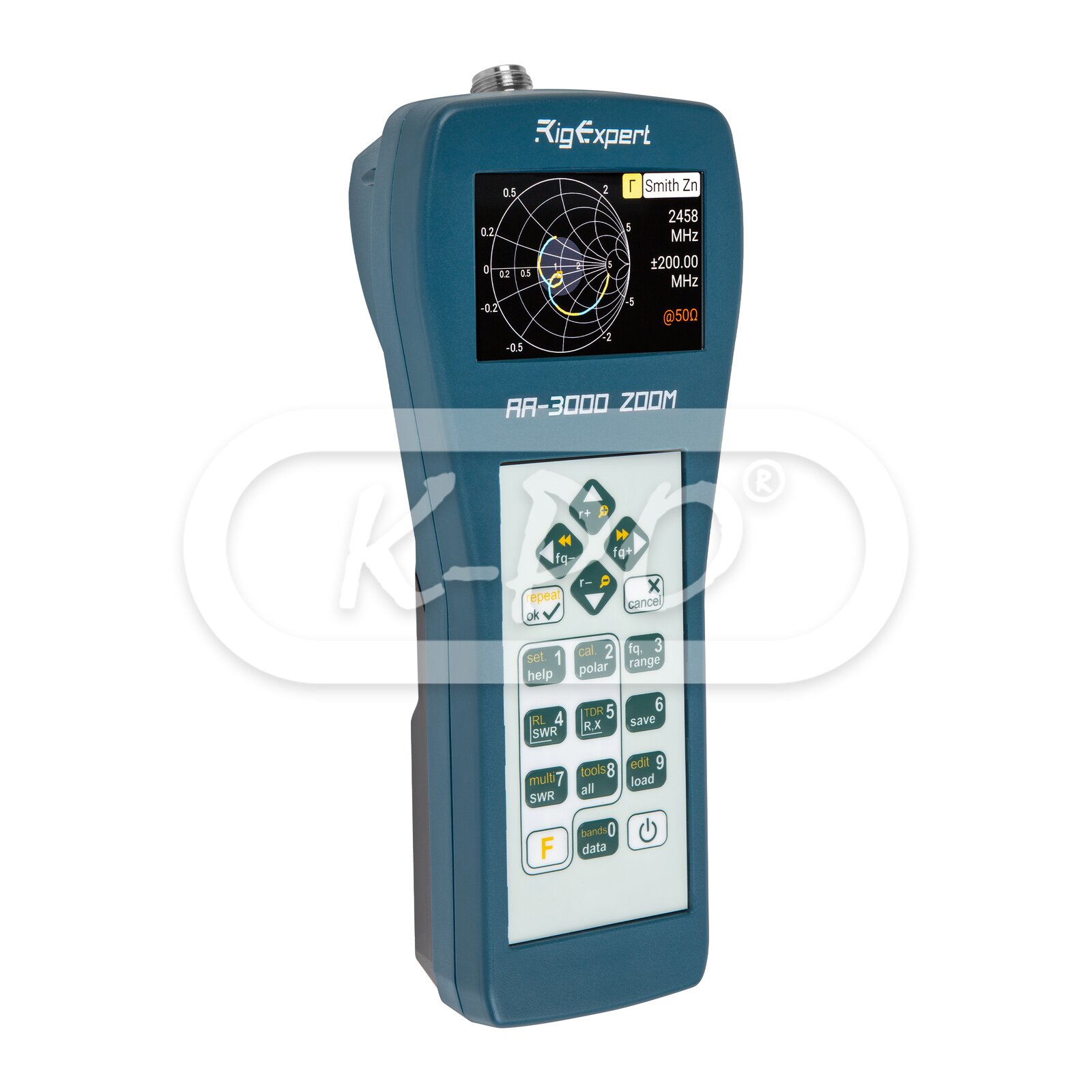

The flagship antenna and cable analyzer with a range from 0.1 to 3000 MHz and a Big Blanview® ZOOM display.

A built-in ZOOM capability makes graphical measurements especially effective.

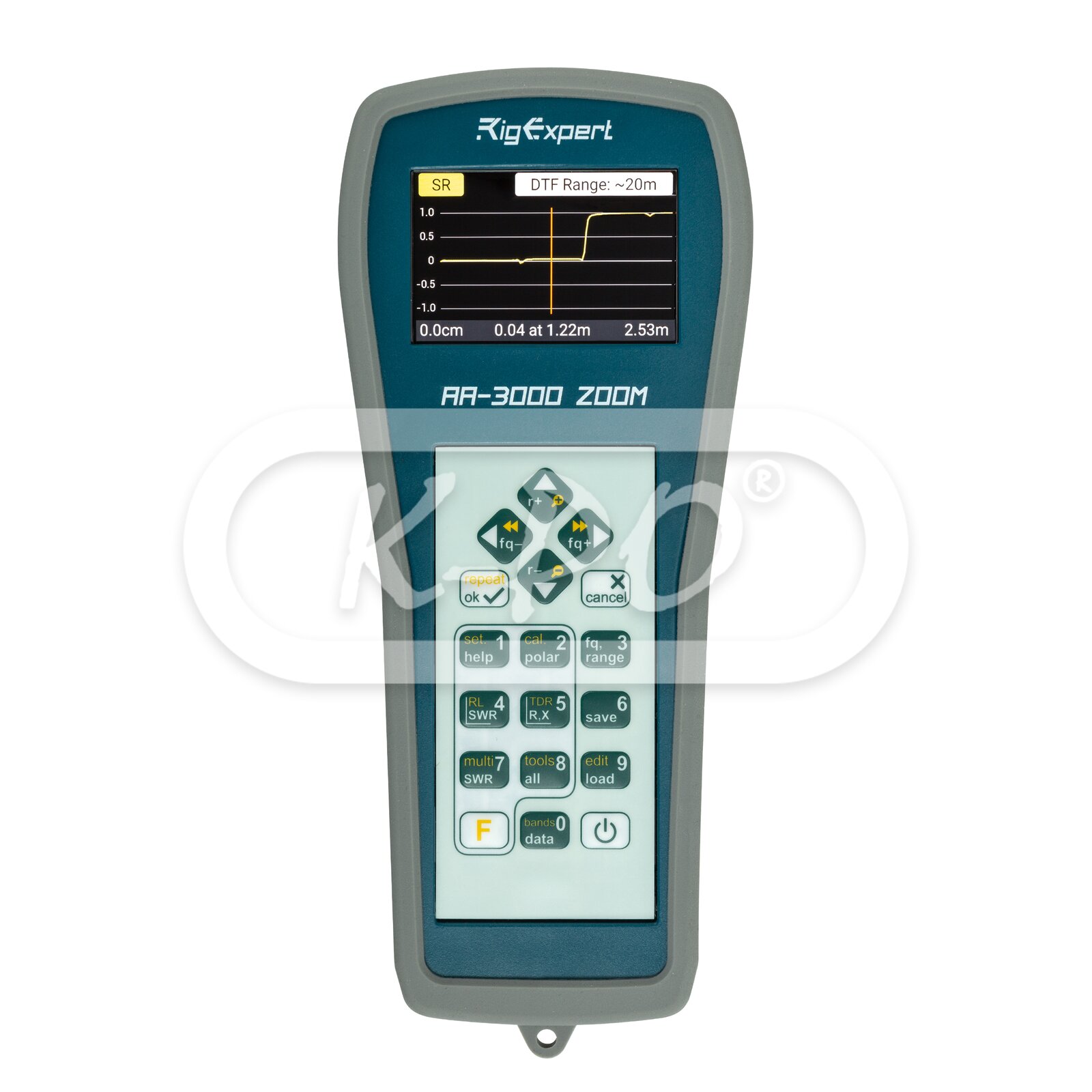

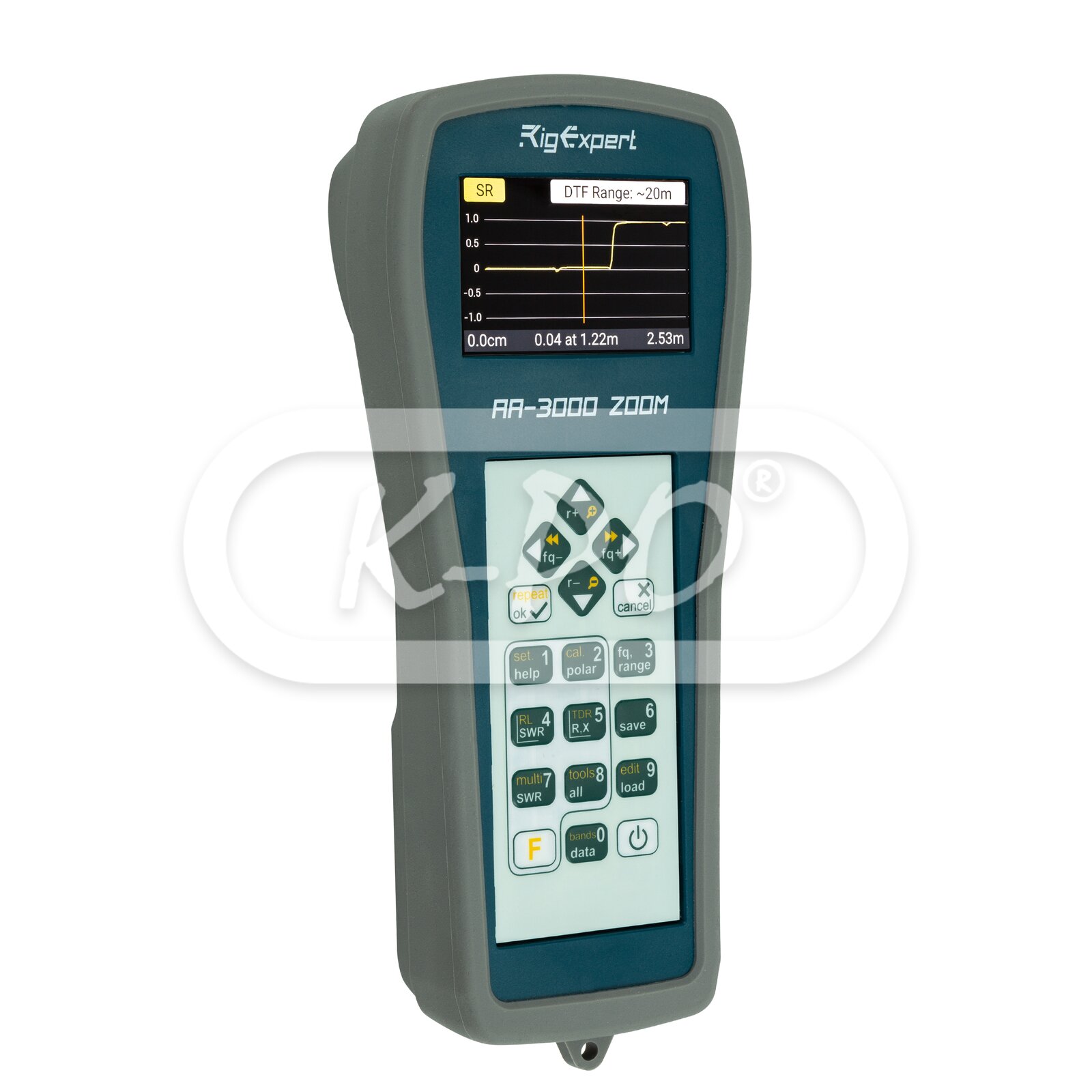

An integrated Time Domain Reflectometer mode can be used to locate a fault within the feedline system.

The analyzer is equipped with a Bluetooth Low Energy module for a wireless connection with your laptop, tablet or smartphone.

The following tasks are easily accomplished by using this analyzer:

  • Perfect for amateur, professional, and commercial radio.
  • Check and adjust antennas quickly.
  • Measure cable length and velocity factor.
  • Set up 1/4-λ, 1/2-λ stubs.
  • Find cable faults in a snap.
  • Measure parameters of other RF elements.
  • Enjoy the big sunlight-readable Blanview® display.
  • Trust the factory calibration.
  • Navigate the multilingual intuitive interface.
  • Get help at the push of a button with the built-in Helper.
  • Store OSL calibration data for future use.

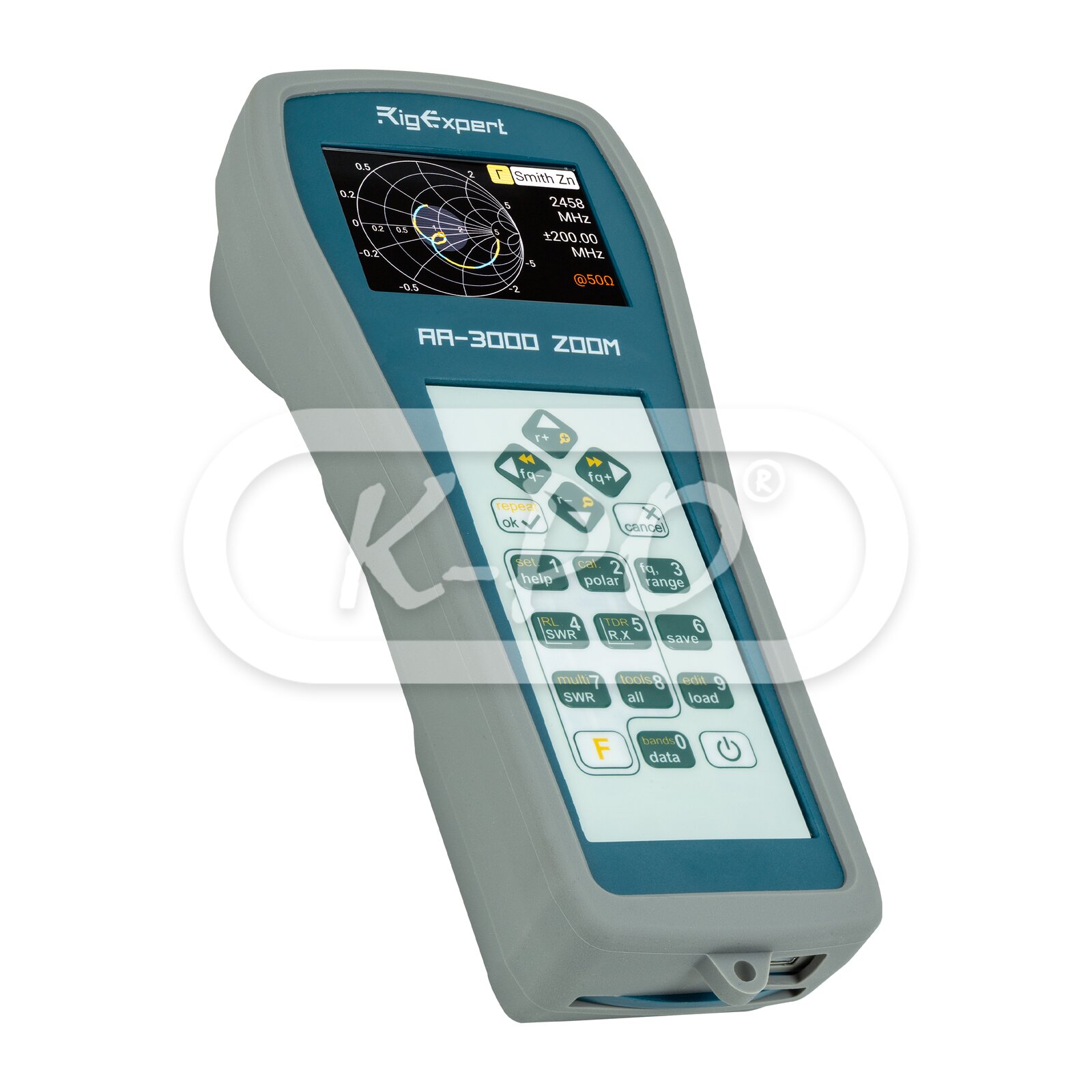

  • Silicone case, battery charger, rechargeable batteries, USB cable, N to UHF adapter in the box.

RigExpert AA-3000 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

Frequency range: 0.1 - 3000 MHz
Shipped next business day - Stock: 2
€1,349.95 (1115.66 excl. 21% VAT)

Features

  • Frequency range: 0.1 to 3000.0 MHz
  • Frequency entry: 1 kHz resolution
  • Directivity: 43 db (calibrated)
  • Measurement for: 25 / 50 / 75 / 100 / 150 / 200 / 300 / 450 and 600 Ohm systems
  • SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
  • SWR display: numerical or analog indicator
  • R and X range: 0…2000, -2000…2000
  • PC programming: Yes, with USB connector
  • Factory OSL: Yes
  • User OSL: 10 profiles available
  • OSL Records: 250 unified memory slots

Display modes

  • SWR: Single or multiple frequencies
  • SWR: Return loss, R, X, Z, L, C, Magnitude, and Phase Angle at a single frequency
  • SWR chart: 100 points
  • SWR chart at fixed HAM bands by IARU Regions: 100 points
  • TDR chart: Time Domain Reflectometer
  • Cable tools: Stub tuner, length & velocity factor, cable loss and characteristic impedance measurement)

RF output

  • Output signal shape: square, 0.1 to 3000.0 MHz (0.1 to 200 MHz. For higher frequencies, harmonics of the main signal are used)
  • Output power: -10 dBm (at 50 Ohm load)

Power

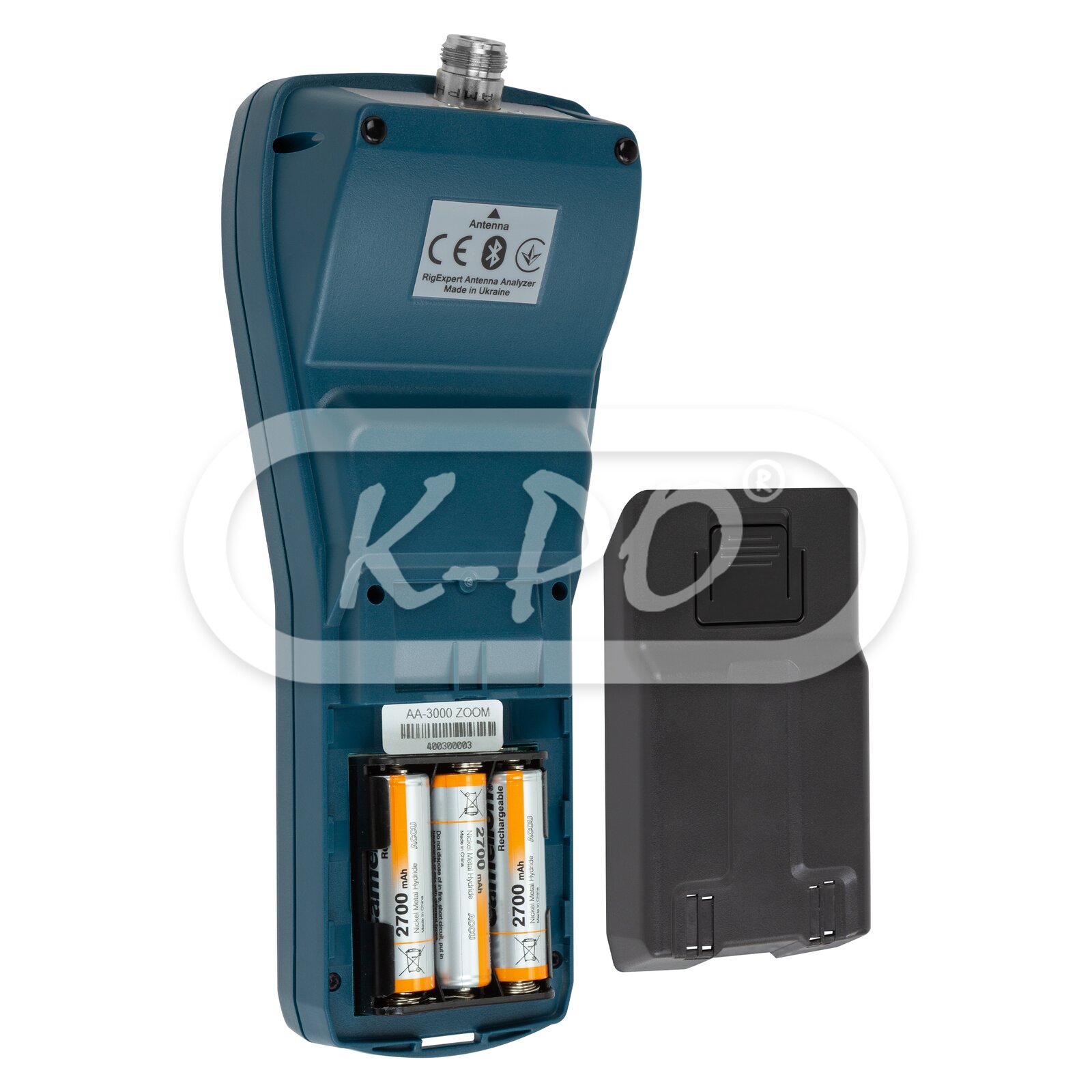

  • Batteries: Three 1.2V Ni-MH batteries, type AA / Three 3.7V LiPo batteries, 14200
  • Battery life: Max. 5 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
  • Program mode: When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these source

Interface

  • Display: 800×400 color BlanView display
  • Keypad: 6×3 keys on the water-proof keypad
  • Menu: Multilingual menus and help screens

Bluetooth

  • Bluetooth Specification: v. 4.2 (Single-mode, Class B)

Mechanical data

  • Input connector: N female for 0.1 to 3000.0 MHz
  • Length: 100 mm
  • Height: 230 mm
  • Width: 55 mm
  • Weight: 442 gram

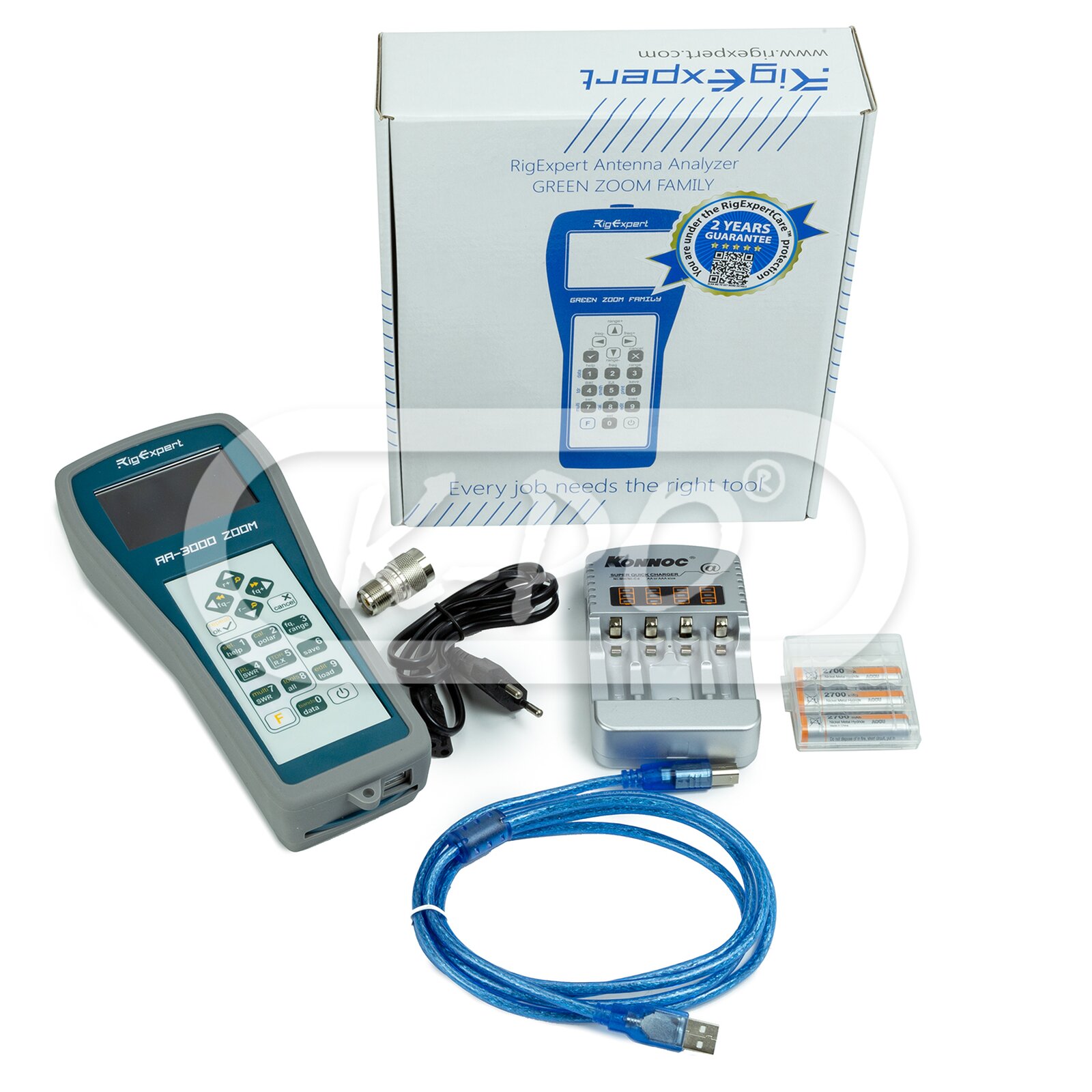

Inside the box

  • Analyzer: Yes
  • Installation manual: English
  • Battery: Yes, 3x 1.2V Ni-MH batteries, type AA (Rechargeable)
  • USB cable: Yes
  • Silicon case: Yes
  • Battery charger: Yes
  • Adapter: Yes, N male to UHF (PL) female
