RigExpert - AA-55 ZOOM

Product code: 13001
Barcode: 4820185420099

Promotion in cooperation with RigExpert for Team Ukraine WRTC victory! Safe up to € 100.00 on the RigExpert AA-35 ZOOM, € 40.00 on the RigExpert AA-55 ZOOM and € 50.00 on the RigExpert AA-230 ZOOM. Prices valid for our current stock, end-users only.

Please note that RigExpert deleted the Bluetooth function of the AA-55 ZOOM from January 2023.

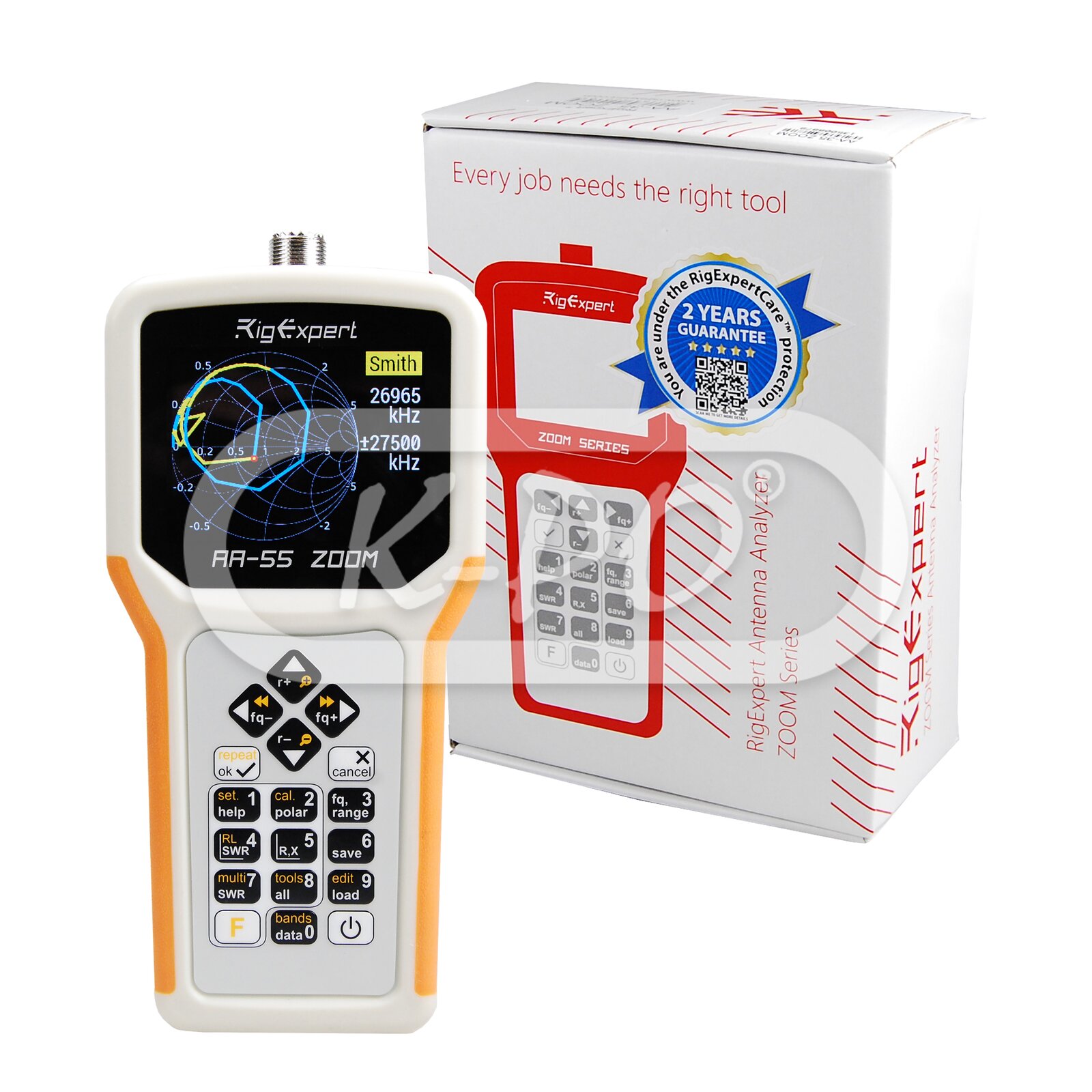

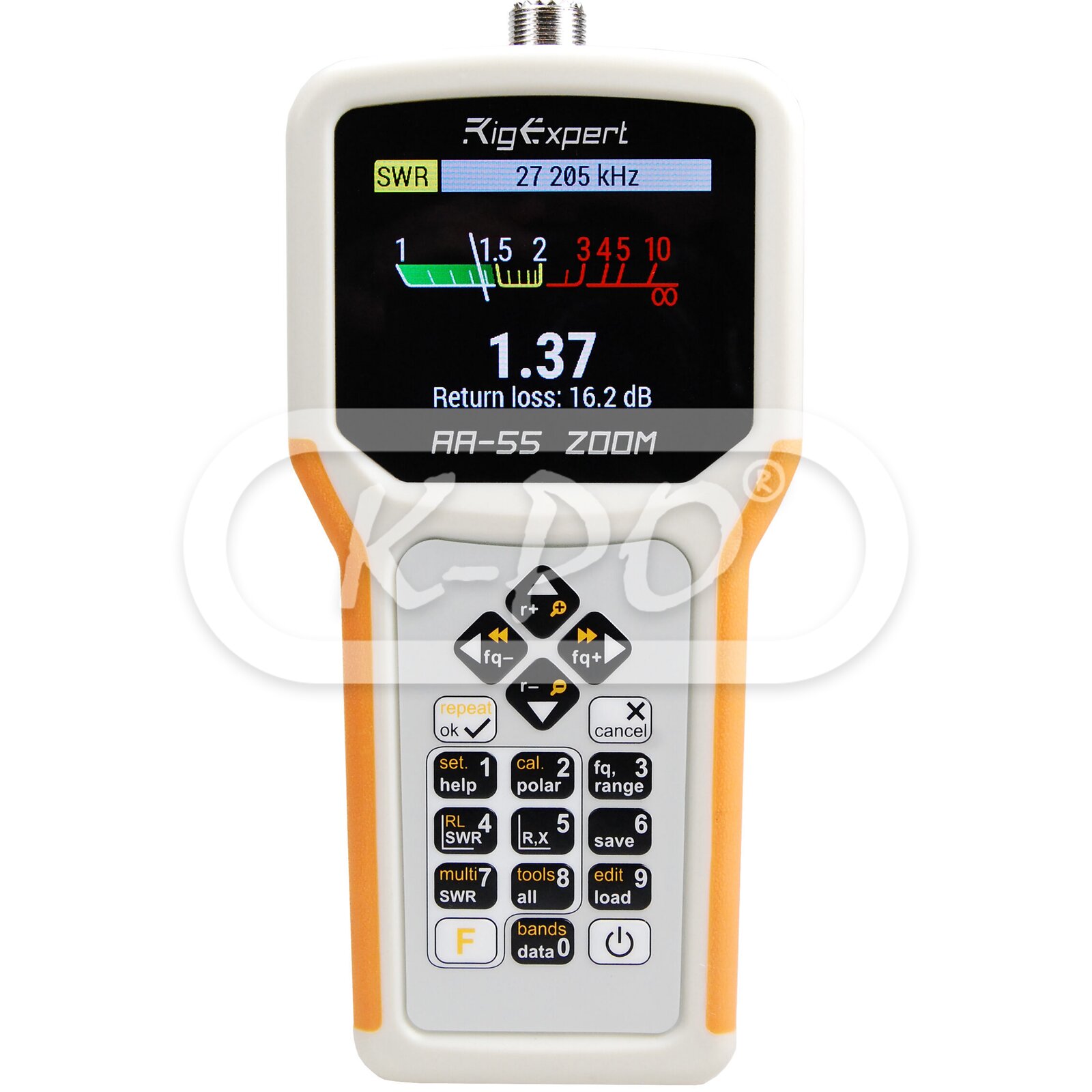

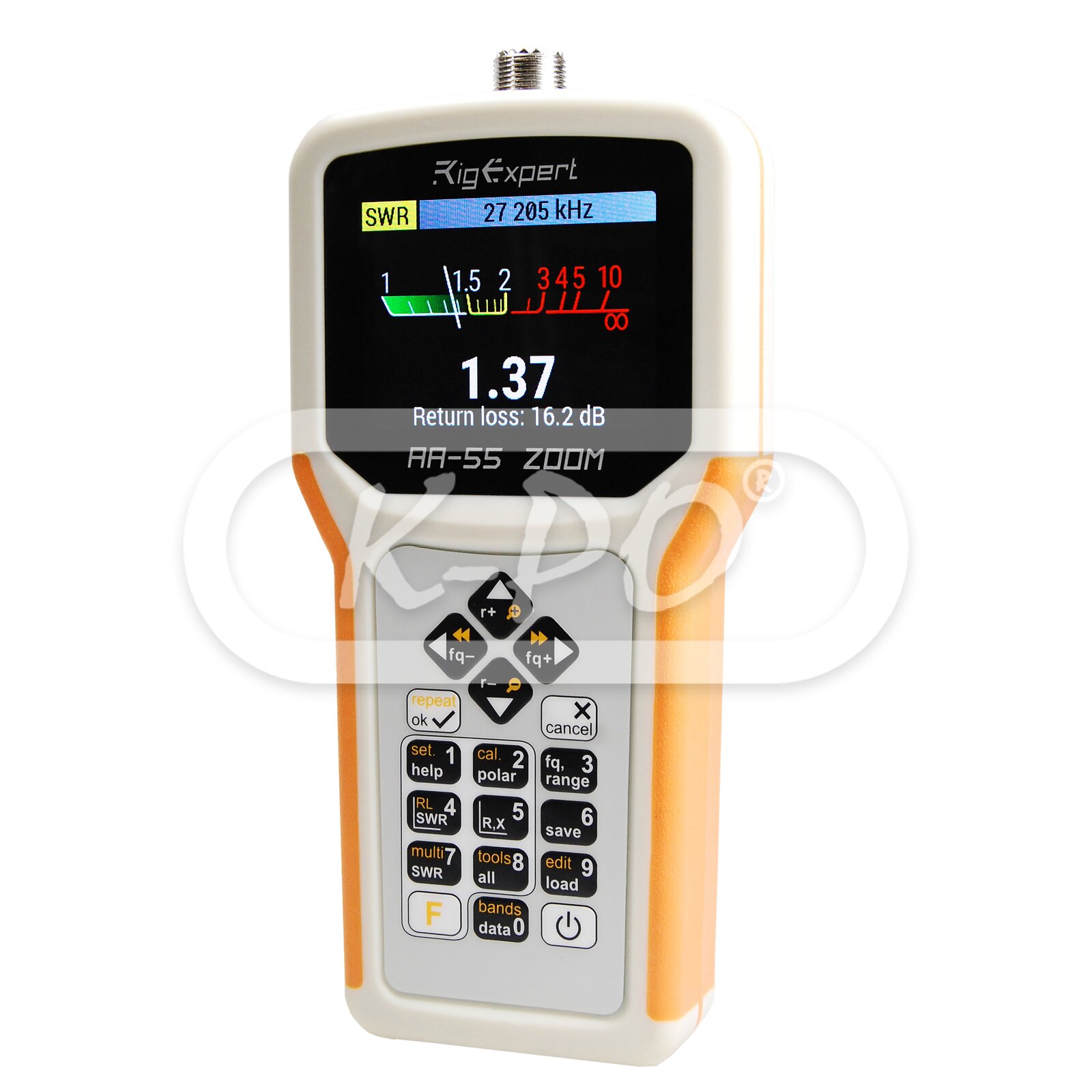

The RigExpert AA-55 ZOOM analyzer is designed for measuring SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 55 MHz. A built-in ZOOM capability makes graphical measurements especially effective.

The following tasks are easily accomplished by using this analyzer:

  • Rapid check-out of an antenna
  • Tuning an antenna to resonance
  • Comparing characteristics of an antenna before and after specific event (rain, hurricane, etc.)
  • Making coaxial stubs or measuring their parameters
  • Cable testing and fault location, measuring cable loss and characteristic impedance
  • Measuring capacitance or inductance of reactive loads

RigExpert AA-55 ZOOM is made in Ukraine.

Specifications are subject to change without notice.

Frequency range: 0.06 - 55 MHz
Shipped next business day
€299.95 (247.89 excl. 21% VAT) - €339.95

Features

  • Non Volatile memory: 10 slots to save measurement results
  • Frequency range: 0.06 to 55.00 MHz
  • Frequency entry: 1 kHz resolution
  • Measurement for: 25 / 50 / 75 / 100 / 150 / 200 / 300 / 450 and 600 Ohm systems
  • SWR measurement range: 1 to 100 in numerical modes, 1 to 10 in chart modes
  • SWR display: numerical or analog indicator
  • R and X range: 0…10000, -10000…10000 in numerical modes, 0…1000, -1000…1000 in chart modes
  • PC programming: Yes, with USB connector

Display modes

  • SWR: single or multiple frequencies
  • SWR: R, X, Z, L, C and phase angle at single frequency
  • SWR chart: 100 points
  • R, X chart: 100 points

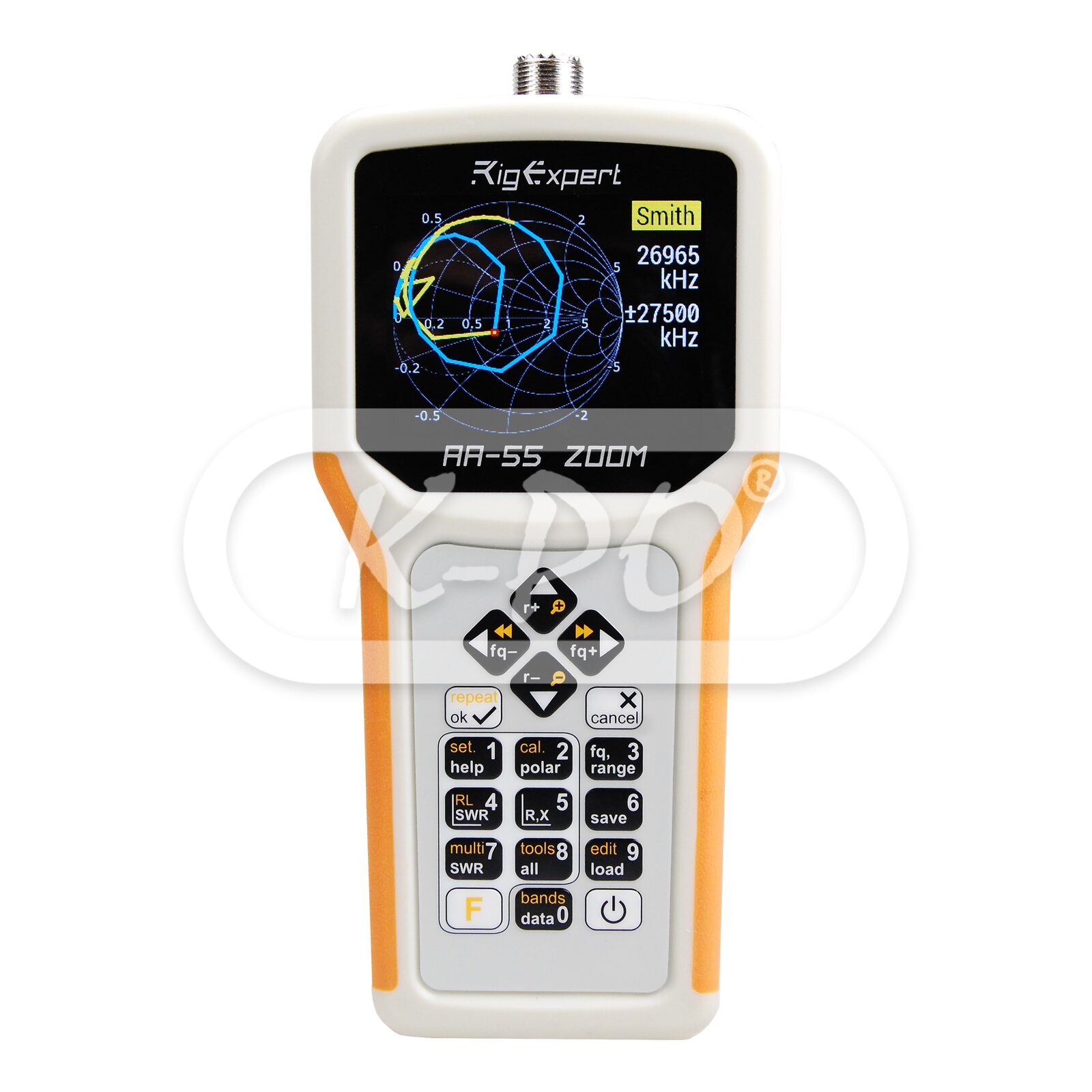

  • Smith chart: 100 points
  • Return loss chart: 100 points
  • Cable tools: Loss and characteristic impedance

RF output

  • Output signal shape: square, 0.06 to 55 MHz
  • Output power: +13 dBm (at 50 Ohm load)

Power

  • Batteries: Two 1.5V alkaline batteries, type AA
  • Battery life: Max. 4 hours of continuous measurement, max. 2 days in stand-by mode when fully charged batteries are used
  • Program mode: When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these source

Interface

  • Display: 320×240 color TFT display
  • Keypad: 6×3 keys on the water-proof keypad
  • Menu: Multilingual menus and help screens

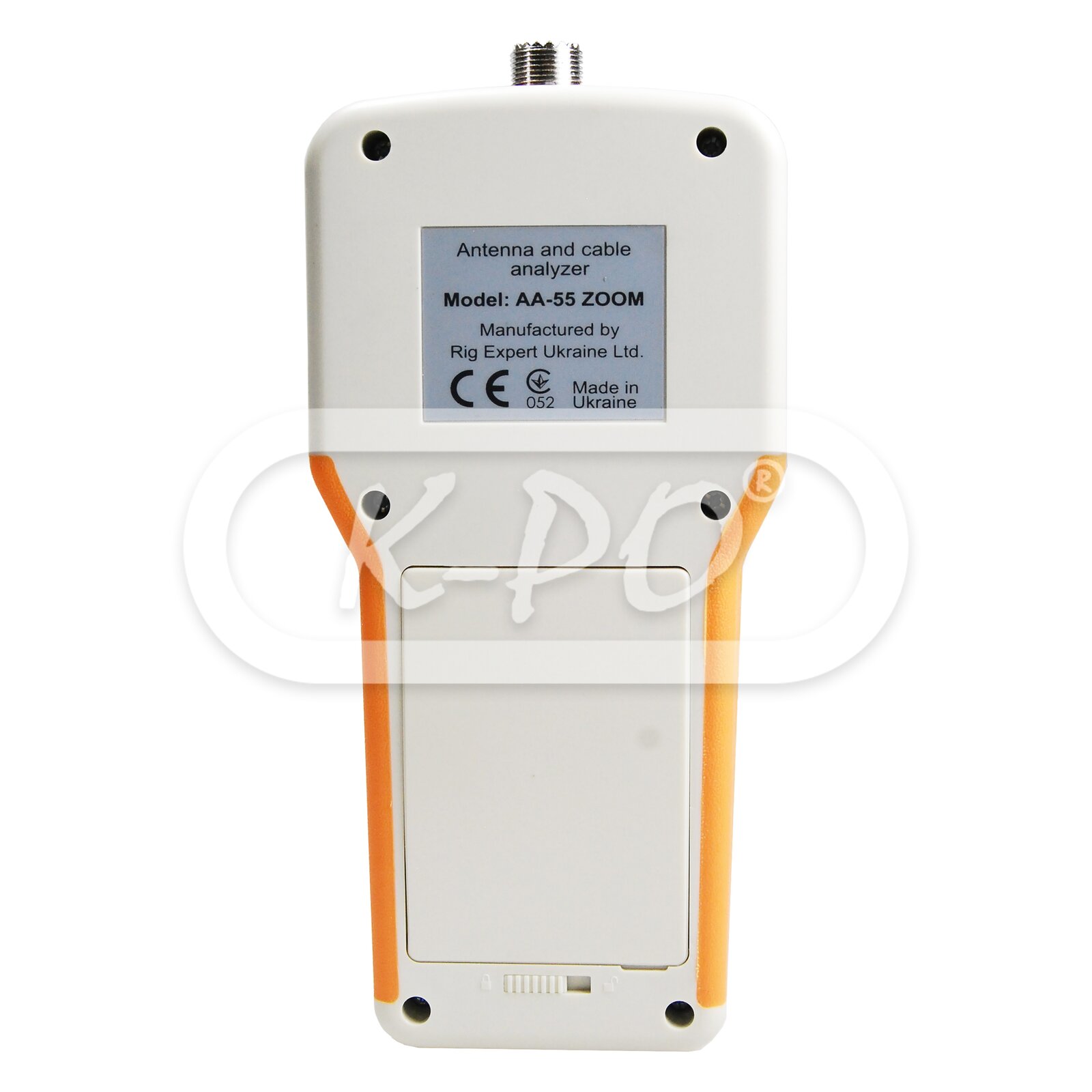

Mechanical data

  • Input connector: UHF (PL) female for 0.06 - 55.00 MHz
  • Length: 103 mm
  • Height: 207 mm
  • Width: 37 mm
  • Weight: 310 gram
  • Working temperature: 0 to 40 °C

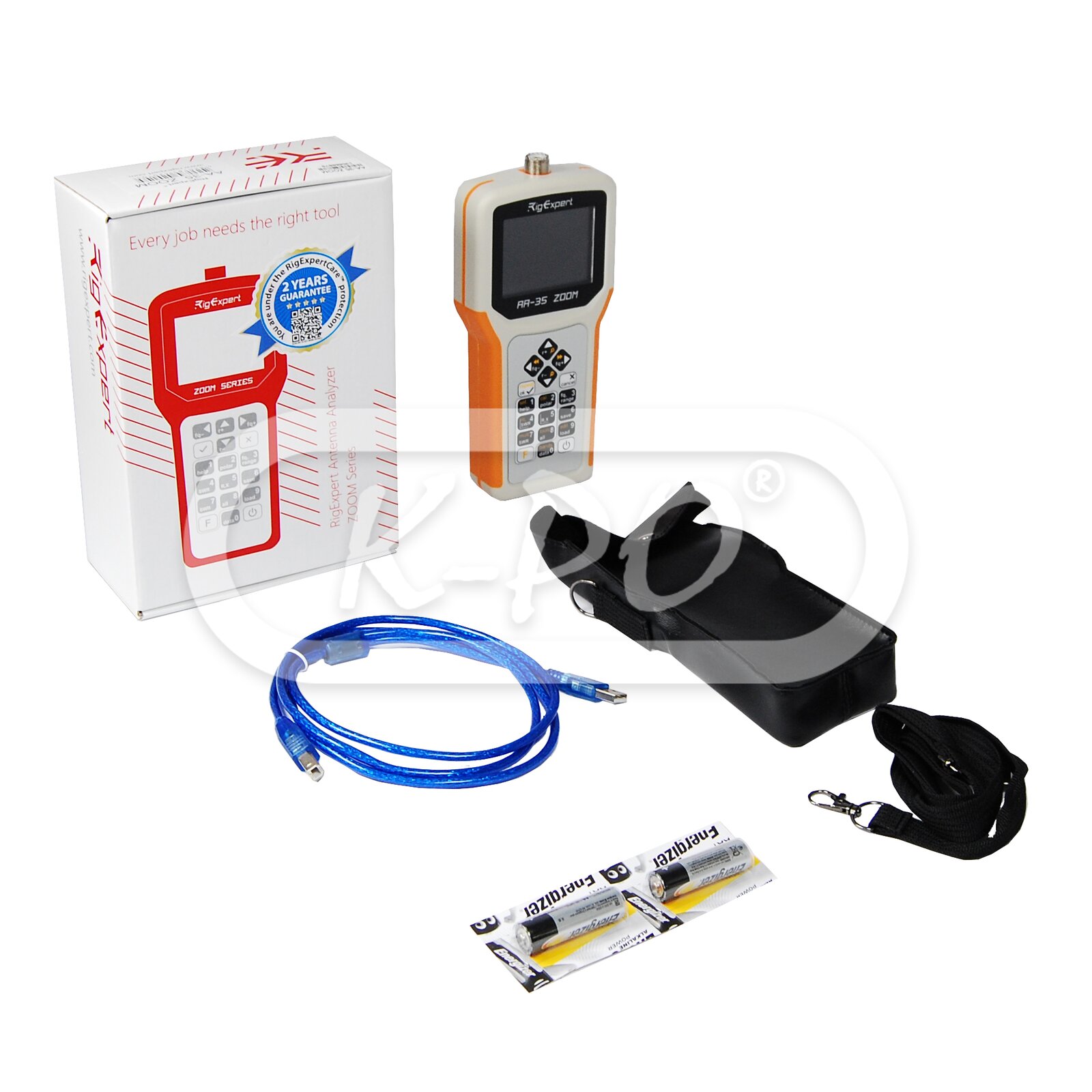

Inside the box

  • Analyzer: Yes
  • Installation manual: English
  • Battery: Yes, 2x 1.5V alkaline batteries, type AA
  • USB cable: Yes
  • Soft case: Yes
