RM - BLA600

Product code: 50200026
Barcode: 5056109224156

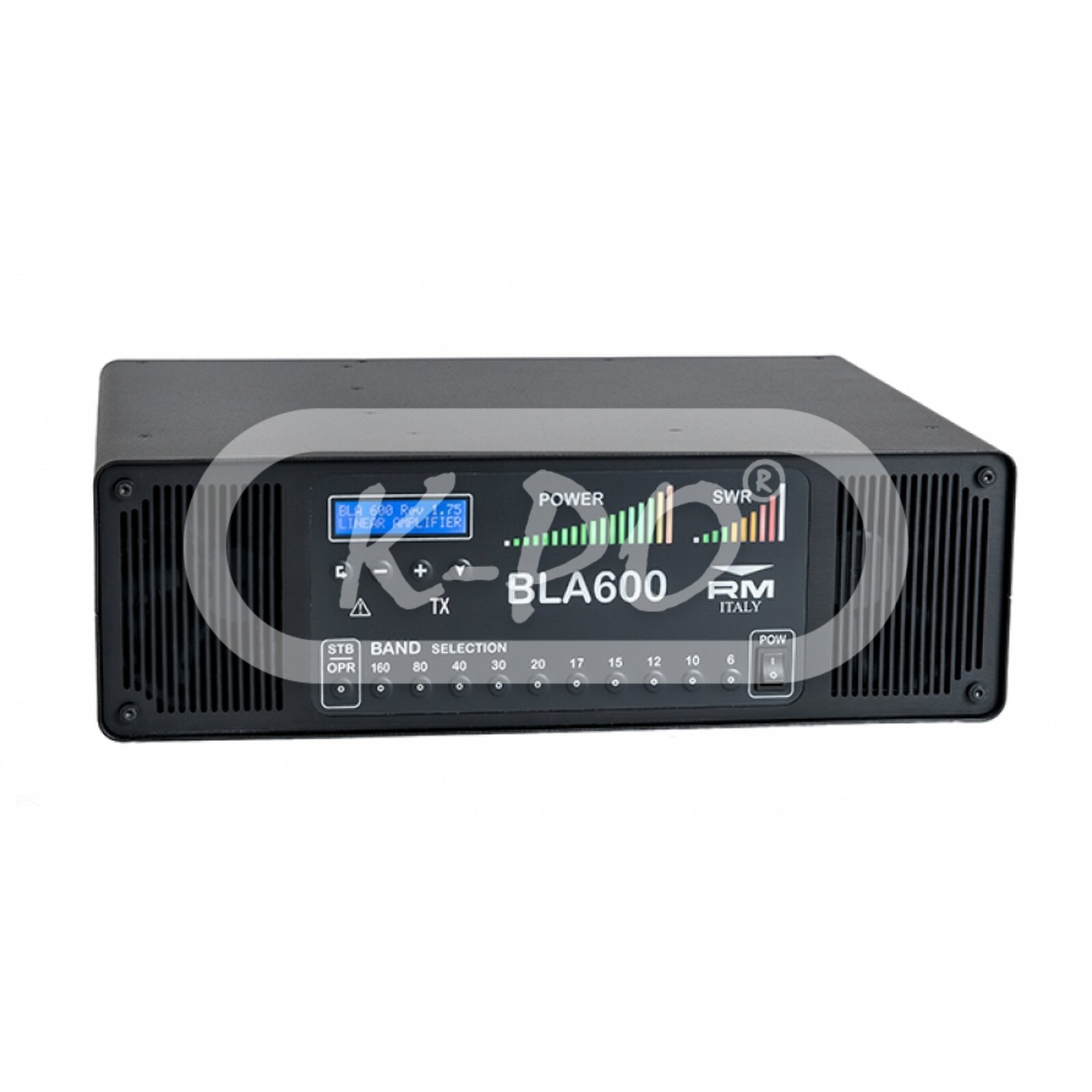

The BLA600 is a wideband compact linear amplifier for the HF bands and 6m, from 1.8 to 54 MHz.

*Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequency range: 1.8-54 MHz
Note - Price on request
€ -- (Price on request)

Electrical data

  • Input power (Watts): 1 - 40 AM-FM-SSB-CW
  • Max output power (Watts): 500 AM-FM
  • Max output power SSB (Watts): 500 (PEP)
  • Max input SWR: <1.5:1 VSWR (160-6m)
  • Fuse: 5 x 20mm F LBC 250V (Fast Blow)
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • LCD display: Yes
  • Gain: Typical 14 dB +/- 1 dB (80-10m)
  • Active device: NXP / Freescale MRFE6VP5600H (50V)
  • Output harmonic / spurious distortion: HF >-45dB 6m >-60dBc
  • PTT input: Close to ground TX, Open Circuit RX, (Suitable for Open Drain / Collector / Relay switching). Output +5V S/C current <15mA in TX.
  • ALC output: Negative going voltage, (0 to –10V) (adjustable).
  • PA current: 27 A (max)

Mechanical data

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 430 mm
  • Height: 142 mm
  • Width: 324 mm
  • Weight: 21.500 gram
