RM - KL505 RM - KL505 RM - KL505

RM - KL505

Product code: 1748

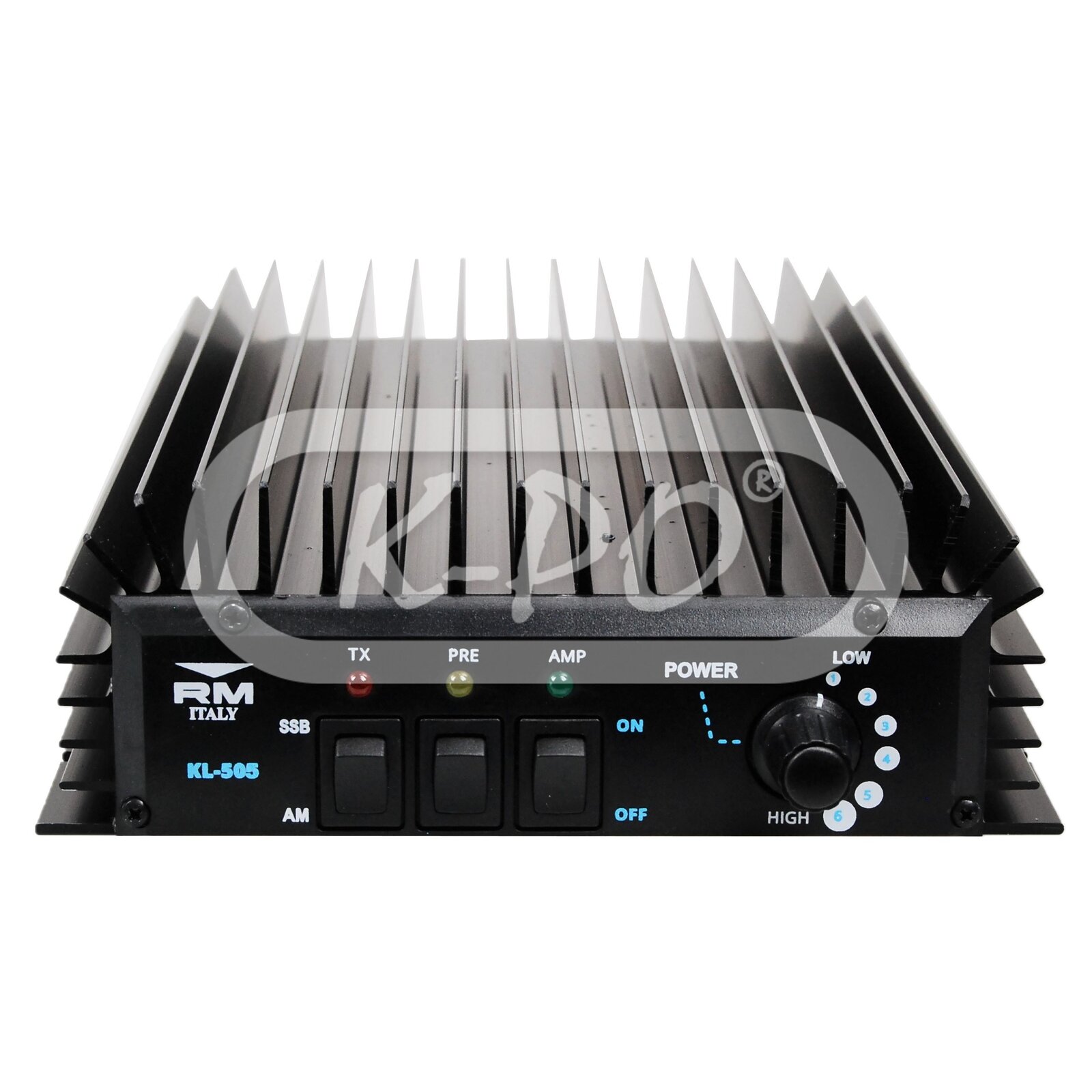

The RM KL505 'black line' is a linear amplifier with inversion polarity protection. The max. output power off the amplifier is 230 Watts AM-FM-SSB (max).

Protection circuits are not 100% guaranteed. To prevent damage to your amplifier always check your VSWR after changing bands, no hot switching, no excessive input power etc.

Frequency range: 3-30 MHz
Shipped next business day - Stock: 1
€451.95 (373.51 excl. 21% VAT)

Electrical data

  • Input power (Watts): 10 AM-FM-SSB-CW
  • Max output power (Watts): 230 AM-FM
  • Max output power SSB (Watts): 230 (PEP)
  • Impedance: 50 Ohm
  • Max input SWR: 1.1 - 1.5:1
  • Fuse: 3x 12 A
  • Inversion polarity protection: Yes
  • Electronic switch: Yes
  • Pre-amplifier: Yes
  • Cooling fans: No
  • Output power level: 6
  • Input energy/power: 35 A
  • Antenna pre-amplifier: 26 dB
  • Transistors: 4x RM SD-1446

Mechanical data

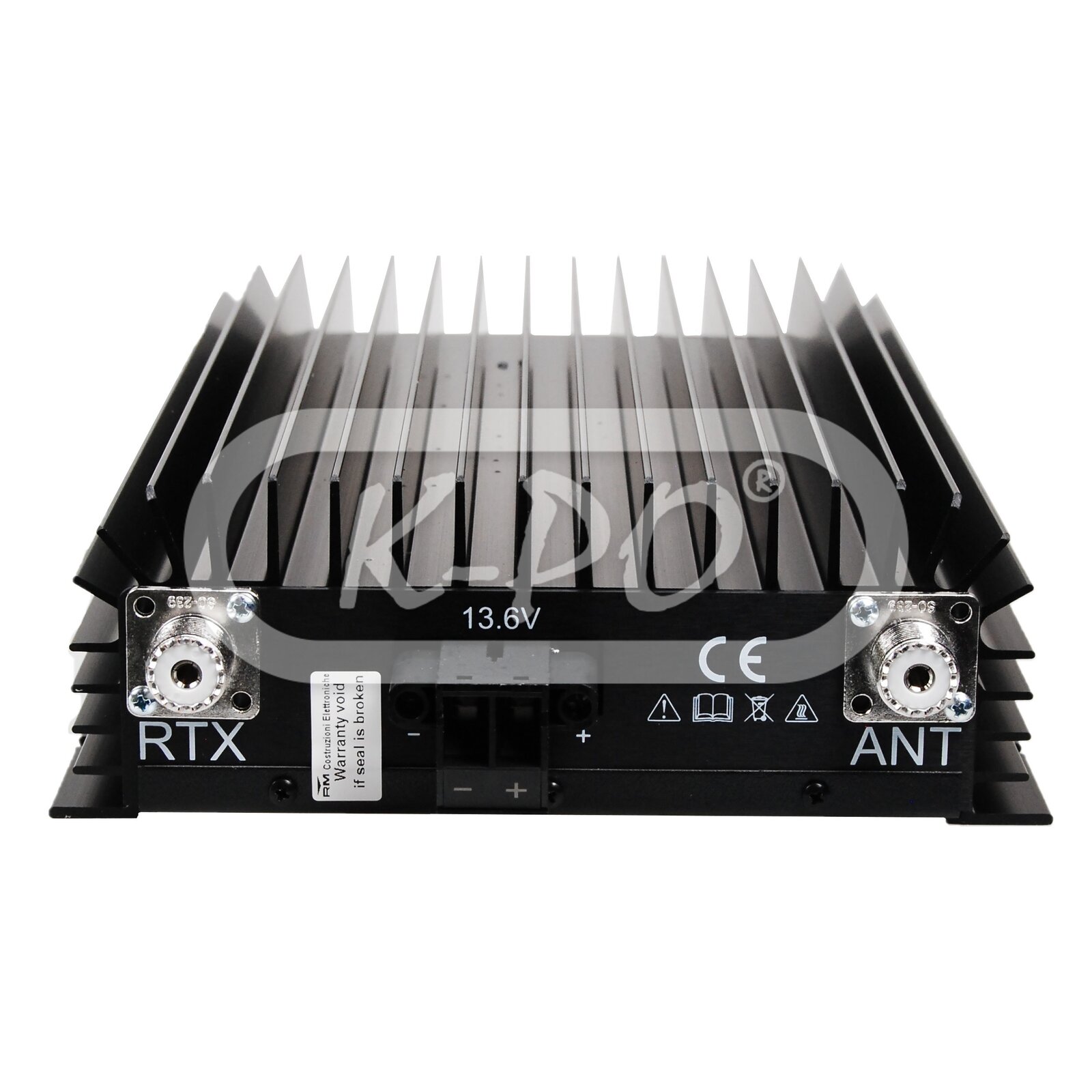

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 190 mm
  • Height: 67 mm
  • Width: 260 mm
  • Weight: 2000 gram
  • Color: Black

Inside the box

  • Amplifier: Yes
  • Installation manual: English
