Sigma - SE HF360

Product code: 46000262

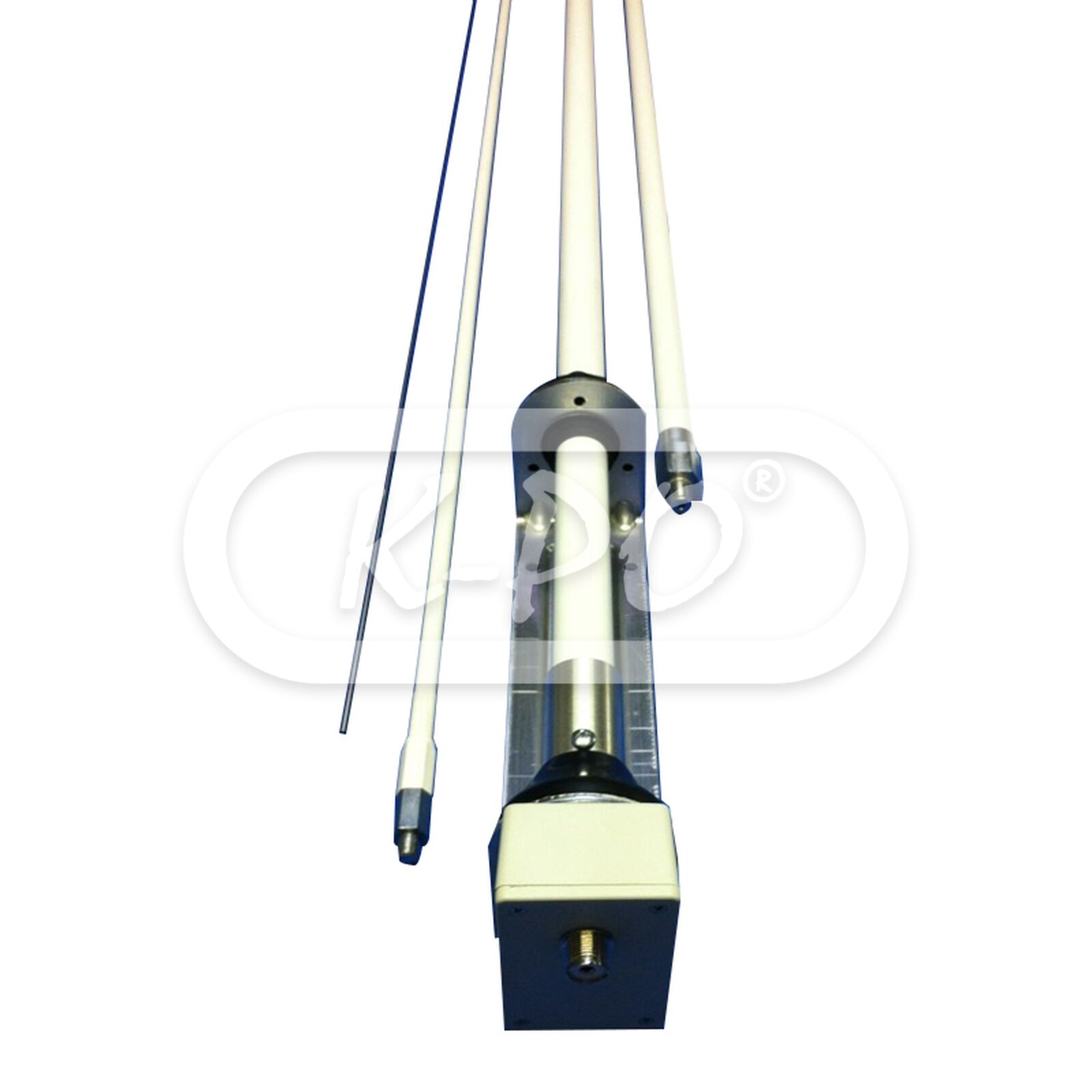

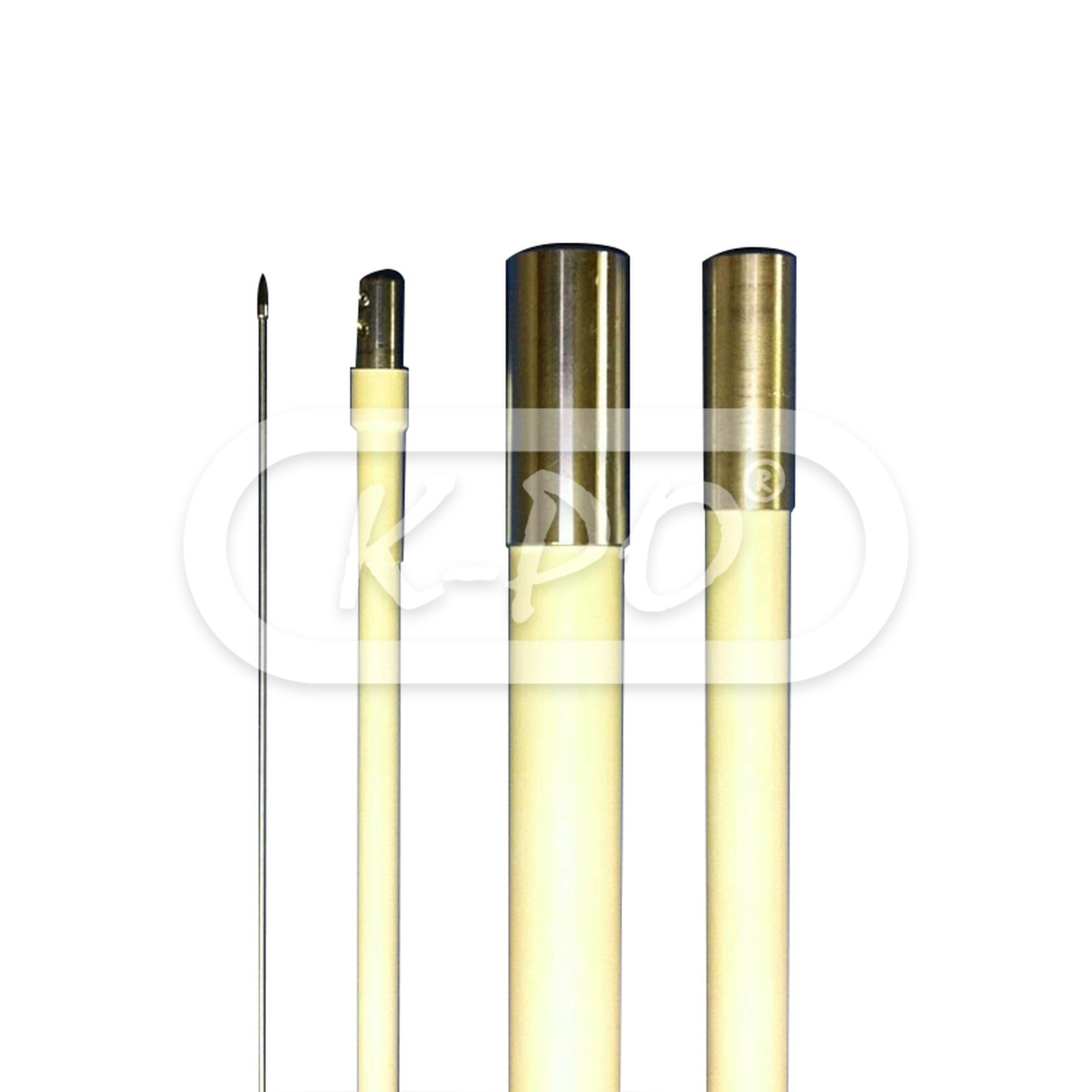

The Sigma Euro-Comm HF360 is an end fed vertical antenna, capable of allowing the user to work 80 meters through to 6 meters using an ATU. The antenna can be pole mounted at ground level or elevated depending on the user's personal requirements. The antenna is rated at 400W PEP.

Frequency range: TX: 3.5 - 52 MHz / RX: 1.8 - 55 MHz
Shipped next business day
€179.95 (148.72 excl. 21% VAT)

Electrical data

  • Electrical type: end fed vertical
  • Power peak: 400 Watts (PEP)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • 80m band: 1:3.1 (Manual ATU)
  • 60m band: 1:1
  • 40m band: 1:1
  • 30m band: 1:1
  • 20m band: 1:1
  • 17m band: 1:1 (Manual ATU)
  • 15m band: 1:1
  • 12m band: 1:1 (Manual ATU)
  • 10m band: 1:1
  • 6m band: 1:1 (Manual ATU)

Mechanical data

  • Materials: Fibre glass, Stainless steel
  • Height: 5500 cm
  • Weight: 2300 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
