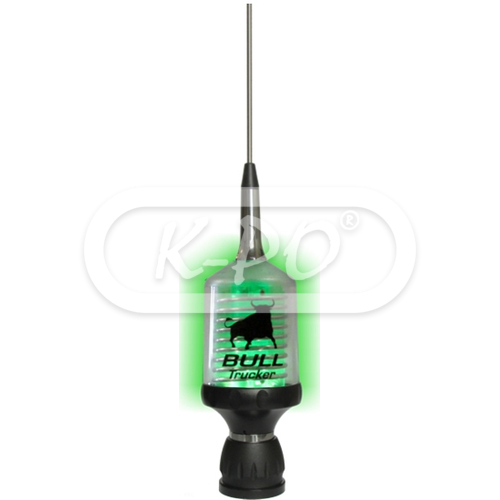

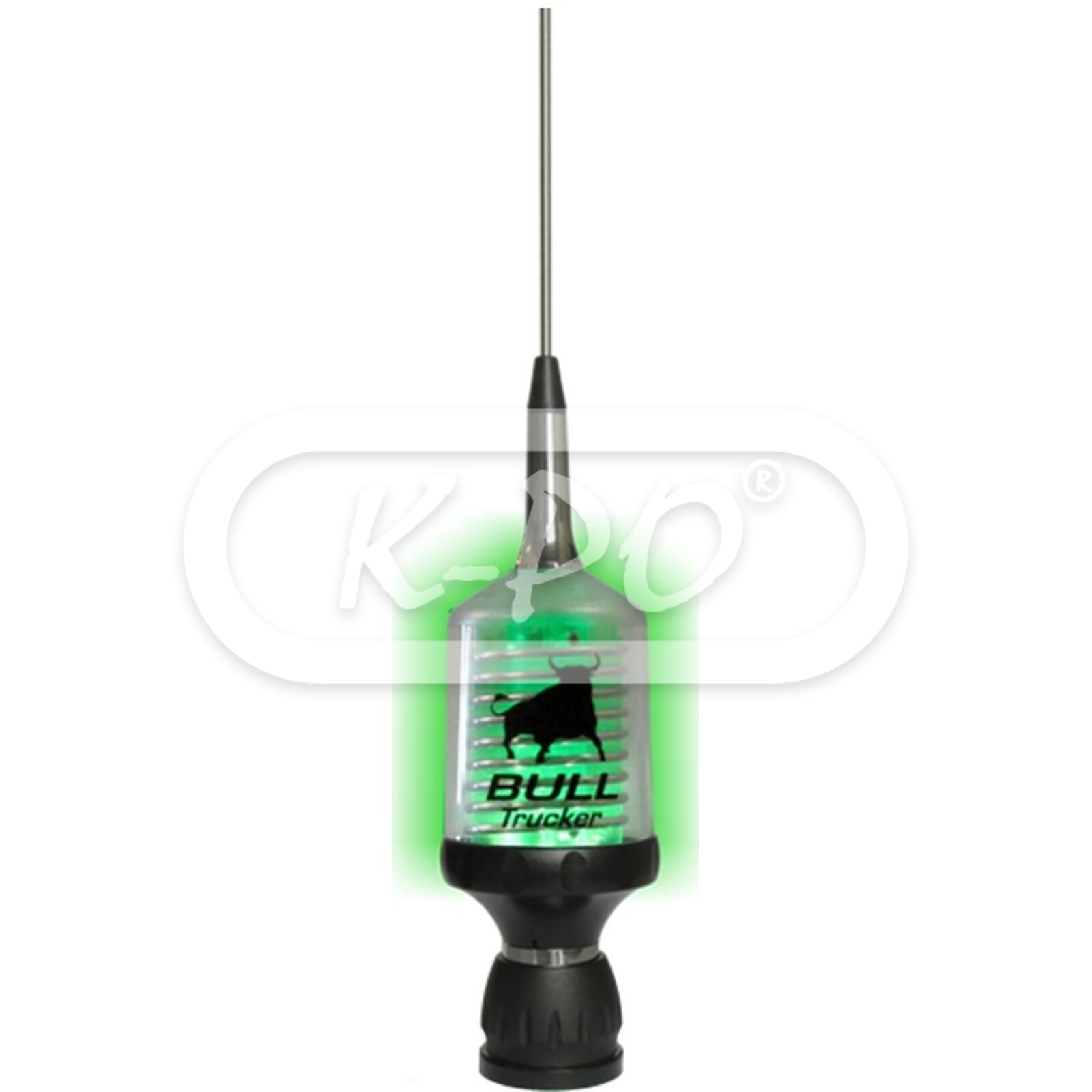

Sirio - Bull Trucker 3000 RI (RG58)

Product code: 221860550

Factory code: 2218605.50

Barcode: 8056182110121

High power base loaded trucker antenna. Exclusive LED PCB that light up when transmitting.

Frequency range: 27 - 30 MHz

Shipped today

€67.95 (56.16 excl. 21% VAT)

Electrical data

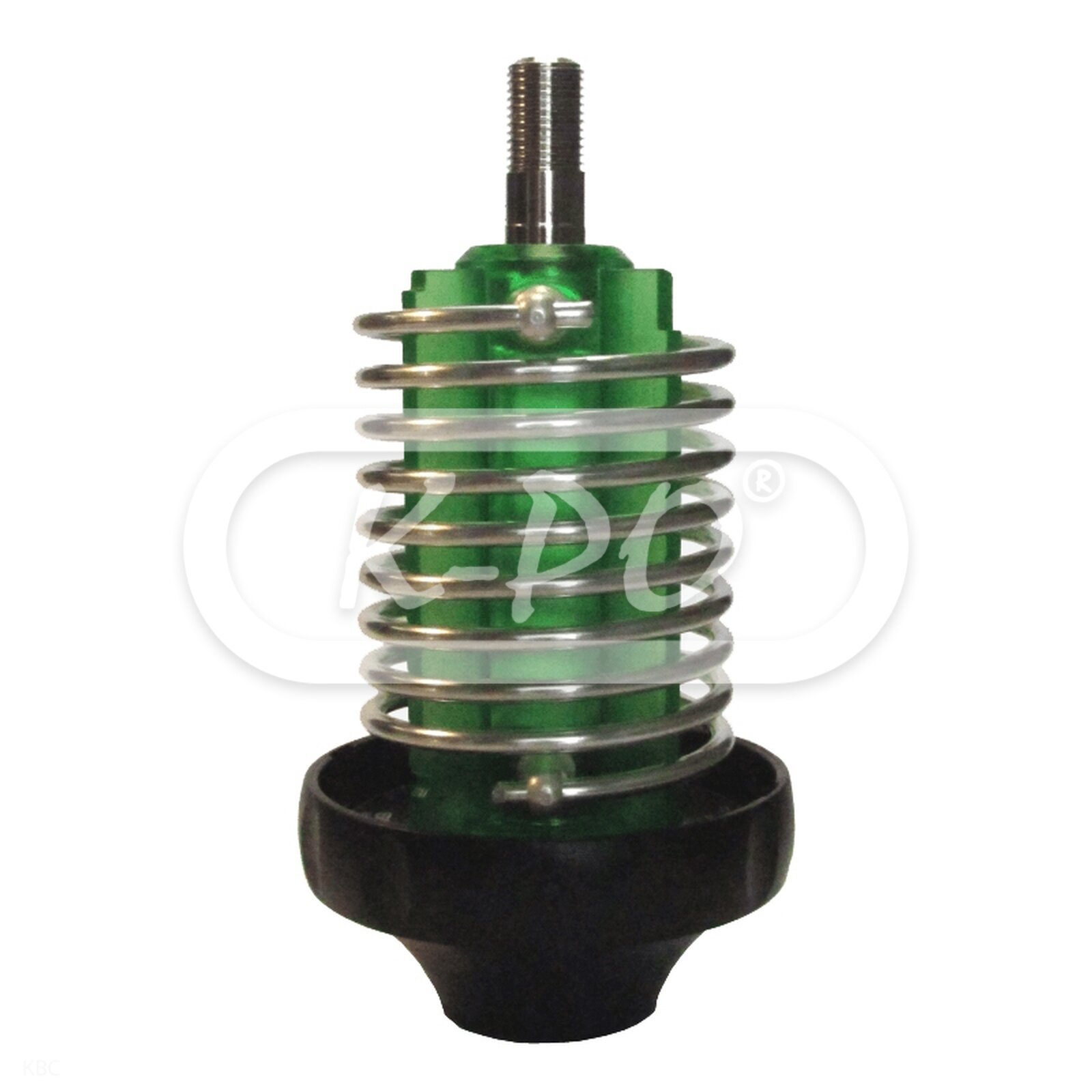

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1100 kHz (100 channels) ≤ 2.0
• Maximum continuous power: 600 Watts (CW) with the supplied RG 58 cable
• Power peak: 600 Watts (CW) with the supplied RG 58 cable
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Aluminium, chromed brass, stainless steel 17/7 PH, thermoplastic UV stabilized, PCB
• Height: 1445 mm
• Weight: 400 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 453 22 05 2017 bull trucker
