Sirio - Carbonium 27 FME Limited Edition

Product code: 200137

Factory code: 2204106.02/FME

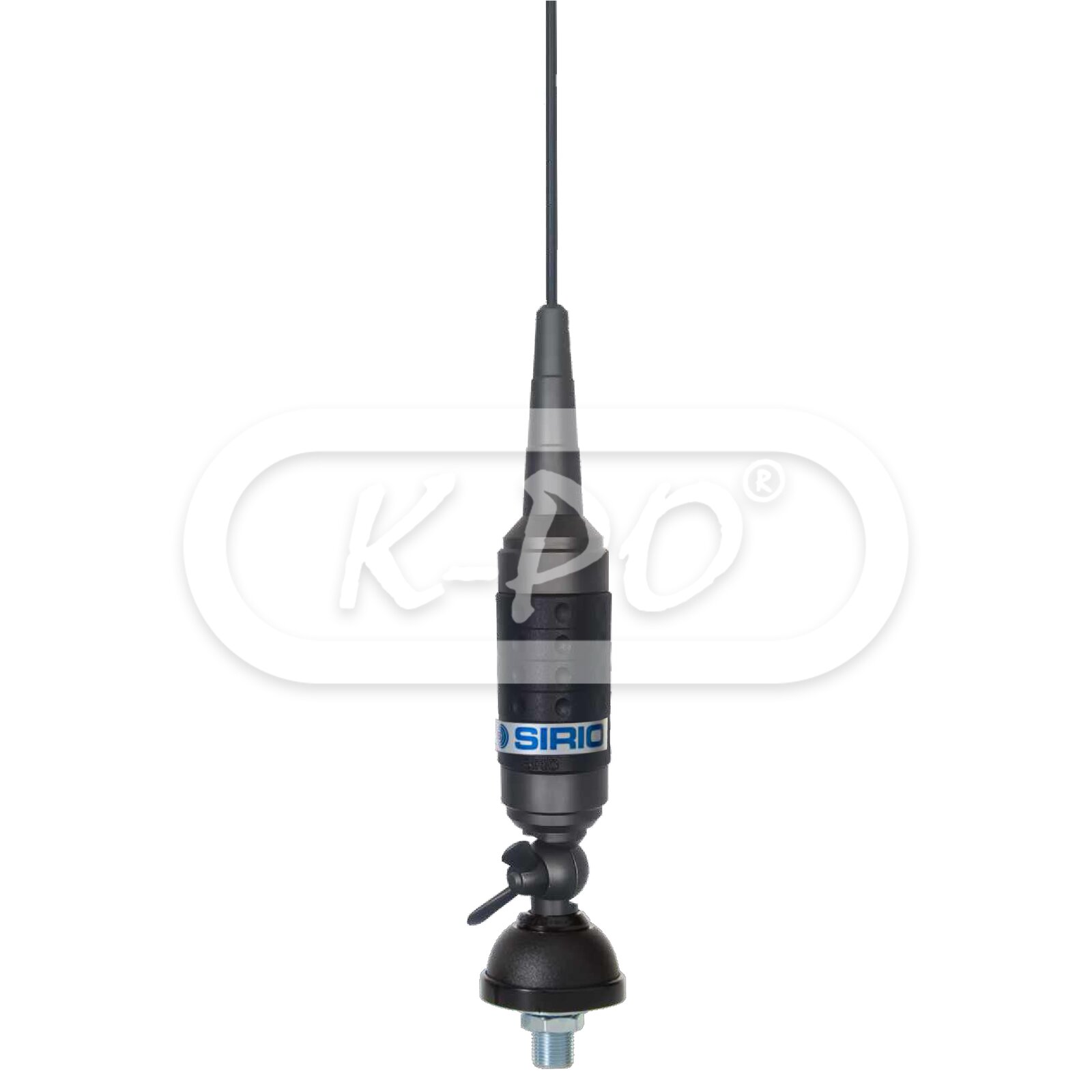

The new and updated Sirio Carbonium 27 Limited Edition is completely dark. The new dull dark chromium is a very new surface treatment, strong and resistant to any weather conditions. The Sirio Carbonium is still one of the most popular CB antennas for cars and transport buses.

On the FME female connector you can easily connect an optional and matching PL 259 connector, for example product code 30002.

Frequency range: 26 - 28.5 MHz

Shipped today

€53.95 (44.59 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1620 kHz (140 channels) ≤ 2.0
• Maximum continuous power: 25 Watts (CW)
• Power peak: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes

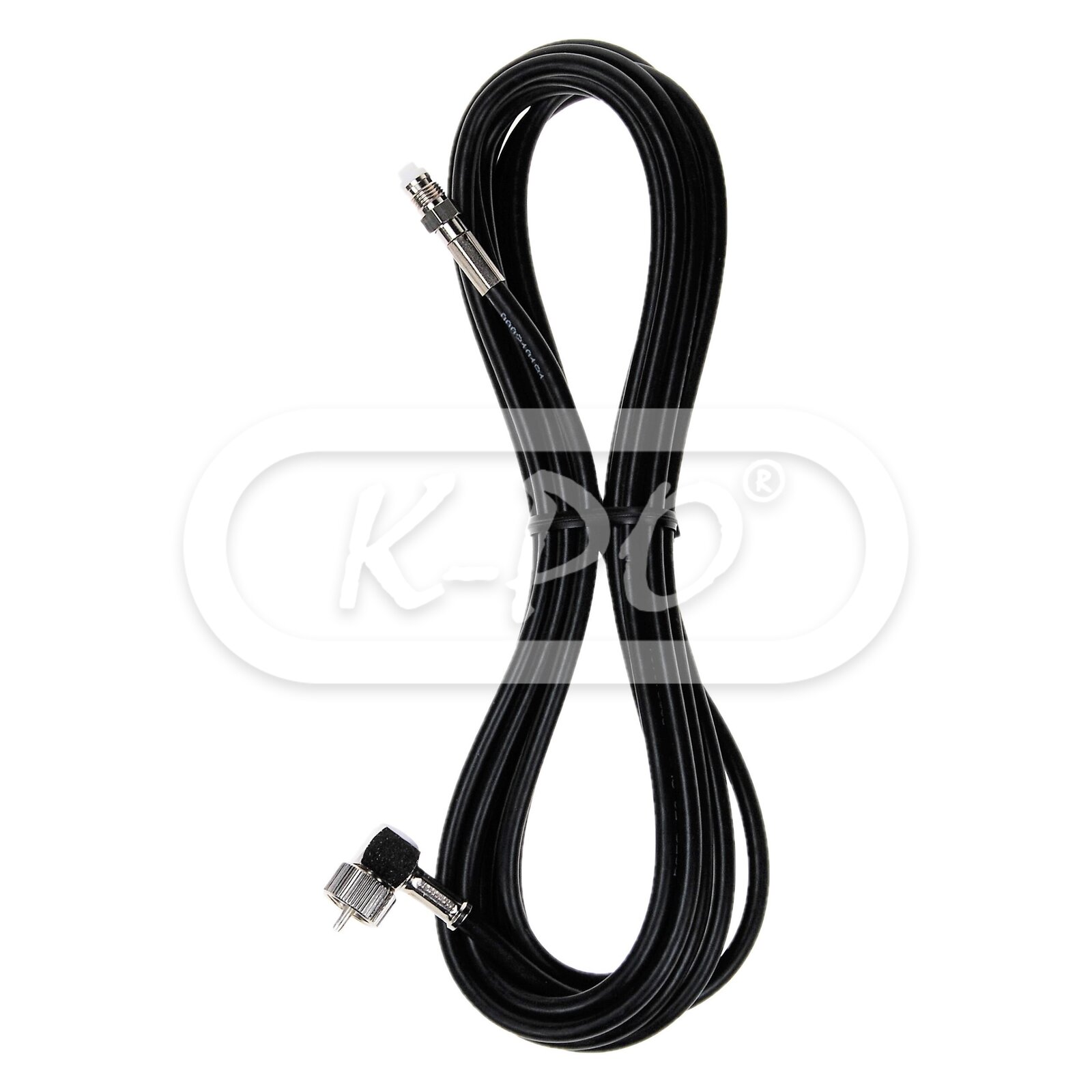

• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1130 mm
• Weight: 480 gram
• Mounting type: Thru-hole

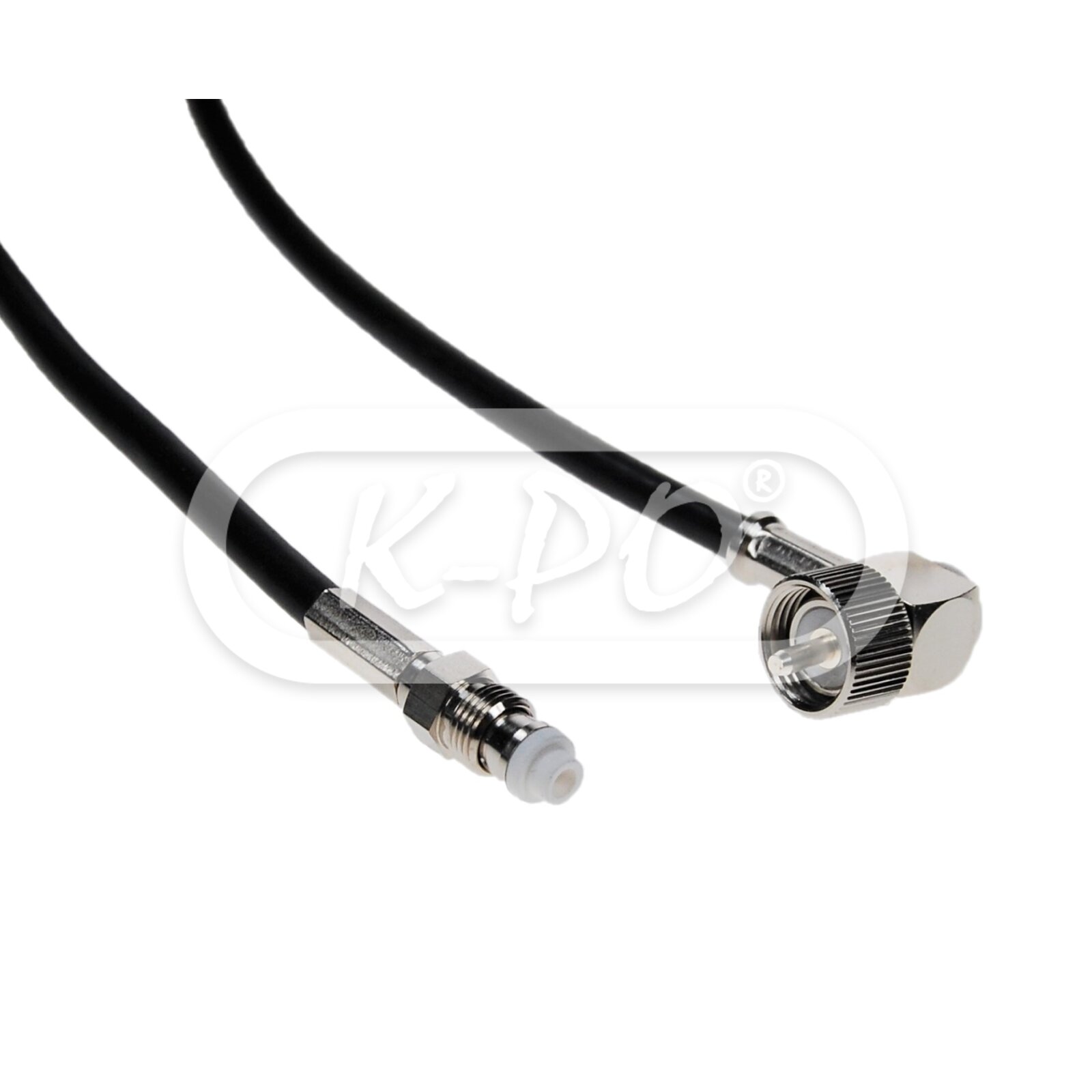

• Antenna connector: FME female (on cable end)

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian, German, Spanish, French

Downloads

• Datasheet: Id 003 20 07 2001 carbonium27
