Sirio - Cruiser VHF

Product code: 230152083
Factory code: 2301520.83
Barcode: 8056182112101

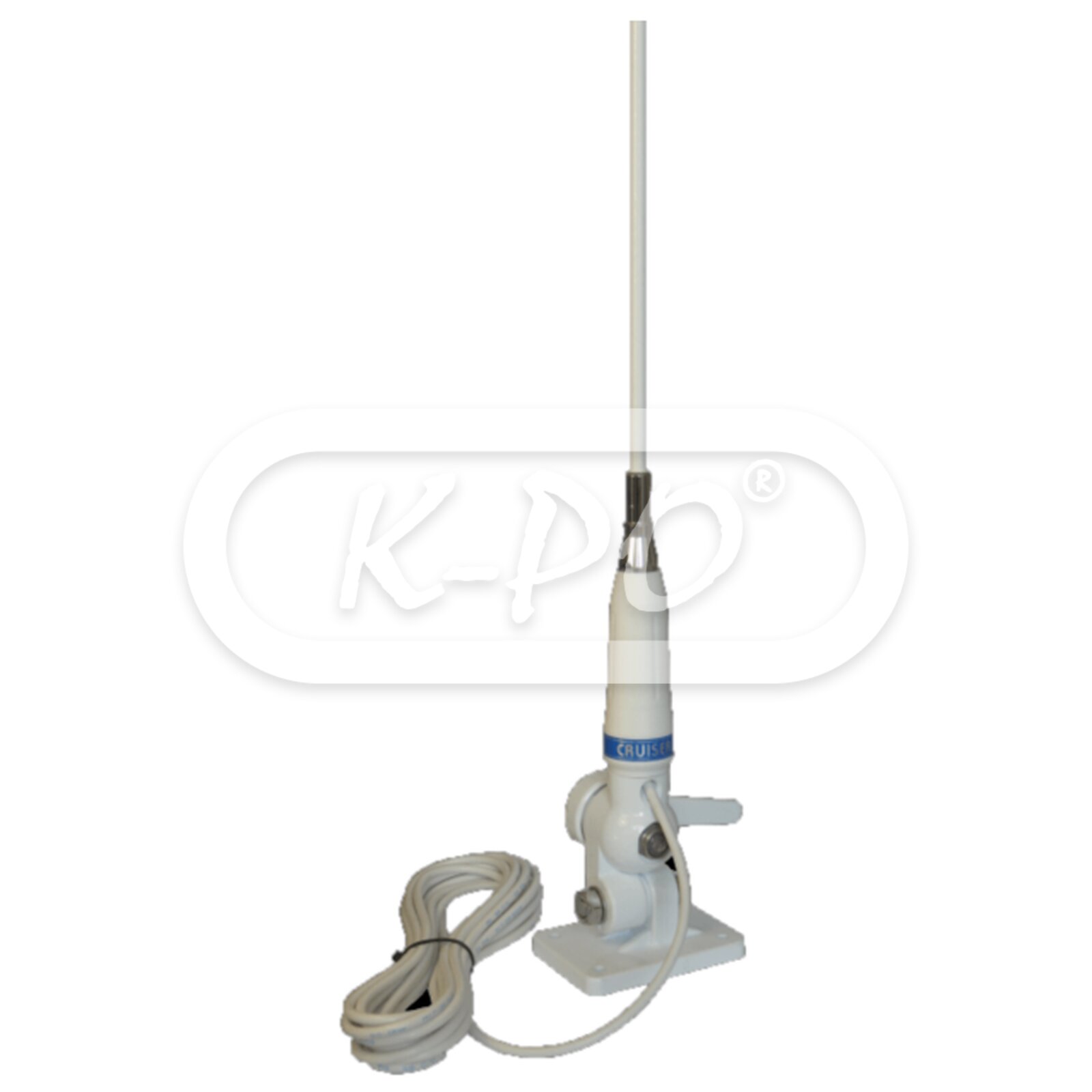

156 - 163 MHz marine antenna working on VHF marine band without Ground Plane. The fiberglass radiator allow a perfect protection against the worst sea weather and is DC-grounded in order to avoid stray R.F. currents and their discharges. All its metallic components are made of chromed brass. It is supplied with M8" nylon marine mount and 5 meters white coaxial cable. In the mentioned range of frequencies adjustments are not required.

Frequency range: 154 - 162.6 MHz
Shipped next business day - Stock: 2
€84.95 (70.21 excl. 21% VAT)

Electrical data

  • Electrical type: 1/2 λ base loaded
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: 158 ≤ 1.2
  • Bandwidth: 154 - 162.5 MHz ≤ 2.0
  • Maximum continuous power: 100 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 5 meter / White RG 58

Mechanical data

  • Materials: Chromed brass, Fiberglass, Nylon
  • Height: 1100 mm
  • Weight: 680 gram
  • Mounting type: Deck mount

Inside the box

  • Antenna: Yes
  • Radio connector: Not included, optional
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English
