Sirio - CX 4-73

Product code: 2104401
Factory code: 2104401.00
Barcode: 8056182113337

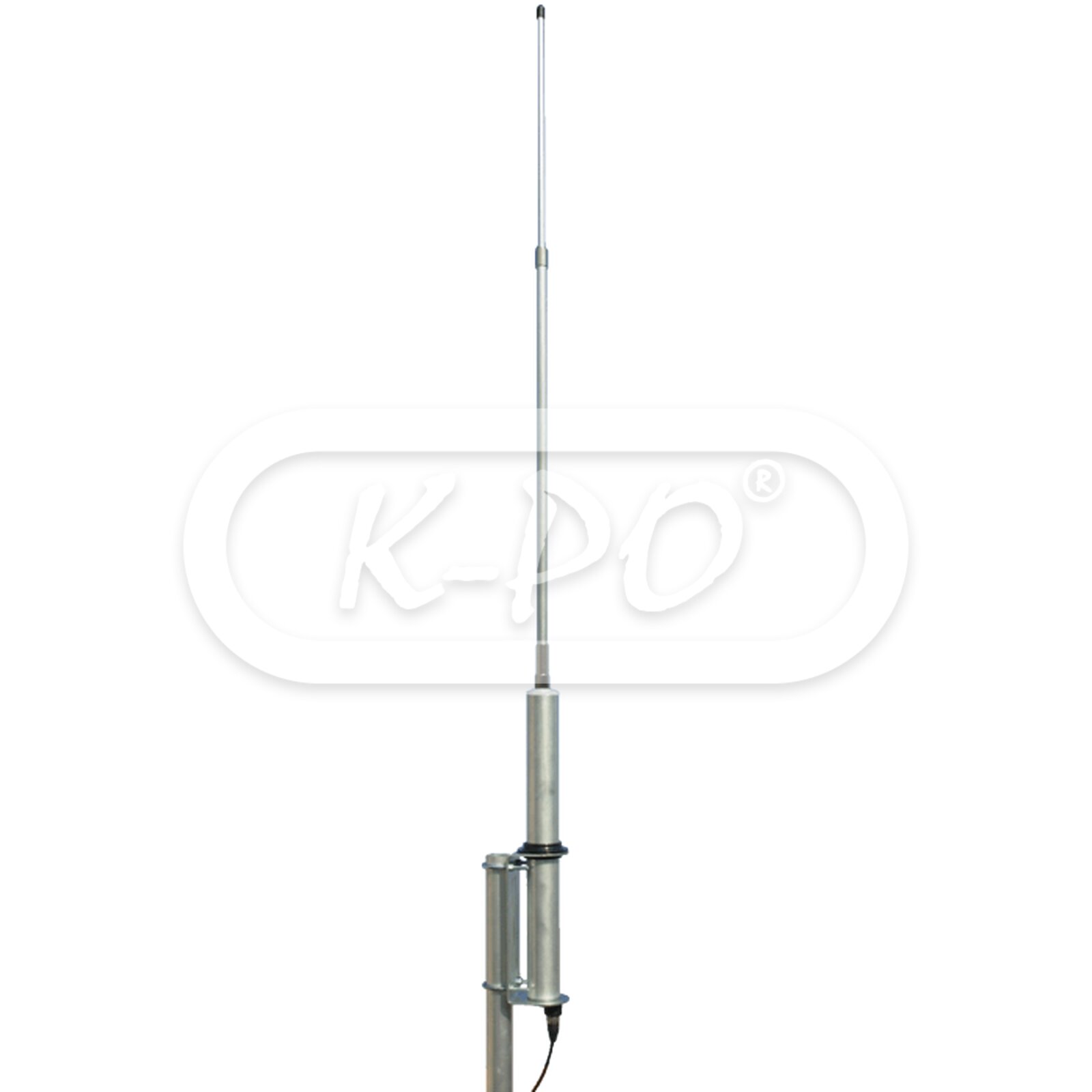

3/4 λ antenna, 73 - 78 MHz tunable, for base station service made of high quality materials to get the best performance and the maximum efficiency. It is completely manufactured with aluminium tubes and nylon for its great robustness and it is supplied with a solid steel bracket for an easy and safe installation. Its Gamma Match feed makes it earthed for a perfect protection against the static discharges. Simple and strong, it is particularly recommended for a professional use.

Frequency range: 73 - 78 MHz tunable
Shipped today - Stock: 1
€61.95 (51.2 excl. 21% VAT)

Electrical data

  • Electrical type: 3/4 λ coaxial J-pole
  • Gain: 2 dBd, 4.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 2 MHz ≤ 2.0
  • Maximum continuous power: 500 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, brass, stainless steel, nylon, zamak
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 150 km/h
  • Height: 3140 mm
  • Weight: 1900 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Mounting parts: Yes
  • Installation manual: English
