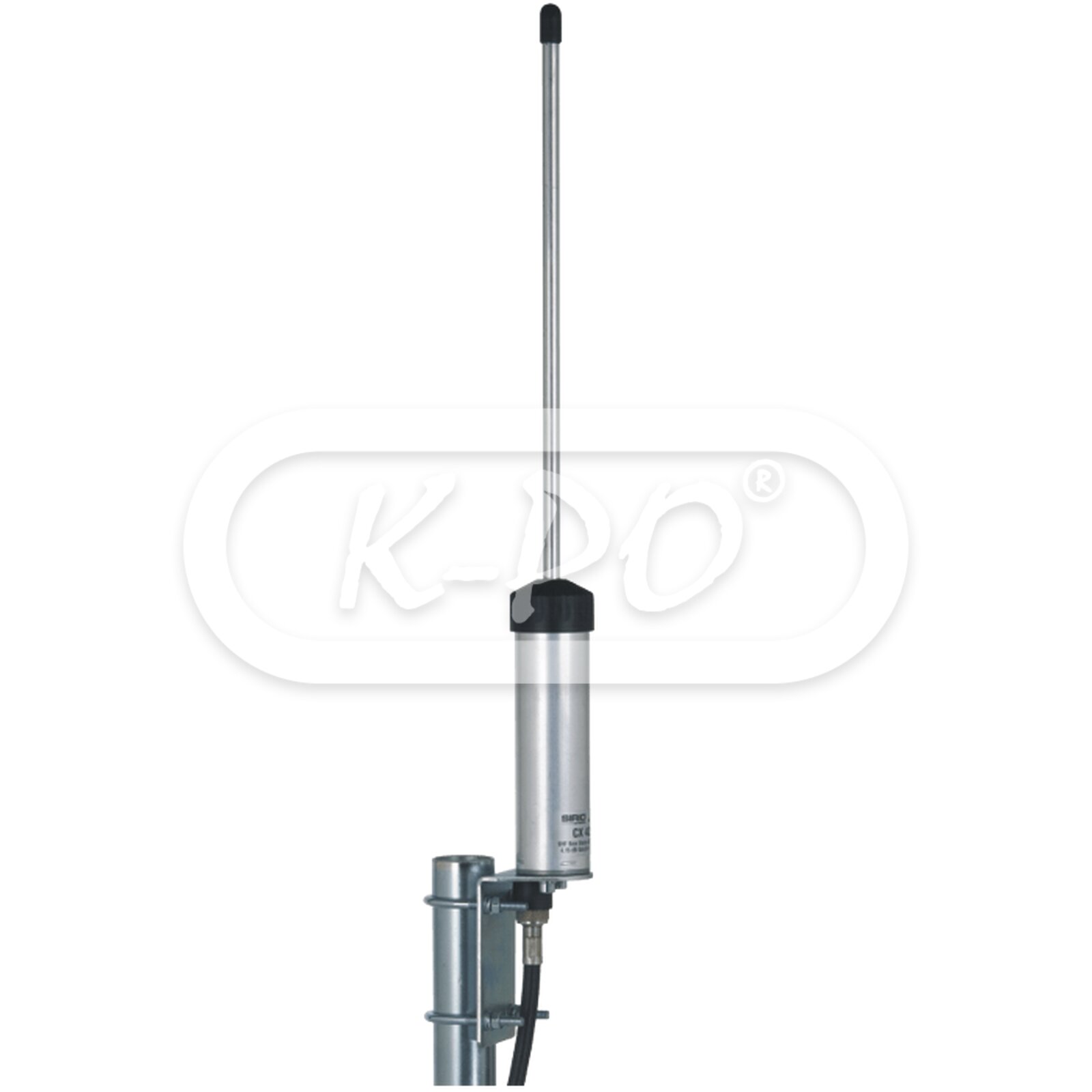

Sirio - CX 440 N

Product code: 440
Factory code: 2102701.00

3/4 λ UHF antennas, 440 - 455 MHz, for base station service made of hi-quality materials to get the maximum efficiency and the best performance. It is completely manufactured with aluminium tubes and nylon for its great robustness and it is supplied with a solid steel bracket for an easy and safe installation everywhere. Its Gamma Match feed makes it earthed for a perfect protection against the discharges. In the mentioned range of frequencies, no adjustments are required. Simple and strong it is particularly recommended for a professional use.

Frequency range: 440 - 455 MHz
Shipped next business day
€35.49 (35.49 excl. 0% VAT)

Electrical data

  • Electrical type: 3/4 λ coaxial J-pole
  • Gain: 2 dBd, 4.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 33.5 MHz ≤ 2.0
  • Power continues: 200 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, brass, stainless steel, nylon
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 180 km/h
  • Height: 590 mm
  • Weight: 540 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
