Sirio - CX 900 C N-f

Product code: 852
Factory code: 2106601.00

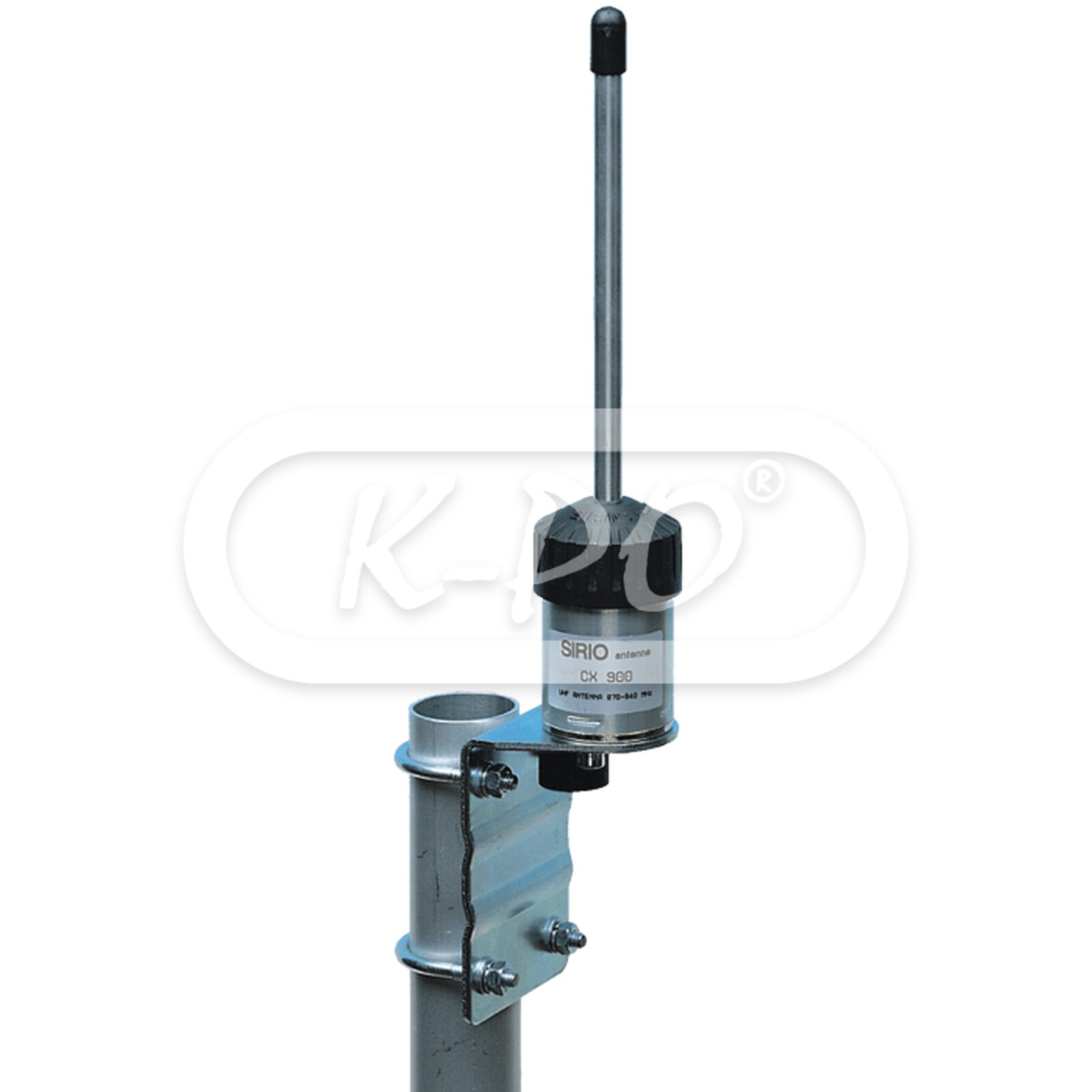

UHF antennas for base station service made of high quality materials to get the best performance and the maximun efficiency. They are completely manufactured with aluminium tubes and thermoplastic UV stabilized for its great robustness and supplied with a solid steel bracket for an easy and safe installation. They are DC-grounded for a perfect protection against the discharges and no tuning is required. Simple and strong, they are particularly recommended for a professional use.

Frequency range: 880 - 960 MHz
Shipped today
€28.06 (28.06 excl. 0% VAT)

Electrical data

  • Electrical type: 3/4 λ coaxial J-pole
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: TX: 880 - 915 MHz ≤ 1.8 / RX: 825 - 960 MHz: ≤ 2.8
  • Power continues: 100 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, brass, galvanized steel, zamak
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 180 km/h
  • Height: 370 mm
  • Weight: 470 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
