Sirio - GL-27 NGP

Product code: 200028
Factory code: 2211724.76

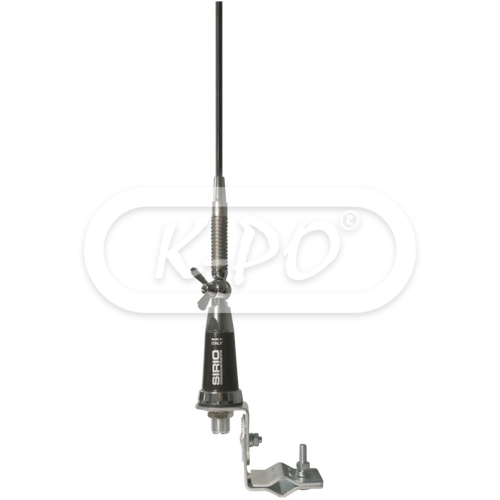

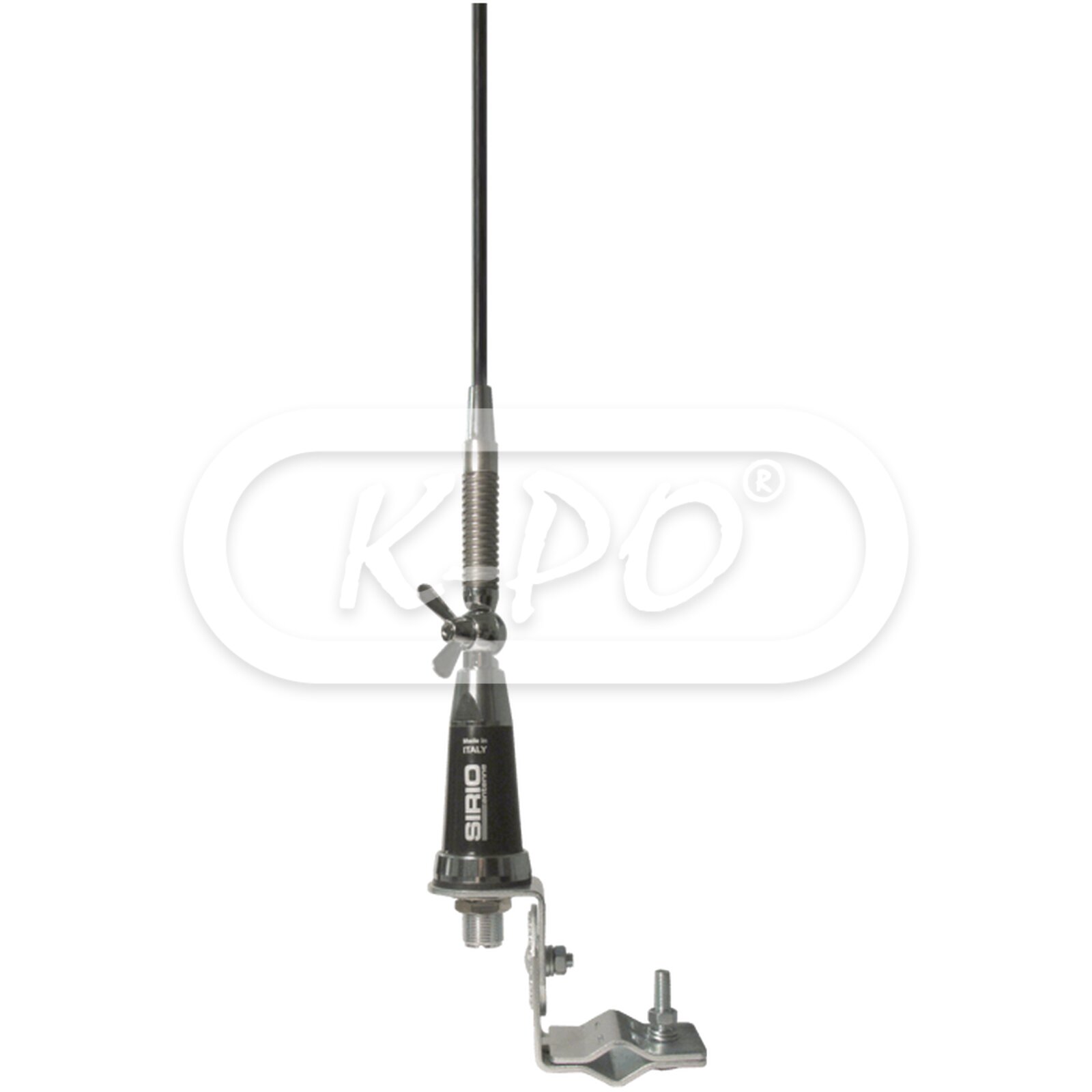

Large bandwidth vehicular antenna for mobile service specially conceived for installation where ground plane is not required. The whip is made of black glass fibre and its stainless steel spring guarantees the best robustness and flexibility. No tuning is required. Typical installation is on the supplied mirror bracket ASP 1.

Frequency range: 26 - 28 MHz
Shipped next business day
€49.54 (49.54 excl. 0% VAT)

Electrical data

  • Electrical type: Base loaded
  • VSWR: ≤ 1.2
  • Power continues: 15 Watts (CW)
  • Power peak: 50 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Cable: Yes
  • Cable length: 4 meter / RG 58 white

Mechanical data

  • Materials: Chromed brass, stainless steel, fiberglass, nylon
  • Height: 1140 mm
  • Weight: 430 gram
  • Mounting type: Mirror mount

Inside the box

  • Antenna: Yes
  • Radio connector: UHF-male (PL)
  • Mounting parts: Yes
  • Antenna cable: Yes
  • Installation manual: English, Italian
