Sirio - GP 108-136 LB-N

Product code: 210190100
Factory code: 2101901.00/N
Barcode: 8056182112118

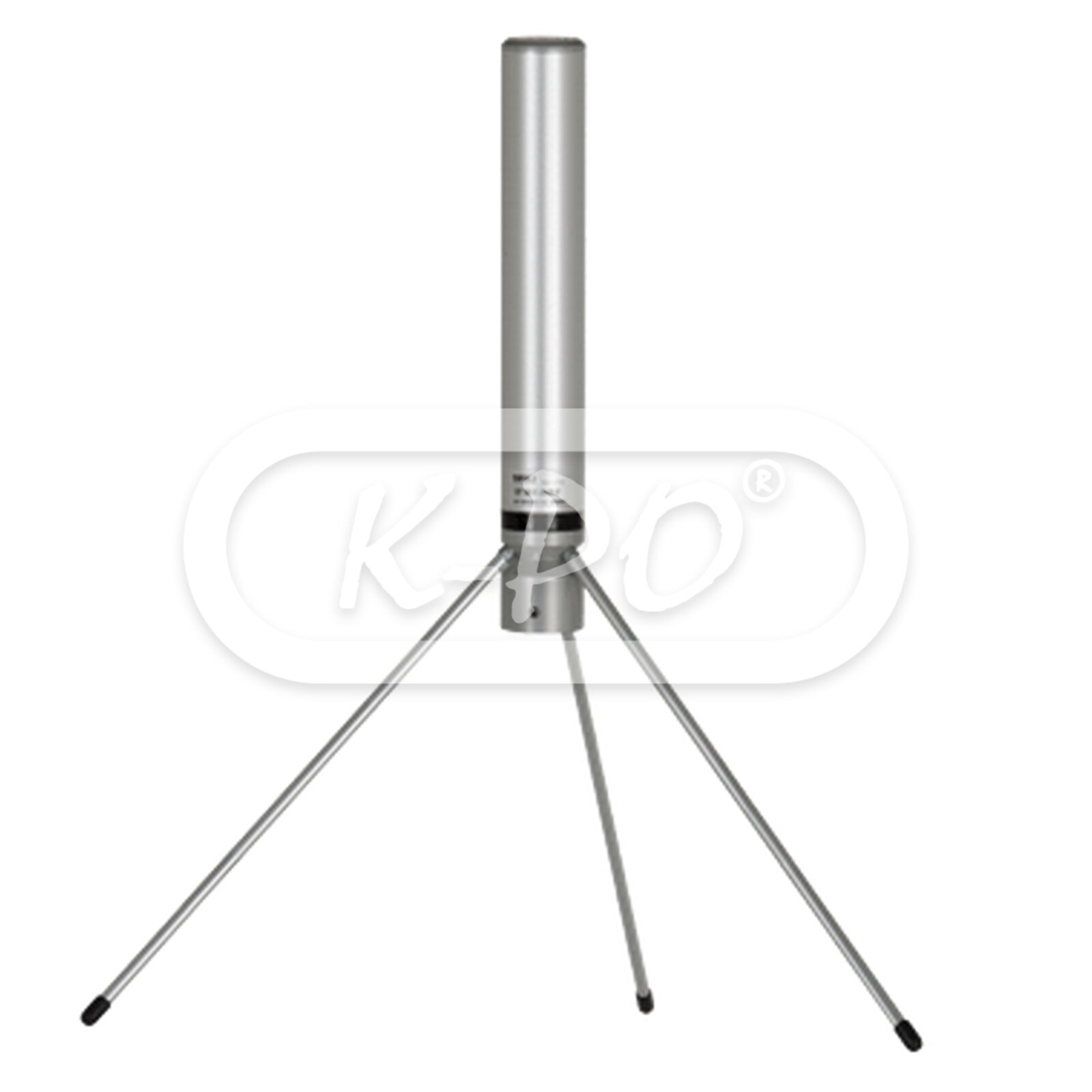

1/4 λ Ground Plane wide-band antenna, 108 - 136 MHz, for base station service. It is made of aluminium and hiqh quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges. GP 108-136 LB is developed for the aeronautic band service.

Frequency range: TX: 118 - 136 MHz, RX: 108 - 136 MHz
Out of stock - Longer delivery time
Available from - 23-10-2024
€99.95 (82.6 excl. 21% VAT)

Electrical data

  • Electrical type: 1/4 λ folded ground plane
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: See the user manual under product downloads
  • Bandwidth: See the user manual under product downloads
  • Maximum continuous power: 1000 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, stainless steel, nylon
  • Mast Ø: 36 - 40 mm
  • Max wind resistance: 160 km/h
  • Height: 890 mm
  • Weight: 1310 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
