Sirio - GP 66-78 LB-U

Product code: 210560100
Factory code: 2105601.00
Barcode: 8056182113382

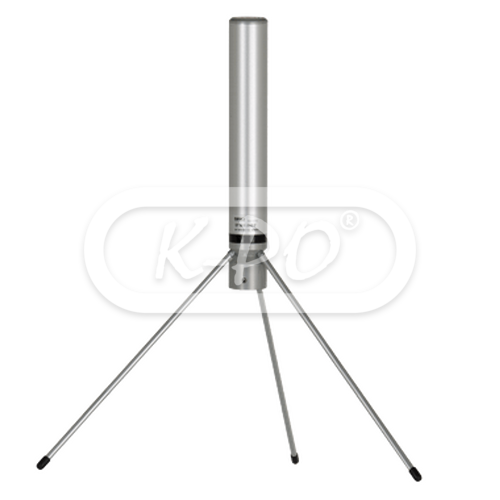

1/4 λ Ground Plane wide-band antenna, 66 - 78 MHz, for base station service. No tuning required. It is made of aluminium and high quality materials to get the best efficiency and robustness. Its radial whip is earthed to be protected against the static discharges.

Frequency range: 66 - 78 MHz
Out of stock - Longer delivery time
€119.95 (99.13 excl. 21% VAT)

Electrical data

  • Electrical type: 1/4 λ folded ground plane
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 12 MHz ≤ 2.0
  • Maximum continuous power: 1000 Watts
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Feed system: Direct DC-ground

Mechanical data

  • Materials: Anodized aluminium, stainless steel, nylon
  • Mast Ø: 36 - 40 mm
  • Max wind resistance: 130 km/h
  • Height: 1640 mm
  • Weight: 1930 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
