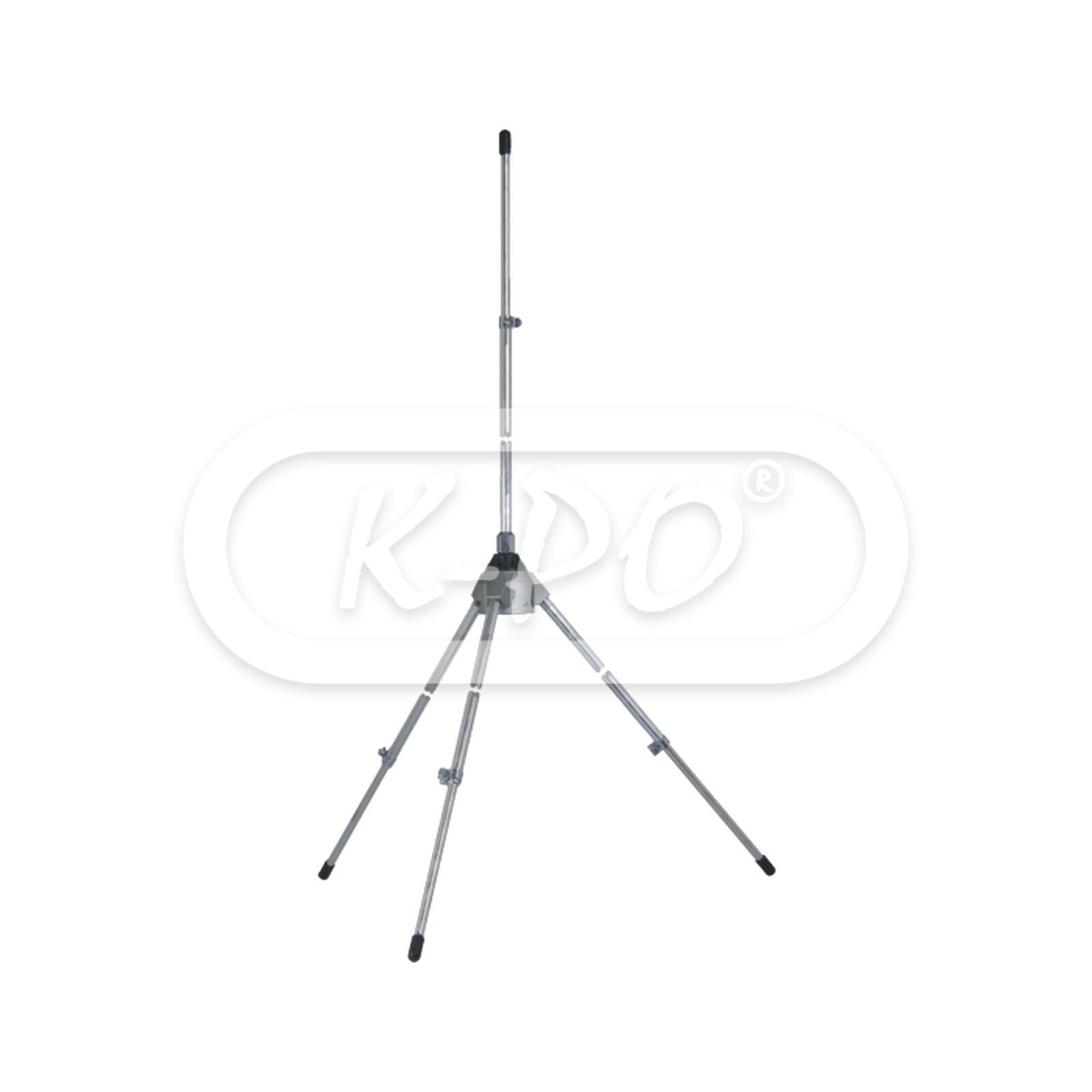

Sirio - GPA 135 - 175

Product code: 203003
Factory code: 2101601.00

1/4 λ Ground Plane antenna for base station service working on 135-175 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequency range: 135 - 175 MHz tunable
Out of stock - Longer delivery time
€29.71 (29.71 excl. 0% VAT)

Electrical data

  • Electrical type: 1/4 λ ground plane
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 13 MHz ≤ 2.0
  • Power peak: 300 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, chromed brass, zamak
  • Mast Ø: 35 - 40 mm
  • Max wind resistance: 180 km/h
  • Height: 960 mm
  • Weight: 520 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Radial length: 520 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
