Sirio - GPA 40-70

Product code: 210140100
Factory code: 2101401.00

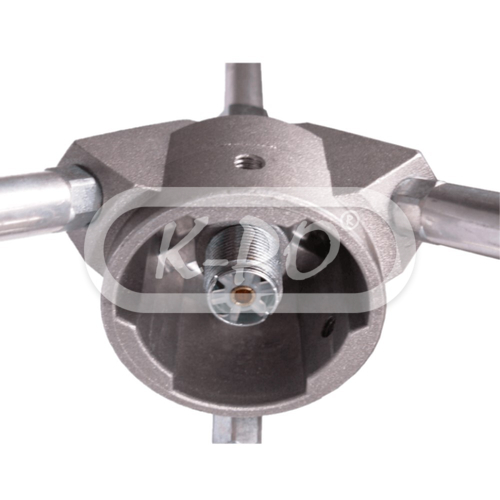

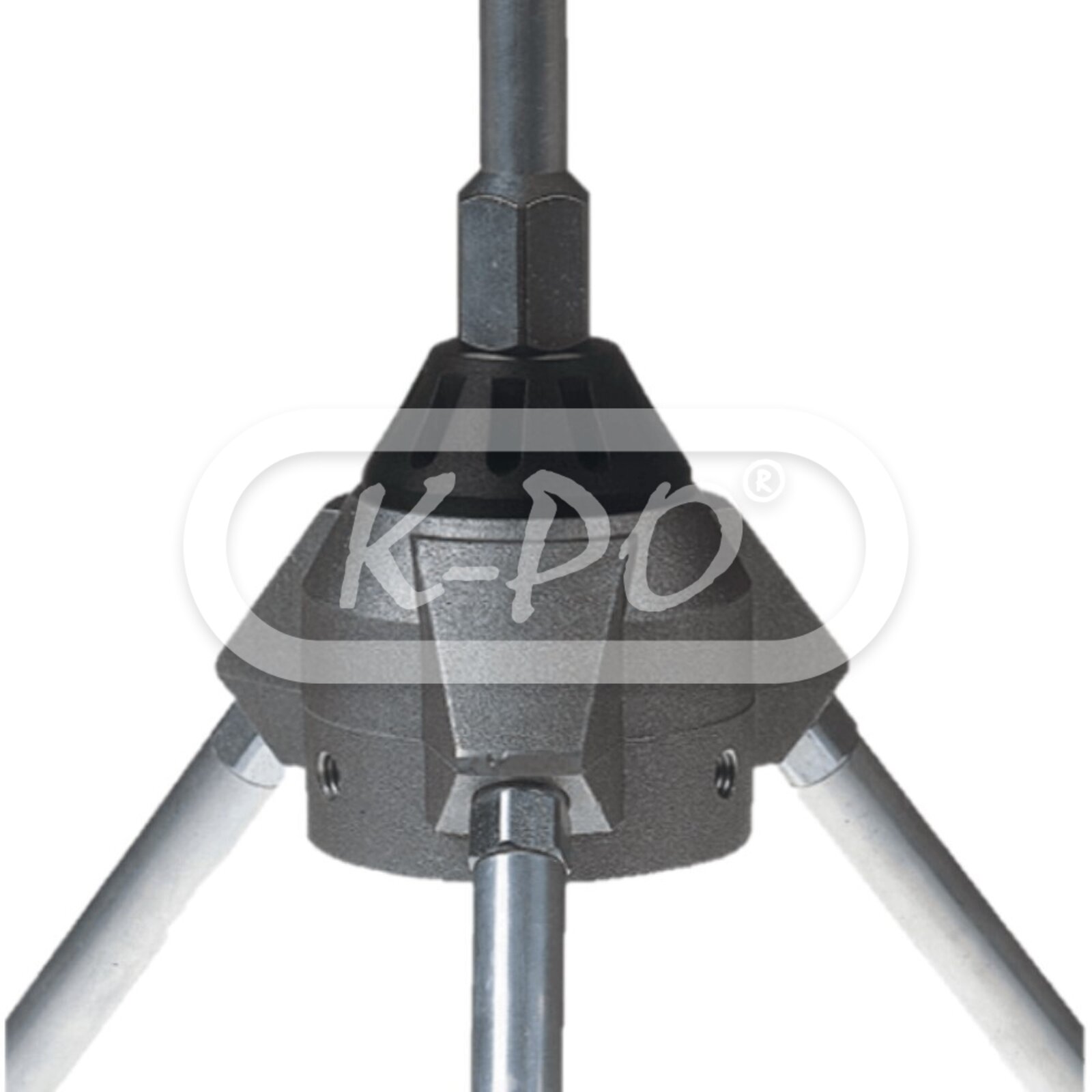

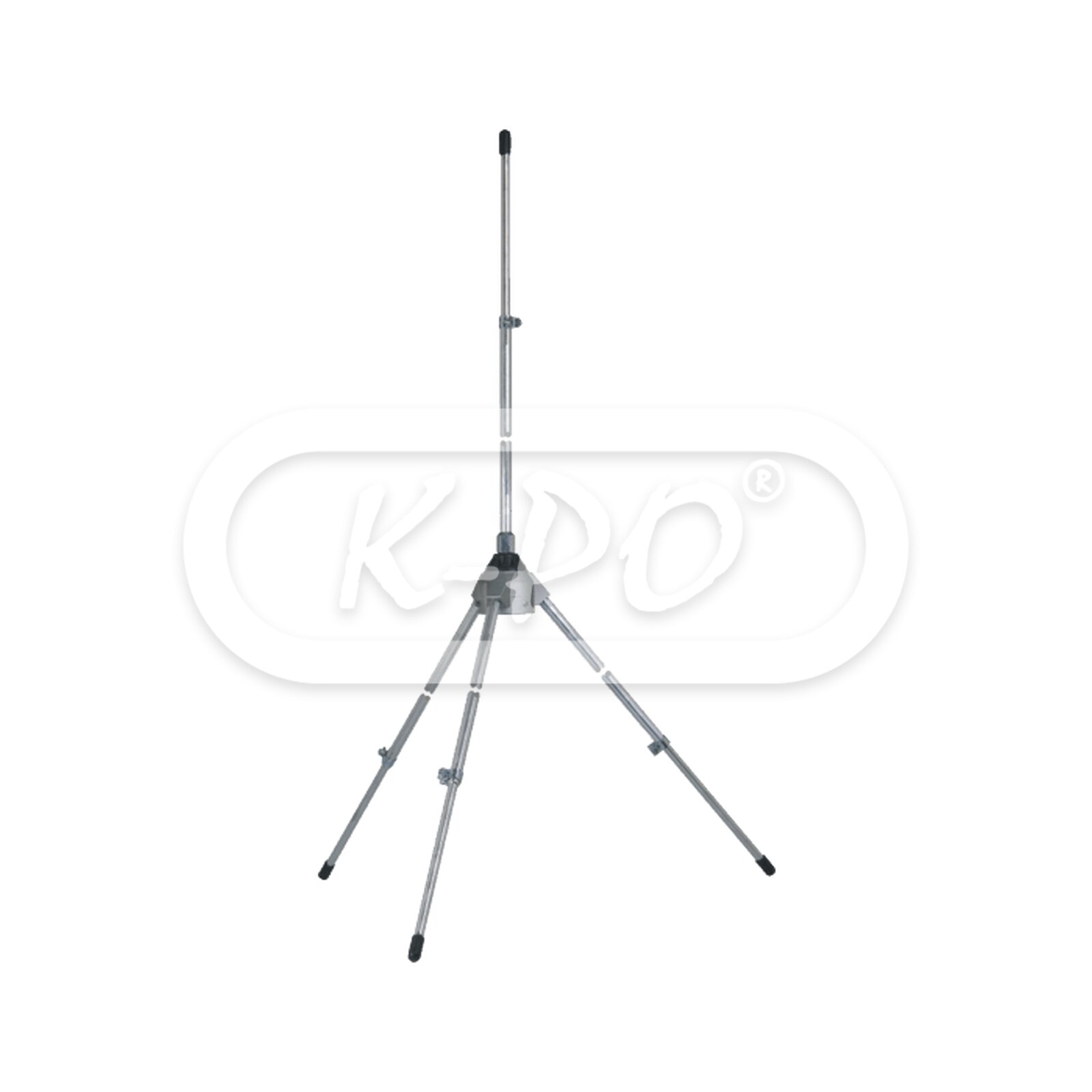

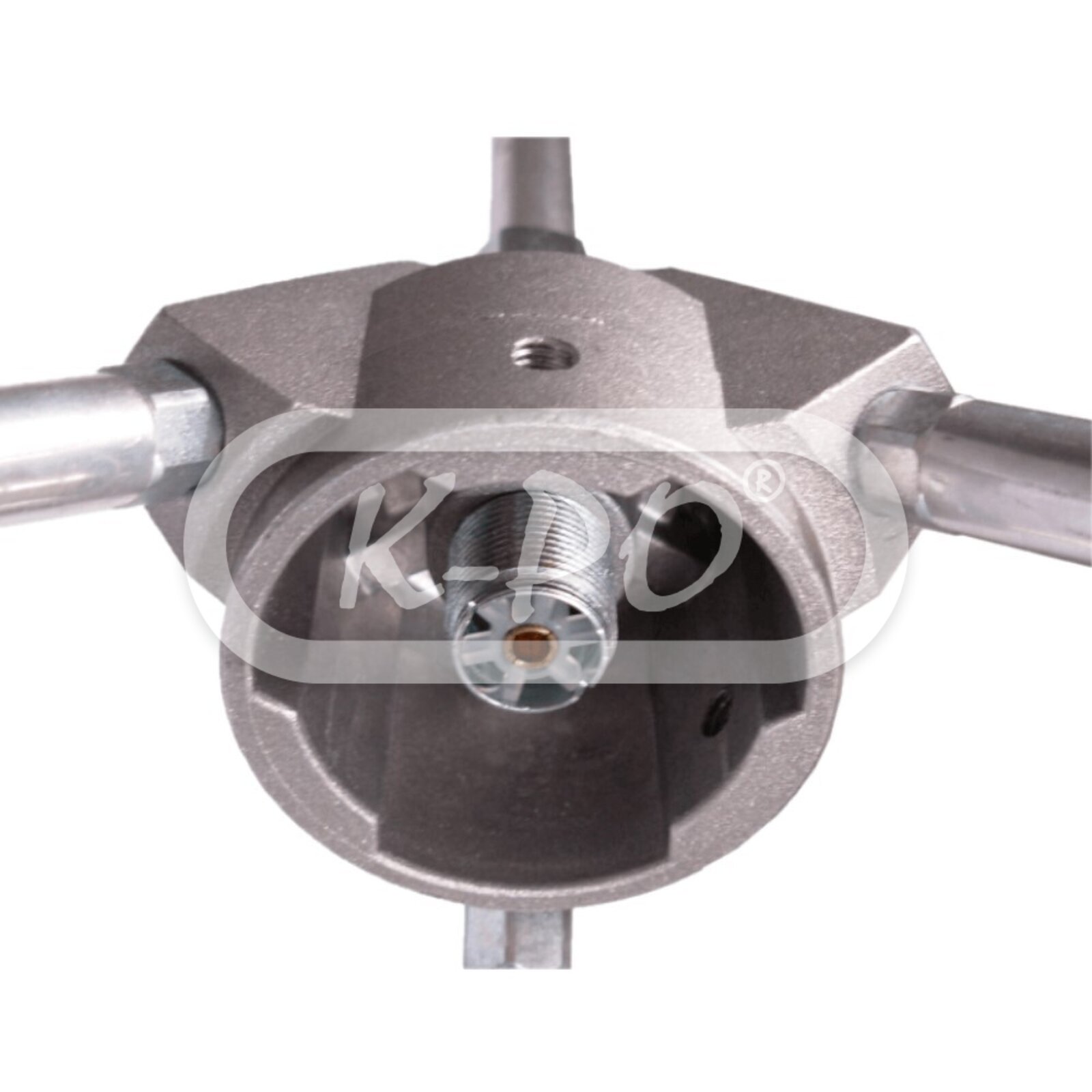

1/4 λ Ground Plane antenna for base station service working on 40-70 MHz by means of the tuning diagram enclosed. It is entirely made of non-corrosive aluminium and assembled on a strong die-cast base which allows an easy and safe installation assuring very good performances.

Frequency range: 40 - 70 MHz tunable
Shipped next business day
€37.14 (37.14 excl. 0% VAT)

Electrical data

  • Electrical type: 1/4 λ ground plane
  • Gain: 0 dBd, 2.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 6.5 MHz ≤ 2.0
  • Power peak: 1000 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Aluminium, chromed brass, zamak
  • Mast Ø: 35 - 40 mm
  • Max wind resistance: 150 km/h
  • Height: 3200 mm
  • Weight: 935 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Radial length: 1800 mm

Inside the box

  • Antenna: Yes
  • Installation manual: English
