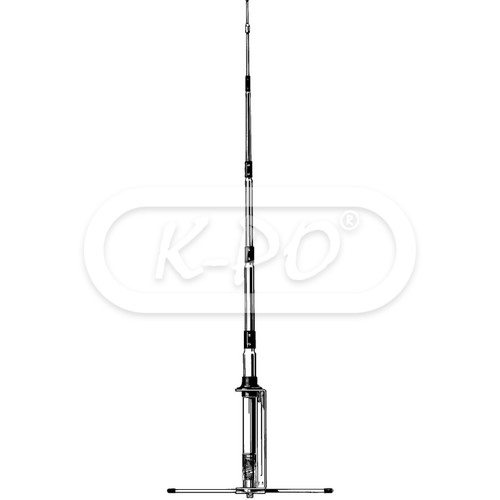

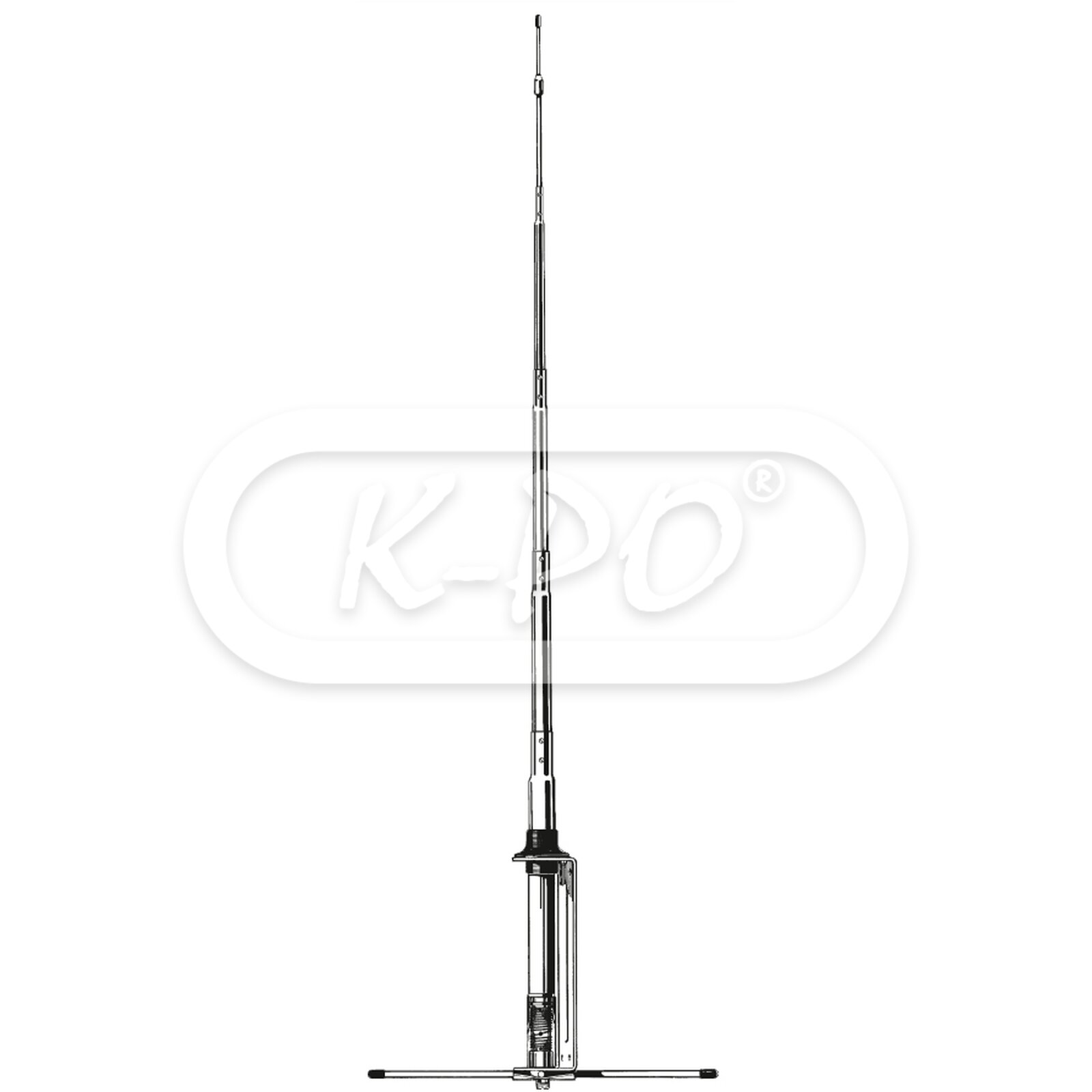

Sirio - GPV 5/8 (GPE 5/8 ECO)

Product code: 2058
Factory code: 2100301.00/ECO
Barcode: 8056182115782

Economic version of the Sirio GPE 5/8. Same performances but without the anti-static top. Comes in PE poly-bag packaging instead of a carton box.

Frequency range: 26.4 - 29.0 MHz tunable
Shipped today
€79.94 (66.07 excl. 21% VAT)

Electrical data

  • Electrical type: 5/8 λ ground plane
  • Gain: 1.2 dBd, 3.35 dBi
  • VSWR: ≤ 1.3
  • Bandwidth: 1600 kHz ≤ 2.0
  • Maximum continuous power: 250 Watts (CW)
  • Power peak: 750 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

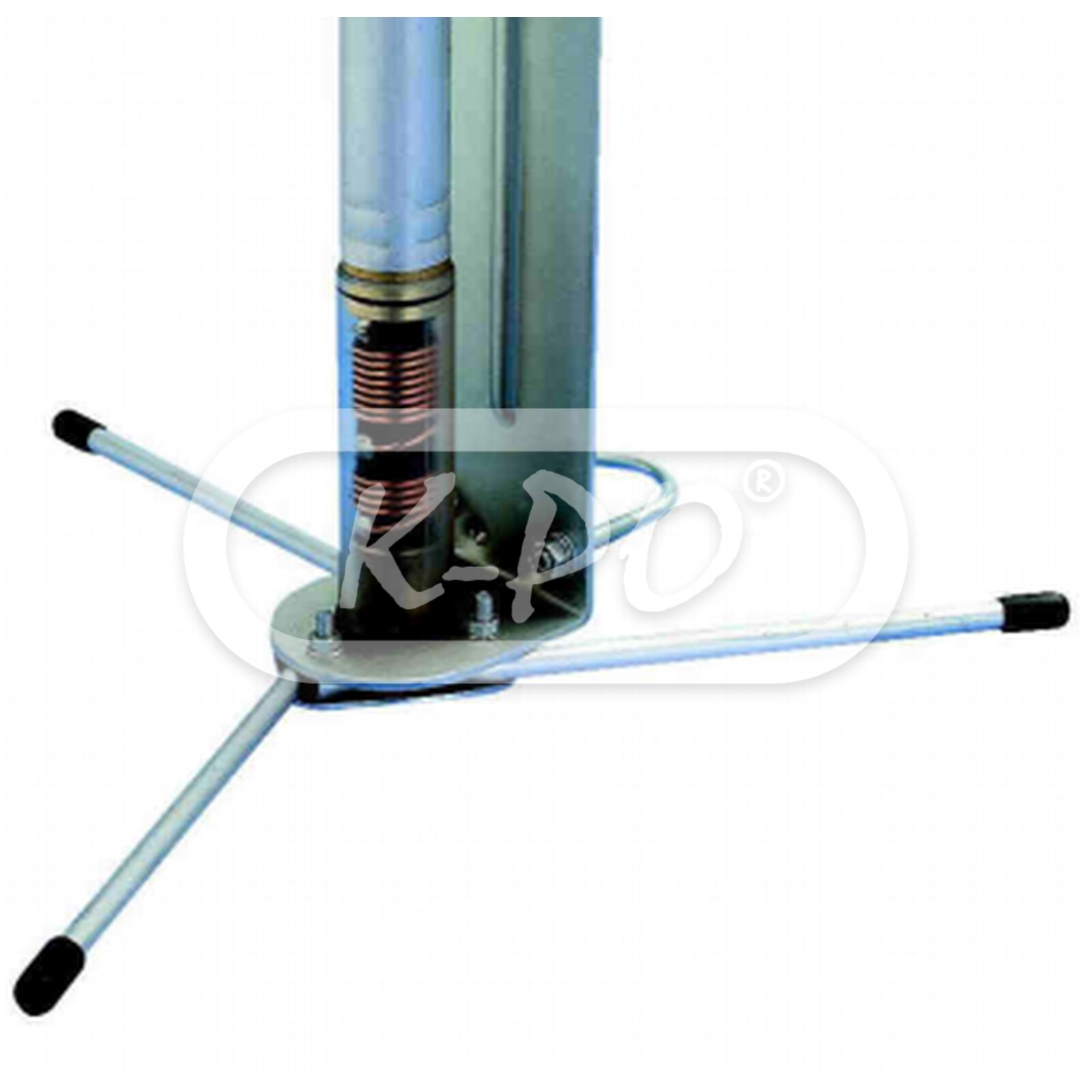

  • Feed system: Transformer DC-ground / base

Mechanical data

  • Materials: Aluminium, copper, galvanized steel, nylon
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 130 km/h
  • Height: 5950 mm
  • Weight: 2500 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Radial length: 1320 mm

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English, Italian
