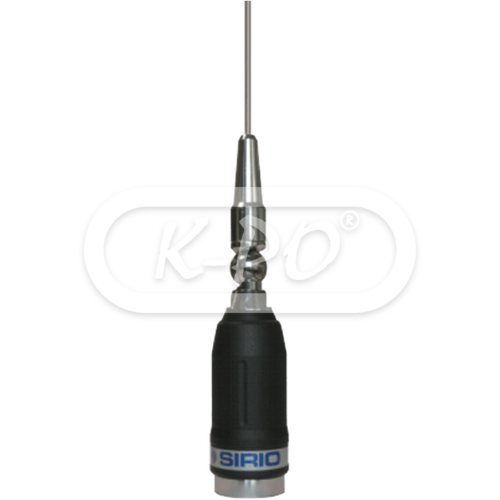

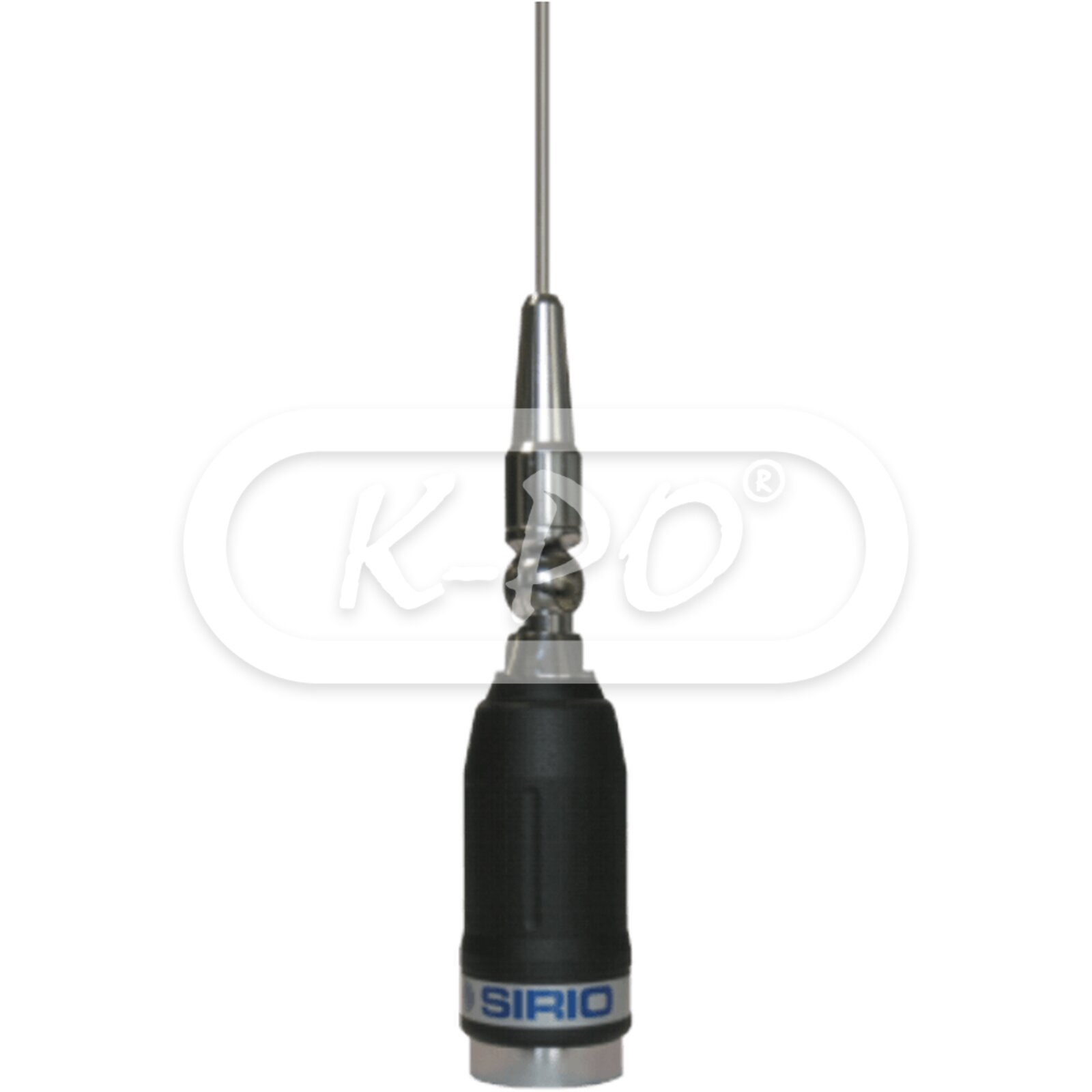

Sirio - Hi-Power 3000 N

Product code: 2202305

Factory code: 2202305.23

Barcode: 8056182114044

The Sirio Hi-Power series are one of the most popular high power antennas. Easy installation and with anti-theft safety key.

Frequency range: 27 - 30 MHz

Out of stock - Longer delivery time

€56.95 (47.07 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1890 kHz (170 channels) ≤ 2.0
• Maximum continuous power: 400 Watts (CW)
• Power peak: 1200 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1740 mm
• Weight: 450 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 089 19 11 2015 hi powerseries
