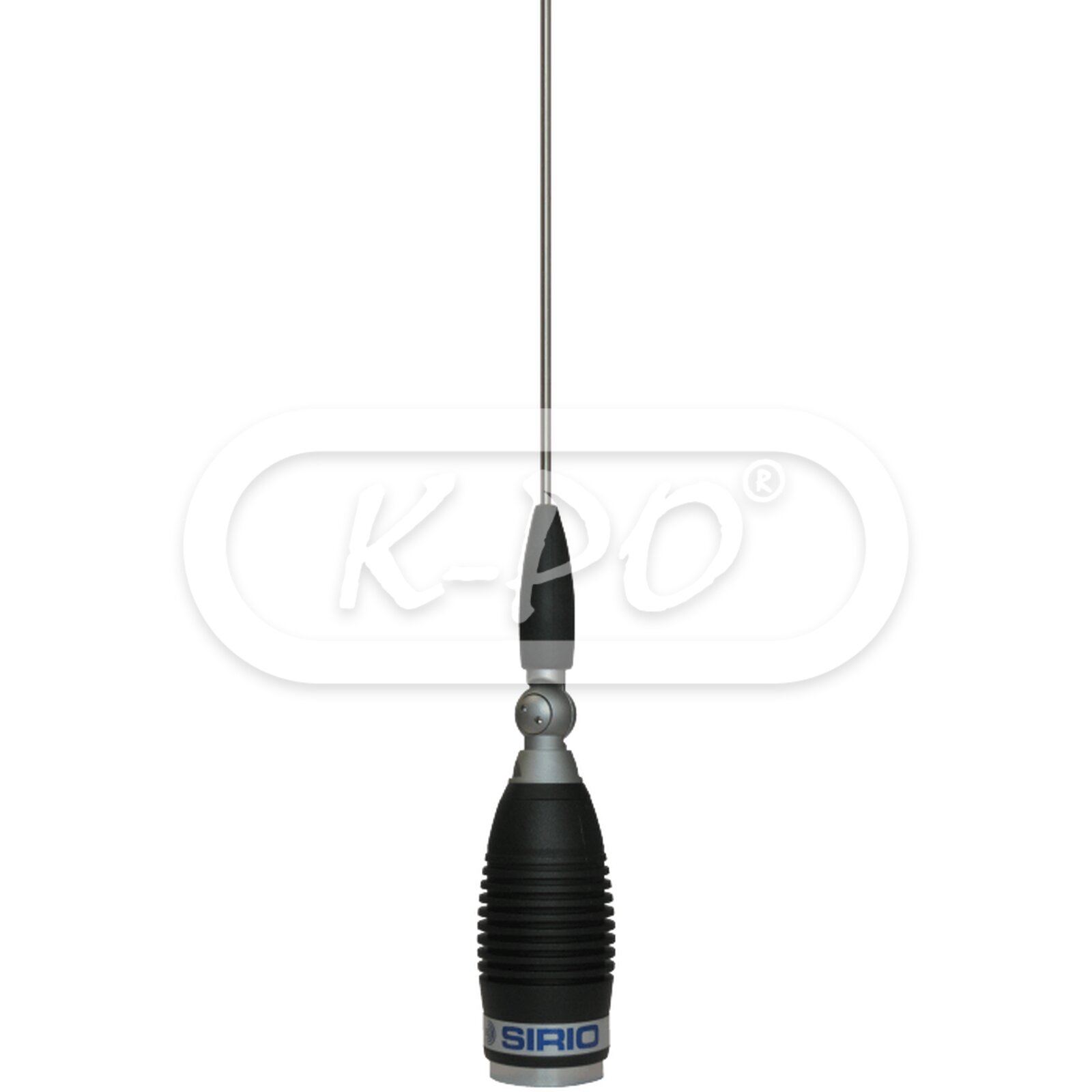

Sirio - Megawatt 4000 PL

Product code: 200600

Factory code: 2211605.05

Barcode: 8056182114686

Vehicular antennas conceived for high powers. The coil is made of big section copper wire and the whip of conic 17/7 PH stainless steel to get the best flexibility. The mount is of black chromed brass with a rubber washer for a perfect water tightness.

Frequency range: 27 - 30 MHz

Shipped next business day - Stock: 9

€46.95 (38.8 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 2580 KHz (230 channels) / ≤ 2.0
• Maximum continuous power: 600 Watts (CW)
• Power peak: 1800 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 2030 mm
• Weight: 480 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 211 25 03 2013 megawatt3000 4000 silver
