Sirio - New Vector 4000 Sirio - New Vector 4000

Sirio - New Vector 4000

Product code: 200412
Factory code: 2100701.00

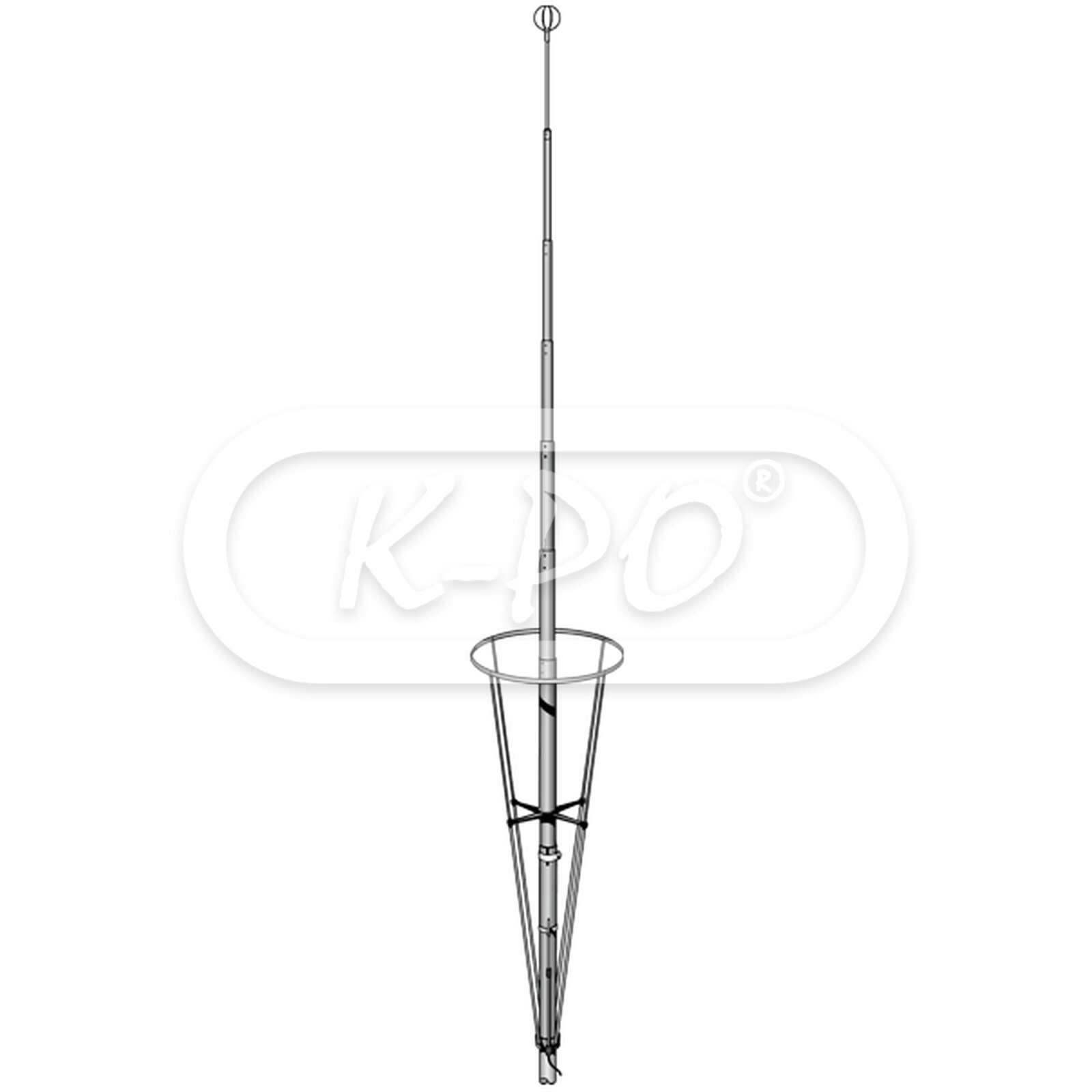

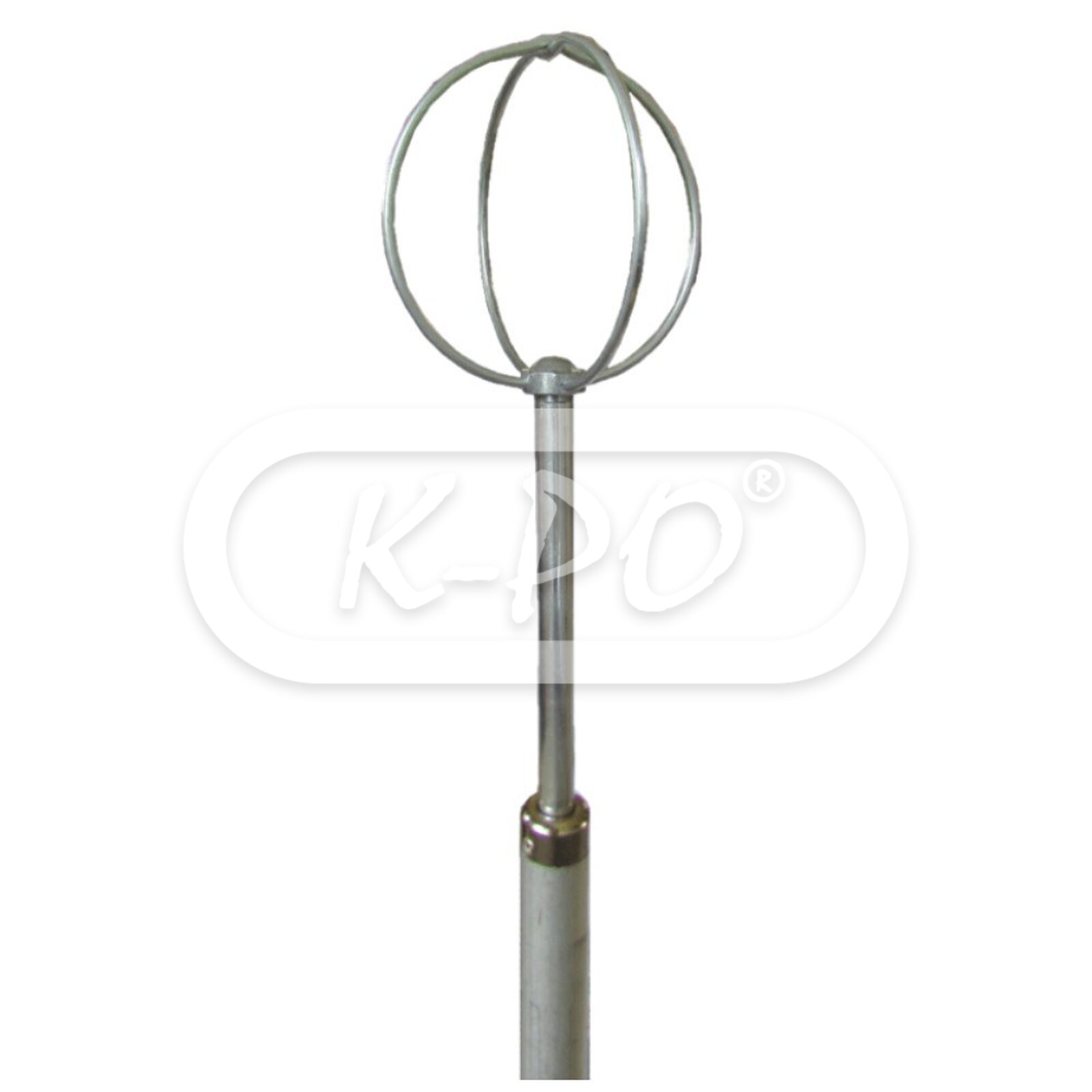

3/4 λ coaxial J-pole base antenna with gamma match for the CB and 10 meter band. Highest gain of all Sirio aluminium CB base antennas. Complete with anti-static top.

Frequency range: 27 - 28.5 MHz tunable
Out of stock - Longer delivery time
€128.88 (128.88 excl. 0% VAT)

Electrical data

  • Electrical type: 3/4 λ coaxial J-pole
  • Gain: 2 dBd, 4.15 dBi
  • VSWR: ≤ 1.2
  • Bandwidth: 1400 kHz ≤ 2.0
  • Power continues: 1000 Watts (CW)
  • Power peak: 3000 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical
  • Feed system: Gamma match

Mechanical data

  • Materials: Aluminium, brass, galvanized steel, nylon
  • Mast Ø: 35 - 42 mm
  • Max wind resistance: 130 km/h
  • Height: 8480 mm
  • Weight: 4700 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English, Italian

Downloads
