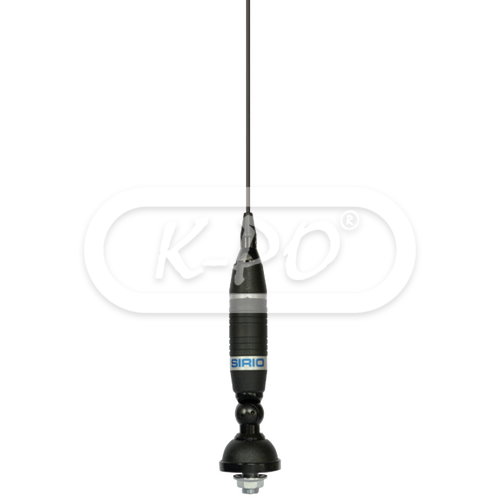

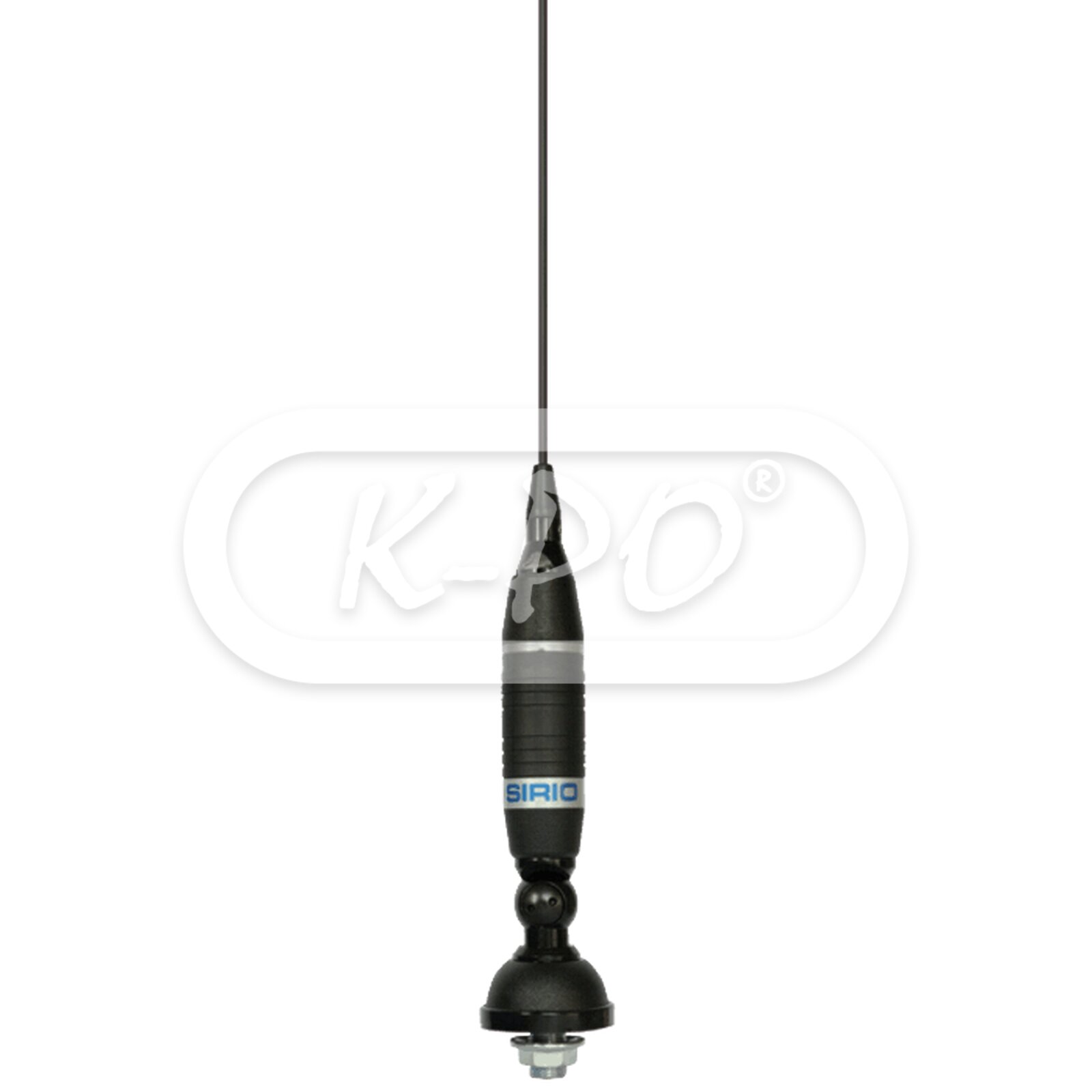

Sirio - Omega 27 FME

Product code: 200136

Factory code: 2206306.02/FME

CB base loaded mobile antenna. Particular attention has been give to the coil of charge which works as an inductive transformer allowing very good performances. The conical whip is made of stainless steel to get the best robustness. It is supplied with an anti-theft safety key.

On the FME female connector you can easily connect an optional and matching PL 259 connector, for example product code 30002.

Frequency range: 27 - 28.5 MHz

Shipped today

€40.95 (33.84 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1300 kHz (120 channels) ≤ 2.0
• Maximum continuous power: 15 Watts (CW)
• Power peak: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 945 mm
• Weight: 390 gram
• Mounting type: Thru-hole
• Antenna connector: FME female (on cable end)

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 001 17 10 2012 omega27
