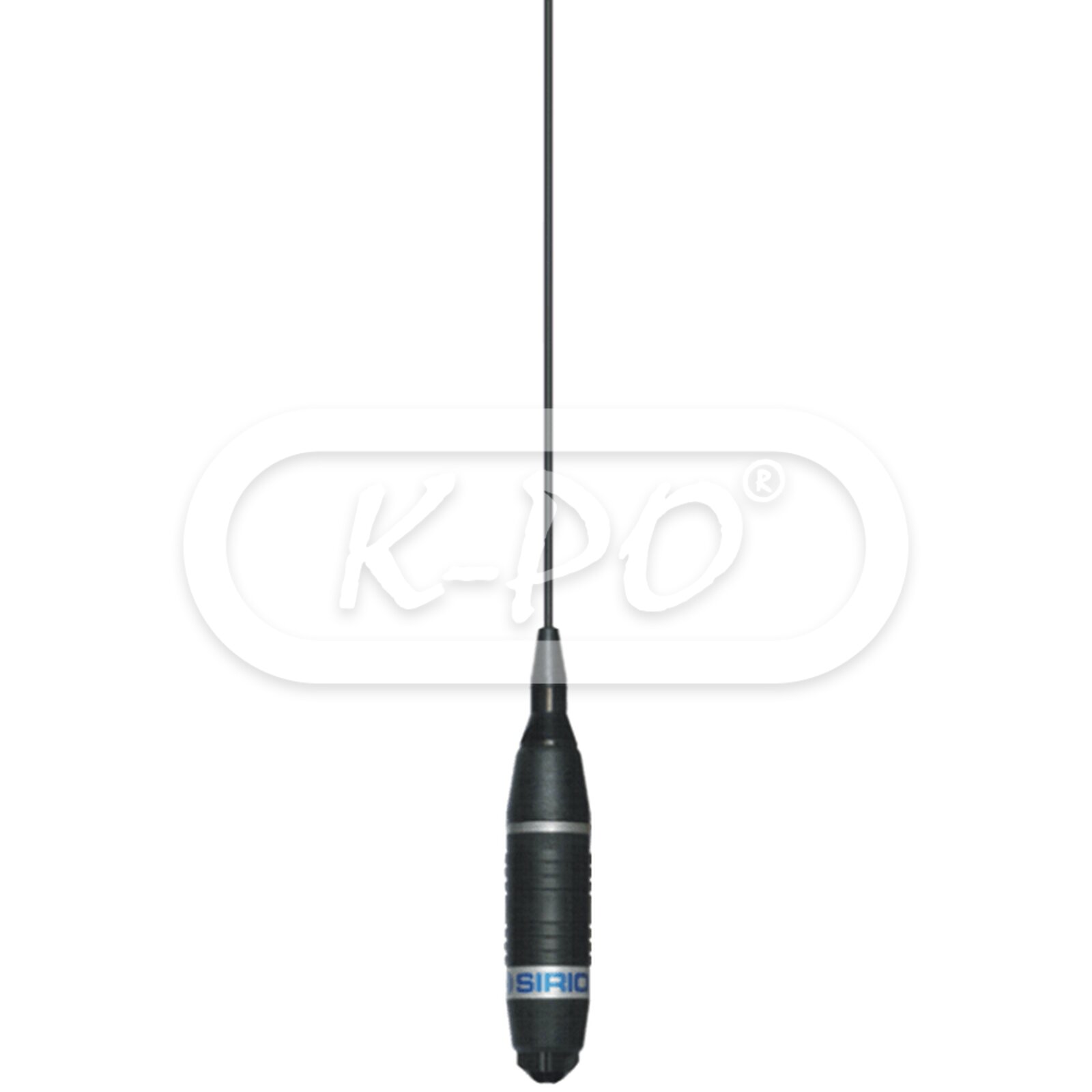

Sirio - Omega 27 M6

Product code: 240630606

Factory code: 2406306.06

Barcode: 8056182112972

CB and 10 meter band replacement antenna whip for Volvo, Scania and other trucks with a M6 male antenna mount. We have optional antenna adapters to mount the antenna on M7, M5 or DV mounts.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€29.95 (24.75 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1300 kHz (120 channels) ≤ 2.0
• Maximum continuous power: 15 Watts (CW)
• Power peak: 150 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 945 mm
• Weight: 385 gram
• Mounting type: On M6 male mount
• Antenna connector: M6 female

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 408 25 10 2012 snake omega t3
