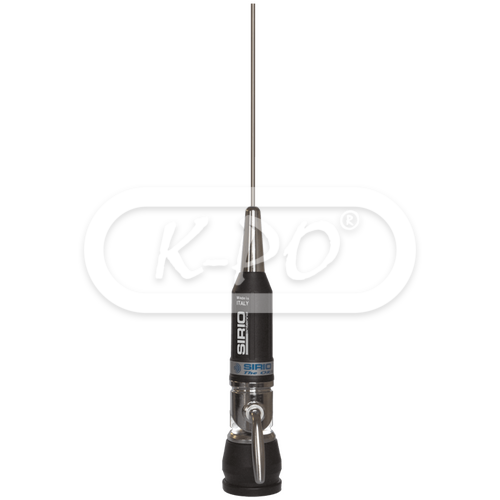

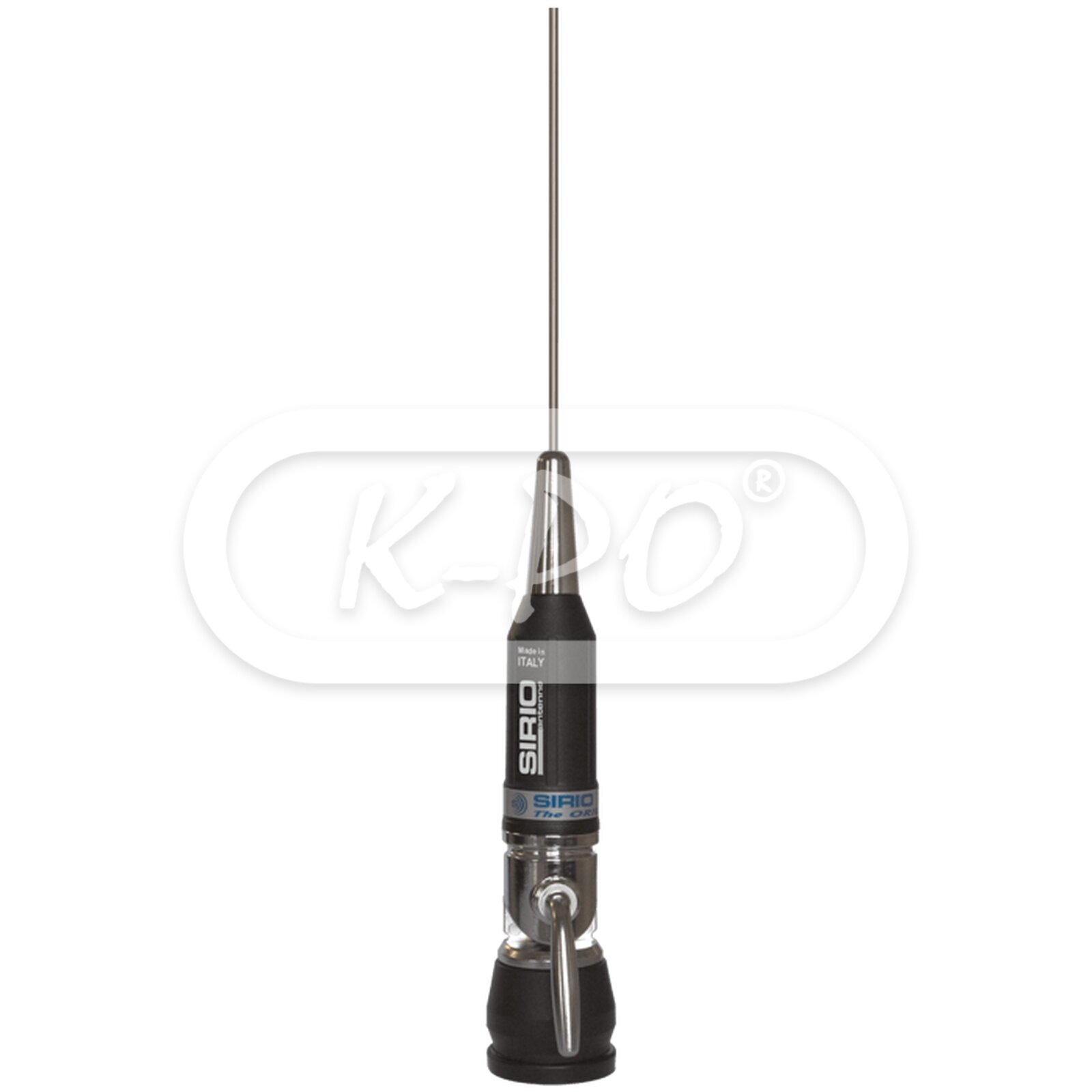

Sirio - Performer P-1000

Product code: 221820550

High power vehicular antenna working on 27 MHz or 10 meter band. The whip is made of 17/7 PH stainless steel and all the metallic parts are of chromed brass to get the best robustness.

Frequency range: 27 - 28.5 MHz

Note - Discontinued

€ -- (Discontinued)

Electrical data

• VSWR: ≤ 1.2
• Bandwidth: 2000 kHz (180 channels) ≤ 2.0
• Maximum continuous power: 200 Watts (CW)
• Power peak: 1000 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel 17/7 PH, nylon
• Height: 1950 mm
• Weight: 600 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 337 08 02 2005 performer
