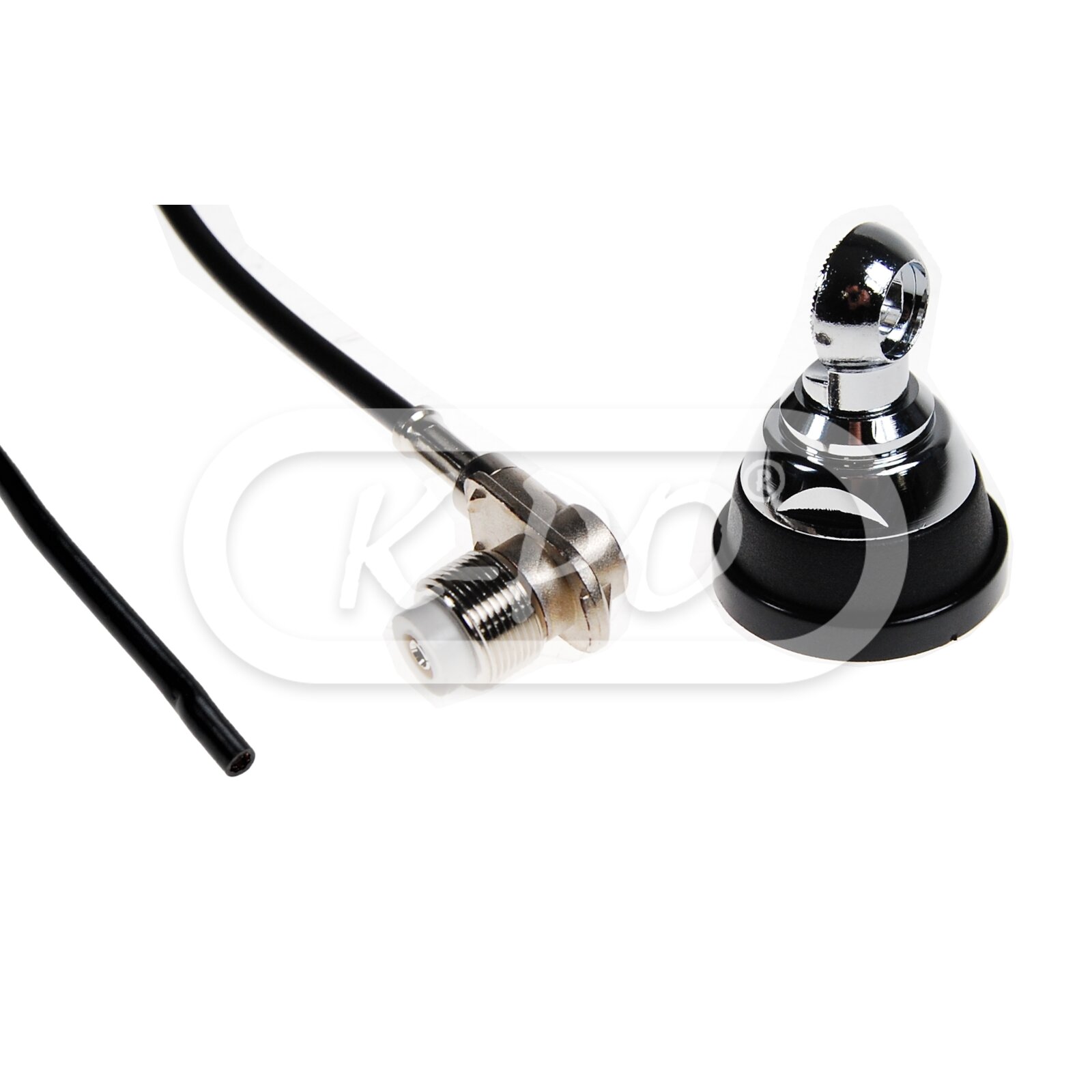

Sirio - S mount with cable

Product code: 2512005
Factory code: 2512005.00

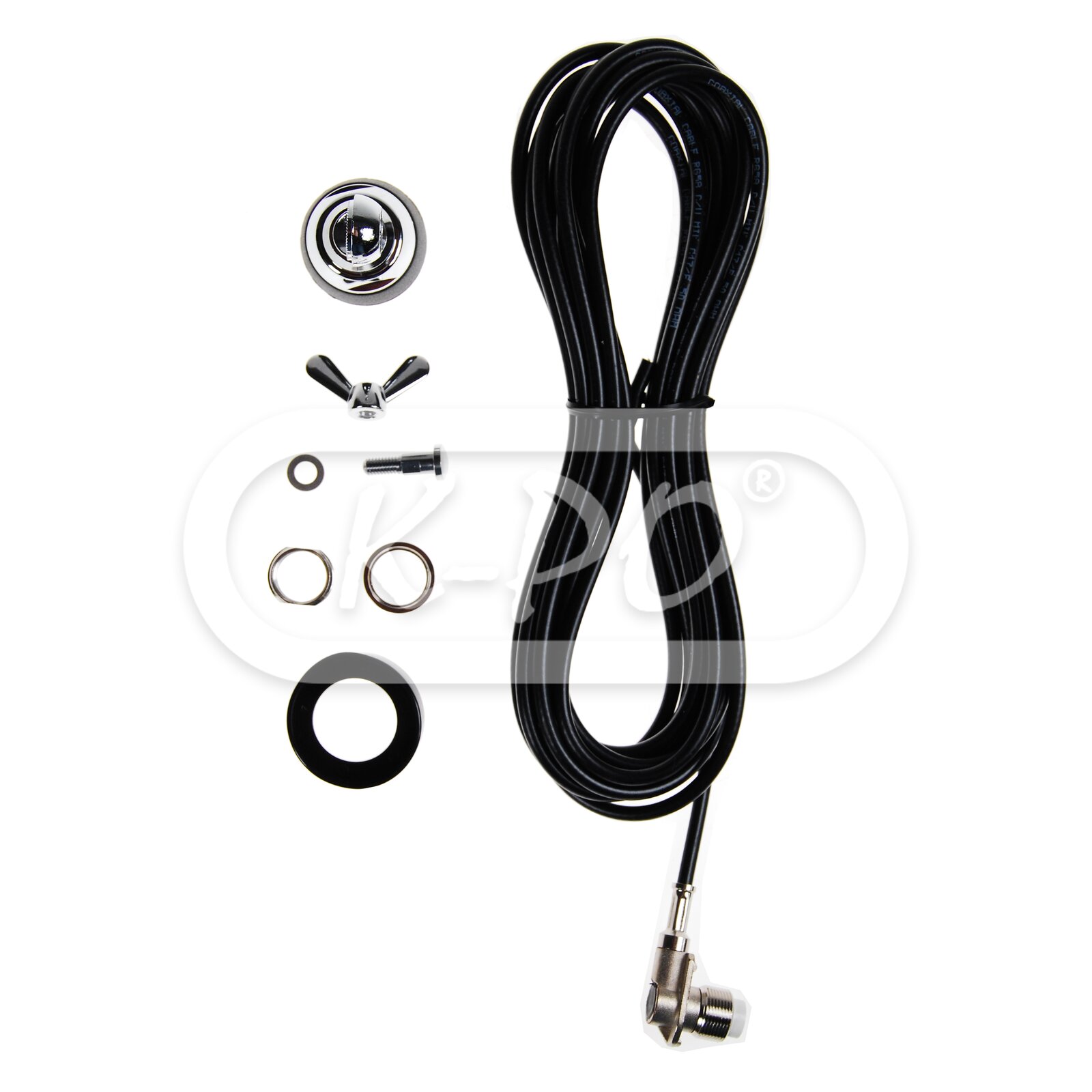

The S Mount with cable is a RG 58 antenna cable with mounted connector for the S mount and have a length of 4 meters.

Frequency range: 0 - 300 MHz
Shipped next business day
€21.45 (21.45 excl. 0% VAT)

Features

  • Sheath color: Black
  • Impedance: 50 Ohm

    Mechanical data

  • Cable type: RG 58
  • Length: 4 meters
  • Connectors: S Mount

    Attenuations dB/100m

  • 25 MHz: 7 dB
  • 50 MHz: 10 dB
  • 100 MHz: 15 dB
  • 200 MHz: 21 dB
  • 300 MHz: 26 dB
  • 400 MHz: 30 dB
  • 500 MHz: 34 dB
  • 800 MHz: 44 dB
  • 1000 MHz: 50 dB
