Sirio - SD-68

Product code: 210880168
Factory code: 2108801/68

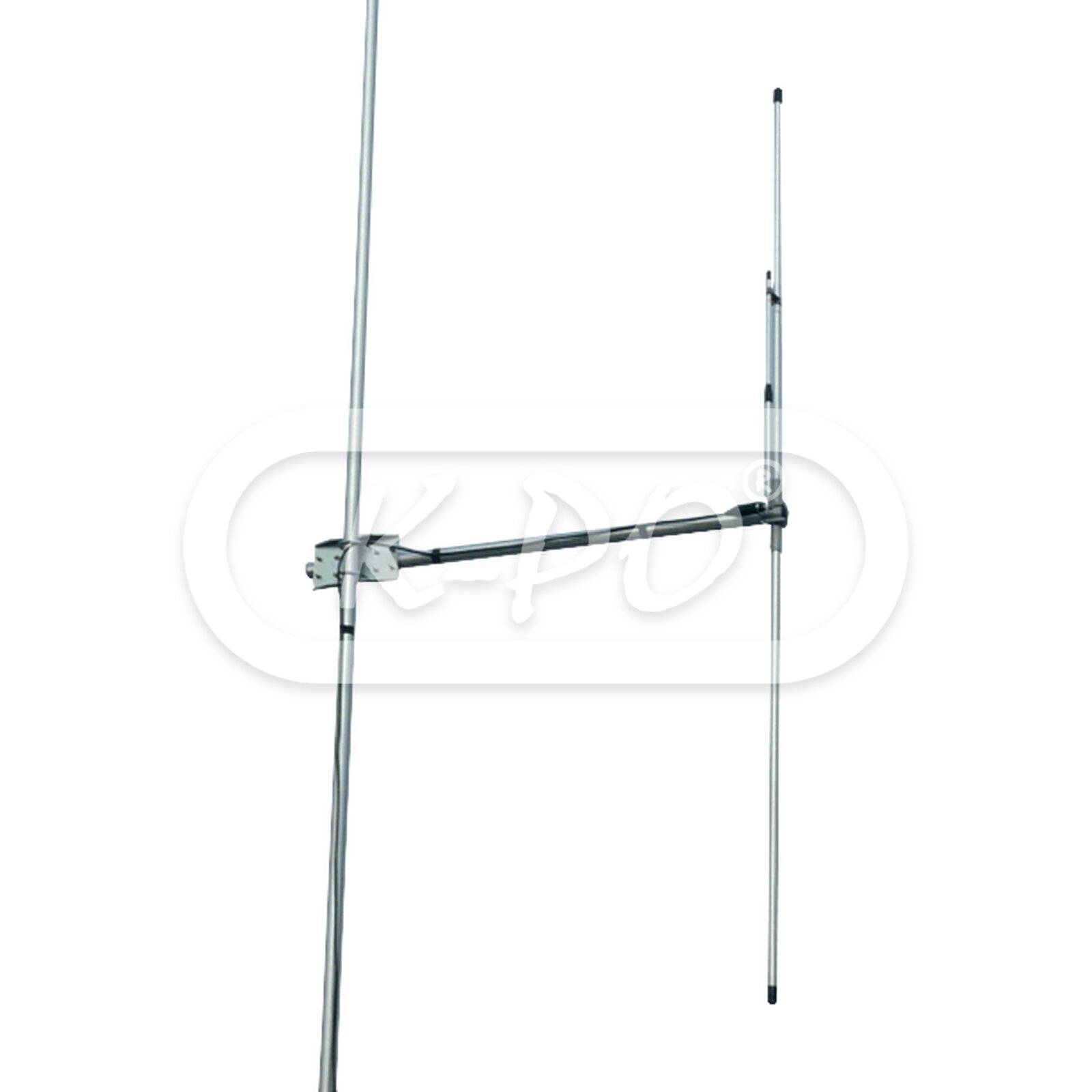

Dipole antenna for VHF 68-78 MHz with gamma match feed system. Elements and boom of generous section are completely made of anticorodal aluminum, and the steel bracket is placed in the rear position for the best performance in vertical polarization. The elements are fixed to the boom by a strong die-cast metal support to get the maximum strength. All connections are waterproof and it is supplied whit UHF female connector. All metal parts and hardware are weather resistant. To improve the antenna gain please install it in stacked or bayed array

Frequency range: 68 - 78 MHz (No tuning required)
Out of stock - Longer delivery time
€59.46 (59.46 excl. 0% VAT)

Electrical data

  • Electrical type: 1/2 λ
  • Gain: 1.85 dBd - 4 dBi
  • VSWR: ≤ 1.5
  • Power continues: 350 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical / Linear horizontal /

Mechanical data

  • Materials: Aluminium, Chromed brass, Galvanized steel, Zamak
  • Mast Ø: 35 - 52 mm
  • Max wind resistance: 113 N at 150 km/h
  • Height: 1915 mm
  • Width: 1065 mm
  • Weight: 2020 gram
  • Mounting type: On mast
  • Antenna connector: UHF-female
  • Tuning radius: 1065 mm
  • Operating temperature: -40° C to +80° C

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
