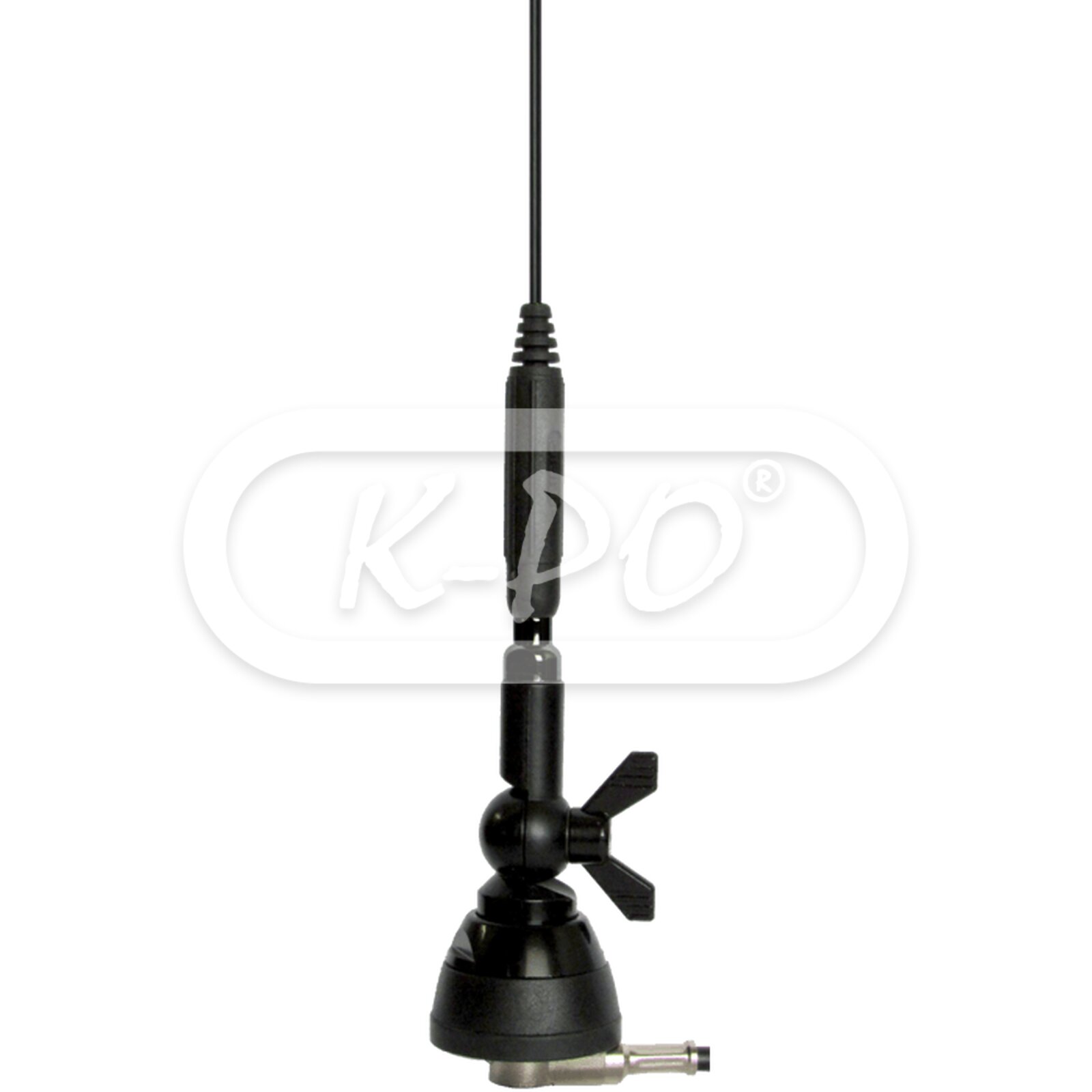

Sirio - SDB 270 SL-S Black

Product code: 992006

Factory code: 2209906.33

Barcode: 8056182112910

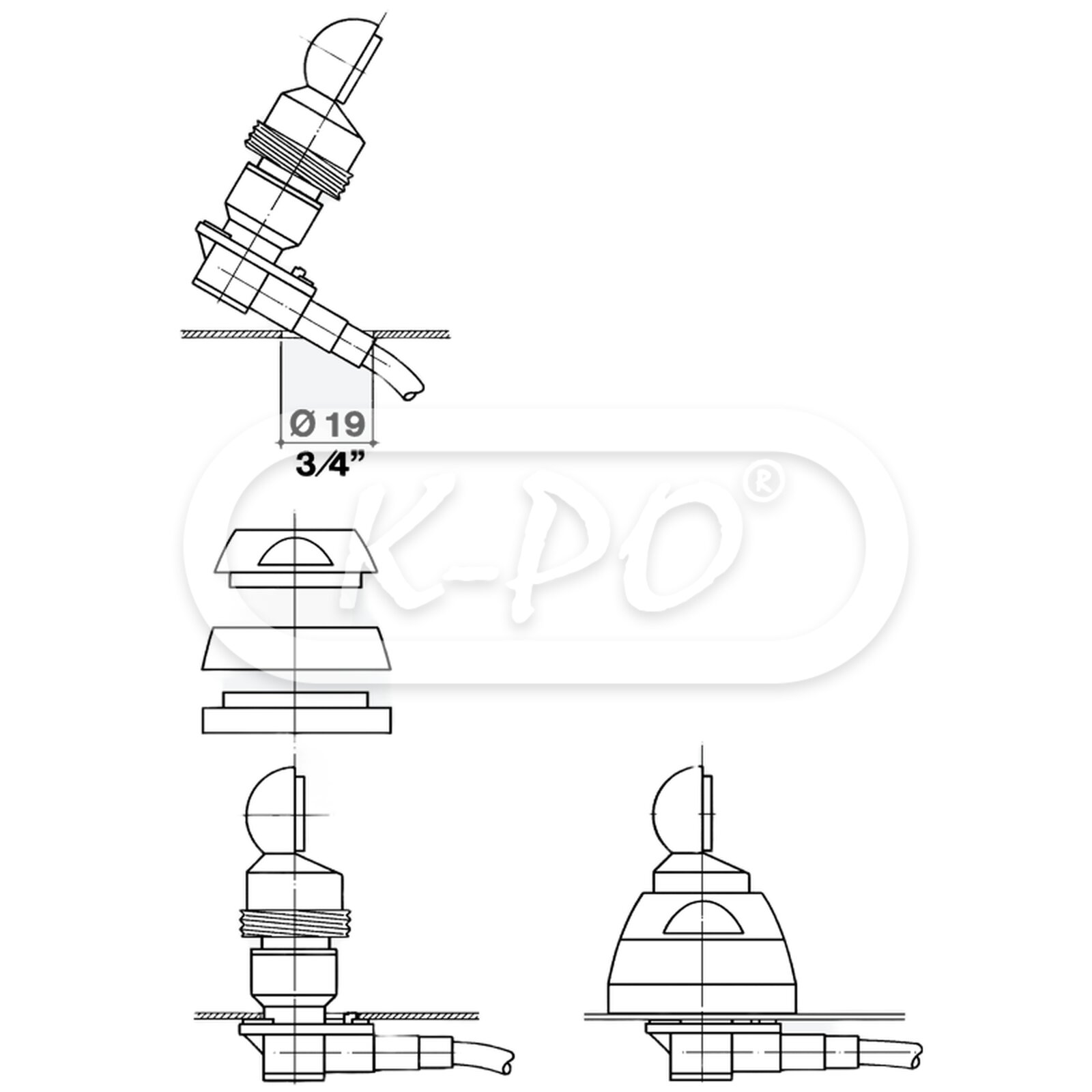

Pre-tuned dual band mobile antenne, peaked on 144 / 430 MHz. Can also be used for frequencies between 137 - 152 / 415 - 455 MHz with a VSWR of ≤ 2.0. Tiltable and adjustable whip. Comes with the Sirio SL-S installation mount.

Frequency range: 137 - 152 / 415 - 455 MHz

Shipped today - Stock: 6

€42.94 (35.49 excl. 21% VAT)

Electrical data

• Electrical type: VHF: 1/4 λ / UHF: 3/4 λ
• VSWR: 144 MHz ≤ 1.4 / 430 MHz ≤ 1.2 / ≤ 2.0 @ 137 - 152 / 415 - 455 MHz
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Chromed brass, stainless Steel 17/7 PH, nylon
• Height: 535 mm
• Weight: 360 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 149 26 06 2014
