Sirio - SG-CB 1400

Product code: 200614

Factory code: 2211405.05

Barcode: 8056182114655

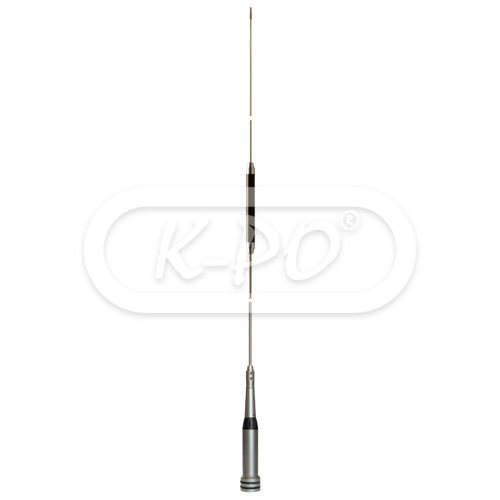

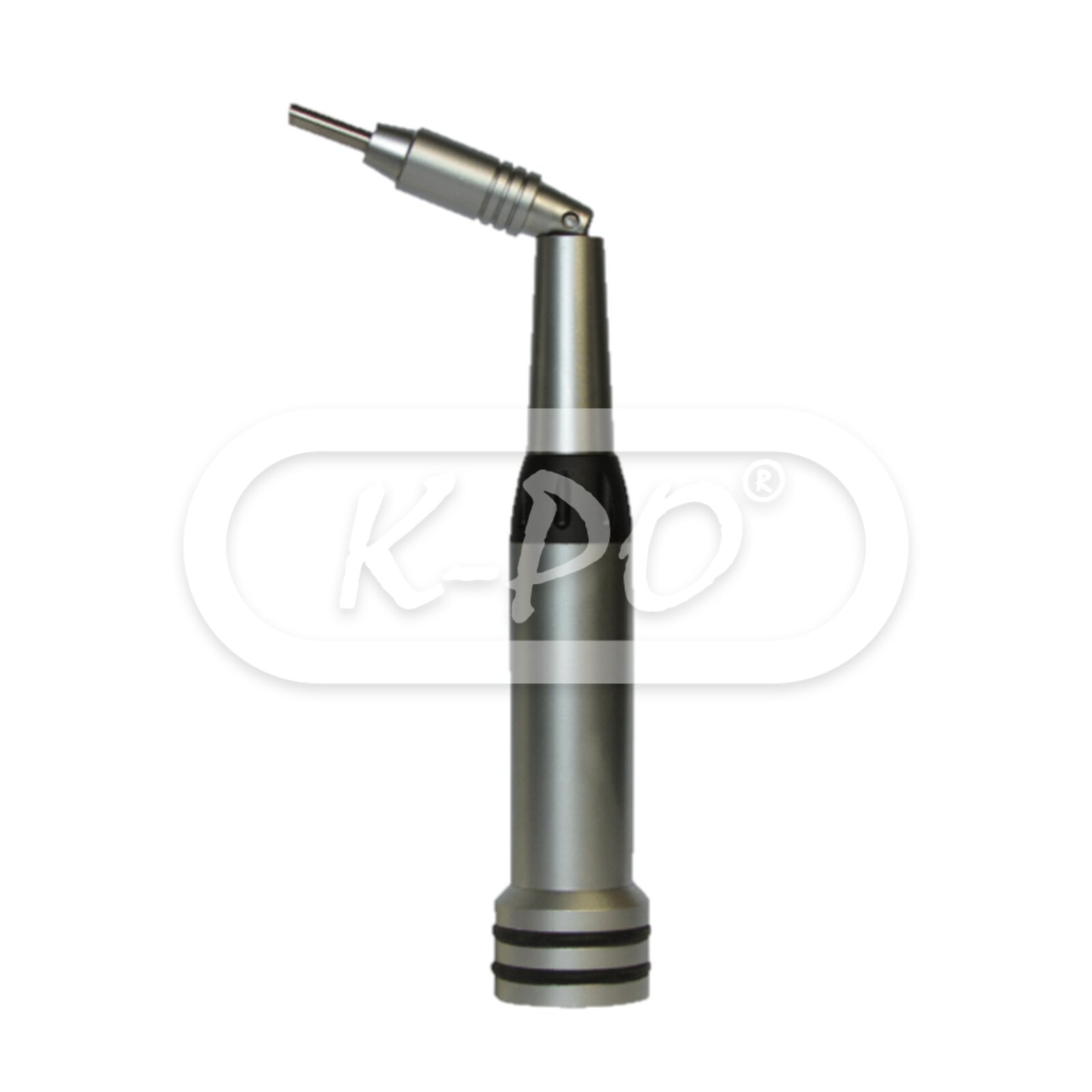

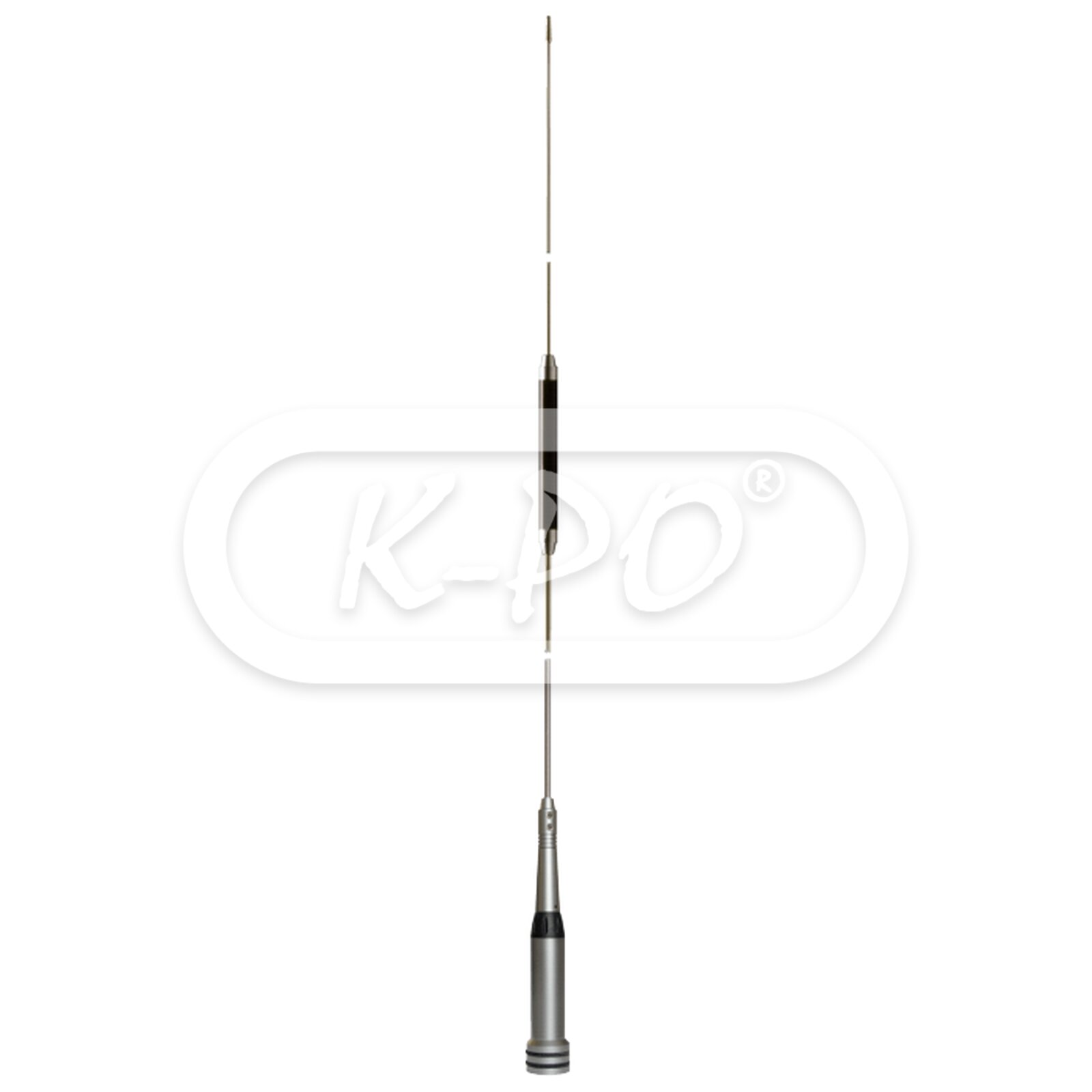

An 1.40 meter high power CB antenna with the looks of an amateur antenna. 1/4 wave and central loaded. With Sirio HP tilting system.

Frequency range: 27 - 28.5 MHz

Out of stock - Longer delivery time

€46.95 (38.8 excl. 21% VAT)

Electrical data

• Electrical type: Central loaded
• VSWR: ≤ 1.2
• Bandwidth: 1100 kHz (100 channels) ≤ 2.0
• Maximum continuous power: 120 Watts (CW)
• Power peak: 360 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Copper, chromed brass, stainless steel, fiberglass
• Height: 1400 mm
• Weight: 320 gram
• Mounting type: On UHF-female (PL) connector (not included)
• Antenna connector: UHF-male (PL)

Inside the box

• Antenna: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 205 sg cb 07 05 2012
