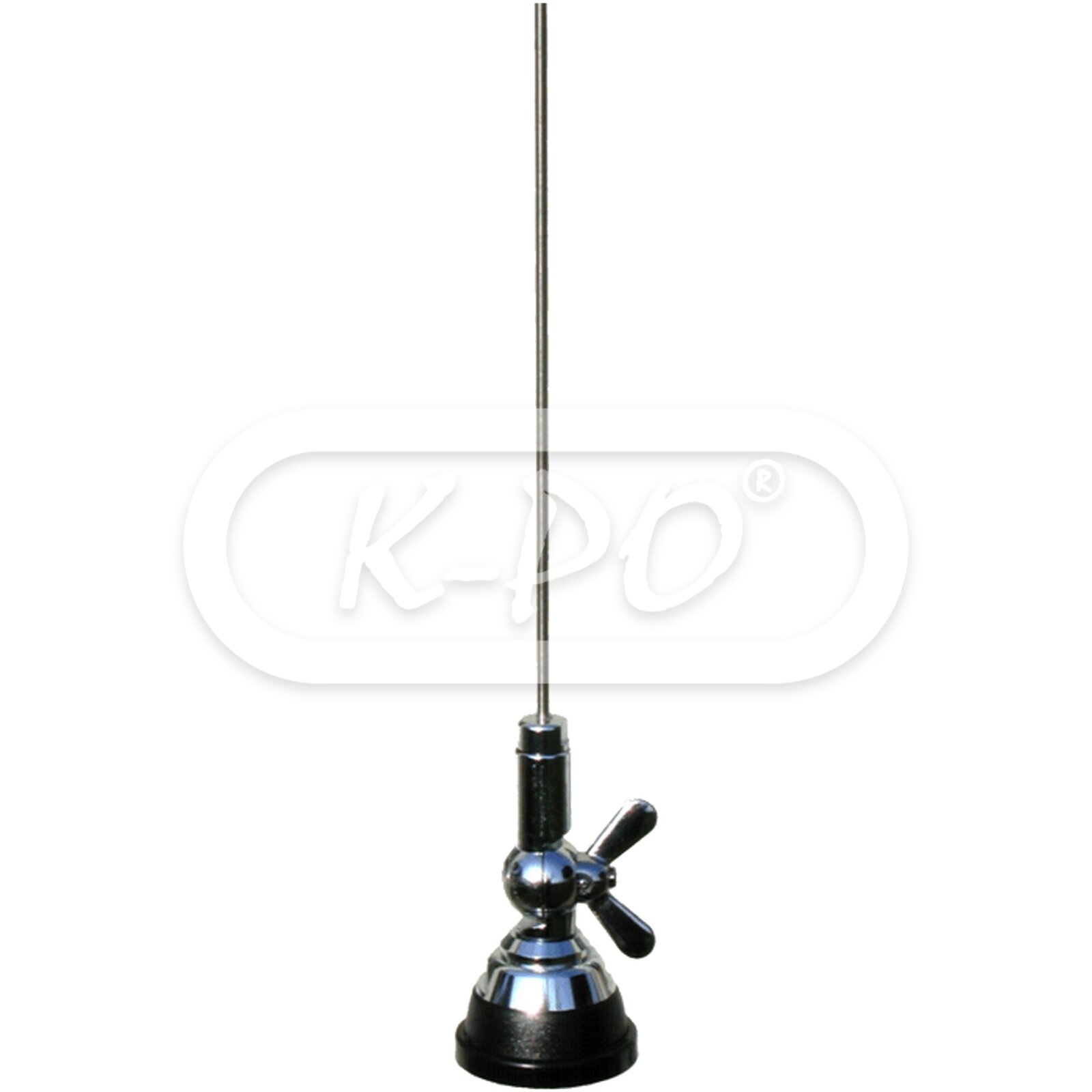

Sirio - SMA 108-550 SL

Product code: 220530532

Factory code: 2205305.32

Barcode: 8056182114280

1/4 λ mobile antenna covering the frequency range of 108 - 300 MHz. Tuning on frequency by using the enclosed cutting diagram. SMA series is made of 17/7 PH stainless steel rod. Can be used for VHF and UHF mobile radios, taxi radios and other applications.

Frequency range: 108 - 300 MHz tunable by cutting

Shipped next business day

€32.95 (27.23 excl. 21% VAT)

Electrical data

• Electrical type: 1/4 λ
• VSWR: See the product manual under downloads
• Bandwidth: See the product manual under downloads
• Maximum continuous power: 100 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Chromed brass, stainless steel 17/7 PH, nylon
• Height: 720 mm, height depending on frequency
• Weight: 400 gram

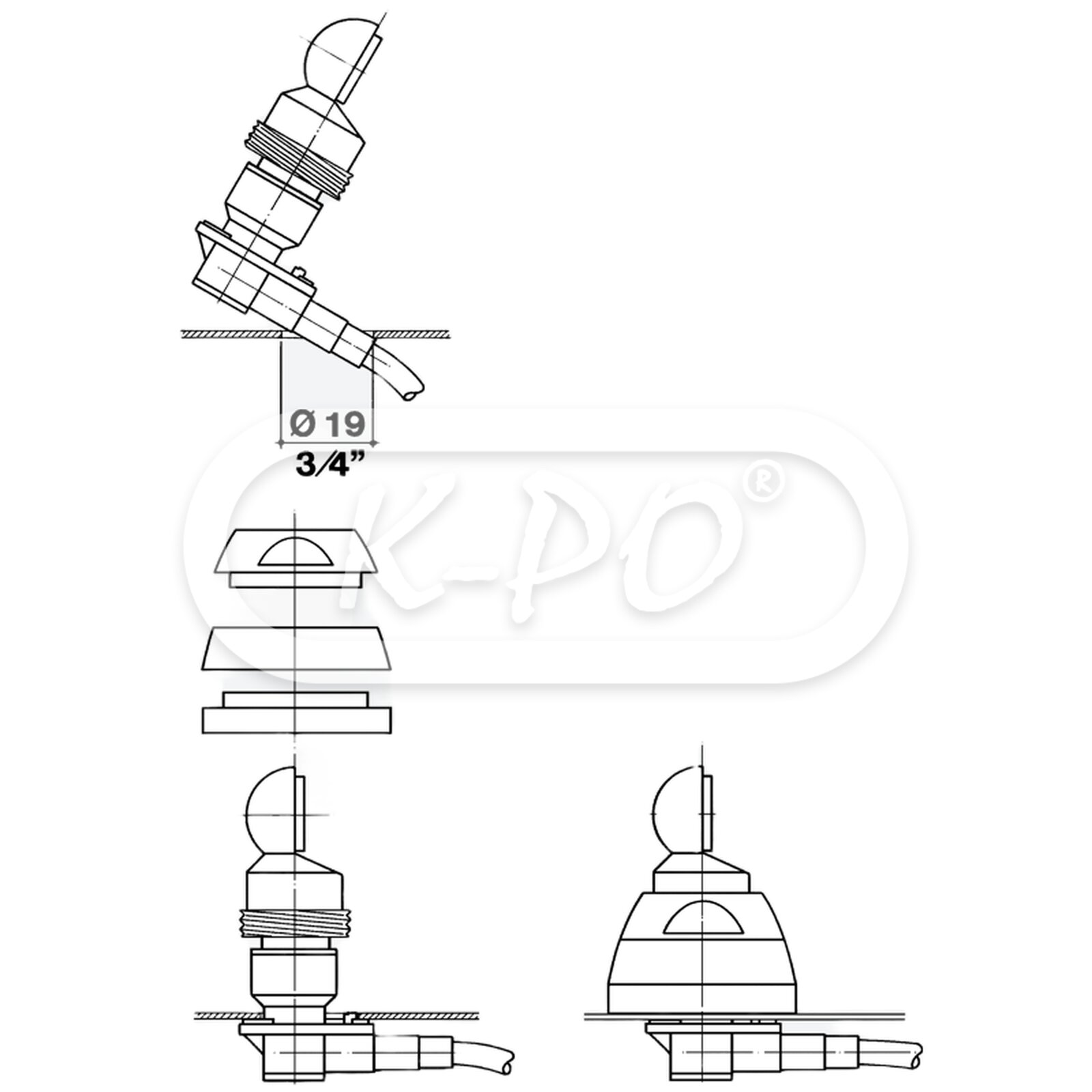

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 369 15 06 2006 SMA 55108 550
