Sirio - SMA 47/135 S

Product code: 220510528

Factory code: 2205105.28

Barcode: 8056182114235

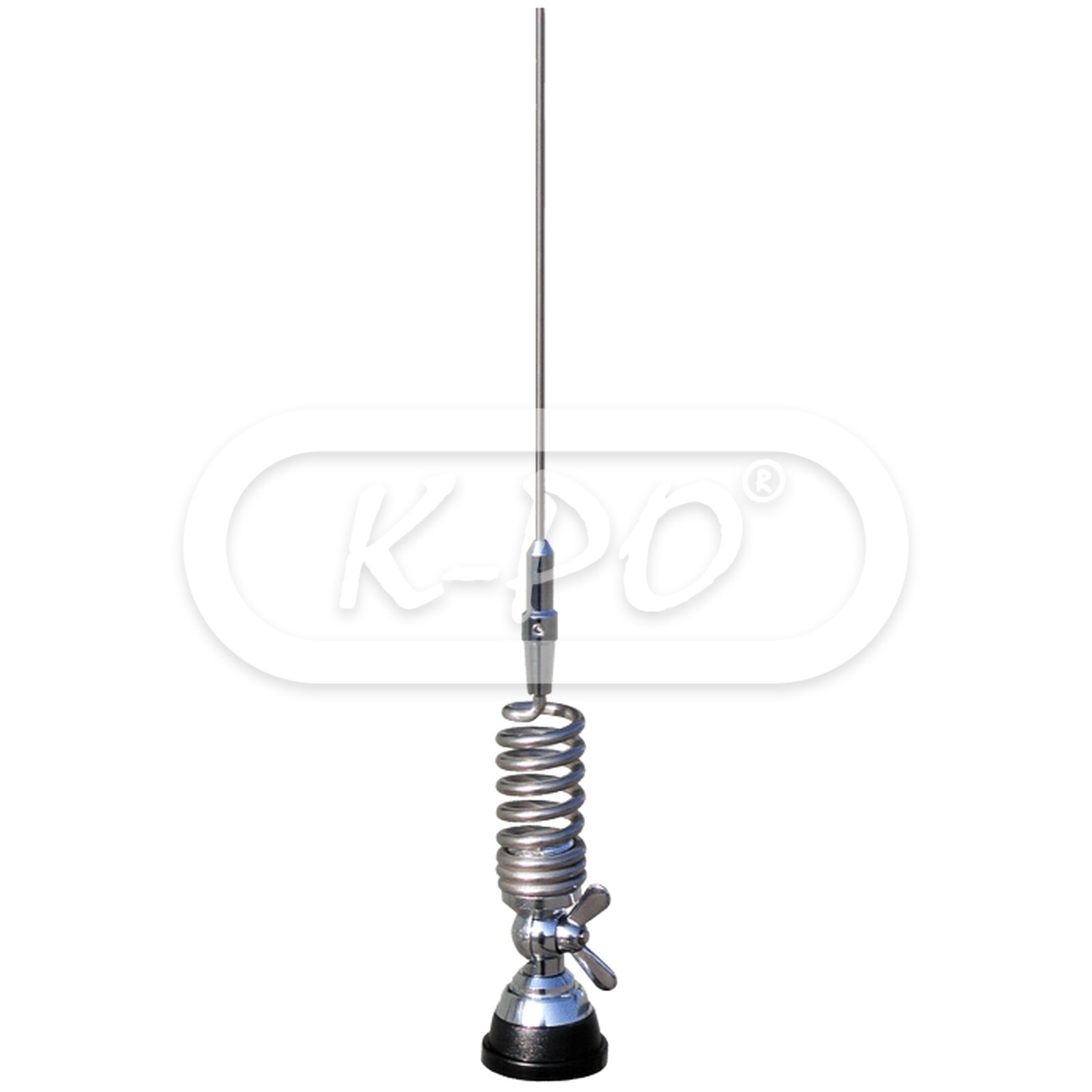

Tunable dual band VHF vehicular antennas working on 6 meter band (46.5 - 61.5 MHz) and 2 meter band (135 - 175 MHz). SMA series are made of tapered 17/7 PH stainless steel of very high flexibility. Supplied with a strong stainless steel spring.

Frequency range: 46.5 - 61.5 / 135 - 175 MHz tunable

Out of stock - Longer delivery time

Available from - 06-11-2025

€39.95 (33.02 excl. 21% VAT)

Electrical data

• Electrical type: 46.5 - 61.5 MHz: 1/4 λ / 135 - 175 MHz: 5/8 λ
• Gain: 46.5 - 61.5 MHz: 0 dB / 135 - 175 MHz: 2 dB
• VSWR: ≤ 1.3 at tuned frequency, on both bands
• Maximum continuous power: 100 Watts
• Impedance: 50 Ohm
• Polarization: Linear vertical
• Cable: Yes
• Cable length: 5 meter / RG 58

Mechanical data

• Materials: Stainless steel 17/7 PH, nylon, chromed Brass
• Height: 1505 mm
• Weight: 550 gram

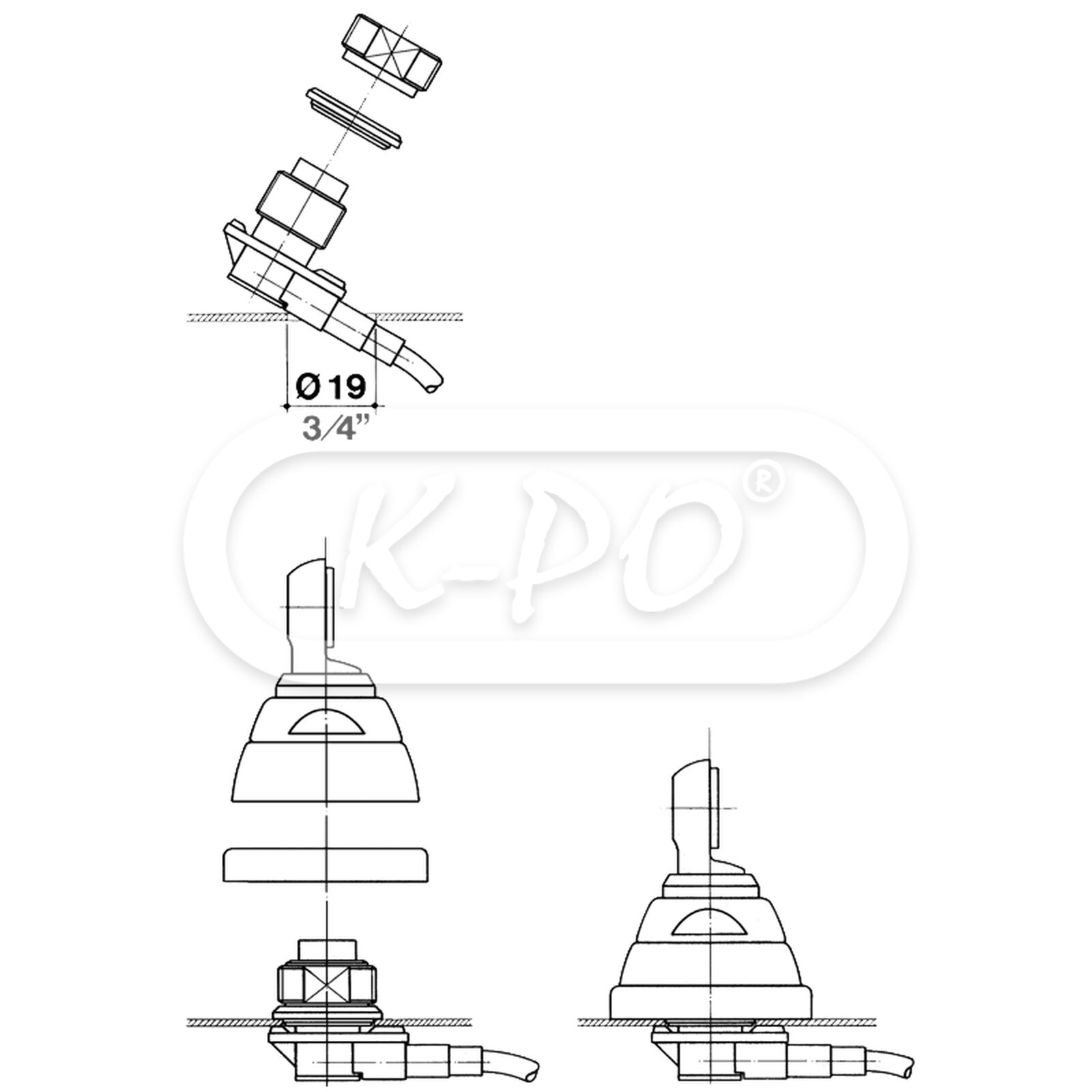

• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 226 25 05 2006
