Sirio - SMP-X WLAN MiMo Cable

Product code: 211280300

Factory code: 2112803.00

Barcode: 8056182115867

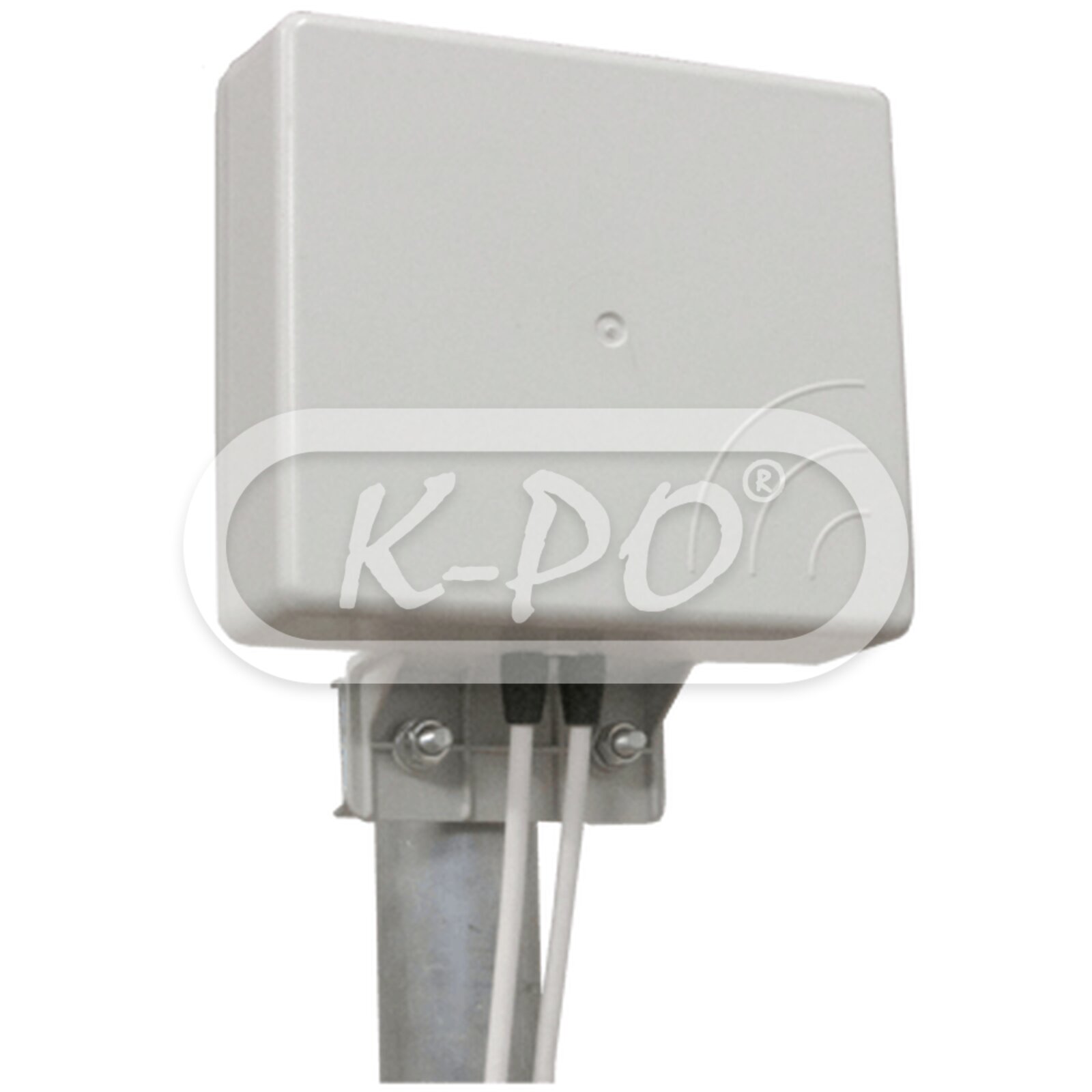

Very compact directional multi-band panel antenna for 2.4-2.5 and 5.15-5.89 GHz for WiFi 2.4 GHz and WiFi 5 GHz, no tuning required.

Easy and quick installation on mast or wall.

Frequency range: 2.4-2.5 GHz / 5.15-5.89 GHz (No tuning required)

Shipped next business day

€79.94 (66.07 excl. 21% VAT)

Electrical data

• Electrical type: Mini panel
• Gain: 2.4 - 2.5 GHz: 7 dBi / 5.15 - 5.89 GHz: 11.4 dBi
• VSWR: See the product manual under downloads
• Maximum continuous power: 2.4 - 2.5 GHz: 20 Watts (CW) / 5.15 - 5.89 GHz: 8 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Cross
• Cable: Yes
• Cable length: 2x 30 cm / White low loss

Mechanical data

• Materials: Galvanized steel, Thermoplastic UV stabilized, PCB
• Mast Ø: 25 - 42 mm
• Max wind resistance: 180 km/h
• Length: 154 mm
• Height: 134 mm (170 mm including mounting base)
• Width: 36 mm (66 mm including mounting base)
• Weight: 420 gram
• Mounting type: On mast, on wall

Inside the box

• Antenna: Yes
• Radio connector: 2x SMA-male
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English

Downloads

• Datasheet: Id 473 SMP X W Lan Mi Mo 22 03 2021
