Sirio - Snake 27

Product code: 19

Factory code: 2204306.01

Barcode: 8056182114129

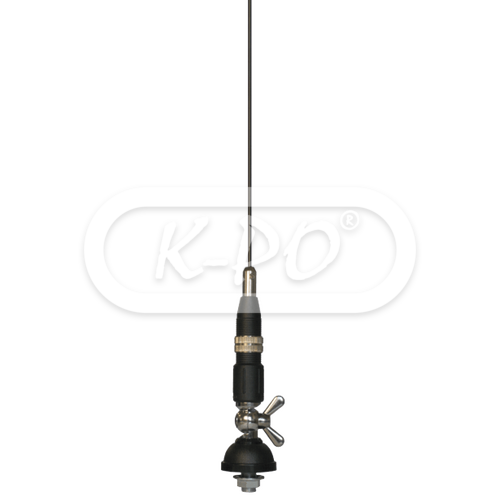

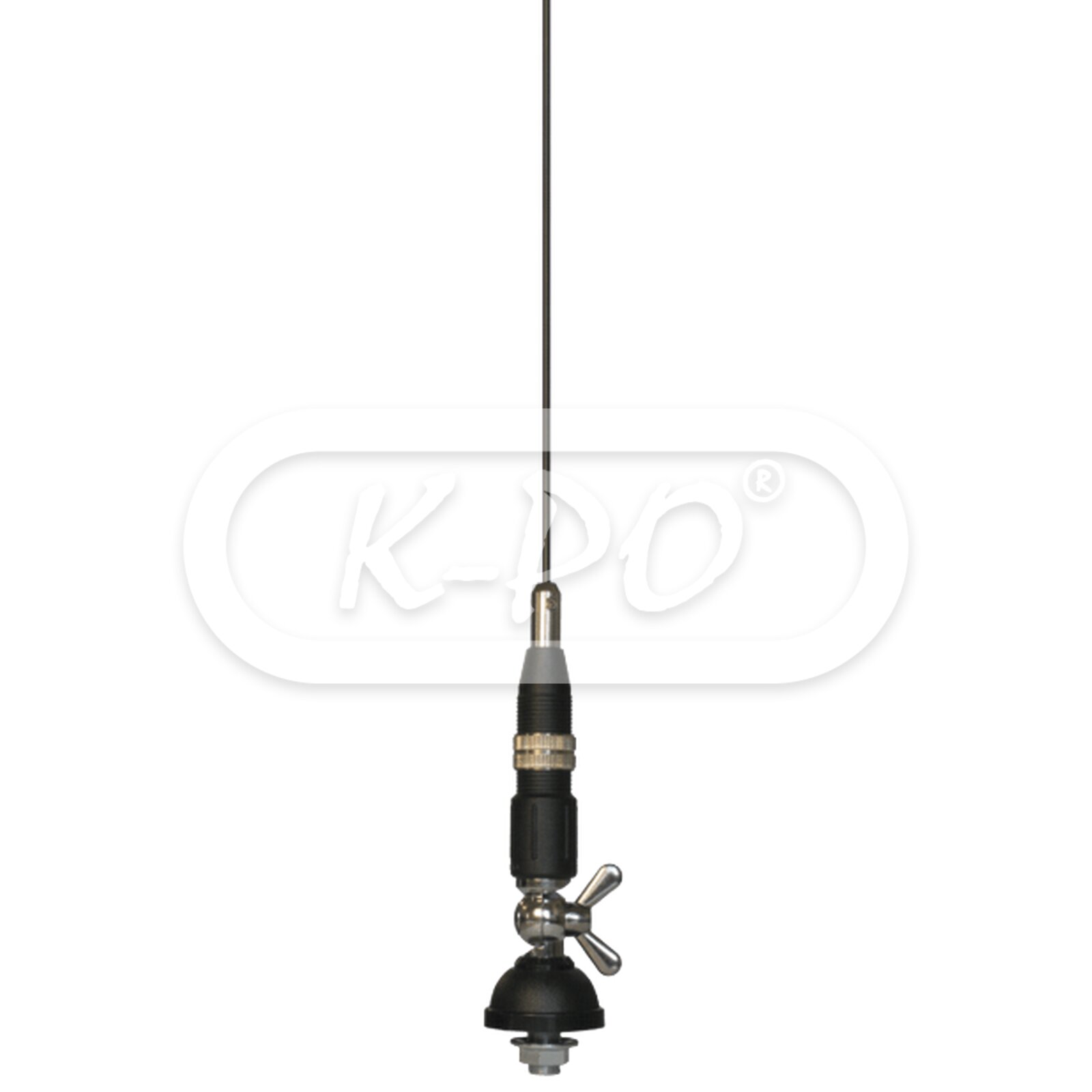

Also known as 'Cobra'. Black conical chromed stainless steel whip. Can be tilted 180 degrees. Easy fine tuning by turning the metallic rings up and down.

Frequency range: 26.5 - 27.4 MHz

Shipped next business day - Stock: 7

€31.94 (26.4 excl. 21% VAT)

Electrical data

• Electrical type: Base loaded
• VSWR: ≤ 1.2
• Bandwidth: 1800 kHz (160 channels) ≤ 2.0
• Maximum continuous power: 10 Watts (CW)
• Power peak: 40 Watts (CW)
• Impedance: 50 Ohm
• Cable: Yes
• Cable length: 4 meter / RG 58

Mechanical data

• Materials: Copper, brass, stainless steel, nylon
• Height: 1125 mm
• Weight: 350 gram
• Mounting type: Thru-hole

Inside the box

• Antenna: Yes
• Radio connector: Not included, optional
• Mounting parts: Yes
• Antenna cable: Yes
• Installation manual: English, Italian

Downloads

• Datasheet: Id 046 10 01 2020 snake minisnake web
