Sirio - SO 437 N

Product code: 2112920437

Factory code: 2112920/437

Barcode: 8056182113603

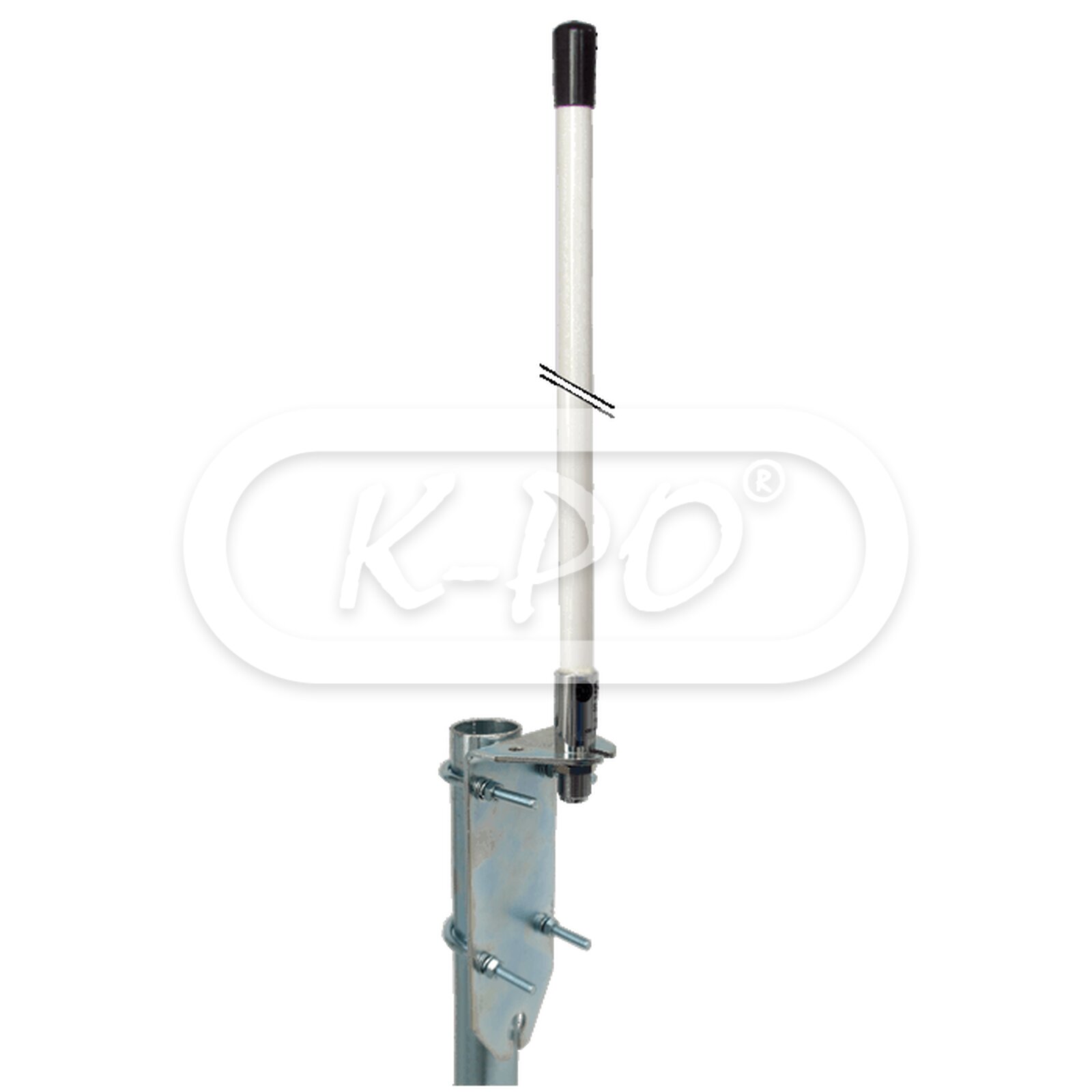

Base station antenna conceived for 70 cm band (430-450 MHz) systems.

The radiant element is made of PCB and protected by a strong fiberglass tube.

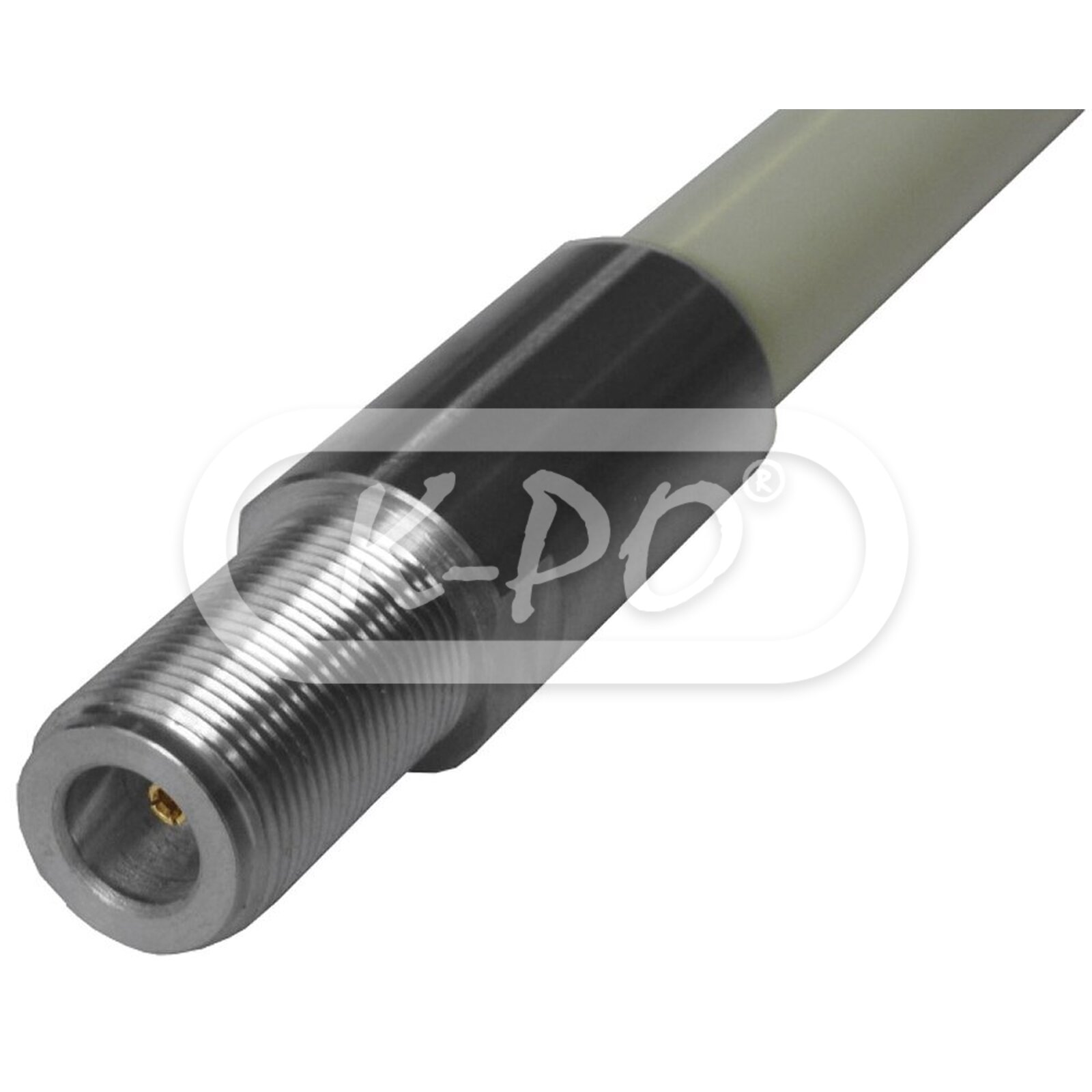

The SO 437 N comes with an N-female connector with a gold-plated central pin.

Frequency range: 430 - 450 MHz

Shipped next business day - Stock: 8

€43.95 (36.32 excl. 21% VAT)

Electrical data

• Gain: 0 dBd, 2.15 dBi
• Maximum continuous power: 20 Watts (CW)
• Polarization: Linear vertical

Mechanical data

• Materials: Chromed brass, galvanized steel, fiberglass.
• Mast Ø: 35 - 42 mm
• Max wind resistance: 200 km/h
• Height: 530 mm
• Weight: 150 gram
• Mounting type: On mast, on wall
• Antenna connector: N-female, gold plated center pin

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 462 08 09 2021 SO169 N SO437 N
