Certified European Distributor

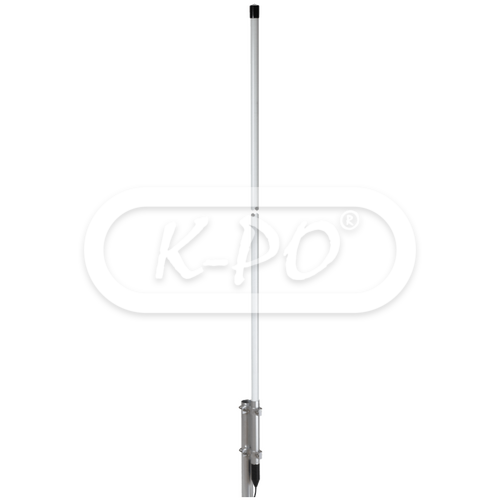

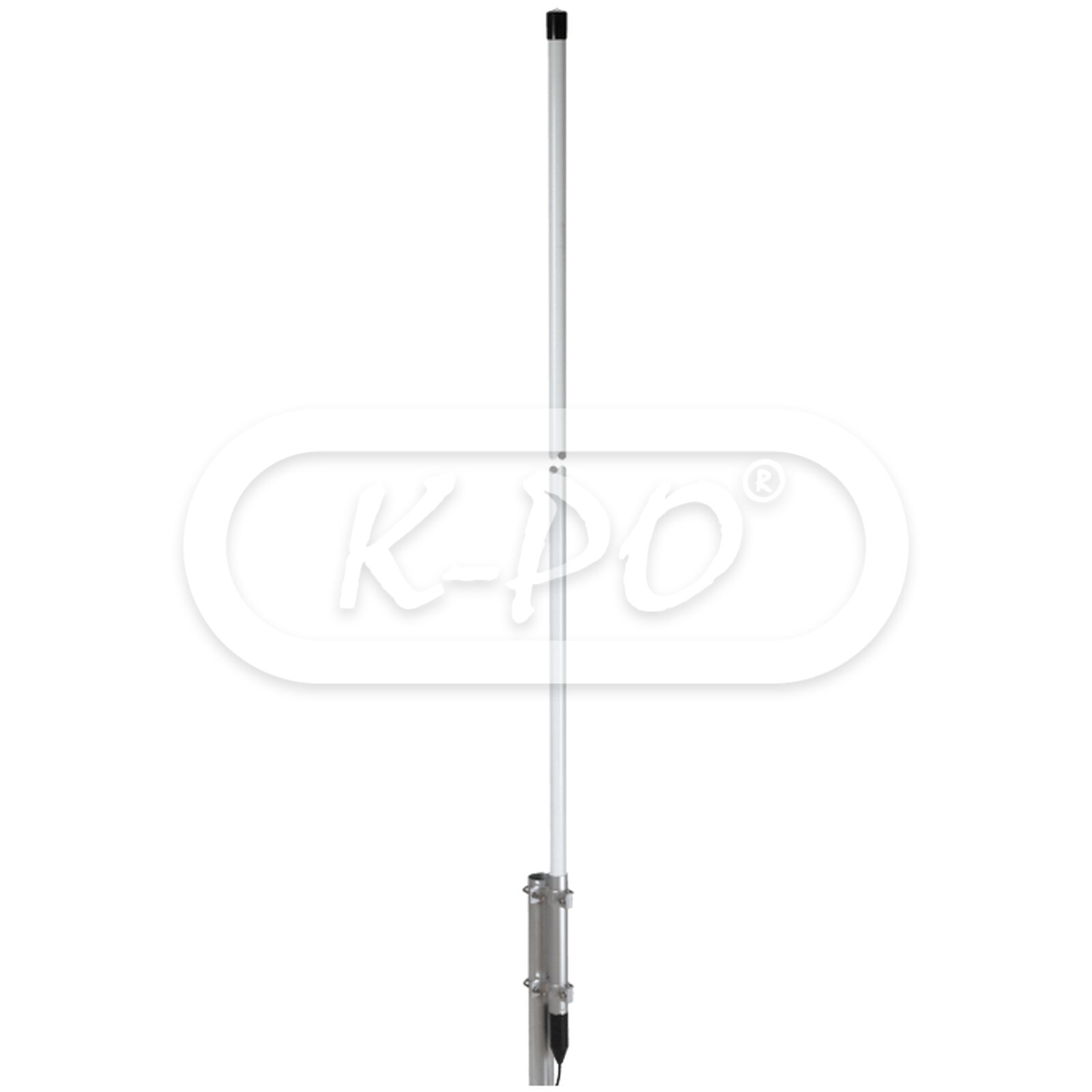

Sirio - SPO 380-8

Product code: 2115320380
Factory code: 2115320/380
Barcode: 8056182113887

New series of wide band omni-directional base station antennas for UHF band, 380 - 406 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

We can not ship this product, shipping cost on request.

Frequency range: 380 - 406 MHz
Out of stock - Longer delivery time
€189.95 (156.98 excl. 21% VAT)

Electrical data

  • Electrical type: Colinear
  • Gain: 6 dBd, 8.15 dB
  • VSWR: ≤ 1.5
  • Maximum continuous power: 75 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
  • Mast Ø: 35 - 54 mm
  • Max wind resistance: 150 km/h
  • Height: 2940 mm
  • Weight: 2040 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
