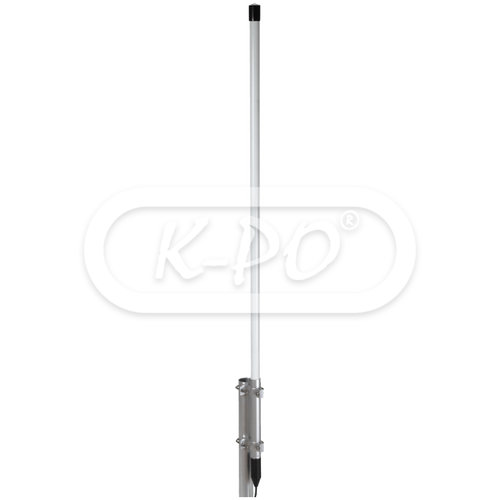

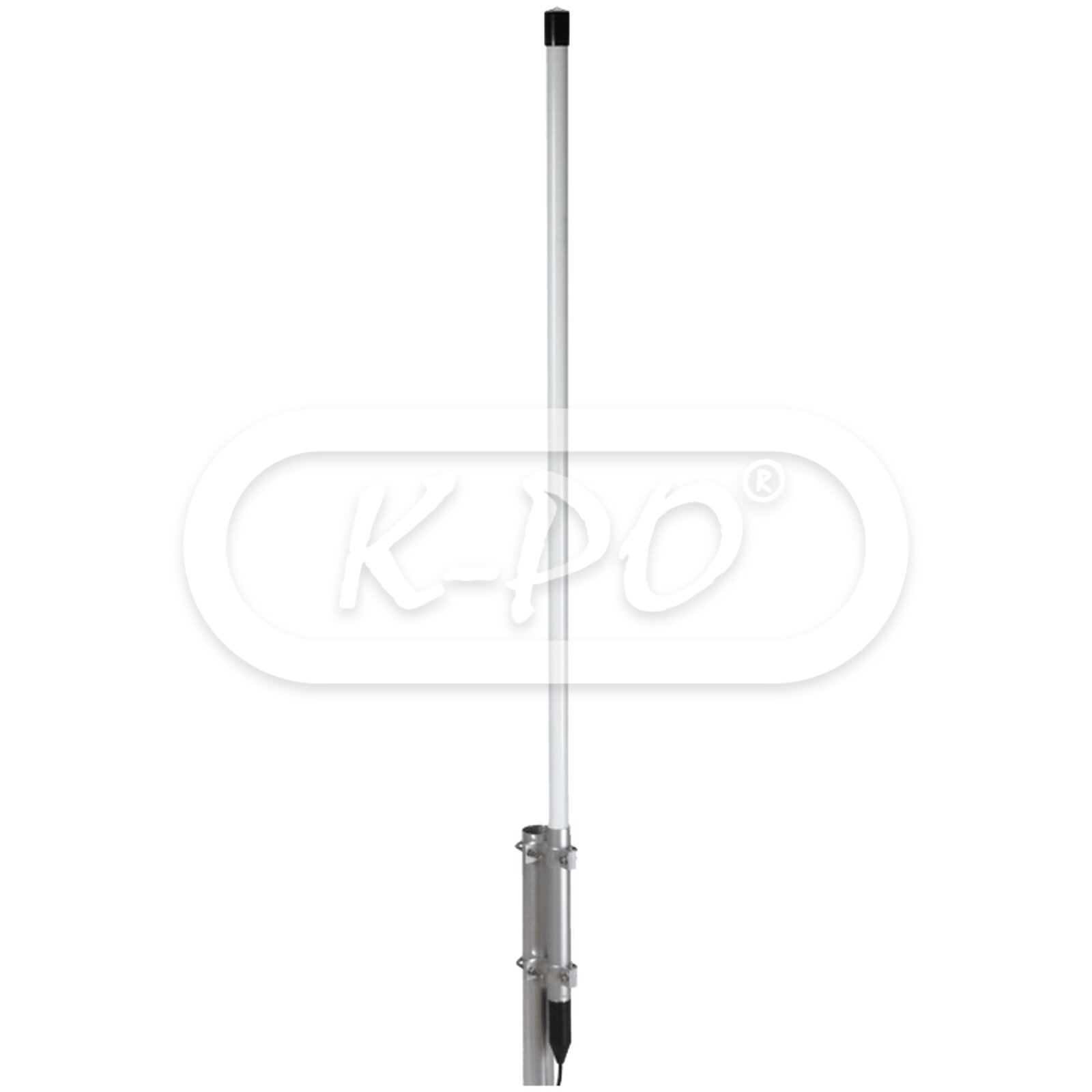

Sirio - SPO 450-5

Product code: 2115120450
Factory code: 2115120/450

New series of wide band omni-directional base station antennas for UHF band, 450 - 510 MHz. The fiberglass protection random and the anodized aluminium parts guarantee robustness and long life to all the SPO-antennas series. They are supplied with two strong extruded aluminium brackets and stainless steel hardware for a good installation on the mast.

Frequency range: 450 - 510 MHz
Note - Price on request
€ -- (Price on request)

Electrical data

  • Electrical type: Colinear
  • Gain: 3 dBd, 5.15 dBi
  • VSWR: ≤ 1.5
  • Power continues: 75 Watts (CW)
  • Impedance: 50 Ohm
  • Polarization: Linear vertical

Mechanical data

  • Materials: Anodized aluminium, brass, stainless steel, fiberglass, EPDM rubber
  • Mast Ø: 35 - 54 mm
  • Max wind resistance: 200 km/h
  • Height: 1070 mm
  • Weight: 1090 gram
  • Mounting type: On mast
  • Antenna connector: N-female

Inside the box

  • Antenna: Yes
  • Mounting parts: Yes
  • Installation manual: English
