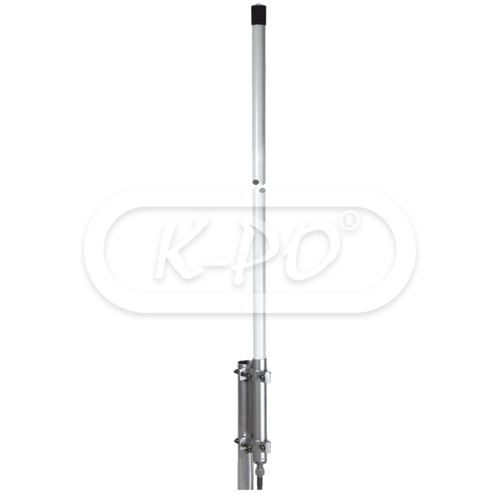

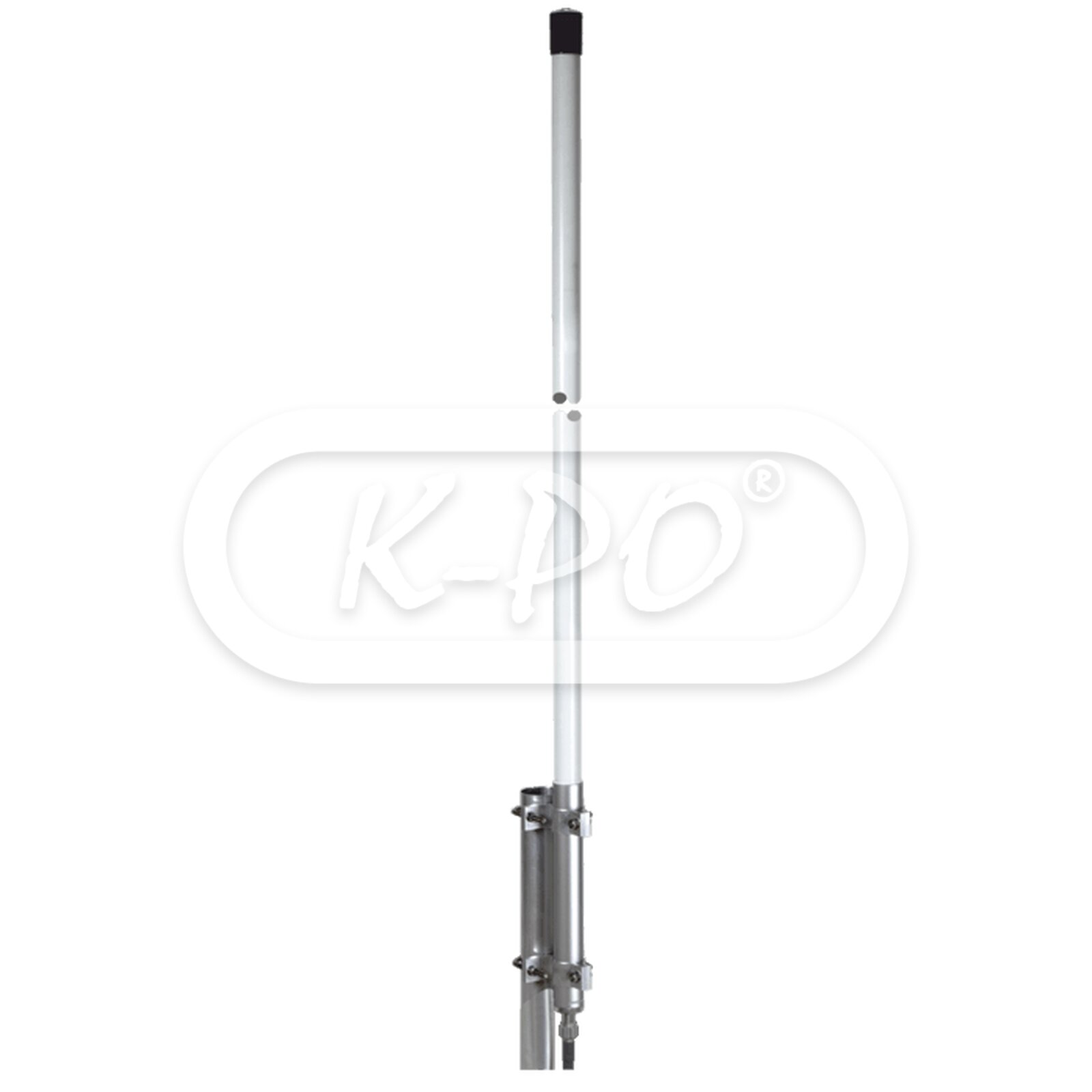

Sirio - SPO 868-8 N-f

Product code: 211302000

Factory code: 2113020.00

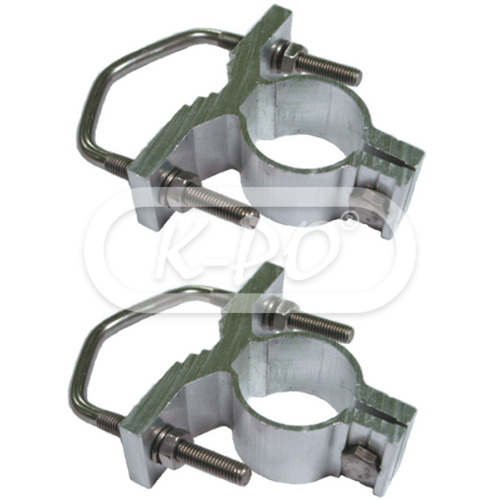

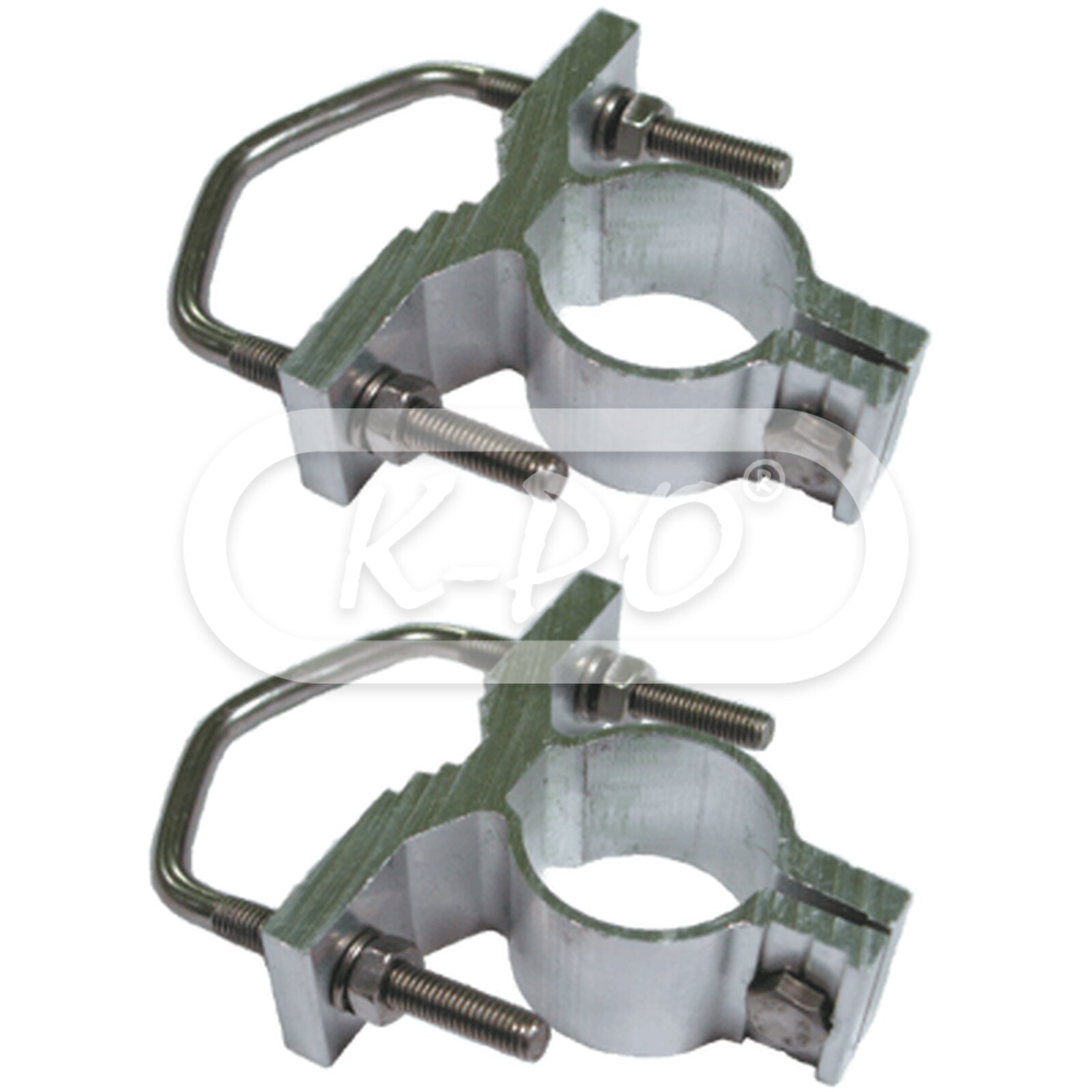

New - 8 dBi base station antenna conceived for ISM/LoRa system working on 868 - 870 MHz, no tuning required. Can be used for cryptomining (Helium Miner) too. The radiant colinear dipoles are made of PCB and protected by a fiberglass tube. With N female connector, including the Sirio FT-5 bracket.

Frequency range: 868 - 870 MHz

Shipped next business day - Stock: 4

€159.95 (132.19 excl. 21% VAT)

Electrical data

• Electrical type: Colinear
• Gain: 5.9 dBd - 8.0 dBi
• VSWR: ≤ 1.3
• Maximum continuous power: 20 Watts (CW)
• Impedance: 50 Ohm
• Polarization: Linear vertical

Mechanical data

• Materials: Anodized aluminium, nickel plated brass, fiberglass, PCB
• Mast Ø: 35 - 60 mm
• Max wind resistance: 180 km/h
• Height: 1600 mm
• Weight: 1020 gram
• Mounting type: On mast
• Antenna connector: N-female, gold plated central pin

Inside the box

• Antenna: Yes
• Mounting parts: Yes
• Installation manual: English

Downloads

• Datasheet: Id 494 04 11 2024 SPO868 810 web
